Bumpers 3 of Lamborghini Lamborghini Aventador LP740 S

View All

Lamborghini Aventador LP740 S - Bumpers 3

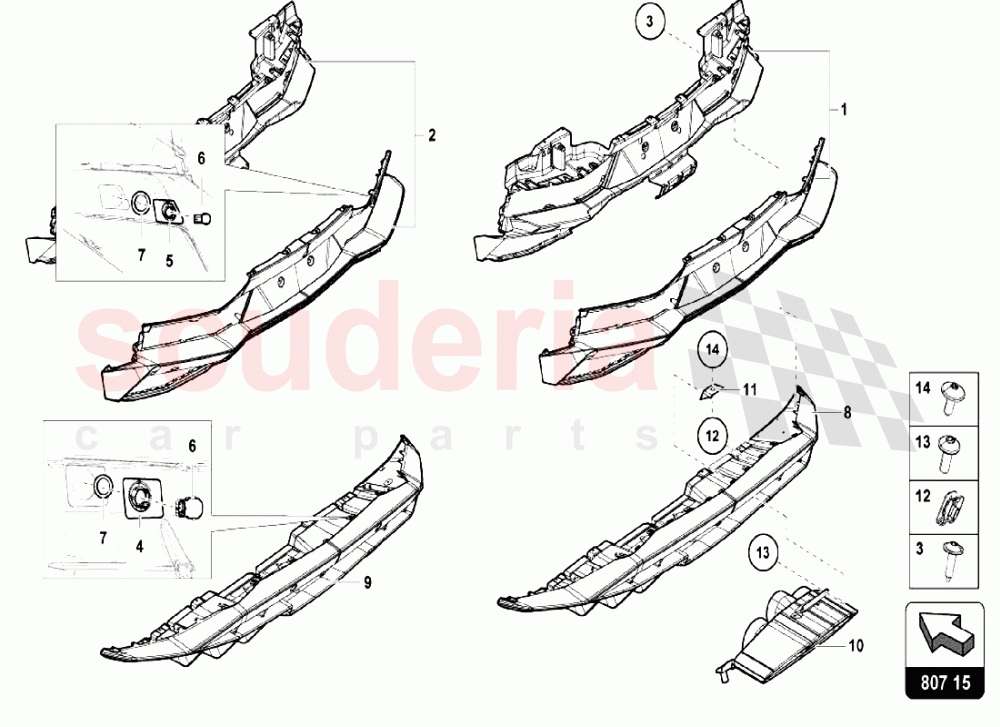

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470807301AC	Bumper (without Park Distance Control And Parking Sensors-rear)	470807301AC Bumper (without Park Distance Control And Parking Sensors-rear)	-	1	Enquire
002	470807301AD	Bumper (rear View Camera With Parking Sensors-rear)	470807301AD Bumper (rear View Camera With Parking Sensors-rear)	-	1	Enquire
003	N90698606	HEXAGON SOCKET HEAD PANEL BOLT	N90698606 HEXAGON SOCKET HEAD PANEL BOLT	-	18	Enquire
004	470919289B	Sensor Bracket (center, Left)	470919289B Sensor Bracket (center, Left)	-	1	Enquire
004	470919290B	Sensor Bracket (center, Right)	470919290B Sensor Bracket (center, Right)	-	1	Enquire
005	470919330B	Sensor Bracket (side, Right)	470919330B Sensor Bracket (side, Right)	-	1	Enquire
005	470919329B	Sensor Bracket (side, Left)	470919329B Sensor Bracket (side, Left)	-	1	Enquire
006	1S0919275C	SENSOR	1S0919275C SENSOR	-	2	Enquire
006	470919824B	Position Sensor (black - Central Sensor)	470919824B Position Sensor (black - Central Sensor)	-	2	Enquire
007	1T0919133C	SEAL RING	1T0919133C SEAL RING	-	4	Enquire
008	470807539J	Bumper (without Park Distance Control And Parking Sensors-lower)	470807539J Bumper (without Park Distance Control And Parking Sensors-lower)	-	1	Enquire
008	470807539K	Bumper (lower Cfk)	470807539K Bumper (lower Cfk)	-	1	Enquire
009	470807306	Bumper (rear View Camera With Parking Sensors)	470807306 Bumper (rear View Camera With Parking Sensors)	-	1	Enquire
009	470807539M	Bumper (lower Cfk)	470807539M Bumper (lower Cfk)	-	1	Enquire
010	470251237A	Exhaust Tail Pipe (tailpipes In Shiny Black)	470251237A Exhaust Tail Pipe (tailpipes In Shiny Black)	-	1	Enquire
010	470251237	Exhaust Tail Pipe (tailpipes In Silver Chrome - Standard)	470251237 Exhaust Tail Pipe (tailpipes In Silver Chrome - Standard)	-	1	Enquire
011	470251225	Attachment Bars	470251225 Attachment Bars	-	2	Enquire
012	N90342502	Speed Nut (m6x19,5x18)	N90342502 Speed Nut (m6x19,5x18)	-	2	Enquire
013	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	N90780903 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
014	N91042301	OVAL HEXAGON SOCKET HEAD BOLT	N91042301 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
