Lamborghini Aventador LP740 S - Bumpers 2

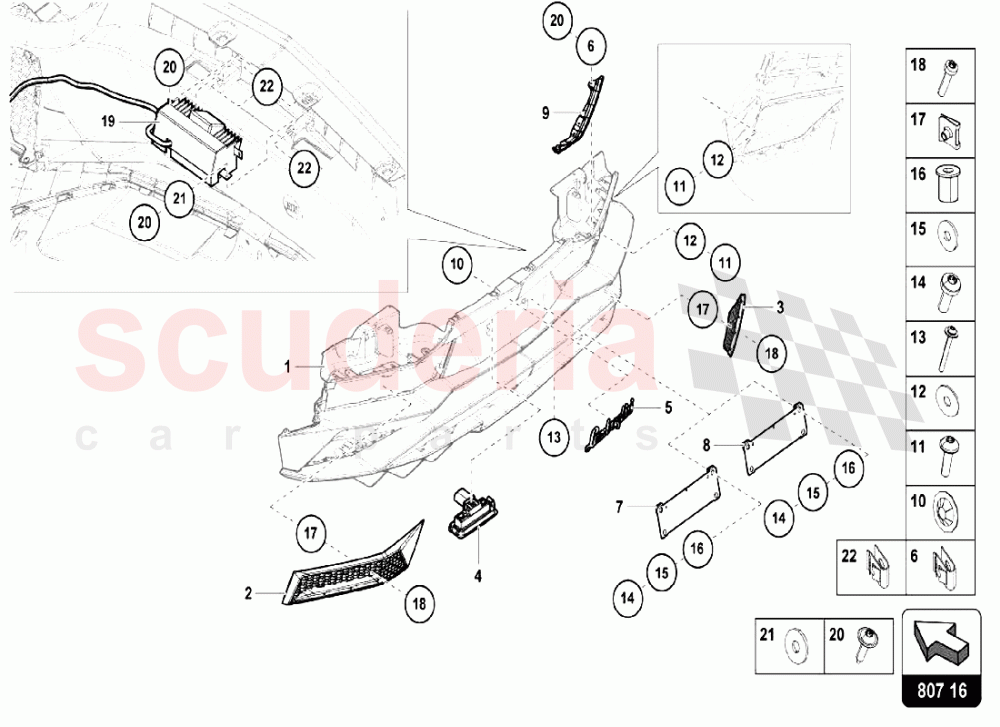

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	470807675C	Grille (left Rear)	470807675C Grille (left Rear)	-	1	Enquire
002	470807676C	Grille (right Rear)	470807676C Grille (right Rear)	-	1	Enquire
003	470807679B	Grille (left Lower)	470807679B Grille (left Lower)	-	1	Enquire
003	470807680B	Grille (right Lower)	470807680B Grille (right Lower)	-	1	Enquire
004	47B943021	LICENSE PLATE LED	47B943021 LICENSE PLATE LED	-	2	Enquire
005	470853742	LETTERING	470853742 LETTERING	-	1	Enquire
006	N0154487	SPEED NUT	N0154487 SPEED NUT	-	2	Enquire
007	470827120C	Licence Plate Holder (not For China Market-rear)	470827120C Licence Plate Holder (not For China Market-rear)	-	1	Enquire
009	470807117B	Reinforcement (left)	470807117B Reinforcement (left)	-	1	Enquire
009	470807118B	Reinforcement (right)	470807118B Reinforcement (right)	-	1	Enquire
010	4T0853139	CLIP	4T0853139 CLIP	-	2	Enquire
011	N10661002	HEX SOCKET OVAL HEAD COLLARED M6 X 20	N10661002 HEX SOCKET OVAL HEAD COLLARED M6 X 20	-	8	Enquire
012	N0116945	WASHER	N0116945 WASHER	-	8	Enquire
013	N10483102	HEX SOCKET HEAD BOLT (COMBI)	N10483102 HEX SOCKET HEAD BOLT (COMBI)	-	2	Enquire
014	N10451404	HEXAGON SOCKET FLAT HEAD BOLT	N10451404 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
015	N01166623	WASHER	N01166623 WASHER	-	4	Enquire
016	400807995	GROMMET	400807995 GROMMET	-	4	Enquire
017	N90526602	SPEED NUT	N90526602 SPEED NUT	-	12	Enquire
018	N90659905	SCREW HEX SOCKET M4 X 16	N90659905 SCREW HEX SOCKET M4 X 16	-	12	Enquire
019	470980556A	CAMERA	470980556A CAMERA	-	1	Enquire
020	N90698605	HEXAGON SOCKET HEAD PANEL BOLT	N90698605 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire
021	WHT000778	WASHER	WHT000778 WASHER	-	2	Enquire
022	N90170803	SPEED NUT	N90170803 SPEED NUT	-	4	Enquire
