VEHICLE ECUs of Ferrari Ferrari LaFerrari

View All

Ferrari LaFerrari - VEHICLE ECUs

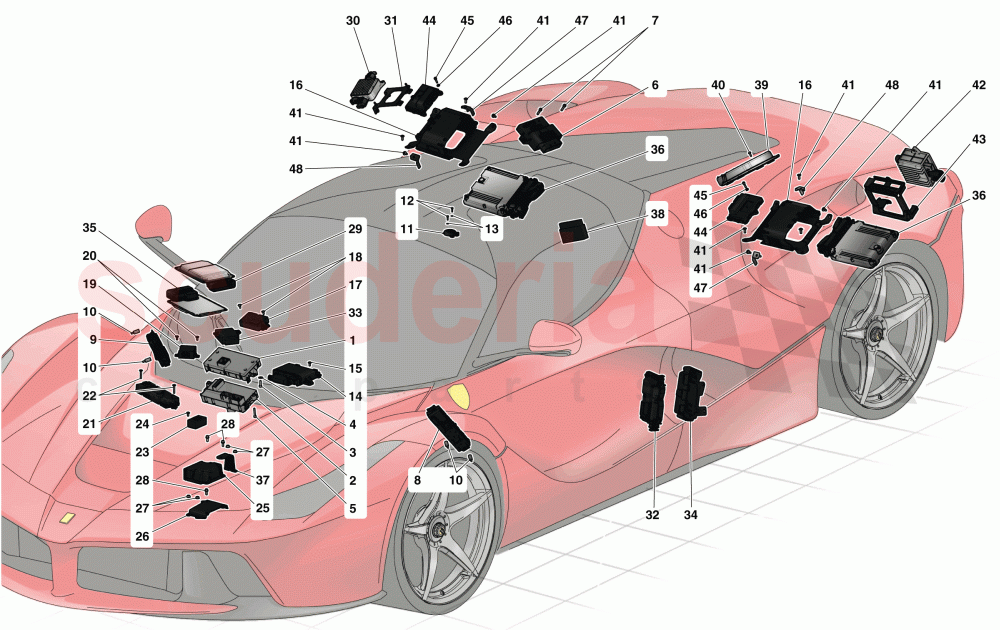

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	284532	BODY COMPUTER NODE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245788	DASHBOARD ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294319	REAR CALIPER CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302656	ERGAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292668	DRIVER SIDE DOOR NODE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292669	PASSENGER SIDE DOOR NODE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85477800	DOOR NODE MOUNTING TOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223469	BUZZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303123	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639901	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264097	VOLTAGE STABILIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304031	ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293089	POWER STEERING ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287547	AC SYSTEM ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218200	Screw M5 x 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296162	VENT CONTROL ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309385	AIRBAG ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302703	AIRBAG ECU FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293088	MAGNERIDE SUSPENSION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264935	PWM COMMAND SIGNAL FOR FUEL PUMPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302842	PWM ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299017	TYRE PRESSURE MONITORING SYSTEM ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86149100	LIFTER ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295299	REAR WING CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285271	IGNITION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302704	ELECTRICAL SYSTEM FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267996	PARKING CAMERA ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330778	DCT GEARBOX ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286578	PUMP CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85734900	OIL PUMP ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297091	IONISING KNOCK SENSOR CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304215	RH ECU FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304216	LH ECU FASTENER BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	284532	BODY COMPUTER NODE	284532 BODY COMPUTER NODE	-	1	Enquire
2	245788	DASHBOARD ECU	245788 DASHBOARD ECU	-	1	Enquire
3	14304124	SCREW	14304124 SCREW	-	1	Enquire
4	12638124	WASHER	12638124 WASHER	-	1	Enquire
5	14304524	SCREW	14304524 SCREW	-	2	Enquire
6	294319	REAR CALIPER CONTROL UNIT	294319 REAR CALIPER CONTROL UNIT	-	1	Enquire
7	302656	ERGAL SCREW	302656 ERGAL SCREW M6 X 25	-	2	Enquire
8	292668	DRIVER SIDE DOOR NODE ECU	292668 DRIVER SIDE DOOR NODE ECU	-	1	Enquire
9	292669	PASSENGER SIDE DOOR NODE ECU	292669 PASSENGER SIDE DOOR NODE ECU	-	1	Enquire
10	85477800	DOOR NODE MOUNTING TOWER	85477800 DOOR NODE MOUNTING TOWER	-	4	Enquire
11	223469	BUZZER	223469 BUZZER	-	1	Enquire
12	14303123	SCREW	14303123 SCREW	-	2	Enquire
13	12639901	WASHER	12639901 WASHER	-	2	Enquire
14	264097	VOLTAGE STABILIZER	264097 VOLTAGE STABILIZER	-	1	Enquire
15	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
16	304031	ECU MOUNTING BRACKET	304031 ECU MOUNTING BRACKET	-	2	Enquire
18	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
19	293089	POWER STEERING ECU	293089 POWER STEERING ECU	-	1	Enquire
20	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
21	287547	AC SYSTEM ECU	287547 AC SYSTEM ECU	-	1	Enquire
22	218200	Screw M5 x 30	218200 Screw M5 x 30	-	2	Enquire
23	296162	VENT CONTROL ECU	296162 VENT CONTROL ECU	-	1	Enquire
24	85833700	SCREW	85833700 SCREW M5 X 12	-	1	Enquire
25	309385	AIRBAG ECU	309385 AIRBAG ECU Applicable for USA, CDN	-	1	Enquire
26	302703	AIRBAG ECU FASTENER BRACKET	302703 AIRBAG ECU FASTENER BRACKET	-	1	Enquire
27	12578011	NUT	12578011 NUT	-	4	Enquire
28	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	3	Enquire
29	293088	MAGNERIDE SUSPENSION ECU	293088 MAGNERIDE SUSPENSION ECU	-	1	Enquire
30	264935	PWM COMMAND SIGNAL FOR FUEL PUMPS	264935 PWM COMMAND SIGNAL FOR FUEL PUMPS	-	1	Enquire
31	302842	PWM ECU MOUNTING BRACKET	302842 PWM ECU MOUNTING BRACKET	-	1	Enquire
33	299017	TYRE PRESSURE MONITORING SYSTEM ECU	299017 TYRE PRESSURE MONITORING SYSTEM ECU	-	1	Enquire
34	86149100	LIFTER ECU BRACKET	86149100 LIFTER ECU BRACKET	-	1	Enquire
35	295299	REAR WING CONTROL UNIT	295299 REAR WING CONTROL UNIT	-	1	Enquire
36	285271	IGNITION ECU	285271 IGNITION ECU Unprogrammed	-	2	Enquire
37	302704	ELECTRICAL SYSTEM FASTENER BRACKET	302704 ELECTRICAL SYSTEM FASTENER BRACKET	-	1	Enquire
38	267996	PARKING CAMERA ECU	267996 PARKING CAMERA ECU	-	1	Enquire
39	330778	DCT GEARBOX ECU	330778 DCT GEARBOX ECU Unprogrammed	-	1	Enquire
40	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
40	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	2	Enquire
41	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	12	Enquire
42	286578	PUMP CONTROL UNIT	286578 PUMP CONTROL UNIT Unprogrammed	-	1	Enquire
43	85734900	OIL PUMP ECU MOUNTING BRACKET	85734900 OIL PUMP ECU MOUNTING BRACKET	-	1	Enquire
44	297091	IONISING KNOCK SENSOR CONTROL UNIT	297091 IONISING KNOCK SENSOR CONTROL UNIT Unprogrammed	-	2	Enquire
45	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	6	Enquire
46	62769800	WASHER	62769800 WASHER	-	6	Enquire
47	304215	RH ECU FASTENER BRACKET	304215 RH ECU FASTENER BRACKET	-	2	Enquire
48	304216	LH ECU FASTENER BRACKET	304216 LH ECU FASTENER BRACKET	-	2	Enquire
