Name: VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM
Rating: 4.5 (1 reviews)

VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM of Ferrari Ferrari LaFerrari

View All

Ferrari LaFerrari - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM

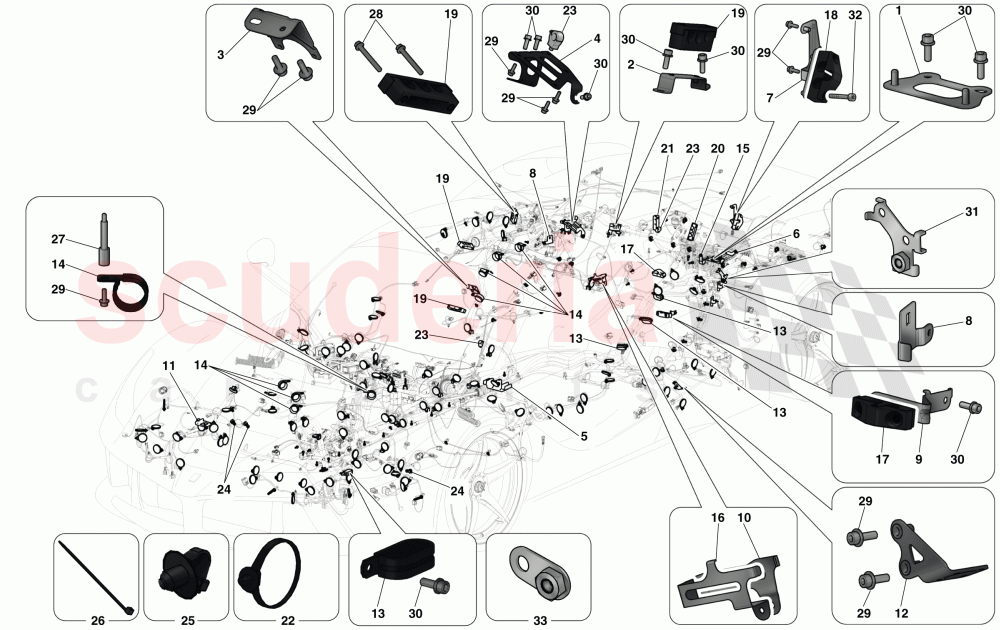

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	297564	HV CABLE FASTENER BRACKET, INVERTER SIDE	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	297562	FASTENER BRACKET FOR LOGIC CONNECTOR	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	297563	JUNCTION BOX MOUNTING BRACKET	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	298061	PASSENGER COMPARTMENT CABLE FASTENER BRACKET	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	298977	ME1 RESOLVER BRANCH FASTENER BRACKET	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	298799	HV CABLE RETAINER BRACKET	$111.79	To Order

Photo	Part No	Description	Price (each)	Stock
	299115	RETAINER BRACKET FOR 40-WAY CONNECTOR	$18.98	To Order

Photo	Part No	Description	Price (each)	Stock
	301059	HV CABLE RETAINER BRACKET, ME2	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	301121	PARKING CAMERA ECU FASTENER BRACKET	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	304636	HV COMPRESSOR CONNECTOR FASTENER BRACKET	$59.35	To Order

Photo	Part No	Description	Price (each)	Stock
	304670	ME2 RESOLVER CONNECTOR BRACKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	10448890	BRACKET WITH SHEATH	$2.71	To Order

Photo	Part No	Description	Price (each)	Stock
	199700	BRACKET WITH SHEATH	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	267992	BRACKET	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	294115	TRIPLE CLIP	$30.08	To Order

Photo	Part No	Description	Price (each)	Stock
	298798	TRIPLE CLIP	$23.50	To Order

Photo	Part No	Description	Price (each)	Stock
	294117	TRIPLE CLIP	$18.59	To Order

Photo	Part No	Description	Price (each)	Stock
	294121	TRIPLE CLIP	$18.59	To Order

Photo	Part No	Description	Price (each)	Stock
	298060	DOUBLE CLIP	$17.62	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	316888	CLIP	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	150738	CLIP	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	808986	CLAMP	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	85928700	STUD BOLT	$31.52	To Order

Photo	Part No	Description	Price (each)	Stock
	302766	ERGAL SCREW	$39.17	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	296607	WIRING HARNESS MOUNTING BRACKET	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	925745	SCREW	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	294190	WIRING HARNESS MOUNTING BRACKET	$16.14	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
2	297564	HV CABLE FASTENER BRACKET, INVERTER SIDE	297564 HV CABLE FASTENER BRACKET, INVERTER SIDE	$40.10	1
3	297562	FASTENER BRACKET FOR LOGIC CONNECTOR	297562 FASTENER BRACKET FOR LOGIC CONNECTOR	$62.56	1
4	297563	JUNCTION BOX MOUNTING BRACKET	297563 JUNCTION BOX MOUNTING BRACKET	$50.15	1
5	298061	PASSENGER COMPARTMENT CABLE FASTENER BRACKET	298061 PASSENGER COMPARTMENT CABLE FASTENER BRACKET	$43.31	1
6	298977	ME1 RESOLVER BRANCH FASTENER BRACKET	298977 ME1 RESOLVER BRANCH FASTENER BRACKET	$22.45	1
7	298799	HV CABLE RETAINER BRACKET	298799 HV CABLE RETAINER BRACKET	$111.79	1
8	299115	RETAINER BRACKET FOR 40-WAY CONNECTOR	299115 RETAINER BRACKET FOR 40-WAY CONNECTOR No longer supplied	$18.98	3
9	301059	HV CABLE RETAINER BRACKET, ME2	301059 HV CABLE RETAINER BRACKET, ME2	$48.12	1
10	301121	PARKING CAMERA ECU FASTENER BRACKET	301121 PARKING CAMERA ECU FASTENER BRACKET	$50.15	2
11	304636	HV COMPRESSOR CONNECTOR FASTENER BRACKET	304636 HV COMPRESSOR CONNECTOR FASTENER BRACKET	$59.35	1
12	304670	ME2 RESOLVER CONNECTOR BRACKET	304670 ME2 RESOLVER CONNECTOR BRACKET	$24.05	1
13	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH	$1.77	4
14	10448890	BRACKET WITH SHEATH	10448890 BRACKET WITH SHEATH	$2.71	8
15	199700	BRACKET WITH SHEATH	199700 BRACKET WITH SHEATH No longer supplied	$2.92	1
16	267992	BRACKET	267992 BRACKET	$22.45	1
17	294115	TRIPLE CLIP	294115 TRIPLE CLIP	$30.08	2
18	298798	TRIPLE CLIP	298798 TRIPLE CLIP	$23.50	1
19	294117	TRIPLE CLIP	294117 TRIPLE CLIP	$18.59	4
20	294121	TRIPLE CLIP	294121 TRIPLE CLIP	$18.59	1
21	298060	DOUBLE CLIP	298060 DOUBLE CLIP	$17.62	1
22	303385	CLIP	303385 CLIP	$0.31	67
23	316888	CLIP	316888 CLIP	$0.24	3
24	150738	CLIP	150738 CLIP	$0.57	3
25	808986	CLAMP	808986 CLAMP	$0.21	28
26	177553	CLAMP	177553 CLAMP	$0.45 MSRP: ~~1.25~~ (64% off)	28
27	85928700	STUD BOLT	85928700 STUD BOLT	$31.52	1
28	302766	ERGAL SCREW	302766 ERGAL SCREW M5 X 40	$39.17	6
29	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 16 ARRIVING SOON	$0.36	11
30	231619	SCREW	231619 SCREW M6 X 18	$0.31	10
31	296607	WIRING HARNESS MOUNTING BRACKET	296607 WIRING HARNESS MOUNTING BRACKET	$28.66	1
32	925745	SCREW	925745 SCREW	$1.56	2
33	294190	WIRING HARNESS MOUNTING BRACKET	294190 WIRING HARNESS MOUNTING BRACKET	$16.14	2
