Find Your Part

AUDIO - INFOTAINMENT SYSTEM of Ferrari Ferrari LaFerrari

View All

Ferrari LaFerrari - AUDIO - INFOTAINMENT SYSTEM

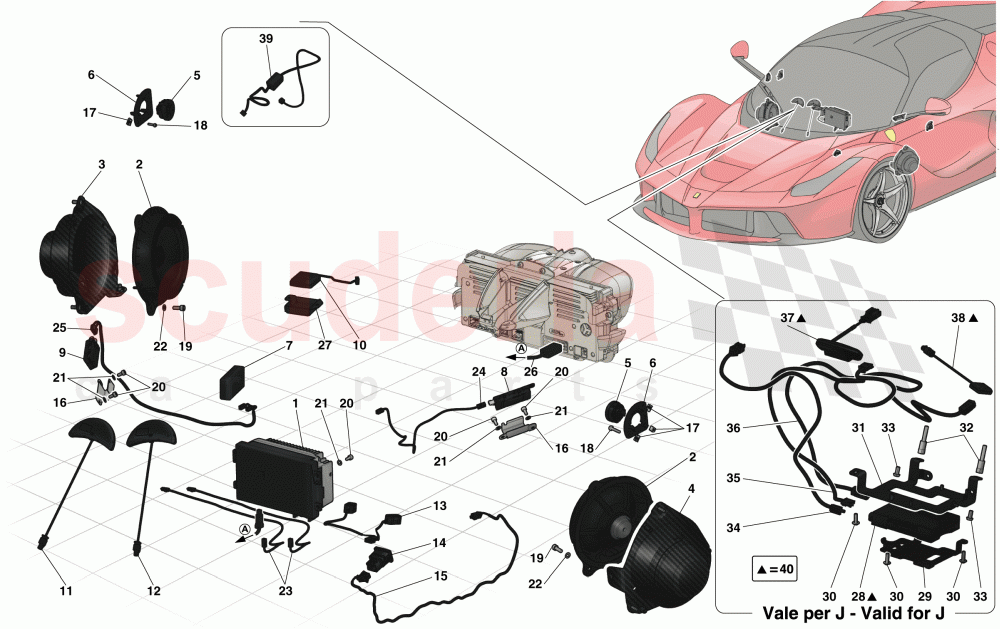

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	316901	BECKER NIT -Vehicles with map type satellite navigation- -Applicable for J-	Enquire	To Order
	316900	BECKER NIT	Enquire	To Order
	316898	BECKER NIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265232	WOOFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85129400	RH DOOR WOOFER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85129500	LH DOOR WOOFER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251541	FRONT TWEETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82539000	ADAPTOR FOR TWEETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304850	CAN BOX	Enquire	To Order
	304849	CAN BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277243	AM/FM AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298613	FM2/DAB AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286160	BLUETOOTH ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286161	WI-FI ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241289	GSM MICROPHONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303226	USB SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281971	USB / NIT / RHR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302359	CLIP FOR ANTENNA AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14370471	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	13579101	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293362	WIFI/BT ANTENNA EXTENSION FOR NIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298614	AM/FM1 ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298616	FM2/DAB ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293357	LVDS NIT CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86090700	GPS ANTENNA BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306122	VICS MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308918	LOWER VICS BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308916	UPPER VICS BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200414	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874100	SCREW	Enquire	To Order
	85498700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307182	VICS CARD READER - NIT CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307279	VICS ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311095	RF ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306859	VICS TRANSCEIVER BEACON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306858	VICS 5.8 GHz ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301120	ECU USB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306860	VICS SYSTEM KIT, JPN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	316901	BECKER NIT -Vehicles with map type satellite navigation- -Applicable for J-	316901 BECKER NIT -Vehicles with map type satellite navigation- -Applicable for J- Vehicles with map type satellite navigation; Applicable for J	-	1	Enquire
1	316900	BECKER NIT	316900 BECKER NIT Vehicles with map type satellite navigation; Applicable for CINA	-	1	Enquire
1	316898	BECKER NIT	316898 BECKER NIT Vehicles with map type satellite navigation; Applicable for Mexico; Applicable for USA, CDN	-	1	Enquire
2	265232	WOOFER	265232 WOOFER	-	2	Enquire
3	85129400	RH DOOR WOOFER MOUNT	85129400 RH DOOR WOOFER MOUNT	-	1	Enquire
4	85129500	LH DOOR WOOFER MOUNT	85129500 LH DOOR WOOFER MOUNT	-	1	Enquire
5	251541	FRONT TWEETER	251541 FRONT TWEETER	-	1	Enquire
6	82539000	ADAPTOR FOR TWEETER	82539000 ADAPTOR FOR TWEETER	-	2	Enquire
7	304850	CAN BOX	304850 CAN BOX Not for telemetry kit, integrated audio system, satellite navigation, vehicle lift system; Applicable for vehicles without NIT	-	1	Enquire
7	304849	CAN BOX	304849 CAN BOX Applicable for vehicles with NIT	-	1	Enquire
8	277243	AM/FM AMPLIFIER	277243 AM/FM AMPLIFIER	-	1	Enquire
9	298613	FM2/DAB AMPLIFIER	298613 FM2/DAB AMPLIFIER Not for USA, CDN	-	1	Enquire
11	286160	BLUETOOTH ANTENNA	286160 BLUETOOTH ANTENNA	-	1	Enquire
12	286161	WI-FI ANTENNA	286161 WI-FI ANTENNA	-	1	Enquire
13	241289	GSM MICROPHONE	241289 GSM MICROPHONE	-	1	Enquire
14	303226	USB SOCKET	303226 USB SOCKET	-	1	Enquire
15	281971	USB / NIT / RHR CABLE	281971 USB / NIT / RHR CABLE	-	1	Enquire
16	302359	CLIP FOR ANTENNA AMPLIFIER	302359 CLIP FOR ANTENNA AMPLIFIER	-	2	Enquire
17	14370471	BRACKET	14370471 BRACKET	-	6	Enquire
18	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	6	Enquire
19	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	6	Enquire
20	11566227	SCREW ARRIVING SOON	11566227 SCREW M5 X 10 ARRIVING SOON	-	8	Enquire
21	13579101	WASHER	13579101 WASHER	-	8	Enquire
22	12639724	WASHER	12639724 WASHER	-	6	Enquire
23	293362	WIFI/BT ANTENNA EXTENSION FOR NIT	293362 WIFI/BT ANTENNA EXTENSION FOR NIT	-	2	Enquire
24	298614	AM/FM1 ANTENNA CABLE	298614 AM/FM1 ANTENNA CABLE	-	1	Enquire
25	298616	FM2/DAB ANTENNA CABLE	298616 FM2/DAB ANTENNA CABLE Not for USA, CDN	-	1	Enquire
26	293357	LVDS NIT CABLE	293357 LVDS NIT CABLE	-	1	Enquire
27	86090700	GPS ANTENNA BRACKET	86090700 GPS ANTENNA BRACKET	-	1	Enquire
28	306122	VICS MODULE	306122 VICS MODULE Applicable for J; No longer supplied	-	1	Enquire
29	308918	LOWER VICS BRACKET	308918 LOWER VICS BRACKET Applicable for J	-	1	Enquire
30	85833700	SCREW	85833700 SCREW Applicable for J	-	3	Enquire
31	308916	UPPER VICS BRACKET	308916 UPPER VICS BRACKET Applicable for J	-	1	Enquire
32	200414	STUD BOLT	200414 STUD BOLT Applicable for J	-	2	Enquire
33	80874100	SCREW	80874100 SCREW M6 X 12; Applicable for J	-	2	Enquire
33	85498700	SCREW	85498700 SCREW M6 X 12; Applicable for J; No longer supplied; Replaced by 84873500	-	2	Enquire
34	307182	VICS CARD READER - NIT CABLE	307182 VICS CARD READER - NIT CABLE NIT CABLE; Applicable for J	-	1	Enquire
35	307279	VICS ANTENNA CABLE	307279 VICS ANTENNA CABLE Applicable for J	-	1	Enquire
36	311095	RF ANTENNA CABLE	311095 RF ANTENNA CABLE Applicable for J	-	1	Enquire
37	306859	VICS TRANSCEIVER BEACON	306859 VICS TRANSCEIVER BEACON Applicable for J; No longer supplied	-	1	Enquire
38	306858	VICS 5.8 GHz ANTENNA	306858 VICS 5.8 GHz ANTENNA Applicable for J; No longer supplied	-	1	Enquire
39	301120	ECU USB	301120 ECU USB Not for telemetry kit, audio system with integrated satellite navigation, vehicle lift system; Not supplied	-	1	Enquire
40	306860	VICS SYSTEM KIT, JPN	306860 VICS SYSTEM KIT, JPN Applicable for J	-	1	Enquire
