Ferrari LaFerrari - INVERTER AND COOLING

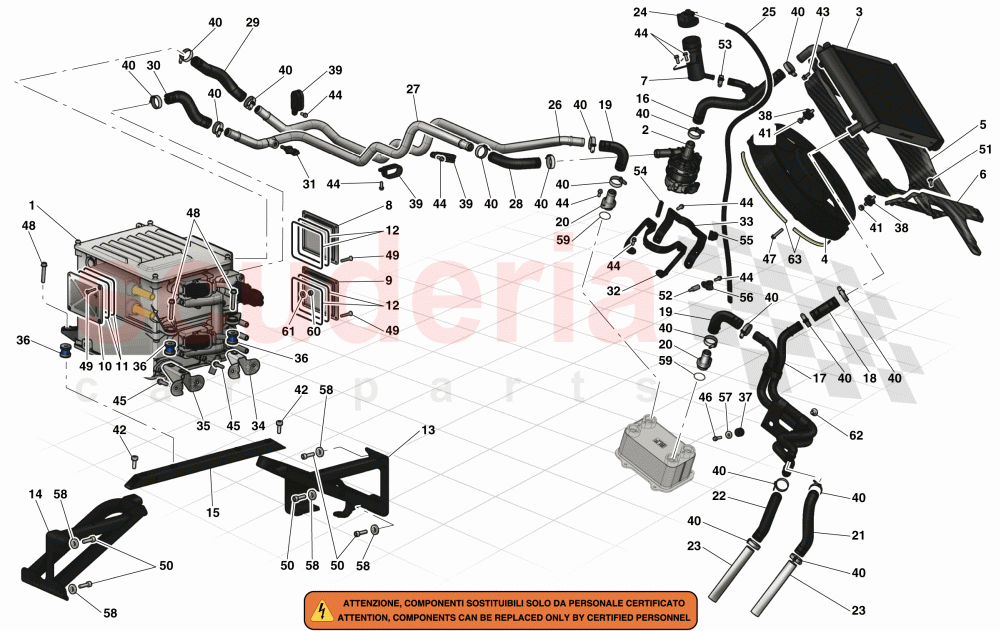

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
289998 COMPL. INVERTER $33,029.04 To Order
Photo Part No Description Price (each) Stock
280026 WATER PUMP $1,737.25 To Order
Photo Part No Description Price (each) Stock
294655 WATER RADIATOR $2,846.54 To Order
Photo Part No Description Price (each) Stock
267031 BRUSHLESS MOTOR FAN $978.79 To Order
Photo Part No Description Price (each) Stock
294656 INVERTER RADIATOR FAN COWL $6,314.08 To Order
Photo Part No Description Price (each) Stock
302951 COWL SHIELD MOUNT $5,059.28 To Order
Photo Part No Description Price (each) Stock
299084 INVERTER EXPANSION TANK BODY $224.63 To Order
Photo Part No Description Price (each) Stock
305435 COVER FOR THREE POLE BOX, ME1 INVERTER SIDE $786.24 To Order
Photo Part No Description Price (each) Stock
305437 COVER FOR THREE POLE BOX, ME2 INVERTER SIDE $786.24 To Order
Photo Part No Description Price (each) Stock
305439 TWO POLE BOX COVER $754.15 To Order
Photo Part No Description Price (each) Stock
303949 TWO POLE BOX SEAL $86.08 To Order
Photo Part No Description Price (each) Stock
303950 THREE POLE BOX SEAL $86.08 To Order
Photo Part No Description Price (each) Stock
301724 LH REAR INVERTER MOUNT $501.69 To Order
Photo Part No Description Price (each) Stock
299349 RH REAR INVERTER MOUNT $430.02 To Order
Photo Part No Description Price (each) Stock
299348 CENTRAL REAR INVERTER MOUNT $50.15 To Order
Photo Part No Description Price (each) Stock
299083 3-WAY RUBBER PIPE FOR INVERTER COOLING SYSTEM $609.73 To Order
Photo Part No Description Price (each) Stock
304295 ME2 COOLING WATER PIPE $415.69 To Order
Photo Part No Description Price (each) Stock
291465 RUBBER PIPE $186.33 To Order
Photo Part No Description Price (each) Stock
291494 RUBBER PIPE $240.67 To Order
Photo Part No Description Price (each) Stock
288506 FLANGED HEAT EXCHANGER-INVERTER HOSE CONNECTOR $433.23 To Order
Photo Part No Description Price (each) Stock
304298 CONNECTOR PIPE $192.54 To Order
Photo Part No Description Price (each) Stock
304297 CONNECTOR PIPE $186.33 To Order
Photo Part No Description Price (each) Stock
295992 REFLECT SLEEVE $25.79 To Order
Photo Part No Description Price (each) Stock
329417 CAP WITH BREATHER $320.90 To Order
Photo Part No Description Price (each) Stock
304107 RUBBER PIPE $22.45 To Order
Photo Part No Description Price (each) Stock
299088 PIPE FROM INVERTER TO HEAT EXCHANGER $258.00 To Order
Photo Part No Description Price (each) Stock
299087 PIPE FROM PUMP TO INVERTER $320.90 To Order
Photo Part No Description Price (each) Stock
299097 INVERTER PUMP OUTLET RUBBER PIPE $186.33 To Order
Photo Part No Description Price (each) Stock
302580 INVERTER OUTLET RUBBER PIPE $200.67 To Order
Photo Part No Description Price (each) Stock
302581 INVERTER INLET RUBBER PIPE $215.00 To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $30.23 To Order
Photo Part No Description Price (each) Stock
299082 COOLING PUMP MOUNTING BRACKET RETAINER $60.96 To Order
Photo Part No Description Price (each) Stock
299081 COOLING PUMP MOUNTING BRACKET $41.56 To Order
Photo Part No Description Price (each) Stock
294993 FRONT LH INVERTER MOUNTING BRACKET $43.31 To Order
Photo Part No Description Price (each) Stock
294994 FRONT MOUNTING BRACKET FOR RH INVERTER $43.31 To Order
Photo Part No Description Price (each) Stock
267300 DAMPED MOUNT $12.33 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.65 To Order
Photo Part No Description Price (each) Stock
286306 PLUG $14.68 To Order
Photo Part No Description Price (each) Stock
307026 BRACKET WITH SHEATH $52.94 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
216565 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
302574 ERGAL SCREW $5.67 To Order
Photo Part No Description Price (each) Stock
302655 SCREW $13.94 To Order
Photo Part No Description Price (each) Stock
302656 ERGAL SCREW $10.76 To Order
Photo Part No Description Price (each) Stock
302657 ERGAL SCREW $9.11 To Order
Photo Part No Description Price (each) Stock
302658 ERGAL SCREW $17.63 To Order
Photo Part No Description Price (each) Stock
303947 SCREW $33.68 To Order
Photo Part No Description Price (each) Stock
304701 SCREW $6.18 To Order
Photo Part No Description Price (each) Stock
85494300 SCREW $1.26 To Order
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
212519 STUD BOLT $8.01 To Order
Photo Part No Description Price (each) Stock
262107 SCREW COLLAR $1.65 To Order
Photo Part No Description Price (each) Stock
67681200 GASKET $4.10 To Order
Photo Part No Description Price (each) Stock
67063200 CLIP $1.26 To Order
Photo Part No Description Price (each) Stock
302394 BRACKET WITH SHEATH $46.52 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12646624 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
122791 O-RING $2.25 To Order
Photo Part No Description Price (each) Stock
303946 NUT $43.31 To Order
Photo Part No Description Price (each) Stock
303948 WASHER $22.45 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
303221 RUBBER SHIM $0.81 To Order
View All
INVERTER AND COOLING of Ferrari Ferrari LaFerrari Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 289998
COMPL. INVERTER 		$33,029.04 1
2 280026
WATER PUMP 		$1,737.25 1
3 294655
WATER RADIATOR 		$2,846.54 1
4 267031
BRUSHLESS MOTOR FAN 		$978.79 1
5 294656
INVERTER RADIATOR FAN COWL 		$6,314.08 1
6 302951
COWL SHIELD MOUNT 		$5,059.28 1
7 299084
INVERTER EXPANSION TANK BODY 		$224.63 1
8 305435
COVER FOR THREE POLE BOX, ME1 INVERTER SIDE 		$786.24 1
9 305437
COVER FOR THREE POLE BOX, ME2 INVERTER SIDE 		$786.24 1
10 305439
TWO POLE BOX COVER 		$754.15 1
11 303949
TWO POLE BOX SEAL 		$86.08 2
12 303950
THREE POLE BOX SEAL 		$86.08 4
13 301724
LH REAR INVERTER MOUNT 		$501.69 1
14 299349
RH REAR INVERTER MOUNT 		$430.02 1
15 299348
CENTRAL REAR INVERTER MOUNT 		$50.15 1
16 299083
3-WAY RUBBER PIPE FOR INVERTER COOLING SYSTEM 		$609.73 1
17 304295
ME2 COOLING WATER PIPE 		$415.69 1
18 291465
RUBBER PIPE 		$186.33 1
19 291494
RUBBER PIPE 		$240.67 2
20 288506
FLANGED HEAT EXCHANGER-INVERTER HOSE CONNECTOR 		$433.23 2
21 304298
CONNECTOR PIPE 		$192.54 1
22 304297
CONNECTOR PIPE 		$186.33 1
23 295992
REFLECT SLEEVE 		$25.79 2
24 329417
CAP WITH BREATHER 		$320.90 1
25 304107
RUBBER PIPE 		$22.45 1
26 299088
PIPE FROM INVERTER TO HEAT EXCHANGER 		$258.00 1
27 299087
PIPE FROM PUMP TO INVERTER 		$320.90 1
28 299097
INVERTER PUMP OUTLET RUBBER PIPE 		$186.33 1
29 302580
INVERTER OUTLET RUBBER PIPE 		$200.67 1
30 302581
INVERTER INLET RUBBER PIPE 		$215.00 1
31 180137
TEMPERATURE SENSOR 		$30.23 (8.4% off) 1
32 299082
COOLING PUMP MOUNTING BRACKET RETAINER 		$60.96 1
33 299081
COOLING PUMP MOUNTING BRACKET 		$41.56 1
34 294993
FRONT LH INVERTER MOUNTING BRACKET 		$43.31 1
35 294994
FRONT MOUNTING BRACKET FOR RH INVERTER 		$43.31 1
36 267300
DAMPED MOUNT 		$12.33 4
37 812273
CABLE GROMMET 		$1.65 2
38 286306
PLUG 		$14.68 4
39 307026
BRACKET WITH SHEATH 		$52.94 3
40 262111
JUBILEE CLAMP 		$1.60 18
41 14059290
FLANGED NUT M6 		$1.51 4
42 216565
SCREW
M X 20 		$0.47 2
43 248334
SCREW 		$0.68 6
44 302574
ERGAL SCREW
M6 X 15 		$5.67 13
45 302655
SCREW
M6 X 20 		$13.94 4
46 302656
ERGAL SCREW
M6 X 25 		$10.76 2
47 302657
ERGAL SCREW
M6 X 30 		$9.11 4
48 302658
ERGAL SCREW
M6 X 35 		$17.63 4
49 303947
SCREW 		$33.68 12
50 304701
SCREW 		$6.18 6
51 85494300
SCREW
M5 X 12 		$1.26 4
51 85833900
SCREW
No longer supplied; Replaced by 85494300
ARRIVING SOON 		$0.36 4
52 212519
STUD BOLT 		$8.01 (31.8% off) 1
53 262107
SCREW COLLAR 		$1.65 1
54 67681200
GASKET 		$4.10 1
55 67063200
CLIP 		$1.26 1
56 302394
BRACKET WITH SHEATH 		$46.52 1
57 12643724
WASHER 		$0.06 (88% off) 2
58 12646624
WASHER 		$0.23 (20.7% off) 6
59 122791
O-RING 		$2.25 2
60 303946
NUT 		$43.31 8
61 303948
WASHER 		$22.45 8
62 149707
SPACER 		$1.17 (33.1% off) 2
63 303221
RUBBER SHIM
233 X 6 X 3 mm 		$0.81 4
