FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari LaFerrari

View All

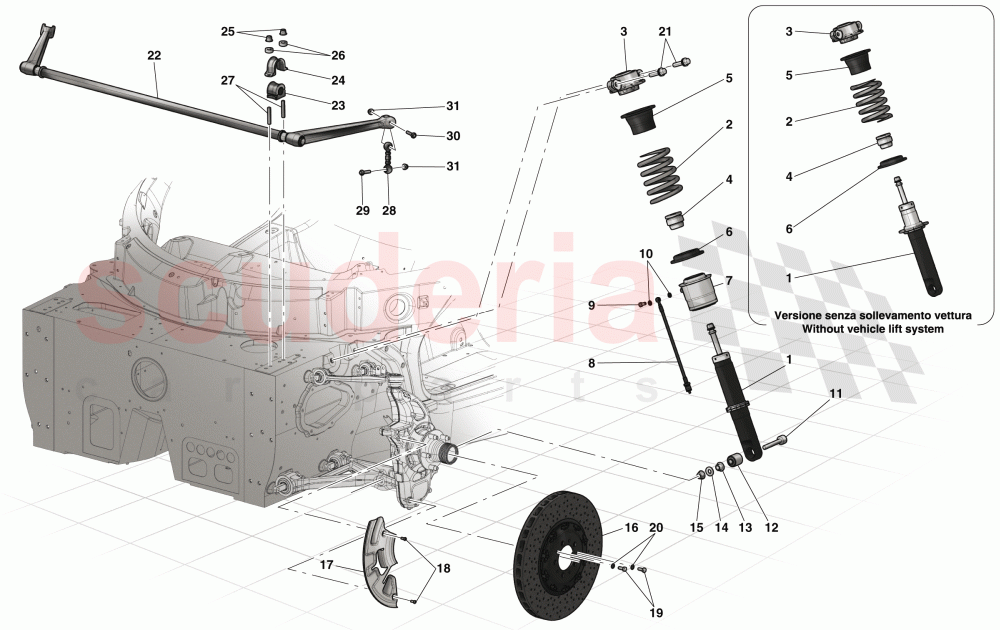

Ferrari LaFerrari - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	306954	FRONT SHOCK ABSORBER	Enquire	To Order
	303547	FRONT SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250394	STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281221	ENDSTOP BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293621	UPPER SPRING SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188996	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303056	ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277168	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261587	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259638	GASKET 8.7 - 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237297	SCREW M12 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	237821	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255271	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303167	FRONT BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280651	FRONT RH DISC SHIELD	Enquire	To Order
	280650	FRONT LH DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228131	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248790	SCREW M12 X 1.25 X 50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302652	COMPL. TITANIUM FRONT STABILISER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262890	STABILISER BAR BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305873	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578328	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302112	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13449934	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303175	RH BALL-JOINT TIE-ROD	Enquire	To Order
	303173	LH BALL-JOINT TIE-ROD	Enquire	To Order
	278363	BALL-JOINT TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299692	TITANIUM SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299694	TITANIUM SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058521	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	306954	FRONT SHOCK ABSORBER	306954 FRONT SHOCK ABSORBER Version without lift	-	2	Enquire
1	303547	FRONT SHOCK ABSORBER	303547 FRONT SHOCK ABSORBER	-	2	Enquire
3	250394	STOP CAP	250394 STOP CAP	-	2	Enquire
4	281221	ENDSTOP BUSH	281221 ENDSTOP BUSH	-	2	Enquire
5	293621	UPPER SPRING SPACER	293621 UPPER SPRING SPACER	-	2	Enquire
6	188996	LOWER SPACER	188996 LOWER SPACER	-	2	Enquire
7	303056	ACTUATOR	303056 ACTUATOR	-	2	Enquire
8	277168	HOSE	277168 HOSE	-	2	Enquire
9	261587	HOSE	261587 HOSE	-	2	Enquire
10	259638	GASKET 8.7 - 14	259638 GASKET 8.7 - 14	-	4	Enquire
11	237297	SCREW M12 X 1.25 X 8	237297 SCREW M12 X 1.25 X 8	-	2	Enquire
12	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT ARRIVING SOON	-	2	Enquire
13	237821	BUSH	237821 BUSH	-	2	Enquire
14	12646921	WASHER	12646921 WASHER	-	2	Enquire
15	255271	NUT	255271 NUT	-	2	Enquire
16	303167	FRONT BRAKE DISC	303167 FRONT BRAKE DISC 398 x 36 mm	-	2	Enquire
17	280651	FRONT RH DISC SHIELD	280651 FRONT RH DISC SHIELD	-	1	Enquire
17	280650	FRONT LH DISC SHIELD	280650 FRONT LH DISC SHIELD	-	1	Enquire
18	250657	SCREW M6 X 14	250657 SCREW M6 X 14	-	4	Enquire
19	228131	SCREW	228131 SCREW	-	4	Enquire
20	228132	SPRING WASHER	228132 SPRING WASHER	-	4	Enquire
21	248790	SCREW M12 X 1.25 X 50	248790 SCREW M12 X 1.25 X 50	-	4	Enquire
22	302652	COMPL. TITANIUM FRONT STABILISER BAR	302652 COMPL. TITANIUM FRONT STABILISER BAR	-	1	Enquire
23	262890	STABILISER BAR BUSH	262890 STABILISER BAR BUSH	-	2	Enquire
24	305873	PLATE	305873 PLATE	-	2	Enquire
25	12578328	NUT	12578328 NUT	-	4	Enquire
26	302112	SPACER	302112 SPACER	-	4	Enquire
27	13449934	STUD BOLT	13449934 STUD BOLT	-	4	Enquire
28	303175	RH BALL-JOINT TIE-ROD	303175 RH BALL-JOINT TIE-ROD	-	2	Enquire
28	303173	LH BALL-JOINT TIE-ROD	303173 LH BALL-JOINT TIE-ROD	-	2	Enquire
28	278363	BALL-JOINT TIE-ROD	278363 BALL-JOINT TIE-ROD No longer supplied	-	2	Enquire
29	299692	TITANIUM SCREW	299692 TITANIUM SCREW M8 X 40	-	2	Enquire
30	299694	TITANIUM SCREW	299694 TITANIUM SCREW M8 X 50	-	2	Enquire
31	14058521	NUT	14058521 NUT	-	4	Enquire
