BATTERY COOLING SYSTEM of Ferrari Ferrari LaFerrari

View All

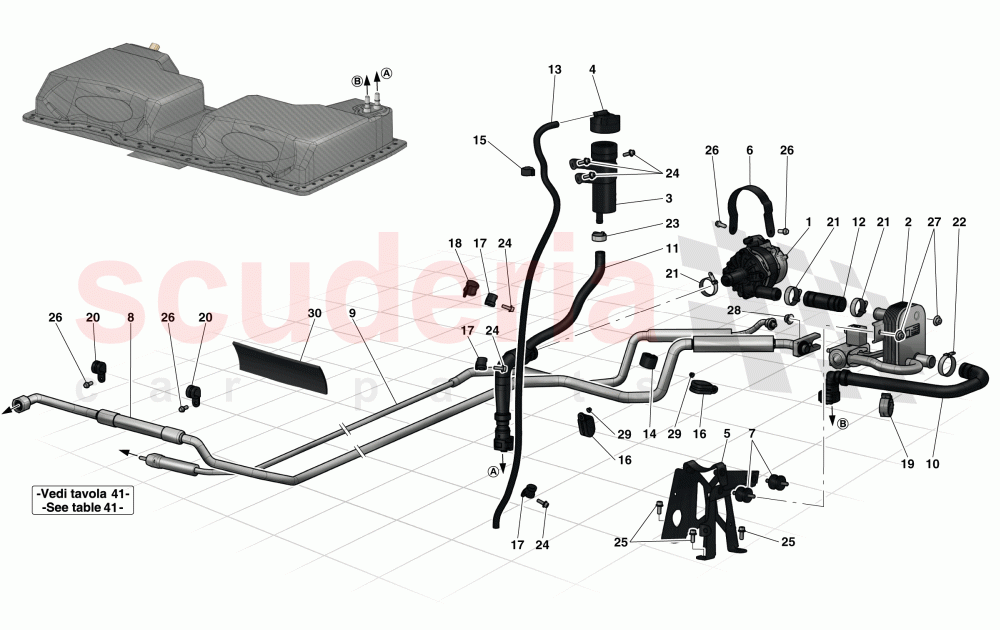

Ferrari LaFerrari - BATTERY COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	280026	WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292452	ELECTRIC CHILLER-TXV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291749	BATTERY COOLING SYSTEM EXPANSION TANK BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329417	CAP WITH BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300870	CHILLER-HVB COOLING PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292105	HV BATTERY PUMP MOUNTING BRACKET STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285553	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304319	GAS RETURN PIPE FROM CHILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304905	GAS DELIVERY PIPE FROM TXV-CHILLER, COMPLETE WITH FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294647	PIPE FROM CHILLER TO BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294649	PIPE FROM BATTERY TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291465	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291716	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254315	RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67063200	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302430	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302394	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302439	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270085	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303265	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262108	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302574	ERGAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249582	PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	280026	WATER PUMP	280026 WATER PUMP	-	1	Enquire
2	292452	ELECTRIC CHILLER-TXV	292452 ELECTRIC CHILLER-TXV	-	1	Enquire
3	291749	BATTERY COOLING SYSTEM EXPANSION TANK BODY	291749 BATTERY COOLING SYSTEM EXPANSION TANK BODY	-	1	Enquire
4	329417	CAP WITH BREATHER	329417 CAP WITH BREATHER	-	1	Enquire
5	300870	CHILLER-HVB COOLING PUMP BRACKET	300870 CHILLER-HVB COOLING PUMP BRACKET	-	1	Enquire
6	292105	HV BATTERY PUMP MOUNTING BRACKET STRAP	292105 HV BATTERY PUMP MOUNTING BRACKET STRAP	-	1	Enquire
7	285553	VIBRATION DAMPER	285553 VIBRATION DAMPER	-	2	Enquire
8	304319	GAS RETURN PIPE FROM CHILLER	304319 GAS RETURN PIPE FROM CHILLER	-	1	Enquire
9	304905	GAS DELIVERY PIPE FROM TXV-CHILLER, COMPLETE WITH FILTER	304905 GAS DELIVERY PIPE FROM TXV-CHILLER, COMPLETE WITH FILTER	-	1	Enquire
10	294647	PIPE FROM CHILLER TO BATTERY	294647 PIPE FROM CHILLER TO BATTERY	-	1	Enquire
11	294649	PIPE FROM BATTERY TO PUMP	294649 PIPE FROM BATTERY TO PUMP	-	1	Enquire
12	291465	RUBBER PIPE	291465 RUBBER PIPE	-	1	Enquire
13	291716	RUBBER PIPE	291716 RUBBER PIPE	-	1	Enquire
14	254315	RUBBER PAD	254315 RUBBER PAD	-	1	Enquire
15	67063200	CLIP	67063200 CLIP	-	1	Enquire
16	302430	BRACKET WITH SHEATH	302430 BRACKET WITH SHEATH	-	2	Enquire
17	302394	BRACKET WITH SHEATH	302394 BRACKET WITH SHEATH	-	3	Enquire
18	302439	BRACKET WITH SHEATH	302439 BRACKET WITH SHEATH	-	1	Enquire
19	270085	CLIP	270085 CLIP	-	1	Enquire
20	303265	BRACKET WITH SHEATH	303265 BRACKET WITH SHEATH	-	2	Enquire
21	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	3	Enquire
22	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
23	262108	SCREW COLLAR	262108 SCREW COLLAR	-	1	Enquire
24	85833700	SCREW	85833700 SCREW M5 X 16	-	6	Enquire
25	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	3	Enquire
26	302574	ERGAL SCREW	302574 ERGAL SCREW M6 X 15	-	4	Enquire
27	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
28	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	1	Enquire
29	15896470	NUT	15896470 NUT	-	2	Enquire
30	249582	PLUG	249582 PLUG	-	1	Enquire
