FRONT SUSPENSION - ARMS

Find Your Part

Ferrari LaFerrari - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
291934 FRONT RH HUB CARRIER $7,597.76 To Order
291933 FRONT LH HUB CARRIER $7,597.76 To Order
Photo Part No Description Price (each) Stock
297987 COMPL. UPPER RH FRONT ARM $2,068.31 To Order
297986 COMPL. UPPER LH FRONT ARM $2,068.31 To Order
Photo Part No Description Price (each) Stock
308586 COMPL. LOWER RH FRONT ARM $1,766.65 To Order
308585 COMPL. LOWER LH FRONT ARM $1,766.65 To Order
Photo Part No Description Price (each) Stock
238885 CAMBER SPACER 4MM $5.77 To Order
238884 ADJUSTMENT SHIM $5.59 To Order
238883 ADJUSTMENT SHIM $5.59 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
343376 BALL JOINT $22.45 To Order
Photo Part No Description Price (each) Stock
269415 ABS SENSOR $401.13 To Order
Photo Part No Description Price (each) Stock
13543734 STUD BOLT $1.77 To Order
Photo Part No Description Price (each) Stock
13546634 STUD BOLT $40.11 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.31 To Order
Photo Part No Description Price (each) Stock
229324 SCREW $46.57 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 To Order
Photo Part No Description Price (each) Stock
149807 NUT $1.18 To Order
Photo Part No Description Price (each) Stock
203795 NUT $2.58 To Order
Photo Part No Description Price (each) Stock
12646921 WASHER $0.53 To Order
Photo Part No Description Price (each) Stock
241689 WASHER $7.68 To Order
Photo Part No Description Price (each) Stock
13578321 WASHER $0.52 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
292421 FRONT RH JOINT BRACKET $141.19 To Order
292420 FRONT LH JOINT BRACKET $141.19 To Order
Photo Part No Description Price (each) Stock
274997 WHEEL DRIVE STUD $114.66 To Order
Photo Part No Description Price (each) Stock
305461 ADJUSTMENT SHIM $5.83 To Order
305460 ADJUSTMENT SHIM $5.83 To Order
305459 ADJUSTMENT SHIM $5.83 To Order
...and 5 more part variants. See table on right for more details.
View All

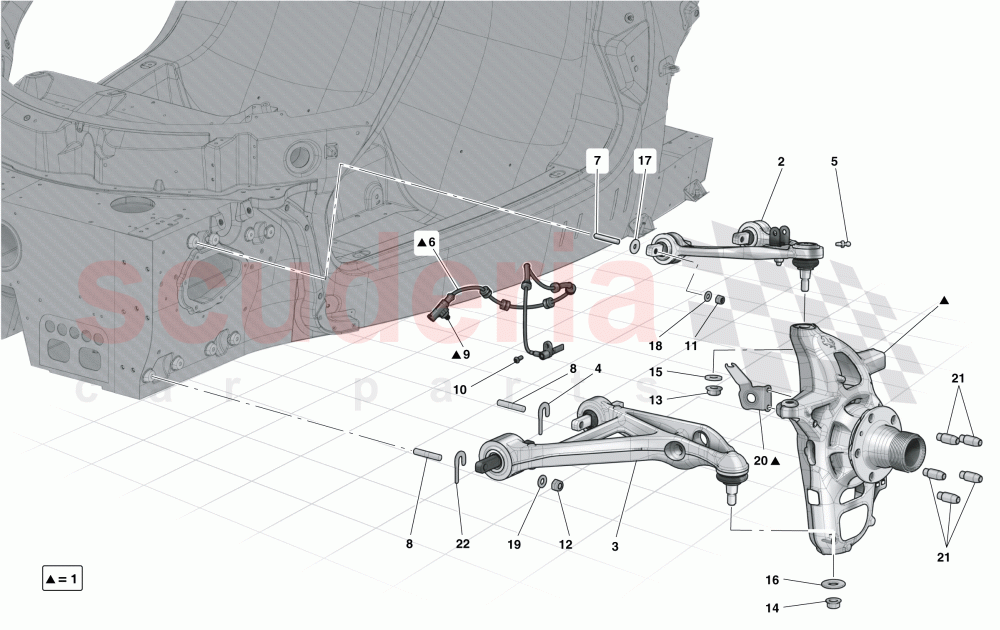

FRONT SUSPENSION - ARMS of Ferrari Ferrari LaFerrari Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 291934
FRONT RH HUB CARRIER 		$7,597.76 1
1 291933
FRONT LH HUB CARRIER 		$7,597.76 1
2 297987
COMPL. UPPER RH FRONT ARM 		$2,068.31 1
2 297986
COMPL. UPPER LH FRONT ARM 		$2,068.31 1
3 308586
COMPL. LOWER RH FRONT ARM 		$1,766.65 1
3 308585
COMPL. LOWER LH FRONT ARM 		$1,766.65 1
4 238885
CAMBER SPACER 4MM
Th. 4 mm 		$5.77 (7.7% off) 4
4 238884
ADJUSTMENT SHIM
Th. 3.5 mm 		$5.59 (10.6% off) 4
4 238883
ADJUSTMENT SHIM
Th. 3 mm 		$5.59 (10.6% off) 4
4 238882
ADJUSTMENT SHIM
Th. 2.5 mm 		$5.59 (10.6% off) 4
4 238694
ADJUSTMENT SHIM
Th. 2 mm 		$5.59 (9.1% off) 4
4 238881
CAMBER SPACER 1.5MM
Th. 1.5 mm 		$5.77 (6.2% off) 4
4 238693
ADJUSTMENT SHIM
Th. 1 mm 		$5.77 (7.7% off) 4
4 262544
ADJUSTER SHIM
Th. 0.5 mm 		$9.50 4
5 343376
BALL JOINT 		$22.45 2
6 269415
ABS SENSOR 		$401.13 2
7 13543734
STUD BOLT 		$1.77 8
8 13546634
STUD BOLT 		$40.11 8
9 303385
CLIP 		$0.31 2
10 229324
SCREW 		$46.57 2
11 104030
NUT 		$0.26 (74% off) 8
12 12574521
Nyloc Nut 		$0.92 (54% off) 8
13 149807
NUT 		$1.18 (41% off) 2
14 203795
NUT 		$2.58 2
15 12646921
WASHER 		$0.53 2
16 241689
WASHER 		$7.68 2
17 13578321
WASHER 		$0.52 8
18 14496524
WASHER 		$0.11 (92.7% off) 8
19 126648
WASHER D.10.5-21 X 2 		$1.91 8
20 292421
FRONT RH JOINT BRACKET 		$141.19 1
20 292420
FRONT LH JOINT BRACKET 		$141.19 1
21 274997
WHEEL DRIVE STUD 		$114.66 10
22 305461
ADJUSTMENT SHIM
Th. 4 mm 		$5.83 4
22 305460
ADJUSTMENT SHIM
Th. 3.5 mm 		$5.83 4
22 305459
ADJUSTMENT SHIM
Th. 3 mm 		$5.83 4
22 305458
ADJUSTMENT SHIM
Th. 2.5 mm 		$5.83 4
22 305457
ADJUSTMENT SHIM
Th. 2 mm 		$5.83 4
22 305456
ADJUSTMENT SHIM
Th. 1.5 mm 		$5.83 4
22 305455
ADJUSTMENT SHIM
Th. 1 mm 		$5.83 4
22 305454
ADJUSTMENT SHIM
Th. 0.5 mm 		$5.83 4
