EVAPORATIVE EMISSIONS CONTROL SYSTEM of Ferrari Ferrari LaFerrari

View All

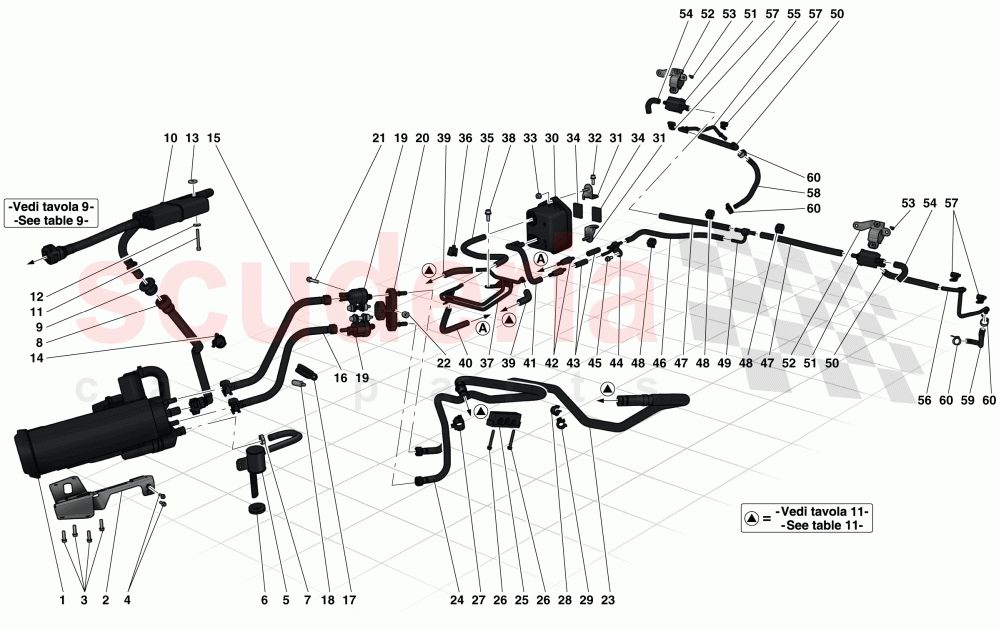

Ferrari LaFerrari - EVAPORATIVE EMISSIONS CONTROL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	291404	COMPL. VAPOUR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296111	CANISTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308072	CANISTER INLET BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308092	NITTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291387	PIPE FROM SEPARATOR TO VAPOUR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285518	BULKHEAD CONNECTOR GAITER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294884	COMPL. EXTERNAL VAPOUR SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14358924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279523	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305240	CANISTER FLUSH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305241	CANISTER FLUSH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303240	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299418	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285113	FLUSH VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295094	COMPL. FLUSH VALVE MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11569124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292132	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299656	LH INTAKE FLUSH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299655	RH INTAKE FLUSH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294117	TRIPLE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302766	ERGAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149773	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225873	RAYMOND CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187721	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198339	VACUUM ACCUMULATOR TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296177	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295423	ADHESIVE FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299041	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14574287	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298921	COMPL. RIGID PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299039	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299040	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298917	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295349	VACUUM RETAINER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298952	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298919	T UNION WITH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304803	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298839	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298834	T UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298867	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178309	SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295815	SOLENOID VALVE MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260272	BENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301744	RH RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301745	LH RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249393	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301755	DOUBLE DIAMETER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301756	DOUBLE DIAMETER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262107	SCREW COLLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	291404	COMPL. VAPOUR FILTER	291404 COMPL. VAPOUR FILTER	-	1	Enquire
2	296111	CANISTER BRACKET	296111 CANISTER BRACKET	-	1	Enquire
3	302655	SCREW	302655 SCREW M6 X 20	-	4	Enquire
4	85833700	SCREW	85833700 SCREW M5 X 15	-	2	Enquire
5	308072	CANISTER INLET BOX	308072 CANISTER INLET BOX	-	1	Enquire
6	308092	NITTO	308092 NITTO	-	1	Enquire
7	13127070	COLLAR	13127070 COLLAR Applicable only for S.T. Schedule	-	1	Enquire
8	291387	PIPE FROM SEPARATOR TO VAPOUR FILTER	291387 PIPE FROM SEPARATOR TO VAPOUR FILTER	-	1	Enquire
9	285518	BULKHEAD CONNECTOR GAITER	285518 BULKHEAD CONNECTOR GAITER	-	1	Enquire
10	294884	COMPL. EXTERNAL VAPOUR SEPARATOR	294884 COMPL. EXTERNAL VAPOUR SEPARATOR	-	1	Enquire
11	14358924	SCREW	14358924 SCREW	-	2	Enquire
12	860172	WASHER	860172 WASHER Applicable only for S.T. Schedule	-	2	Enquire
13	279523	WASHER	279523 WASHER	-	2	Enquire
14	259508	CLIP	259508 CLIP	-	1	Enquire
15	305240	CANISTER FLUSH PIPE	305240 CANISTER FLUSH PIPE LH VALVE	-	1	Enquire
16	305241	CANISTER FLUSH PIPE	305241 CANISTER FLUSH PIPE RH VALVE	-	1	Enquire
17	303240	BRACKET	303240 BRACKET	-	1	Enquire
18	299418	STUD BOLT	299418 STUD BOLT	-	1	Enquire
19	285113	FLUSH VALVE	285113 FLUSH VALVE	-	2	Enquire
20	295094	COMPL. FLUSH VALVE MOUNT	295094 COMPL. FLUSH VALVE MOUNT	-	1	Enquire
21	11569124	SCREW	11569124 SCREW	-	2	Enquire
22	292132	SPACER	292132 SPACER	-	2	Enquire
23	299656	LH INTAKE FLUSH PIPE	299656 LH INTAKE FLUSH PIPE	-	1	Enquire
24	299655	RH INTAKE FLUSH PIPE	299655 RH INTAKE FLUSH PIPE	-	1	Enquire
25	294117	TRIPLE CLIP	294117 TRIPLE CLIP	-	1	Enquire
26	302766	ERGAL SCREW	302766 ERGAL SCREW M5 X 40; Applicable only for S.T. Schedule	-	2	Enquire
27	149773	CLIP	149773 CLIP	-	1	Enquire
28	225873	RAYMOND CLIP	225873 RAYMOND CLIP	-	1	Enquire
29	187721	CLIP	187721 CLIP Applicable only for S.T. Schedule	-	1	Enquire
30	198339	VACUUM ACCUMULATOR TANK	198339 VACUUM ACCUMULATOR TANK	-	1	Enquire
31	296177	BRACKET	296177 BRACKET	-	2	Enquire
32	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
33	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
34	295423	ADHESIVE FOAM	295423 ADHESIVE FOAM	-	2	Enquire
35	299041	RUBBER PIPE	299041 RUBBER PIPE	-	1	Enquire
36	14574287	CLIP	14574287 CLIP	-	1	Enquire
37	298921	COMPL. RIGID PIPES	298921 COMPL. RIGID PIPES Applicable only for S.T. Schedule	-	1	Enquire
38	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
39	299039	RUBBER PIPE	299039 RUBBER PIPE	-	2	Enquire
40	299040	RUBBER PIPE	299040 RUBBER PIPE	-	1	Enquire
41	298917	RUBBER PIPE	298917 RUBBER PIPE	-	1	Enquire
42	295349	VACUUM RETAINER VALVE	295349 VACUUM RETAINER VALVE	-	2	Enquire
43	298952	RUBBER PIPE	298952 RUBBER PIPE	-	2	Enquire
44	298919	T UNION WITH BRACKET	298919 T UNION WITH BRACKET	-	1	Enquire
45	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	1	Enquire
46	304803	RUBBER PIPE	304803 RUBBER PIPE	-	1	Enquire
47	298839	RUBBER PIPE	298839 RUBBER PIPE	-	2	Enquire
48	198253	CLIP	198253 CLIP	-	3	Enquire
49	298834	T UNION	298834 T UNION	-	1	Enquire
50	298867	RUBBER PIPE	298867 RUBBER PIPE	-	2	Enquire
51	178309	SOLENOID VALVE	178309 SOLENOID VALVE	-	2	Enquire
52	295815	SOLENOID VALVE MOUNT	295815 SOLENOID VALVE MOUNT	-	2	Enquire
53	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10; Applicable only for S.T. Schedule	-	4	Enquire
54	260272	BENT PIPE	260272 BENT PIPE Applicable only for S.T. Schedule	-	2	Enquire
55	301744	RH RIGID PIPE	301744 RH RIGID PIPE	-	1	Enquire
56	301745	LH RIGID PIPE	301745 LH RIGID PIPE	-	1	Enquire
57	249393	CLIP	249393 CLIP	-	4	Enquire
58	301755	DOUBLE DIAMETER PIPE	301755 DOUBLE DIAMETER PIPE	-	1	Enquire
59	301756	DOUBLE DIAMETER PIPE	301756 DOUBLE DIAMETER PIPE	-	1	Enquire
60	262107	SCREW COLLAR	262107 SCREW COLLAR	-	4	Enquire
