TIMING SYSTEM - TAPPETS of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - TIMING SYSTEM - TAPPETS

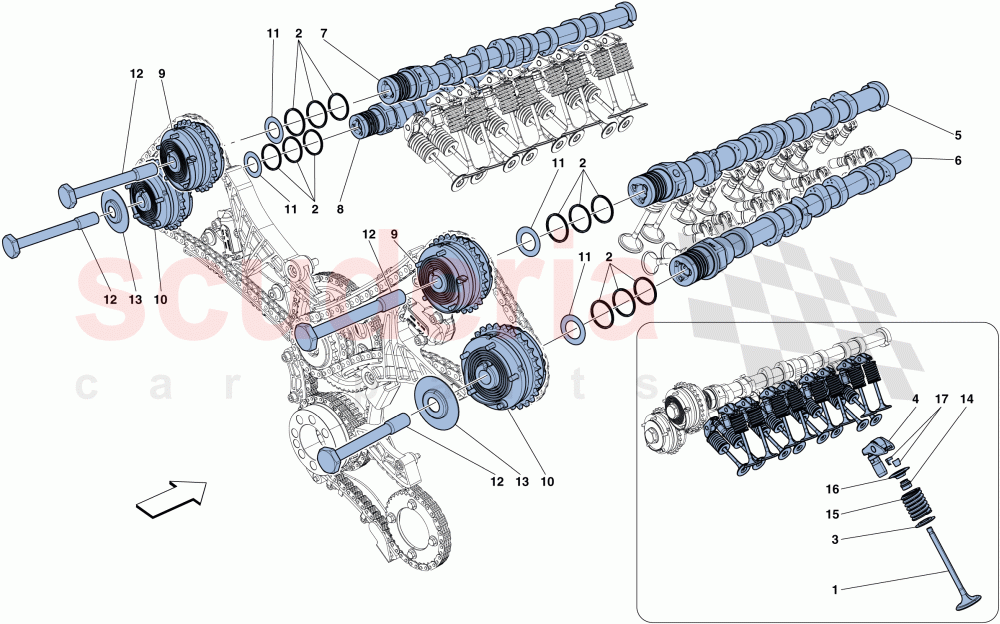

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	314784	INTAKE VALVE	Enquire	To Order
	314857	EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246965	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287553	LOWER INTAKE VALVE SPRING CAP	Enquire	To Order
	287551	LOWER EXHAUST VALVE SPRING CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	927517	COMPL. FINGER-TAPPET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330638	RH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328693	RH EXHAUST CAMSHAFT	Enquire	To Order
	300244	RH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330639	LH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300245	LH EXHAUST CAMSHAFT	Enquire	To Order
	328694	LH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279099	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295300	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287708	SCREW M14 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296310	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331715	VALVE RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287554	UPPER VALVE SPRING CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	314784	INTAKE VALVE	314784 INTAKE VALVE	-	16	Enquire
1	314857	EXHAUST VALVE	314857 EXHAUST VALVE	-	16	Enquire
2	246965	O-RING	246965 O-RING Also comes with engine gasket set	-	12	Enquire
3	287553	LOWER INTAKE VALVE SPRING CAP	287553 LOWER INTAKE VALVE SPRING CAP	-	16	Enquire
3	287551	LOWER EXHAUST VALVE SPRING CAP	287551 LOWER EXHAUST VALVE SPRING CAP	-	16	Enquire
4	927517	COMPL. FINGER-TAPPET	927517 COMPL. FINGER-TAPPET	-	32	Enquire
5	330638	RH INTAKE CAMSHAFT	330638 RH INTAKE CAMSHAFT	-	1	Enquire
6	328693	RH EXHAUST CAMSHAFT	328693 RH EXHAUST CAMSHAFT Applicable from engine No. 369856	-	1	Enquire
6	300244	RH EXHAUST CAMSHAFT	300244 RH EXHAUST CAMSHAFT Applicable up to engine No. 369855	-	1	Enquire
7	330639	LH INTAKE CAMSHAFT	330639 LH INTAKE CAMSHAFT	-	1	Enquire
8	300245	LH EXHAUST CAMSHAFT	300245 LH EXHAUST CAMSHAFT Applicable up to engine No. 369855	-	1	Enquire
8	328694	LH EXHAUST CAMSHAFT	328694 LH EXHAUST CAMSHAFT Applicable from engine No. 369856	-	1	Enquire
9	279099	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	279099 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	-	2	Enquire
10	295300	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	295300 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	-	2	Enquire
11	240559	DIAMOND COATED WASHER	240559 DIAMOND COATED WASHER	-	4	Enquire
12	287708	SCREW M14 X 1.5	287708 SCREW M14 X 1.5	-	4	Enquire
13	296310	SPACER	296310 SPACER	-	2	Enquire
14	221473	OIL SEAL	221473 OIL SEAL	-	32	Enquire
15	331715	VALVE RETURN SPRING	331715 VALVE RETURN SPRING	-	32	Enquire
16	287554	UPPER VALVE SPRING CAP	287554 UPPER VALVE SPRING CAP	-	32	Enquire
17	179763	VALVE SPRING SEMI-CONE	179763 VALVE SPRING SEMI-CONE	-	64	Enquire
