Ferrari GTC4Lusso T - VENTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
299742 OIL VAPOUR SEPARATOR $353.00 To Order
Photo Part No Description Price (each) Stock
307637 WATER VENT PIPE $288.81 To Order
Photo Part No Description Price (each) Stock
320055 COMPENSATION PIPE $139.58 To Order
Photo Part No Description Price (each) Stock
309274 BRACKET $20.29 To Order
Photo Part No Description Price (each) Stock
11903811 HOSE CONNECTOR $4.39 To Order
Photo Part No Description Price (each) Stock
198273 CLIP $1.65 To Order
Photo Part No Description Price (each) Stock
291552 CLIP $1.28 To Order
Photo Part No Description Price (each) Stock
312161 PIPE $113.91 To Order
Photo Part No Description Price (each) Stock
10260960 GASKET $0.16 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
285403 VALVE $36.89 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
282393 SCREW $0.75 To Order
Photo Part No Description Price (each) Stock
337244 BLOW-BY PIPE FROM INTAKE MANIFOLD TO SEPARATOR $107.49 To Order
337244 BLOW-BY PIPE FROM INTAKE MANIFOLD TO SEPARATOR $107.49 To Order
Photo Part No Description Price (each) Stock
82051100 CLIP $0.94 IN STOCK
Photo Part No Description Price (each) Stock
767862 MALE BLOW-BY PIPE $139.58 To Order
767862 MALE BLOW-BY PIPE $139.58 To Order
Photo Part No Description Price (each) Stock
767814 FEMALE BLOW-BY PIPE $192.54 To Order
767814 FEMALE BLOW-BY PIPE $192.54 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
130295 O-RING $1.43 To Order
Photo Part No Description Price (each) Stock
849688 OIL RETURN LINE GASKET $41.53 To Order
View All

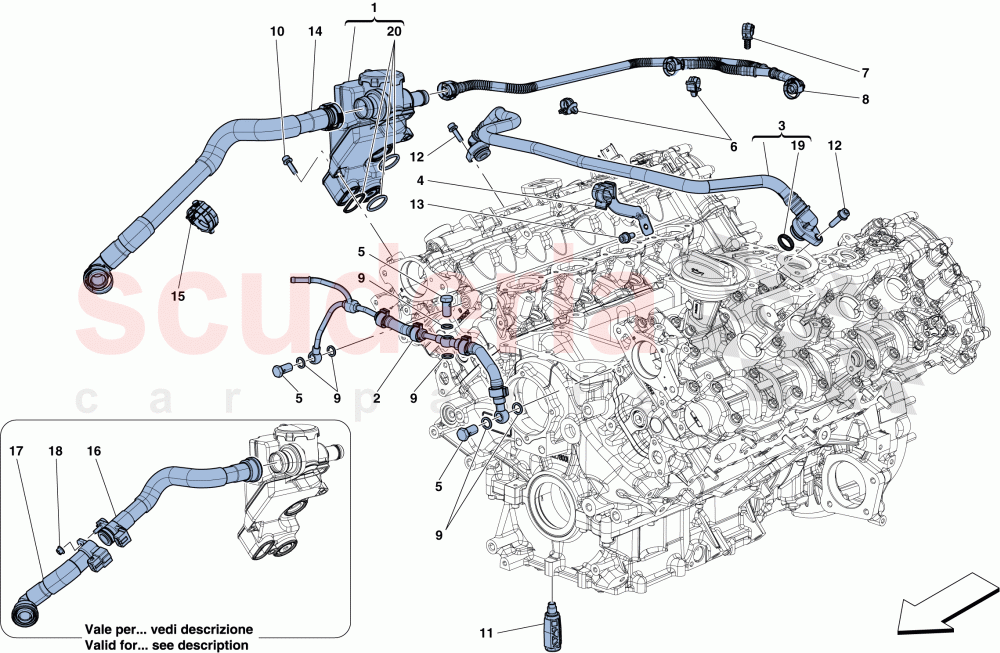

VENTS of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 299742
OIL VAPOUR SEPARATOR 		$353.00 1
2 307637
WATER VENT PIPE 		$288.81 1
3 320055
COMPENSATION PIPE 		$139.58 1
4 309274
BRACKET 		$20.29 1
5 11903811
HOSE CONNECTOR 		$4.39 3
6 198273
CLIP 		$1.65 2
7 291552
CLIP 		$1.28 1
8 312161
PIPE 		$113.91 1
9 10260960
GASKET
Also comes with engine gasket set
IN STOCK 		$0.16 6
10 231619
SCREW
M6 X 22
IN STOCK 		$0.31 3
11 285403
VALVE 		$36.89 1
12 231619
SCREW
M6 X 22
IN STOCK 		$0.31 2
13 282393
SCREW 		$0.75 1
14 337244
BLOW-BY PIPE FROM INTAKE MANIFOLD TO SEPARATOR
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$107.49 1
14 337244
BLOW-BY PIPE FROM INTAKE MANIFOLD TO SEPARATOR
Applicable for EU GS, AUS, UK; Applicable up to engine No. 389923 		$107.49 1
15 82051100
CLIP
IN STOCK 		$0.94 1
16 767862
MALE BLOW-BY PIPE
Applicable for USA, CDN, USA LIGHT 		$139.58 1
16 767862
MALE BLOW-BY PIPE
Applicable for EU GS, AUS, UK; Applicable from engine No. 389924 		$139.58 1
17 767814
FEMALE BLOW-BY PIPE
Applicable for EU GS, AUS, UK; Applicable from engine No. 389924 		$192.54 1
17 767814
FEMALE BLOW-BY PIPE
Applicable for USA, CDN, USA LIGHT 		$192.54 1
18 13046011
NUT
Applicable for USA, CDN, USA LIGHT 		$0.39 1
18 13046011
NUT
Applicable for EU GS, AUS, UK; Applicable from engine No. 389924 		$0.39 1
19 130295
O-RING 		$1.43 2
20 849688
OIL RETURN LINE GASKET 		$41.53 3
