RIGHT HAND CYLINDER HEAD of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - RIGHT HAND CYLINDER HEAD

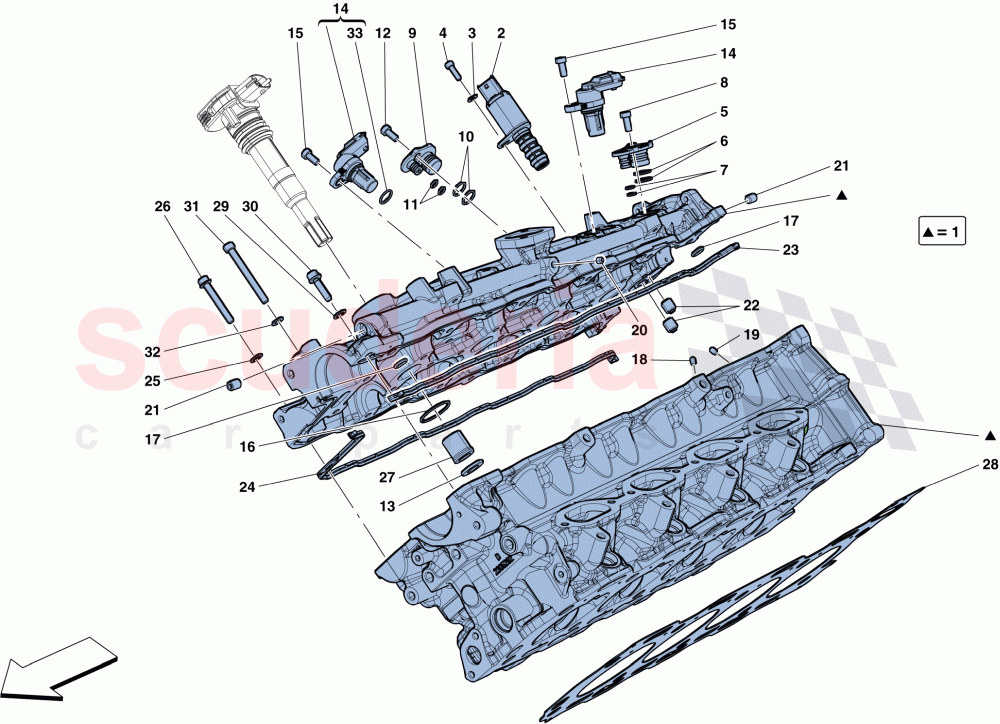

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	329807	RH CYLINDER HEAD	Enquire	To Order
	333616	RH CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	806089	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14453281	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14452781	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	806089	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14453281	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14452781	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271129	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	224573	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	166657	O-Ring D.29.87	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127816	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	256827	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226414	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	277903	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200458	NON RETURN VALVE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	296075	WASHER 13 X 5.8	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	296759	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271125	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319511	RH HEAD-CRANKCASE GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	296075	WASHER 13 X 5.8	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14303821	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	849672	TIMING SENSOR SEAL	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	329807	RH CYLINDER HEAD	329807 RH CYLINDER HEAD Applicable up to engine No. 369855	-	1	Enquire
1	333616	RH CYLINDER HEAD	333616 RH CYLINDER HEAD Applicable from engine No. 369856	-	1	Enquire
2	801187	OIL PRESSURE REGULATOR VALVE IN STOCK	801187 OIL PRESSURE REGULATOR VALVE IN STOCK	-	2	Enquire
3	11181574	WASHER IN STOCK	11181574 WASHER IN STOCK	-	2	Enquire
4	14304124	SCREW	14304124 SCREW M5 X 16	-	2	Enquire
5	806089	PLUG	806089 PLUG	-	1	Enquire
6	14453281	O-RING IN STOCK	14453281 O-RING Also comes with engine gasket set IN STOCK	-	2	Enquire
7	14452781	GASKET IN STOCK	14452781 GASKET Also comes with engine gasket set IN STOCK	-	2	Enquire
8	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	1	Enquire
9	806089	PLUG	806089 PLUG	-	1	Enquire
10	14453281	O-RING IN STOCK	14453281 O-RING Also comes with engine gasket set IN STOCK	-	2	Enquire
11	14452781	GASKET IN STOCK	14452781 GASKET Also comes with engine gasket set IN STOCK	-	2	Enquire
12	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20 IN STOCK	-	1	Enquire
13	271129	WASHER IN STOCK	271129 WASHER IN STOCK	-	20	Enquire
14	224573	TIMING SENSOR	224573 TIMING SENSOR	-	2	Enquire
15	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18 IN STOCK	-	2	Enquire
16	166657	O-Ring D.29.87 IN STOCK	166657 O-Ring D.29.87 Also comes with engine gasket set IN STOCK	-	4	Enquire
17	127816	O-RING IN STOCK	127816 O-RING Also comes with engine gasket set IN STOCK	-	2	Enquire
18	256827	GRUB SCREW	256827 GRUB SCREW	-	1	Enquire
19	226414	GRUB SCREW	226414 GRUB SCREW	-	1	Enquire
20	199760	THREADED PLUG IN STOCK	199760 THREADED PLUG IN STOCK	-	1	Enquire
21	277903	PLUG	277903 PLUG	-	2	Enquire
22	200458	NON RETURN VALVE IN STOCK	200458 NON RETURN VALVE IN STOCK	-	2	Enquire
25	296075	WASHER 13 X 5.8 IN STOCK	296075 WASHER 13 X 5.8 IN STOCK	-	30	Enquire
26	296759	SCREW IN STOCK	296759 SCREW IN STOCK	-	30	Enquire
27	271125	NUT	271125 NUT	-	20	Enquire
28	319511	RH HEAD-CRANKCASE GASKET IN STOCK	319511 RH HEAD-CRANKCASE GASKET Also comes with engine gasket set IN STOCK	-	1	Enquire
29	296075	WASHER 13 X 5.8 IN STOCK	296075 WASHER 13 X 5.8 IN STOCK	-	1	Enquire
30	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	-	1	Enquire
31	14303821	SCREW	14303821 SCREW M6 X 60	-	1	Enquire
32	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	1	Enquire
33	849672	TIMING SENSOR SEAL IN STOCK	849672 TIMING SENSOR SEAL IN STOCK	-	2	Enquire
