Name: LUBRICATION: CIRCUIT AND PICKUP
Rating: 5.0 (1 reviews)

LUBRICATION: CIRCUIT AND PICKUP of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - LUBRICATION: CIRCUIT AND PICKUP

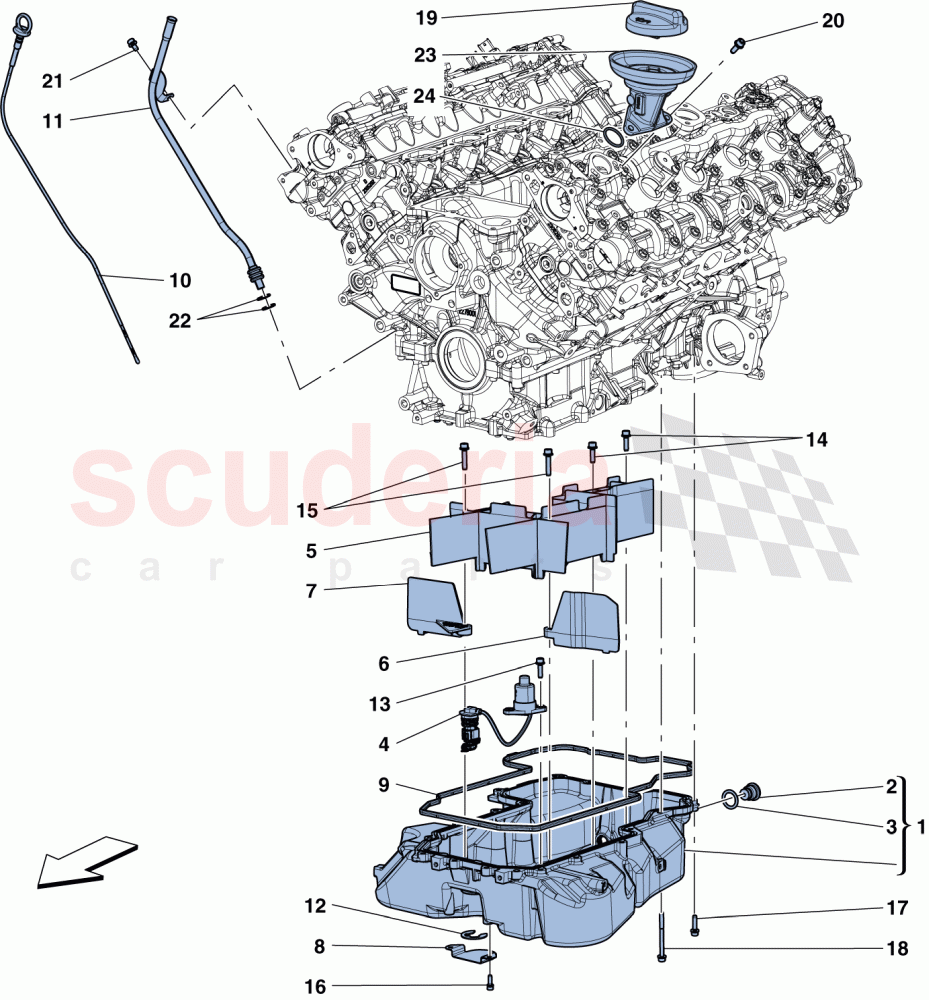

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	785239	OIL SUMP	$791.46	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	230171	OIL LEVEL SENSOR	$51.41	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	311171	OIL SUMP BAFFLE	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	303456	LH OIL SUMP BAFFLE FIN	$7.54	To Order

Photo	Part No	Description	Price (each)	Stock
	303457	RH OIL SUMP BAFFLE FIN	$7.15	To Order

Photo	Part No	Description	Price (each)	Stock
	304668	SENSOR PROTECTIVE SHIELD	$15.54	To Order

Photo	Part No	Description	Price (each)	Stock
	301591	OIL SUMP GASKET	$75.95	To Order

Photo	Part No	Description	Price (each)	Stock
	301461	DIPSTICK	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	297463	DIPSTICK HOLDER EXTENSION	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	16165276	SNAP RING	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	282396	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	282396	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	282398	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	299916	SCREW	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	231626	SCREW	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	293205	ENGINE OIL FILLER CAP	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	282370	O-RING	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	307944	OIL CAP EXTENSION	$143.33	To Order

Photo	Part No	Description	Price (each)	Stock
	14457881	GASKET	$1.36	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	785239	OIL SUMP	785239 OIL SUMP	$791.46	1
2	104280	MAGNETIC THREADED PLUG M22 X 1.5	104280 MAGNETIC THREADED PLUG M22 X 1.5	$6.26 MSRP: ~~6.90~~ (9.3% off)	1
3	10261860	GASKET	10261860 GASKET Also comes with engine gasket set	$0.45 MSRP: ~~1.00~~ (55% off)	1
4	230171	OIL LEVEL SENSOR ARRIVING SOON	230171 OIL LEVEL SENSOR ARRIVING SOON	$51.41 MSRP: ~~67.22~~ (23.5% off)	1
5	311171	OIL SUMP BAFFLE	311171 OIL SUMP BAFFLE	$67.38	1
6	303456	LH OIL SUMP BAFFLE FIN	303456 LH OIL SUMP BAFFLE FIN	$7.54	1
7	303457	RH OIL SUMP BAFFLE FIN	303457 RH OIL SUMP BAFFLE FIN	$7.15	1
8	304668	SENSOR PROTECTIVE SHIELD	304668 SENSOR PROTECTIVE SHIELD	$15.54	1
9	301591	OIL SUMP GASKET	301591 OIL SUMP GASKET Also comes with engine gasket set	$75.95 MSRP: ~~93.90~~ (19.1% off)	1
10	301461	DIPSTICK	301461 DIPSTICK	$40.10	1
11	297463	DIPSTICK HOLDER EXTENSION	297463 DIPSTICK HOLDER EXTENSION	$72.19	1
12	16165276	SNAP RING	16165276 SNAP RING	$0.52	1
13	282396	SCREW	282396 SCREW	$0.63	2
14	282396	SCREW	282396 SCREW	$0.63	2
15	282398	SCREW	282398 SCREW	$0.52	2
16	299916	SCREW	299916 SCREW	$3.13	2
17	231620	SCREW	231620 SCREW M6 X 25	$0.32 MSRP: ~~0.35~~ (8.6% off)	8
18	231626	SCREW	231626 SCREW	$0.81	9
19	293205	ENGINE OIL FILLER CAP	293205 ENGINE OIL FILLER CAP	$33.68	1
20	248334	SCREW	248334 SCREW	$0.68	2
21	248334	SCREW	248334 SCREW M6 X 12	$0.68	1
22	282370	O-RING	282370 O-RING	$0.57	2
23	307944	OIL CAP EXTENSION	307944 OIL CAP EXTENSION	$143.33	1
24	14457881	GASKET	14457881 GASKET	$1.36	1
