CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari GTC4Lusso T

View All

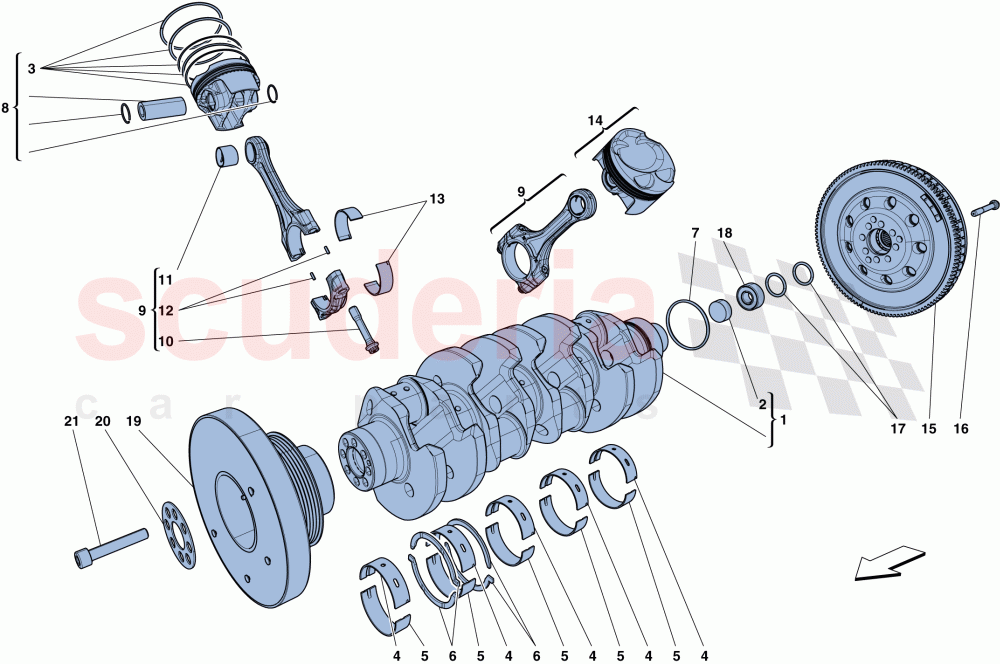

Ferrari GTC4Lusso T - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	312838	CRANKSHAFT	$1,278.23	To Order

Photo	Part No	Description	Price (each)	Stock
	176396	THREADED PLUG	$5.35	To Order

Photo	Part No	Description	Price (each)	Stock
	322910	COMPL. PISTON RING SET	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	271406	UPPER HALF MAIN BEARING	$38.49	To Order
	271408	UPPER HALF MAIN BEARING	$38.49	To Order
	271409	UPPER HALF MAIN BEARING	$38.49	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	309245	LOWER HALF MAIN BEARING	$27.26	To Order
	271412	LOWER HALF MAIN BEARING	$36.89	To Order
	271413	LOWER HALF MAIN BEARING	$36.89	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	271589	CRANKSHAFT BEARING SHIM	$15.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	259917	O-RING	$3.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	326005	COMPL. PISTON, RH BANK	$593.69	To Order

Photo	Part No	Description	Price (each)	Stock
	304333	COMPL. CONNECTING ROD	$215.60	To Order

Photo	Part No	Description	Price (each)	Stock
	270248	SCREW	$23.78	To Order

Photo	Part No	Description	Price (each)	Stock
	301753	BUSH	$54.54	To Order

Photo	Part No	Description	Price (each)	Stock
	292751	ALIGNMENT PIN	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	312694	CONNECTING ROD HALF-BEARING	$20.29	To Order
	312692	CONNECTING ROD HALF-BEARING	$20.29	To Order
	312693	CONNECTING ROD HALF-BEARING	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	326006	COMPL. PISTON, LH BANK	$593.69	To Order

Photo	Part No	Description	Price (each)	Stock
	315756	ENGINE FLYWHEEL	$2,801.61	To Order

Photo	Part No	Description	Price (each)	Stock
	328629	SCREW M10 X 1.25	$86.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282966	GASKET	$4.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	103877	BEARING	$30.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271609	FLYWHEEL WASHER	$2.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14308074	ALLEN SCREW SOCKET HEAD M10 X 1.25 X 55	$2.24	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	312838	CRANKSHAFT	312838 CRANKSHAFT	$1,278.23	1
2	176396	THREADED PLUG	176396 THREADED PLUG	$5.35	1
3	322910	COMPL. PISTON RING SET	322910 COMPL. PISTON RING SET	$192.54	8
4	271406	UPPER HALF MAIN BEARING	271406 UPPER HALF MAIN BEARING Green	$38.49	5
4	271408	UPPER HALF MAIN BEARING	271408 UPPER HALF MAIN BEARING Yellow	$38.49	5
4	271409	UPPER HALF MAIN BEARING	271409 UPPER HALF MAIN BEARING Blue	$38.49	5
4	309242	UPPER HALF MAIN BEARING	309242 UPPER HALF MAIN BEARING Brown	$27.26	5
4	309243	UPPER HALF MAIN BEARING	309243 UPPER HALF MAIN BEARING Pink	$27.26	5
5	309245	LOWER HALF MAIN BEARING	309245 LOWER HALF MAIN BEARING Pink	$27.26	5
5	271412	LOWER HALF MAIN BEARING	271412 LOWER HALF MAIN BEARING Green	$36.89	5
5	271413	LOWER HALF MAIN BEARING	271413 LOWER HALF MAIN BEARING Yellow	$36.89	5
5	271414	LOWER HALF MAIN BEARING	271414 LOWER HALF MAIN BEARING Blue	$36.89	5
5	309244	LOWER HALF MAIN BEARING IN STOCK	309244 LOWER HALF MAIN BEARING Brown IN STOCK	$27.26	5
6	271589	CRANKSHAFT BEARING SHIM IN STOCK	271589 CRANKSHAFT BEARING SHIM IN STOCK	$15.71	4
7	259917	O-RING IN STOCK	259917 O-RING Also comes with engine gasket set IN STOCK	$3.36	1
8	326005	COMPL. PISTON, RH BANK	326005 COMPL. PISTON, RH BANK	$593.69	4
9	304333	COMPL. CONNECTING ROD	304333 COMPL. CONNECTING ROD	$215.60	8
10	270248	SCREW	270248 SCREW	$23.78	16
11	301753	BUSH	301753 BUSH	$54.54	8
12	292751	ALIGNMENT PIN	292751 ALIGNMENT PIN	$27.26	16
13	312694	CONNECTING ROD HALF-BEARING	312694 CONNECTING ROD HALF-BEARING Pink	$20.29	16
13	312692	CONNECTING ROD HALF-BEARING	312692 CONNECTING ROD HALF-BEARING Blue	$20.29	16
13	312693	CONNECTING ROD HALF-BEARING	312693 CONNECTING ROD HALF-BEARING Red	$20.29	16
14	326006	COMPL. PISTON, LH BANK	326006 COMPL. PISTON, LH BANK	$593.69	4
15	315756	ENGINE FLYWHEEL	315756 ENGINE FLYWHEEL	$2,801.61	1
16	328629	SCREW M10 X 1.25 IN STOCK	328629 SCREW M10 X 1.25 IN STOCK	$86.03	8
17	282966	GASKET IN STOCK	282966 GASKET Also comes with engine gasket set IN STOCK	$4.34	2
18	103877	BEARING IN STOCK	103877 BEARING IN STOCK	$30.39	1
20	271609	FLYWHEEL WASHER IN STOCK	271609 FLYWHEEL WASHER IN STOCK	$2.54	1
21	14308074	ALLEN SCREW SOCKET HEAD M10 X 1.25 X 55 IN STOCK	14308074 ALLEN SCREW SOCKET HEAD M10 X 1.25 X 55 IN STOCK	$2.24	8
