Ferrari FF - BATTERY

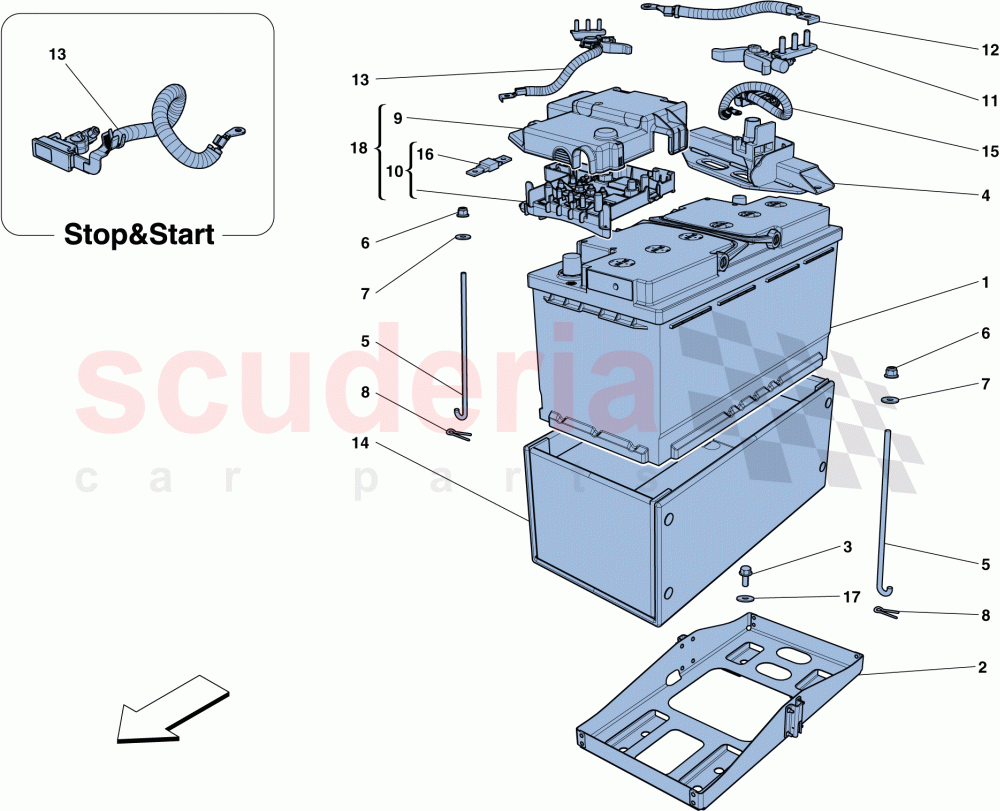

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	272263	BATTERY MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order
	16044321	SCREW	Enquire	To Order
	16287127	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272464	BATTERY RETAINER COMPLETE WITH NEGATIVE TERMINAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292882	BATTERY FASTENER TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10795206	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251161	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10816794	BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	273382	GROUND CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274256	BATTERY GROUND / FALSE TERMINAL CABLE	Enquire	To Order
	254264	BATTERY SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769500	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	273942	COMPL. BATTERY MASTER SWITCH	Enquire	To Order
	273569	COMPL. BATTERY MASTER SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278366	FUSE VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291683	COMPL. BATTERY ECU	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	272263	BATTERY MOUNTING	272263 BATTERY MOUNTING	-	1	Enquire
3	13839224	SCREW	13839224 SCREW M8 X 16	-	3	Enquire
3	16044321	SCREW	16044321 SCREW M8 X 55	-	1	Enquire
3	16287127	SCREW	16287127 SCREW M8 X 20; No longer supplied, replaced by 16287024 and 16044321	-	4	Enquire
4	272464	BATTERY RETAINER COMPLETE WITH NEGATIVE TERMINAL	272464 BATTERY RETAINER COMPLETE WITH NEGATIVE TERMINAL	-	1	Enquire
5	292882	BATTERY FASTENER TIE-ROD	292882 BATTERY FASTENER TIE-ROD	-	2	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
7	12643724	WASHER	12643724 WASHER	-	2	Enquire
8	10795206	SPLIT PIN	10795206 SPLIT PIN	-	2	Enquire
9	251161	COVER	251161 COVER After depletion, order compl. 291683 ref. 18; Applicable until depletion	-	1	Enquire
11	10816794	BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER	10816794 BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER	-	1	Enquire
12	273382	GROUND CABLE	273382 GROUND CABLE	-	1	Enquire
13	274256	BATTERY GROUND / FALSE TERMINAL CABLE	274256 BATTERY GROUND / FALSE TERMINAL CABLE Not for Stop&Start	-	1	Enquire
13	254264	BATTERY SENSOR	254264 BATTERY SENSOR Applicable for Stop&Start	-	1	Enquire
14	769500	HEAT SHIELD	769500 HEAT SHIELD	-	1	Enquire
15	273942	COMPL. BATTERY MASTER SWITCH	273942 COMPL. BATTERY MASTER SWITCH CHASSIS GROUND CABLE; Not for GD	-	1	Enquire
15	273569	COMPL. BATTERY MASTER SWITCH	273569 COMPL. BATTERY MASTER SWITCH CHASSIS GROUND CABLE; Applicable for GD	-	1	Enquire
16	278366	FUSE VALVE	278366 FUSE VALVE Powerval CAL5	-	1	Enquire
17	263276	WASHER	263276 WASHER	-	4	Enquire
18	291683	COMPL. BATTERY ECU	291683 COMPL. BATTERY ECU	-	1	Enquire
