Find Your Part

View All

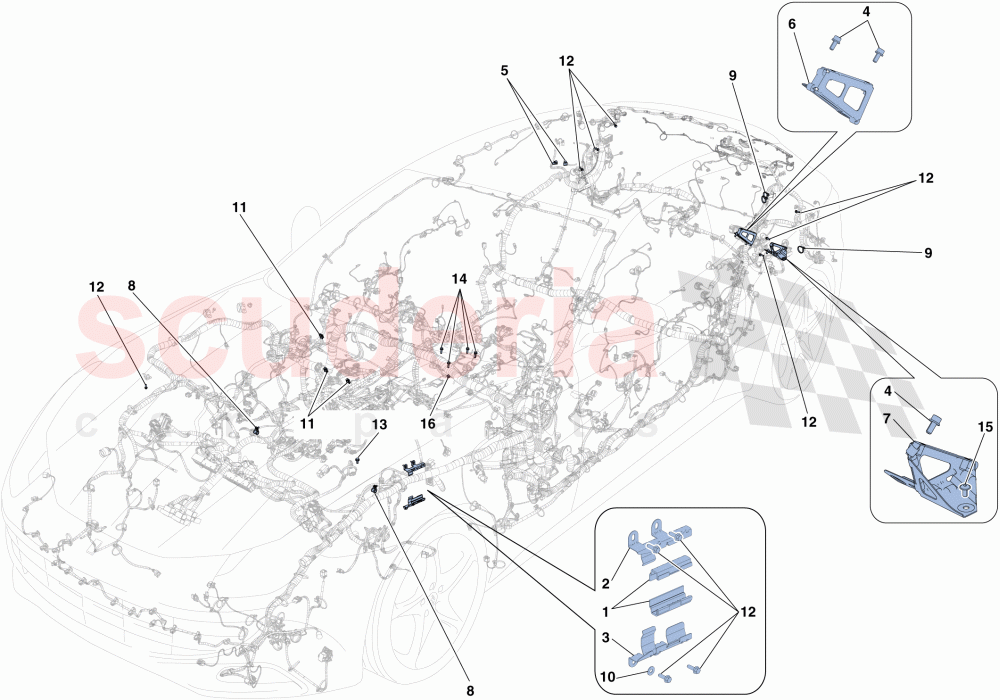

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	191531	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275483	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275484	LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266000	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271674	RH AUDIO AMPLIFIER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271675	LH AUDIO AMPLIFIER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81744400	Clip	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	191531	PLUG	191531 PLUG	-	2	Enquire
2	275483	UPPER BRACKET	275483 UPPER BRACKET	-	1	Enquire
3	275484	LOWER BRACKET	275484 LOWER BRACKET	-	1	Enquire
4	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	3	Enquire
5	266000	CLIP	266000 CLIP	-	2	Enquire
6	271674	RH AUDIO AMPLIFIER BRACKET	271674 RH AUDIO AMPLIFIER BRACKET	-	1	Enquire
7	271675	LH AUDIO AMPLIFIER BRACKET	271675 LH AUDIO AMPLIFIER BRACKET	-	1	Enquire
8	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH D. 10	-	2	Enquire
9	10815787	CLAMP	10815787 CLAMP	-	3	Enquire
10	12638124	WASHER	12638124 WASHER	-	1	Enquire
11	62766300	CLIP	62766300 CLIP	-	3	Enquire
12	81591700	SCREW	81591700 SCREW M5 X 20	-	11	Enquire
12	11568124	SCREW	11568124 SCREW M5 X 16; No longer supplied; Replaced by 85692300	-	11	Enquire
13	13839224	SCREW	13839224 SCREW M8 X 16	-	1	Enquire
14	16286124	SCREW	16286124 SCREW M6 X 20	-	4	Enquire
15	85833700	SCREW	85833700 SCREW M5 X 10	-	1	Enquire
16	81744400	Clip	81744400 Clip	-	1	Enquire
