Find Your Part

INFOTAINMENT SYSTEM of Ferrari Ferrari FF

View All

Ferrari FF - INFOTAINMENT SYSTEM

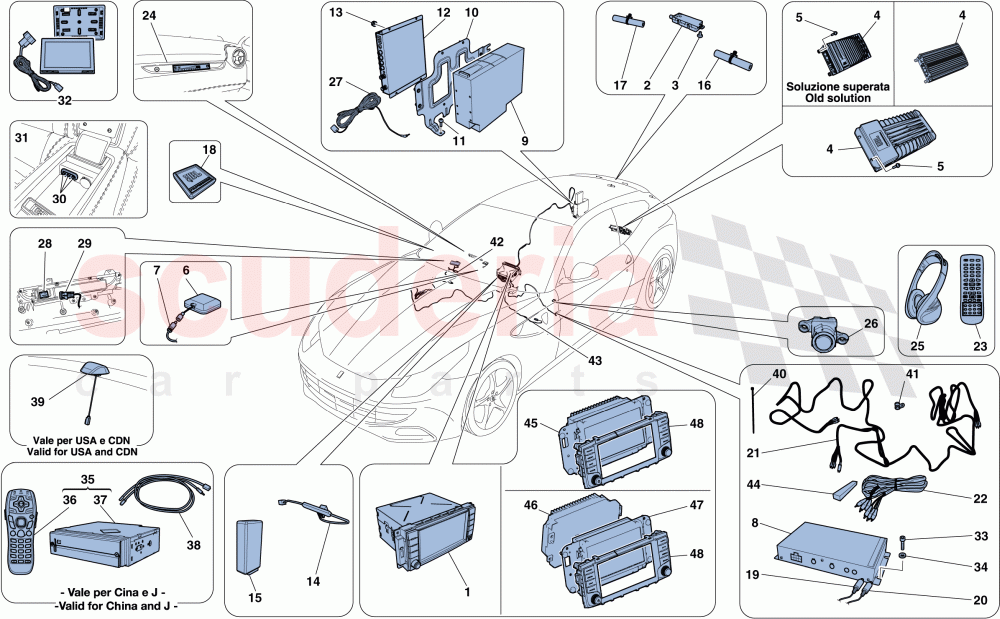

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	279857	COMPL. NIT	Enquire	To Order
	279858	COMPL. NIT	Enquire	To Order
	260845	COMPL. NIT	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	298613	FM2/DAB AMPLIFIER	Enquire	To Order
	261091	AM/FM-TV1 AMPLIFIER	Enquire	To Order
	261093	TV2 AMPLIFIER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292921	8-CHANNEL AMPLIFIER	Enquire	To Order
	257529	BECKER AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order
	85833700	SCREW	Enquire	To Order
	68176200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256394	GPS NAVIGATOR ANTENNA EXTENSION CABLE	Enquire	To Order
	281591	GPS ANTENNA EXTENSION CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255696	ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259474	DVD READER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259513	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	14304220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257907	TV NODE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245789	PHANTOM POWER MICROPHONE WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313019	CAN BOX	Enquire	To Order
	260648	CANBOX	Enquire	To Order
	301460	CAN BOX	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	263421	POSITIVE FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83198200	JBL LOGO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269869	DISPLAY-RH RSE VIDEO CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269870	DISPLAY-LH RSE VIDEO CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280066	PASSENGER COMPARTMENT TV CABLE	Enquire	To Order
	280065	RSE / TV VIDEO CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269872	RSE / DVD VIDEO CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269876	REMOTE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272115	PASSENGER DISPLAY	Enquire	To Order
	286844	PASSENGER DISPLAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332716	PASSENGER DISPLAY BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269874	IR/TV CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281971	USB / NIT / RHR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272232	USB PORT	Enquire	To Order
	303226	USB SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279485	CABLE FOR GLOVE COMPARTMENT POWER SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	276686	SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269868	REAR DISPLAY WITH VIDEO CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303474	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246389	NAVIGATOR KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246391	NAVIGATOR REMOTE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246390	NAVIGATOR HEAD UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265341	PASSENGER COMPARTMENT GPS ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278518	SDARS ANTENNA	Enquire	To Order
	85691500	SDARS ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MC43254	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280923	NAVIGATOR CABLE IN DASHBOARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279056	NAVIGATOR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284115	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316874	BECKER VP4 NIT	Enquire	To Order
	316872	BECKER VP4 NIT	Enquire	To Order
	316871	BECKER VP4 NIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	307609	REMOTE DISPLAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311362	NIT BUTTON PANEL	Enquire	To Order
	311500	NIT BUTTON PANEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	279857	COMPL. NIT	279857 COMPL. NIT Applicable for Russia; Not for Geneva version	-	1	Enquire
1	279858	COMPL. NIT	279858 COMPL. NIT Not for Geneva version; Applicable for GOLFO	-	1	Enquire
1	260845	COMPL. NIT	260845 COMPL. NIT Not for Geneva version; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	260846	COMPL. NIT	260846 COMPL. NIT Not for Geneva version; Applicable for J	-	1	Enquire
1	279471	COMPL. NIT	279471 COMPL. NIT Not for Geneva version; Applicable for CINA	-	1	Enquire
1	260847	COMPL. NIT	260847 COMPL. NIT Vehicles with no navigator for countries with no map; Not for Geneva version; Applicable for EU GS, GOLFO, GD	-	1	Enquire
1	234501	COMPL. NIT	234501 COMPL. NIT Not for Geneva version; Applicable for EU GS, UK	-	1	Enquire
1	260849	COMPL. NIT	260849 COMPL. NIT Standard; Applicable for South Africa; Not for Geneva version; Applicable for AUS, GOLFO	-	1	Enquire
2	298613	FM2/DAB AMPLIFIER	298613 FM2/DAB AMPLIFIER Standard; Applicable for Geneva version; Not for USA, CDN, USA LIGHT	-	1	Enquire
2	261091	AM/FM-TV1 AMPLIFIER	261091 AM/FM-TV1 AMPLIFIER Version with TV Tuner	-	1	Enquire
2	261093	TV2 AMPLIFIER	261093 TV2 AMPLIFIER Version with TV Tuner	-	1	Enquire
2	261559	AM/FM AMPLIFIER	261559 AM/FM AMPLIFIER Standard; Not for Geneva version; Not for J	-	1	Enquire
2	261094	AM/FM AMPLIFIER	261094 AM/FM AMPLIFIER Standard; Not for Geneva version; Applicable for J	-	1	Enquire
2	277243	AM/FM AMPLIFIER	277243 AM/FM AMPLIFIER Standard; Applicable for Geneva version	-	1	Enquire
3	85833700	SCREW	85833700 SCREW M5 X 10	-	1	Enquire
4	292921	8-CHANNEL AMPLIFIER	292921 8-CHANNEL AMPLIFIER Standard; Applicable for Geneva version	-	1	Enquire
4	257529	BECKER AMPLIFIER	257529 BECKER AMPLIFIER Hi-Fi version; Not for Geneva version	-	1	Enquire
5	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	3	Enquire
5	85833700	SCREW	85833700 SCREW M5 X 10; Hi-Fi version	-	6	Enquire
5	68176200	SCREW	68176200 SCREW M5 X 10; No longer supplied; Replaced by 231616	-	3	Enquire
7	256394	GPS NAVIGATOR ANTENNA EXTENSION CABLE	256394 GPS NAVIGATOR ANTENNA EXTENSION CABLE Not for Geneva version; Not for J	-	1	Enquire
7	281591	GPS ANTENNA EXTENSION CABLE	281591 GPS ANTENNA EXTENSION CABLE Not for Geneva version; Applicable for J	-	1	Enquire
8	255696	ECU	255696 ECU RSE version	-	1	Enquire
9	259474	DVD READER	259474 DVD READER Version with DVD player	-	1	Enquire
10	259513	BRACKET	259513 BRACKET Version with DVD player; Version with TV Tuner	-	1	Enquire
11	85833700	SCREW	85833700 SCREW M5 X 12; Fastening bracket; Version with DVD player	-	4	Enquire
11	14304220	SCREW	14304220 SCREW M5 X 16; Fastening player to bracket; Version with DVD player	-	4	Enquire
12	257907	TV NODE	257907 TV NODE Version with TV Tuner	-	1	Enquire
13	62790300	NUT	62790300 NUT Version with TV Tuner	-	4	Enquire
14	245789	PHANTOM POWER MICROPHONE WIRING HARNESS	245789 PHANTOM POWER MICROPHONE WIRING HARNESS Not for Geneva version	-	1	Enquire
15	313019	CAN BOX	313019 CAN BOX Applicable for Geneva version; Version with passenger display	-	1	Enquire
15	260648	CANBOX	260648 CANBOX Not for Geneva version	-	1	Enquire
15	301460	CAN BOX	301460 CAN BOX Applicable for Geneva version; Not for version with Apple Car Play	-	1	Enquire
15	308978	CAN BOX	308978 CAN BOX Applicable for Geneva version; Version with Apple Car Play	-	1	Enquire
16	263421	POSITIVE FILTER	263421 POSITIVE FILTER	-	1	Enquire
18	83198200	JBL LOGO	83198200 JBL LOGO Hi-Fi version	-	2	Enquire
19	269869	DISPLAY-RH RSE VIDEO CABLE	269869 DISPLAY-RH RSE VIDEO CABLE RSE version	-	1	Enquire
20	269870	DISPLAY-LH RSE VIDEO CABLE	269870 DISPLAY-LH RSE VIDEO CABLE RSE version	-	1	Enquire
21	280066	PASSENGER COMPARTMENT TV CABLE	280066 PASSENGER COMPARTMENT TV CABLE Version with TV Tuner; Not for RSE version	-	1	Enquire
21	280065	RSE / TV VIDEO CABLE	280065 RSE / TV VIDEO CABLE RSE version	-	1	Enquire
22	269872	RSE / DVD VIDEO CABLE	269872 RSE / DVD VIDEO CABLE RSE version	-	1	Enquire
23	269876	REMOTE CONTROL	269876 REMOTE CONTROL Version with TV Tuner; Version with DVD player	-	1	Enquire
24	272115	PASSENGER DISPLAY	272115 PASSENGER DISPLAY Version with passenger display; Not for Geneva version	-	1	Enquire
24	286844	PASSENGER DISPLAY	286844 PASSENGER DISPLAY Version with passenger display; Applicable for Geneva version	-	1	Enquire
25	272113	CAP	272113 CAP RSE version	-	2	Enquire
26	332716	PASSENGER DISPLAY BUTTON	332716 PASSENGER DISPLAY BUTTON Version with passenger display	-	1	Enquire
27	269874	IR/TV CABLE	269874 IR/TV CABLE Version with TV Tuner	-	1	Enquire
28	281971	USB / NIT / RHR CABLE	281971 USB / NIT / RHR CABLE Applicable for GD	-	1	Enquire
29	272232	USB PORT	272232 USB PORT Not for Geneva version	-	1	Enquire
29	303226	USB SOCKET	303226 USB SOCKET Applicable for Geneva version	-	1	Enquire
30	279485	CABLE FOR GLOVE COMPARTMENT POWER SOCKET	279485 CABLE FOR GLOVE COMPARTMENT POWER SOCKET RSE version	-	1	Enquire
31	276686	SURROUND	276686 SURROUND RSE version	-	1	Enquire
32	269868	REAR DISPLAY WITH VIDEO CABLE	269868 REAR DISPLAY WITH VIDEO CABLE RSE version	-	2	Enquire
33	14303474	SCREW	14303474 SCREW	-	4	Enquire
34	11181474	WASHER	11181474 WASHER	-	4	Enquire
35	246389	NAVIGATOR KIT	246389 NAVIGATOR KIT Applicable for J	-	1	Enquire
36	246391	NAVIGATOR REMOTE CONTROL	246391 NAVIGATOR REMOTE CONTROL Applicable for J	-	1	Enquire
37	246390	NAVIGATOR HEAD UNIT	246390 NAVIGATOR HEAD UNIT Applicable for J	-	1	Enquire
38	265341	PASSENGER COMPARTMENT GPS ANTENNA CABLE	265341 PASSENGER COMPARTMENT GPS ANTENNA CABLE Applicable for J	-	1	Enquire
39	278518	SDARS ANTENNA	278518 SDARS ANTENNA Applicable for USA, CDN, USA LIGHT; No longer supplied; Replaced by 856915..	-	1	Enquire
39	85691500	SDARS ANTENNA	85691500 SDARS ANTENNA Applicable for USA, CDN, USA LIGHT	-	1	Enquire
40	MC43254	CLAMP	MC43254 CLAMP	-	1	Enquire
41	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH D. 10	-	1	Enquire
42	280923	NAVIGATOR CABLE IN DASHBOARD	280923 NAVIGATOR CABLE IN DASHBOARD Not for Geneva version; Applicable for J	-	1	Enquire
43	279056	NAVIGATOR CABLE	279056 NAVIGATOR CABLE Not for Geneva version; Applicable for J	-	1	Enquire
44	284115	PLUG	284115 PLUG 160 x 24 mm	-	1	Enquire
45	316867	BECKER VP4 NIT ROW	316867 BECKER VP4 NIT ROW With integrated display; Applicable for Geneva version; Not for version with Apple Car Play	-	1	Enquire
45	316865	BECKER VP4 NIT	316865 BECKER VP4 NIT With integrated display; Applicable for Geneva version; Not for version with Apple Car Play; Applicable for J	-	1	Enquire
46	316874	BECKER VP4 NIT	316874 BECKER VP4 NIT With remote display; Applicable for Geneva version; Applicable for version with Apple Car Play; Applicable for CINA	-	1	Enquire
46	316872	BECKER VP4 NIT	316872 BECKER VP4 NIT Applicable for version with Apple Car Play; Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 133514	-	1	Enquire
46	316871	BECKER VP4 NIT	316871 BECKER VP4 NIT With remote display; Applicable for Geneva version; Applicable for version with Apple Car Play; Applicable for J	-	1	Enquire
46	309935	BECKER VP4 NIT	309935 BECKER VP4 NIT With remote display; Vehicles with no navigator for countries with no map; Applicable for Geneva version; Applicable for version with Apple Car Play	-	1	Enquire
47	307609	REMOTE DISPLAY	307609 REMOTE DISPLAY Applicable for Geneva version; Applicable for version with Apple Car Play	-	1	Enquire
48	311362	NIT BUTTON PANEL	311362 NIT BUTTON PANEL Applicable for Geneva version; Applicable for version with Apple Car Play	-	1	Enquire
48	311500	NIT BUTTON PANEL	311500 NIT BUTTON PANEL Applicable for Geneva version; Not for version with Apple Car Play	-	1	Enquire
