Ferrari FF - VEHICLE ECUs

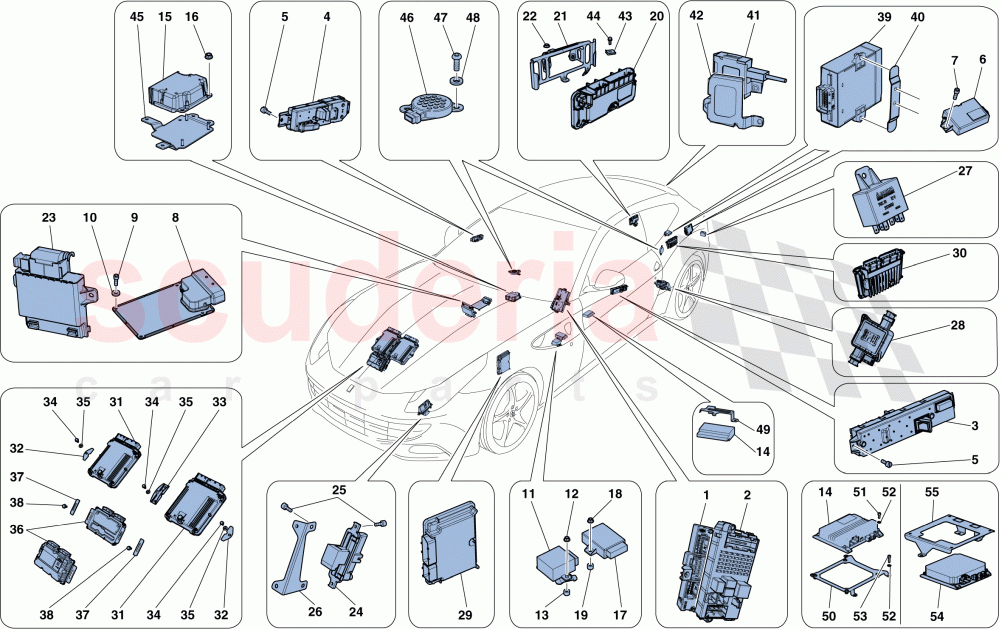

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	245788	DASHBOARD ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	273412	DRIVER SIDE DOOR NODE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	273413	PASSENGER SIDE DOOR NODE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302489	PARKING SENSOR NODE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272823	MAGNERIDE SUSPENSION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303474	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272121	POWER STEERING CONTROL ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309755	PARKING CAMERA ECU	Enquire	To Order
	267996	PARKING CAMERA ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271209	AIRBAG ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343008	VEHICLE LIFT ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270164	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264097	VOLTAGE STABILIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277281	ADAPTIVE HEADLIGHT NODE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277468	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253060	INTERMITTENT WINDSCREEN WIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264935	PWM COMMAND SIGNAL FOR FUEL PUMPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292459	4WD ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258974	DCT GEARBOX ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238263	IGNITION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	276047	RH BRACKET	Enquire	To Order
	276048	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257695	CENTRE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262550	IONISING KNOCK SENSOR CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265751	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281088	POWER LIFTGATE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281330	TAILGATE ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279054	FM ANTENNA SPLITTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281015	AM/FM SPLITTER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295913	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223469	BUZZER	Enquire	To Order
	223469	BUZZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267992	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311387	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303123	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308156	INODE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86586300	NODE COVER FASTENER BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	245788	DASHBOARD ECU	245788 DASHBOARD ECU	-	1	Enquire
3	273412	DRIVER SIDE DOOR NODE ECU	273412 DRIVER SIDE DOOR NODE ECU	-	1	Enquire
4	273413	PASSENGER SIDE DOOR NODE ECU	273413 PASSENGER SIDE DOOR NODE ECU	-	1	Enquire
5	85833700	SCREW	85833700 SCREW M5 X 12	-	4	Enquire
5	81591700	SCREW	81591700 SCREW M5 X 20; No longer supplied; Replaced by 85692200	-	4	Enquire
6	302489	PARKING SENSOR NODE ECU	302489 PARKING SENSOR NODE ECU	-	1	Enquire
7	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	1	Enquire
8	272823	MAGNERIDE SUSPENSION ECU	272823 MAGNERIDE SUSPENSION ECU	-	1	Enquire
9	14303474	SCREW	14303474 SCREW	-	4	Enquire
10	11181474	WASHER	11181474 WASHER	-	4	Enquire
11	272121	POWER STEERING CONTROL ECU	272121 POWER STEERING CONTROL ECU	-	1	Enquire
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
13	65708600	SPACER BUSHING	65708600 SPACER BUSHING	-	2	Enquire
14	309755	PARKING CAMERA ECU	309755 PARKING CAMERA ECU Applicable for Geneva version; Not for version with Apple Car Play; Version with front camera with dual view	-	1	Enquire
14	267996	PARKING CAMERA ECU	267996 PARKING CAMERA ECU Not for Geneva version	-	1	Enquire
15	271209	AIRBAG ECU	271209 AIRBAG ECU	-	1	Enquire
16	14059211	NUT	14059211 NUT	-	3	Enquire
18	14059211	NUT	14059211 NUT	-	2	Enquire
19	65708600	SPACER BUSHING	65708600 SPACER BUSHING	-	2	Enquire
20	343008	VEHICLE LIFT ECU	343008 VEHICLE LIFT ECU Applicable for electric pump 328447 tab.42 ref.1	-	1	Enquire
21	270164	BRACKET	270164 BRACKET	-	1	Enquire
22	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
23	264097	VOLTAGE STABILIZER	264097 VOLTAGE STABILIZER Applicable for Stop&Start	-	1	Enquire
24	277281	ADAPTIVE HEADLIGHT NODE ECU	277281 ADAPTIVE HEADLIGHT NODE ECU	-	1	Enquire
25	14304220	SCREW	14304220 SCREW M5 X 16	-	5	Enquire
26	277468	BRACKET	277468 BRACKET	-	1	Enquire
27	253060	INTERMITTENT WINDSCREEN WIPER	253060 INTERMITTENT WINDSCREEN WIPER Version with rear windscreen wiper	-	1	Enquire
28	264935	PWM COMMAND SIGNAL FOR FUEL PUMPS	264935 PWM COMMAND SIGNAL FOR FUEL PUMPS	-	1	Enquire
29	292459	4WD ECU	292459 4WD ECU	-	1	Enquire
30	258974	DCT GEARBOX ECU	258974 DCT GEARBOX ECU Unprogrammed	-	1	Enquire
31	238263	IGNITION ECU	238263 IGNITION ECU Unprogrammed	-	2	Enquire
32	276047	RH BRACKET	276047 RH BRACKET	-	1	Enquire
32	276048	LH BRACKET	276048 LH BRACKET	-	1	Enquire
33	257695	CENTRE BRACKET	257695 CENTRE BRACKET	-	1	Enquire
34	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14; No longer supplied; Replaced by 16297624	-	4	Enquire
34	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 10	-	4	Enquire
35	14498801	WASHER	14498801 WASHER	-	4	Enquire
36	262550	IONISING KNOCK SENSOR CONTROL UNIT	262550 IONISING KNOCK SENSOR CONTROL UNIT Unprogrammed	-	2	Enquire
37	265751	SHIM	265751 SHIM	-	2	Enquire
38	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	2	Enquire
39	281088	POWER LIFTGATE ECU	281088 POWER LIFTGATE ECU	-	1	Enquire
40	281330	TAILGATE ECU BRACKET	281330 TAILGATE ECU BRACKET	-	1	Enquire
41	279054	FM ANTENNA SPLITTER	279054 FM ANTENNA SPLITTER Not for Geneva version; Applicable for J	-	1	Enquire
42	281015	AM/FM SPLITTER MOUNTING BRACKET	281015 AM/FM SPLITTER MOUNTING BRACKET Not for Geneva version; Applicable for J	-	1	Enquire
43	68700800	CLIP	68700800 CLIP	-	1	Enquire
44	11568124	SCREW	11568124 SCREW M5 X 16; No longer supplied; Replaced by 85692300	-	2	Enquire
44	81591700	SCREW	81591700 SCREW M5 X 20	-	2	Enquire
45	295913	BRACKET	295913 BRACKET	-	1	Enquire
46	223469	BUZZER	223469 BUZZER Rear parking sensors	-	1	Enquire
46	223469	BUZZER	223469 BUZZER Front parking sensors	-	1	Enquire
47	85833700	SCREW	85833700 SCREW M5 X 8; Rear parking sensors	-	2	Enquire
47	85833700	SCREW	85833700 SCREW M5 X 8; Front parking sensors	-	2	Enquire
48	10519424	WASHER	10519424 WASHER Front parking sensors; No longer supplied	-	2	Enquire
49	267992	BRACKET	267992 BRACKET Not for Geneva version	-	1	Enquire
50	311387	BRACKET	311387 BRACKET Applicable for Geneva version; Not for version with Apple Car Play; Version with front camera with dual view	-	1	Enquire
51	14302921	SCREW	14302921 SCREW M4 X 10; Applicable for Geneva version; Not for version with Apple Car Play	-	4	Enquire
52	11181474	WASHER	11181474 WASHER Applicable for Geneva version; Not for version with Apple Car Play	-	8	Enquire
53	14303123	SCREW	14303123 SCREW M4 X 12; Applicable for Geneva version; Not for version with Apple Car Play	-	4	Enquire
54	308156	INODE ECU	308156 INODE ECU Applicable for Geneva version; Version with Apple Car Play	-	1	Enquire
55	86586300	NODE COVER FASTENER BRACKET	86586300 NODE COVER FASTENER BRACKET Applicable for Geneva version; Version with Apple Car Play; Applicable for GD	-	1	Enquire
