Ferrari F12 TDF - FRONT BUMPER

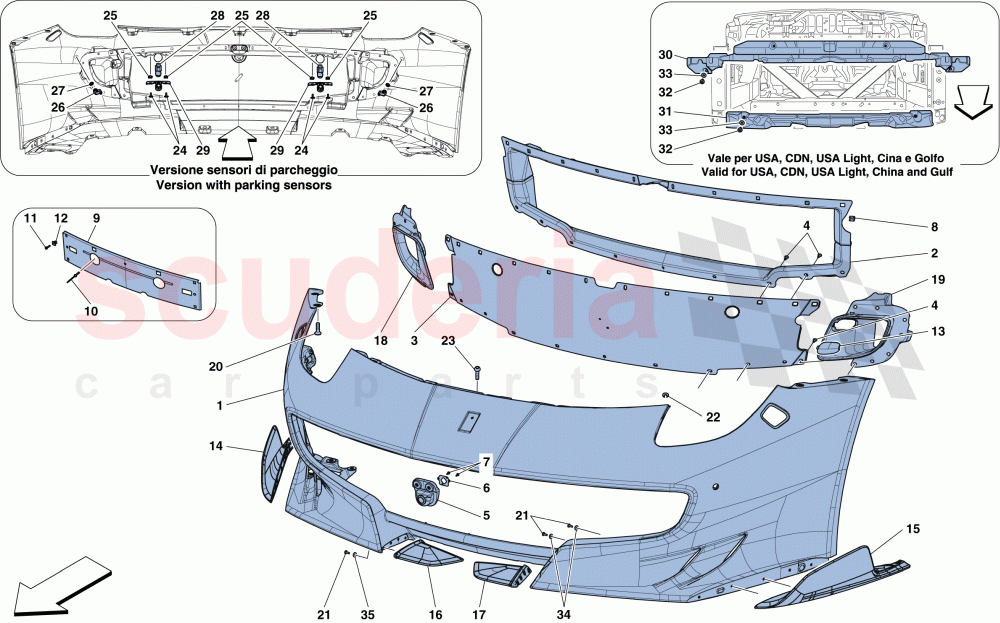

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87943010	COMPL. FRONT BUMPER	Enquire	To Order
	87187110	COMPL. FRONT BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87448500	COMPL. CENTRE BUMPER AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87491400	FRONT BUMPER GRILLE	Enquire	To Order
	87175700	FRONT BUMPER GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88831000	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87448300	FRONT CAMERA SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87448400	CAMERA BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15901575	SCREW	Enquire	To Order
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82763400	METAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87996800	COMPL. FRONT LICENSE PLATE HOLDER	Enquire	To Order
	88169300	COMPL. FRONT LICENSE PLATE HOLDER	Enquire	To Order
	87708200	COMPL. FRONT LICENSE PLATE HOLDER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	900472	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15687275	Screw	Enquire	To Order
	15687275	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14215480	BLOCK	Enquire	To Order
	14215480	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87911500	TOW HOOK COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	815635	RH OUTER FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	815634	LH OUTER FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	815637	RH INNER FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	815636	LH INNER FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87870100	RH BRAKE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87870000	LH BRAKE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82118300	SCREW -No longer supplied- -Replaced by 11625714-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304287	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105864	SPACER WASHER D.6.5-24X1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85824800	SCREW M5 X 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295361	PARKING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	770452	SILICONE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217832	PARKING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84414500	CENTRAL SENSOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87449200	UPPER IMPACT ABSORBER, FRONT BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87449300	LOWER IMPACT ABSORBER, FRONT BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	87943010	COMPL. FRONT BUMPER	87943010 COMPL. FRONT BUMPER Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	87187110	COMPL. FRONT BUMPER	87187110 COMPL. FRONT BUMPER Not for USA, CDN, USA LIGHT	-	1	Enquire
2	87448500	COMPL. CENTRE BUMPER AIR DUCT	87448500 COMPL. CENTRE BUMPER AIR DUCT	-	1	Enquire
3	87491400	FRONT BUMPER GRILLE	87491400 FRONT BUMPER GRILLE Version with front and rear digital cameras	-	1	Enquire
3	87175700	FRONT BUMPER GRILLE	87175700 FRONT BUMPER GRILLE Not for front and rear digital cameras	-	1	Enquire
4	88831000	GRUB SCREW	88831000 GRUB SCREW M5 X 14	-	6	Enquire
5	87448300	FRONT CAMERA SURROUND	87448300 FRONT CAMERA SURROUND	-	1	Enquire
6	87448400	CAMERA BRACKET	87448400 CAMERA BRACKET	-	1	Enquire
7	15901575	SCREW	15901575 SCREW	-	2	Enquire
7	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM No longer supplied; Replaced by 15901575	-	2	Enquire
8	82763400	METAL BRACKET	82763400 METAL BRACKET	-	2	Enquire
9	87996800	COMPL. FRONT LICENSE PLATE HOLDER	87996800 COMPL. FRONT LICENSE PLATE HOLDER Applicable for J	-	1	Enquire
9	88169300	COMPL. FRONT LICENSE PLATE HOLDER	88169300 COMPL. FRONT LICENSE PLATE HOLDER Applicable for AUS	-	1	Enquire
9	87708200	COMPL. FRONT LICENSE PLATE HOLDER	87708200 COMPL. FRONT LICENSE PLATE HOLDER Applicable for GOLFO	-	1	Enquire
9	87777300	COMPL. FRONT LICENSE PLATE HOLDER	87777300 COMPL. FRONT LICENSE PLATE HOLDER Applicable for CINA	-	1	Enquire
9	87903900	COMPL. FRONT LICENSE PLATE HOLDER	87903900 COMPL. FRONT LICENSE PLATE HOLDER Applicable for USA, CDN, USA LIGHT	-	1	Enquire
9	87824600	COMPL. FRONT LICENSE PLATE HOLDER	87824600 COMPL. FRONT LICENSE PLATE HOLDER Applicable for Russia	-	1	Enquire
9	87824300	COMPL. FRONT LICENSE PLATE HOLDER	87824300 COMPL. FRONT LICENSE PLATE HOLDER Applicable for Korea; Not for Italy; Applicable for EU GS, UK	-	1	Enquire
9	88565100	COMPL. FRONT LICENSE PLATE HOLDER	88565100 COMPL. FRONT LICENSE PLATE HOLDER Applicable for Italy	-	1	Enquire
10	900472	FASTENER BUTTON	900472 FASTENER BUTTON	-	2	Enquire
11	15687275	Screw	15687275 Screw Applicable for J	-	2	Enquire
11	15687275	Screw	15687275 Screw Not for J	-	4	Enquire
12	14215480	BLOCK	14215480 BLOCK Applicable for J	-	2	Enquire
12	14215480	BLOCK	14215480 BLOCK Not for J	-	4	Enquire
13	87911500	TOW HOOK COVER	87911500 TOW HOOK COVER	-	1	Enquire
14	815635	RH OUTER FIN	815635 RH OUTER FIN	-	1	Enquire
15	815634	LH OUTER FIN	815634 LH OUTER FIN	-	1	Enquire
16	815637	RH INNER FIN	815637 RH INNER FIN	-	1	Enquire
17	815636	LH INNER FIN	815636 LH INNER FIN	-	1	Enquire
18	87870100	RH BRAKE AIR DUCT	87870100 RH BRAKE AIR DUCT	-	1	Enquire
19	87870000	LH BRAKE AIR DUCT	87870000 LH BRAKE AIR DUCT	-	1	Enquire
20	82118300	SCREW -No longer supplied- -Replaced by 11625714-	82118300 SCREW -No longer supplied- -Replaced by 11625714- M6 X 18	-	6	Enquire
21	14304287	SCREW	14304287 SCREW M5 X 16	-	20	Enquire
21	85833700	SCREW	85833700 SCREW M5 X 16; No longer supplied; Replaced by 14304287	-	20	Enquire
22	105864	SPACER WASHER D.6.5-24X1.5	105864 SPACER WASHER D.6.5-24X1.5	-	10	Enquire
23	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26	-	5	Enquire
24	85824800	SCREW M5 X 16	85824800 SCREW M5 X 16 Version with parking sensors	-	4	Enquire
25	68700800	CLIP	68700800 CLIP Version with parking sensors	-	4	Enquire
26	295361	PARKING SENSOR	295361 PARKING SENSOR Version with parking sensors	-	2	Enquire
27	770452	SILICONE RING	770452 SILICONE RING Version with parking sensors	-	2	Enquire
28	217832	PARKING SENSOR	217832 PARKING SENSOR Version with parking sensors	-	2	Enquire
29	84414500	CENTRAL SENSOR BRACKET	84414500 CENTRAL SENSOR BRACKET Version with parking sensors	-	2	Enquire
30	87449200	UPPER IMPACT ABSORBER, FRONT BUMPER	87449200 UPPER IMPACT ABSORBER, FRONT BUMPER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
31	87449300	LOWER IMPACT ABSORBER, FRONT BUMPER	87449300 LOWER IMPACT ABSORBER, FRONT BUMPER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
32	231622	SCREW	231622 SCREW M6 X 35; Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	6	Enquire
33	84653800	WASHER	84653800 WASHER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	6	Enquire
34	12647724	WASHER	12647724 WASHER Applicable from Ass. No. 134980	-	12	Enquire
35	62769800	WASHER	62769800 WASHER Applicable from Ass. No. 134980	-	8	Enquire
