REAR ACTIVE AERO of Ferrari Ferrari F12 TDF

View All

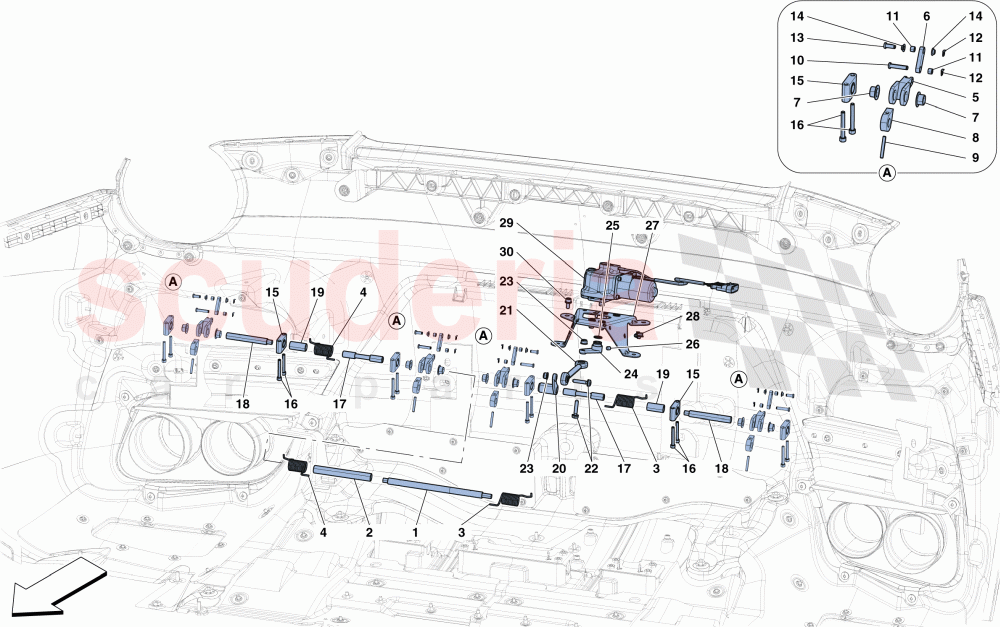

Ferrari F12 TDF - REAR ACTIVE AERO

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87341500	ACTIVE AERO CENTRE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87341700	ACTIVE AERO CENTRE SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310109	RH RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310110	LH RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318981	HATCH ACTUATOR LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85709700	LATERAL LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85711700	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328330	CONTROL CAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85711800	DRIVE PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85712100	LOWER LINK PINS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85712200	BUSH FOR LINK PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306350	SAFETY CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306757	UPPER LINK PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87804600	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85708900	SHAFT MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301785	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87341800	ACTIVE AERO FLEXIBLE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85708800	LATERAL SHAFT SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85709400	LATERAL SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326022	COMPL. ACTIVE AERO CONTROL TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216568	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301909	SELF-LOCKING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318985	ACTUATOR CONTROL LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14453181	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301918	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87342200	ACTIVE AERO ACTUATOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320323	ELECTRIC ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	87341500	ACTIVE AERO CENTRE SHAFT	87341500 ACTIVE AERO CENTRE SHAFT	-	1	Enquire
2	87341700	ACTIVE AERO CENTRE SPACER	87341700 ACTIVE AERO CENTRE SPACER	-	1	Enquire
3	310109	RH RETURN SPRING	310109 RH RETURN SPRING	-	2	Enquire
4	310110	LH RETURN SPRING	310110 LH RETURN SPRING	-	2	Enquire
5	318981	HATCH ACTUATOR LINK	318981 HATCH ACTUATOR LINK	-	4	Enquire
6	85709700	LATERAL LINK	85709700 LATERAL LINK	-	4	Enquire
7	85711700	BUSH	85711700 BUSH	-	8	Enquire
8	328330	CONTROL CAM	328330 CONTROL CAM	-	4	Enquire
9	85711800	DRIVE PIN	85711800 DRIVE PIN	-	4	Enquire
10	85712100	LOWER LINK PINS	85712100 LOWER LINK PINS	-	4	Enquire
11	85712200	BUSH FOR LINK PIN	85712200 BUSH FOR LINK PIN	-	8	Enquire
12	306350	SAFETY CLIP	306350 SAFETY CLIP	-	8	Enquire
13	306757	UPPER LINK PIN	306757 UPPER LINK PIN	-	4	Enquire
14	87804600	BUSH	87804600 BUSH	-	8	Enquire
15	85708900	SHAFT MOUNT	85708900 SHAFT MOUNT	-	6	Enquire
16	301785	SCREW	301785 SCREW M5 X 40	-	12	Enquire
17	87341800	ACTIVE AERO FLEXIBLE SHAFT	87341800 ACTIVE AERO FLEXIBLE SHAFT	-	2	Enquire
18	85708800	LATERAL SHAFT SECTION	85708800 LATERAL SHAFT SECTION	-	2	Enquire
19	85709400	LATERAL SPACER	85709400 LATERAL SPACER	-	2	Enquire
21	326022	COMPL. ACTIVE AERO CONTROL TIE-ROD	326022 COMPL. ACTIVE AERO CONTROL TIE-ROD	-	1	Enquire
22	216568	SCREW	216568 SCREW M6 X 30	-	2	Enquire
23	301909	SELF-LOCKING NUT	301909 SELF-LOCKING NUT	-	2	Enquire
24	318985	ACTUATOR CONTROL LEVER	318985 ACTUATOR CONTROL LEVER	-	1	Enquire
25	14453181	GASKET	14453181 GASKET	-	1	Enquire
26	301918	GRUB SCREW	301918 GRUB SCREW	-	1	Enquire
27	87342200	ACTIVE AERO ACTUATOR MOUNTING BRACKET	87342200 ACTIVE AERO ACTUATOR MOUNTING BRACKET	-	1	Enquire
29	320323	ELECTRIC ACTUATOR	320323 ELECTRIC ACTUATOR	-	1	Enquire
30	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	4	Enquire
