DOORS - OPENING MECHANISMS AND HINGES of Ferrari Ferrari F12 TDF

View All

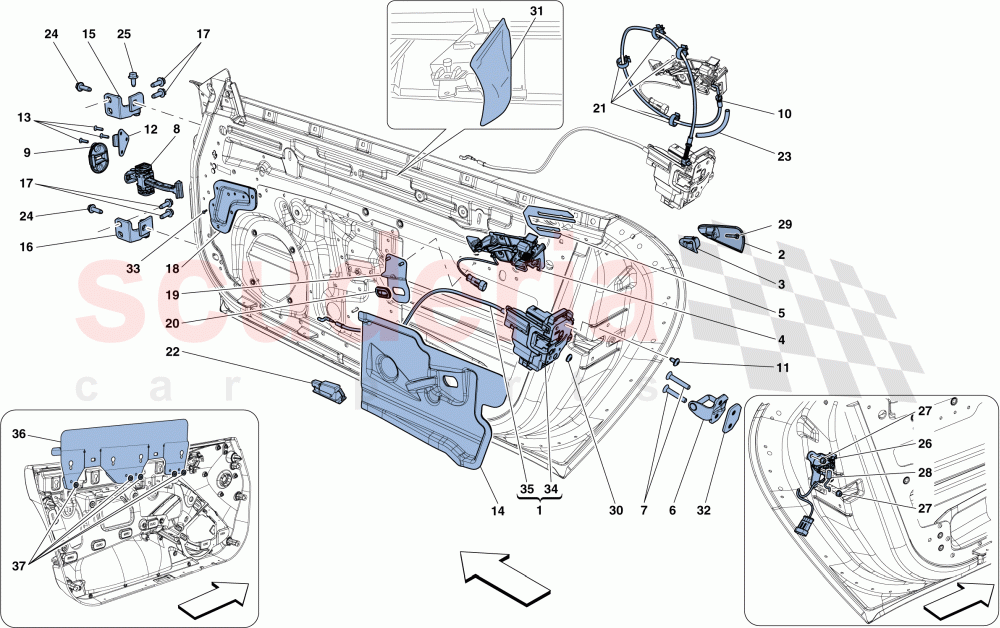

Ferrari F12 TDF - DOORS - OPENING MECHANISMS AND HINGES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82447900	LH DOOR LOCK	Enquire	To Order
	82447800	RH DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81956910	LH OUTER DOOR HANDLE	Enquire	To Order
	81956810	RH OUTER DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81959100	LH DOOR HANDLE SEAL	Enquire	To Order
	81958700	RH DOOR HANDLE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80821800	LH OUTER DOOR HANDLE MODULE	Enquire	To Order
	87290700	RH OUTER DOOR HANDLE MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88007300	EXTERNAL DOOR HANDLE SPACER	Enquire	To Order
	80821900	EXTERNAL DOOR HANDLE SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85052500	DOOR LOCK STRIKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85052700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83965500	DOOR CHECK STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83897000	DOOR CHECK STRAP SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69877100	BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46401657	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81916400	DOOR SAFETY HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83369100	LH MEMBRANE	Enquire	To Order
	83368100	RH MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83865100	UPPER LH DOOR HINGE	Enquire	To Order
	83856100	UPPER RH DOOR HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83864900	LOWER LH DOOR HINGE	Enquire	To Order
	83856000	LOWER RH DOOR HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18754324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84418900	LH DOOR SUBSTRUCTURE COVER PANEL	Enquire	To Order
	84418800	RH DOOR SUBSTRUCTURE COVER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83369200	LH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	Enquire	To Order
	83368600	RH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898656	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14570180	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188250	DOME LAMP UNIT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	82936400	SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81267100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85133600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85027000	LATCH HOLDER	Enquire	To Order
	84456400	LATCH HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85027100	KNOB LEVER	Enquire	To Order
	84696600	KNOB LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82007000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14506587	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83595900	WATERPROOF MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85052600	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785974	LH DOOR LOCK	Enquire	To Order
	80182800	LH DOOR LOCK	Enquire	To Order
	785975	RH DOOR LOCK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	83088200	INNER DOOR HANDLE BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85480000	FOIL FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	82447900	LH DOOR LOCK	82447900 LH DOOR LOCK After depletion, order loose components; Applicable until depletion	-	1	Enquire
1	82447800	RH DOOR LOCK	82447800 RH DOOR LOCK After depletion, order loose components; Applicable until depletion	-	1	Enquire
2	81956910	LH OUTER DOOR HANDLE	81956910 LH OUTER DOOR HANDLE	-	1	Enquire
2	81956810	RH OUTER DOOR HANDLE	81956810 RH OUTER DOOR HANDLE	-	1	Enquire
3	81959100	LH DOOR HANDLE SEAL	81959100 LH DOOR HANDLE SEAL	-	1	Enquire
3	81958700	RH DOOR HANDLE SEAL	81958700 RH DOOR HANDLE SEAL	-	1	Enquire
4	80821800	LH OUTER DOOR HANDLE MODULE	80821800 LH OUTER DOOR HANDLE MODULE	-	1	Enquire
4	87290700	RH OUTER DOOR HANDLE MODULE	87290700 RH OUTER DOOR HANDLE MODULE	-	1	Enquire
5	88007300	EXTERNAL DOOR HANDLE SPACER	88007300 EXTERNAL DOOR HANDLE SPACER	-	2	Enquire
5	80821900	EXTERNAL DOOR HANDLE SPACER	80821900 EXTERNAL DOOR HANDLE SPACER	-	2	Enquire
6	85052500	DOOR LOCK STRIKER PLATE	85052500 DOOR LOCK STRIKER PLATE Grey	-	2	Enquire
7	85052700	SCREW	85052700 SCREW Grey	-	4	Enquire
8	83965500	DOOR CHECK STRAP	83965500 DOOR CHECK STRAP	-	2	Enquire
9	83897000	DOOR CHECK STRAP SEAL	83897000 DOOR CHECK STRAP SEAL	-	2	Enquire
10	69877100	BOWDEN CABLE	69877100 BOWDEN CABLE	-	2	Enquire
11	46401657	SCREW	46401657 SCREW	-	6	Enquire
12	81916400	DOOR SAFETY HOOK	81916400 DOOR SAFETY HOOK	-	2	Enquire
13	14441234	SCREW	14441234 SCREW M6 X 12	-	6	Enquire
14	83369100	LH MEMBRANE	83369100 LH MEMBRANE	-	1	Enquire
14	83368100	RH MEMBRANE	83368100 RH MEMBRANE	-	1	Enquire
15	83865100	UPPER LH DOOR HINGE	83865100 UPPER LH DOOR HINGE	-	1	Enquire
15	83856100	UPPER RH DOOR HINGE	83856100 UPPER RH DOOR HINGE	-	1	Enquire
16	83864900	LOWER LH DOOR HINGE	83864900 LOWER LH DOOR HINGE	-	1	Enquire
16	83856000	LOWER RH DOOR HINGE	83856000 LOWER RH DOOR HINGE	-	1	Enquire
17	18754324	SCREW	18754324 SCREW M10 X 1,25 X 32	-	8	Enquire
18	84418900	LH DOOR SUBSTRUCTURE COVER PANEL	84418900 LH DOOR SUBSTRUCTURE COVER PANEL	-	1	Enquire
18	84418800	RH DOOR SUBSTRUCTURE COVER PANEL	84418800 RH DOOR SUBSTRUCTURE COVER PANEL	-	1	Enquire
19	83369200	LH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	83369200 LH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	-	1	Enquire
19	83368600	RH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	83368600 RH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	-	1	Enquire
20	898656	CABLE GROMMET	898656 CABLE GROMMET	-	2	Enquire
21	14570180	CLIP	14570180 CLIP	-	8	Enquire
22	188250	DOME LAMP UNIT ARRIVING SOON	188250 DOME LAMP UNIT ARRIVING SOON	-	2	Enquire
23	82936400	SHEATH	82936400 SHEATH	-	2	Enquire
24	81267100	SCREW	81267100 SCREW	-	4	Enquire
25	85133600	SCREW	85133600 SCREW	-	4	Enquire
26	85027000	LATCH HOLDER	85027000 LATCH HOLDER Applicable for GD	-	1	Enquire
26	84456400	LATCH HOLDER	84456400 LATCH HOLDER Not for GD	-	1	Enquire
27	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
28	85027100	KNOB LEVER	85027100 KNOB LEVER Applicable for GD	-	1	Enquire
28	84696600	KNOB LEVER	84696600 KNOB LEVER Not for GD	-	1	Enquire

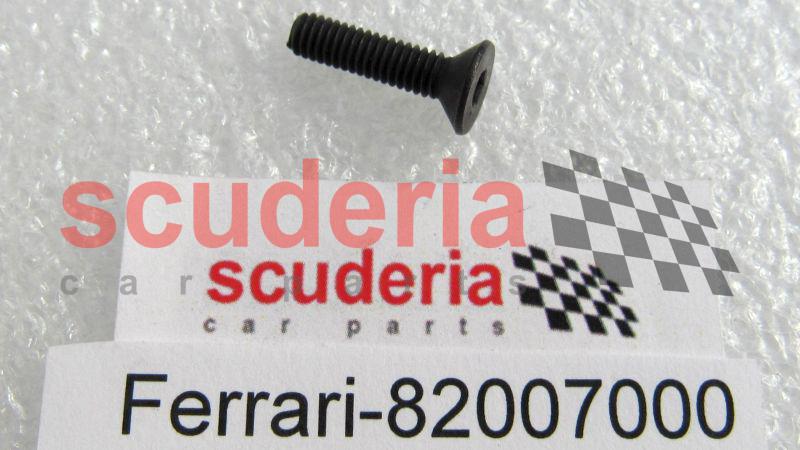

29	82007000	SCREW	82007000 SCREW	-	2	Enquire
30	14506587	PLUG	14506587 PLUG	-	2	Enquire
31	83595900	WATERPROOF MEMBRANE	83595900 WATERPROOF MEMBRANE	-	2	Enquire
32	85052600	SHIM	85052600 SHIM Grey	-	2	Enquire
33	85833700	SCREW	85833700 SCREW M5 X 12	-	5	Enquire
34	785974	LH DOOR LOCK	785974 LH DOOR LOCK Applicable for GD	-	1	Enquire
34	80182800	LH DOOR LOCK	80182800 LH DOOR LOCK Not for GD	-	1	Enquire
34	785975	RH DOOR LOCK	785975 RH DOOR LOCK Applicable for GD	-	1	Enquire
34	80182700	RH DOOR LOCK	80182700 RH DOOR LOCK Not for GD	-	1	Enquire
35	83088200	INNER DOOR HANDLE BOWDEN CABLE	83088200 INNER DOOR HANDLE BOWDEN CABLE	-	2	Enquire
36	85480000	FOIL FLAP	85480000 FOIL FLAP	-	2	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	10	Enquire
