DOORS - SUBSTRUCTURE AND TRIM of Ferrari Ferrari F12 TDF

View All

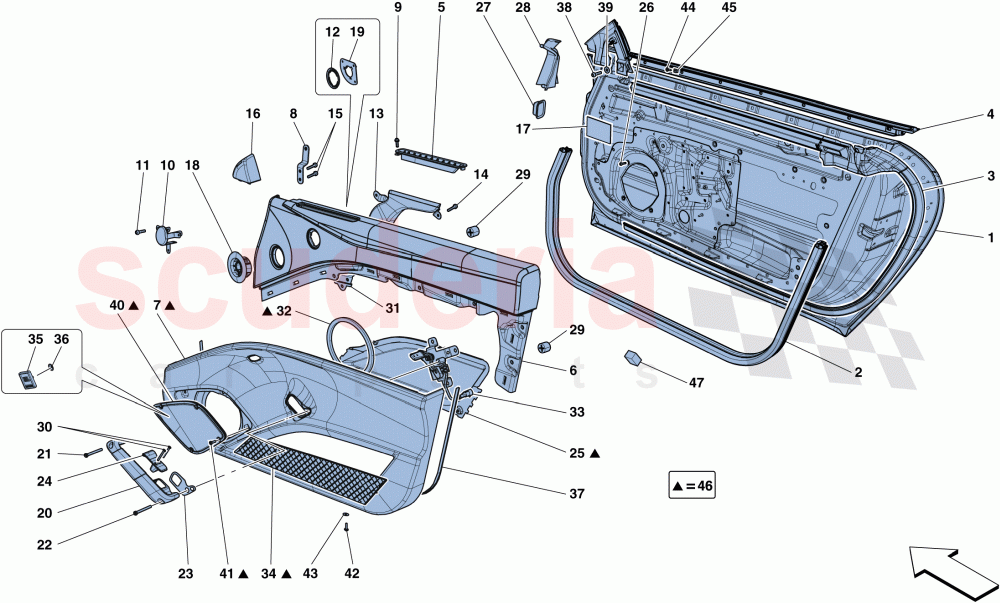

Ferrari F12 TDF - DOORS - SUBSTRUCTURE AND TRIM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	84860011	COMPL. LH LATERAL DOOR	Enquire	To Order
	84182411	COMPL. LH LATERAL DOOR	Enquire	To Order
	84859711	COMPL. RH LATERAL DOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	83370400	LOWER DOOR PERIMETER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83369500	LH INT. WINDOW SCRAPER SEAL	Enquire	To Order
	83369400	RH INT. WINDOW SCRAPER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83369700	LH EXT. WINDOW SCRAPER SEAL	Enquire	To Order
	83369600	RH EXT. WINDOW SCRAPER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82015012	L.H.DEMISTER	Enquire	To Order
	82014912	R.H.DEMISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87487300	COMPL. UPPER RH DOOR PANEL	Enquire	To Order
	87369800	COMPL. UPPER LH DOOR PANEL	Enquire	To Order
	87489000	COMPL. UPPER LH DOOR PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	87643100	COMPL. LH LOWER DOOR PANEL SUBSTRUCTURE	Enquire	To Order
	87457300	COMPL. LH LOWER DOOR PANEL SUBSTRUCTURE	Enquire	To Order
	87643400	COMPL. LH LOWER DOOR PANEL SUBSTRUCTURE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	84324700	FRONT FASTENER BRACKET FOR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16082801	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84245700	COMPL. LH DOOR TWEETER GRILLE	Enquire	To Order
	84245500	COMPL. RH DOOR TWEETER GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83996600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87828800	LH DOOR TWEETER SURROUND	Enquire	To Order
	87828900	RH DOOR TWEETER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87488800	LH DOOR PANEL AIR DUCT	Enquire	To Order
	87487100	RH DOOR PANEL AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84521300	LH DOOR INNER CORNER TRIANGLE TRIM	Enquire	To Order
	84520200	RH DOOR INNER CORNER TRIANGLE TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255515	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85235400	LATERAL AIR VENT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82539000	ADAPTOR FOR TWEETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87571100	LH DOOR PULL HANDLE	Enquire	To Order
	87415512	LH DOOR PULL HANDLE	Enquire	To Order
	87570900	RH DOOR PULL HANDLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85757300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85757300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87390900	LH GRAB HANDLE SEAL	Enquire	To Order
	87488500	RH GRAB HANDLE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87967100	LH INTERNAL DOOR HANDLE	Enquire	To Order
	88002500	RH INTERNAL DOOR HANDLE	Enquire	To Order
	87391100	INNER DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87370500	LH DOOR PANEL POCKET	Enquire	To Order
	87369200	RH DOOR PANEL POCKET.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85058100	RECTANGULAR PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85097500	LH SEAL	Enquire	To Order
	85097400	RH SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83888400	DOOR ALIGNMENT FOAM PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86694200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87392300	LH UPPER DOOR PULL FASTENER BRACKET	Enquire	To Order
	87391000	RH UPPER DOOR PULL FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82530500	WOOFER SEAL	Enquire	To Order
	81008200	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87391900	COMPL. LH DOOR RELEASE MECHANISM	Enquire	To Order
	87391200	COMPL. RH DOOR RELEASE MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87369400	DOOR POCKET MESH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83198200	JBL LOGO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14227474	Motif Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88329500	DOOR PANEL JAMB SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498805	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87501100	COMPL. LH WOOFER GRILLE	Enquire	To Order
	87501200	COMPL. LH WOOFER GRILLE	Enquire	To Order
	87500900	COMPL. RH WOOFER GRILLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13026126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689809	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115885	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87370100	COMPL. LH DOOR PANEL	Enquire	To Order
	87643300	COMPL. LH DOOR PANEL	Enquire	To Order
	87369900	COMPL. LH DOOR PANEL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	89386300	SEAL BUSHING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	84860011	COMPL. LH LATERAL DOOR	84860011 COMPL. LH LATERAL DOOR Applicable for GD	-	1	Enquire
1	84182411	COMPL. LH LATERAL DOOR	84182411 COMPL. LH LATERAL DOOR Not for GD	-	1	Enquire
1	84859711	COMPL. RH LATERAL DOOR	84859711 COMPL. RH LATERAL DOOR Applicable for GD	-	1	Enquire
1	84182311	COMPL. RH LATERAL DOOR	84182311 COMPL. RH LATERAL DOOR Not for GD	-	1	Enquire
2	83370400	LOWER DOOR PERIMETER SEAL	83370400 LOWER DOOR PERIMETER SEAL	-	2	Enquire
3	83369500	LH INT. WINDOW SCRAPER SEAL	83369500 LH INT. WINDOW SCRAPER SEAL	-	1	Enquire
3	83369400	RH INT. WINDOW SCRAPER SEAL	83369400 RH INT. WINDOW SCRAPER SEAL	-	1	Enquire
4	83369700	LH EXT. WINDOW SCRAPER SEAL	83369700 LH EXT. WINDOW SCRAPER SEAL	-	1	Enquire
4	83369600	RH EXT. WINDOW SCRAPER SEAL	83369600 RH EXT. WINDOW SCRAPER SEAL	-	1	Enquire
5	82015012	L.H.DEMISTER	82015012 L.H.DEMISTER See colour grid for associating leather colour with paintwork colour	-	1	Enquire
5	82014912	R.H.DEMISTER	82014912 R.H.DEMISTER See colour grid for associating leather colour with paintwork colour	-	1	Enquire
6	87487300	COMPL. UPPER RH DOOR PANEL	87487300 COMPL. UPPER RH DOOR PANEL INTA; Alcantara; STC1; STC2	-	1	Enquire
6	87369800	COMPL. UPPER LH DOOR PANEL	87369800 COMPL. UPPER LH DOOR PANEL INTP; Leather; Premium Hi-Fi version; STC1; STC2	-	1	Enquire
6	87489000	COMPL. UPPER LH DOOR PANEL	87489000 COMPL. UPPER LH DOOR PANEL INTA; Alcantara; STC1; STC2	-	1	Enquire
6	87368500	COMPL. UPPER RH DOOR PANEL	87368500 COMPL. UPPER RH DOOR PANEL INTP; Leather; Premium Hi-Fi version; STC1; STC2	-	1	Enquire
7	87643100	COMPL. LH LOWER DOOR PANEL SUBSTRUCTURE	87643100 COMPL. LH LOWER DOOR PANEL SUBSTRUCTURE Premium Hi-Fi version; Applicable for GD; No longer supplied	-	1	Enquire
7	87457300	COMPL. LH LOWER DOOR PANEL SUBSTRUCTURE	87457300 COMPL. LH LOWER DOOR PANEL SUBSTRUCTURE Premium Hi-Fi version; Not for GD; No longer supplied	-	1	Enquire
7	87643400	COMPL. LH LOWER DOOR PANEL SUBSTRUCTURE	87643400 COMPL. LH LOWER DOOR PANEL SUBSTRUCTURE Applicable for GD; No longer supplied	-	1	Enquire
7	87457400	COMPL. LH LOWER DOOR PANEL SUBSTRUCTURE	87457400 COMPL. LH LOWER DOOR PANEL SUBSTRUCTURE Not for GD; No longer supplied	-	1	Enquire
7	87642300	COMPL. RH LOWER DOOR PANEL SUBSTRUCTURE	87642300 COMPL. RH LOWER DOOR PANEL SUBSTRUCTURE Premium Hi-Fi version; Applicable for GD; No longer supplied	-	1	Enquire
7	87457000	COMPL. RH LOWER DOOR PANEL SUBSTRUCTURE	87457000 COMPL. RH LOWER DOOR PANEL SUBSTRUCTURE Premium Hi-Fi version; Not for GD; No longer supplied	-	1	Enquire
7	87642700	COMPL. RH LOWER DOOR PANEL SUBSTRUCTURE	87642700 COMPL. RH LOWER DOOR PANEL SUBSTRUCTURE Applicable for GD; No longer supplied	-	1	Enquire
7	87457100	COMPL. RH LOWER DOOR PANEL SUBSTRUCTURE	87457100 COMPL. RH LOWER DOOR PANEL SUBSTRUCTURE Not for GD; No longer supplied	-	1	Enquire
8	84324700	FRONT FASTENER BRACKET FOR PANEL	84324700 FRONT FASTENER BRACKET FOR PANEL	-	2	Enquire
9	16082801	SCREW	16082801 SCREW	-	2	Enquire
10	84245700	COMPL. LH DOOR TWEETER GRILLE	84245700 COMPL. LH DOOR TWEETER GRILLE	-	1	Enquire
10	84245500	COMPL. RH DOOR TWEETER GRILLE	84245500 COMPL. RH DOOR TWEETER GRILLE	-	1	Enquire
11	83996600	SCREW	83996600 SCREW M3 X 6	-	3	Enquire
12	87828800	LH DOOR TWEETER SURROUND	87828800 LH DOOR TWEETER SURROUND	-	1	Enquire
12	87828900	RH DOOR TWEETER SURROUND	87828900 RH DOOR TWEETER SURROUND	-	1	Enquire
13	87488800	LH DOOR PANEL AIR DUCT	87488800 LH DOOR PANEL AIR DUCT	-	1	Enquire
13	87487100	RH DOOR PANEL AIR DUCT	87487100 RH DOOR PANEL AIR DUCT	-	1	Enquire
14	85833700	SCREW	85833700 SCREW M5 X 10	-	10	Enquire
15	85833700	SCREW	85833700 SCREW M5 X 8	-	4	Enquire
16	84521300	LH DOOR INNER CORNER TRIANGLE TRIM	84521300 LH DOOR INNER CORNER TRIANGLE TRIM	-	1	Enquire
16	84520200	RH DOOR INNER CORNER TRIANGLE TRIM	84520200 RH DOOR INNER CORNER TRIANGLE TRIM	-	1	Enquire
17	255515	BUSH	255515 BUSH	-	2	Enquire
18	85235400	LATERAL AIR VENT SURROUND	85235400 LATERAL AIR VENT SURROUND	-	2	Enquire
19	82539000	ADAPTOR FOR TWEETER	82539000 ADAPTOR FOR TWEETER Faital	-	2	Enquire
20	87571100	LH DOOR PULL HANDLE	87571100 LH DOOR PULL HANDLE INTP; Leather	-	1	Enquire
20	87415512	LH DOOR PULL HANDLE	87415512 LH DOOR PULL HANDLE INTA; Alcantara	-	1	Enquire
20	87570900	RH DOOR PULL HANDLE	87570900 RH DOOR PULL HANDLE INTP; Leather	-	1	Enquire
20	87415200	RH DOOR PULL HANDLE	87415200 RH DOOR PULL HANDLE INTA; Alcantara	-	1	Enquire
21	85757300	SCREW	85757300 SCREW M6 X 78	-	2	Enquire
22	85757300	SCREW	85757300 SCREW M6 X 78	-	2	Enquire
23	87390900	LH GRAB HANDLE SEAL	87390900 LH GRAB HANDLE SEAL	-	1	Enquire
23	87488500	RH GRAB HANDLE SEAL	87488500 RH GRAB HANDLE SEAL	-	1	Enquire
24	87967100	LH INTERNAL DOOR HANDLE	87967100 LH INTERNAL DOOR HANDLE	-	1	Enquire
24	88002500	RH INTERNAL DOOR HANDLE	88002500 RH INTERNAL DOOR HANDLE	-	1	Enquire
24	87391100	INNER DOOR HANDLE	87391100 INNER DOOR HANDLE Replaced by 88002500 and 87967100; No longer supplied	-	2	Enquire
25	87370500	LH DOOR PANEL POCKET	87370500 LH DOOR PANEL POCKET No longer supplied	-	1	Enquire
25	87369200	RH DOOR PANEL POCKET.	87369200 RH DOOR PANEL POCKET. No longer supplied	-	1	Enquire
26	85833700	SCREW	85833700 SCREW M5 X 12	-	18	Enquire
27	85058100	RECTANGULAR PLUG	85058100 RECTANGULAR PLUG	-	2	Enquire
28	85097500	LH SEAL	85097500 LH SEAL	-	1	Enquire
28	85097400	RH SEAL	85097400 RH SEAL	-	1	Enquire
29	83888400	DOOR ALIGNMENT FOAM PAD	83888400 DOOR ALIGNMENT FOAM PAD	-	4	Enquire
30	86694200	SCREW	86694200 SCREW	-	4	Enquire
31	87392300	LH UPPER DOOR PULL FASTENER BRACKET	87392300 LH UPPER DOOR PULL FASTENER BRACKET	-	1	Enquire
31	87391000	RH UPPER DOOR PULL FASTENER BRACKET	87391000 RH UPPER DOOR PULL FASTENER BRACKET	-	1	Enquire
32	82530500	WOOFER SEAL	82530500 WOOFER SEAL Premium Hi-Fi version; No longer supplied	-	2	Enquire
32	81008200	GASKET	81008200 GASKET No longer supplied	-	2	Enquire
33	87391900	COMPL. LH DOOR RELEASE MECHANISM	87391900 COMPL. LH DOOR RELEASE MECHANISM	-	1	Enquire
33	87391200	COMPL. RH DOOR RELEASE MECHANISM	87391200 COMPL. RH DOOR RELEASE MECHANISM	-	1	Enquire
34	87369400	DOOR POCKET MESH	87369400 DOOR POCKET MESH No longer supplied	-	1	Enquire
35	83198200	JBL LOGO	83198200 JBL LOGO Premium Hi-Fi version	-	2	Enquire
36	14227474	Motif Clip	14227474 Motif Clip Premium Hi-Fi version	-	2	Enquire
37	88329500	DOOR PANEL JAMB SEAL	88329500 DOOR PANEL JAMB SEAL	-	2	Enquire
38	915271	SCREW	915271 SCREW M6 X 15	-	2	Enquire
39	14498805	WASHER	14498805 WASHER	-	2	Enquire
40	87501100	COMPL. LH WOOFER GRILLE	87501100 COMPL. LH WOOFER GRILLE Premium Hi-Fi version; No longer supplied	-	1	Enquire
40	87501200	COMPL. LH WOOFER GRILLE	87501200 COMPL. LH WOOFER GRILLE No longer supplied	-	1	Enquire
40	87500900	COMPL. RH WOOFER GRILLE	87500900 COMPL. RH WOOFER GRILLE Premium Hi-Fi version; No longer supplied	-	1	Enquire
40	87501000	COMPL. RH WOOFER GRILLE	87501000 COMPL. RH WOOFER GRILLE No longer supplied	-	1	Enquire
41	13026126	SCREW	13026126 SCREW M5 X 18; No longer supplied	-	8	Enquire
42	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 M6 X 22	-	8	Enquire
43	12643724	WASHER	12643724 WASHER	-	8	Enquire
44	15689809	SCREW	15689809 SCREW	-	14	Enquire
45	14115885	BLOCK	14115885 BLOCK	-	14	Enquire
46	87370100	COMPL. LH DOOR PANEL	87370100 COMPL. LH DOOR PANEL Hi-Fi version; Not for GD	-	1	Enquire
46	87643300	COMPL. LH DOOR PANEL	87643300 COMPL. LH DOOR PANEL Version without Hi-Fi; Applicable for GD	-	1	Enquire
46	87369900	COMPL. LH DOOR PANEL	87369900 COMPL. LH DOOR PANEL Version without Hi-Fi; Not for GD	-	1	Enquire
46	87642200	COMPL. RH DOOR PANEL	87642200 COMPL. RH DOOR PANEL Hi-Fi version; Applicable for GD	-	1	Enquire
46	87368800	COMPL. RH DOOR PANEL	87368800 COMPL. RH DOOR PANEL Hi-Fi version; Not for GD	-	1	Enquire
46	87642600	COMPL. RH DOOR PANEL	87642600 COMPL. RH DOOR PANEL Version without Hi-Fi; Applicable for GD	-	1	Enquire
46	87368600	COMPL. RH DOOR PANEL	87368600 COMPL. RH DOOR PANEL Version without Hi-Fi; Not for GD	-	1	Enquire
46	87643000	COMPL. LH DOOR PANEL	87643000 COMPL. LH DOOR PANEL Hi-Fi version; Applicable for GD	-	1	Enquire
47	89386300	SEAL BUSHING	89386300 SEAL BUSHING	-	2	Enquire
