Name: FUEL FILLER FLAP AND CONTROLS
Rating: 5.0 (1 reviews)

View All

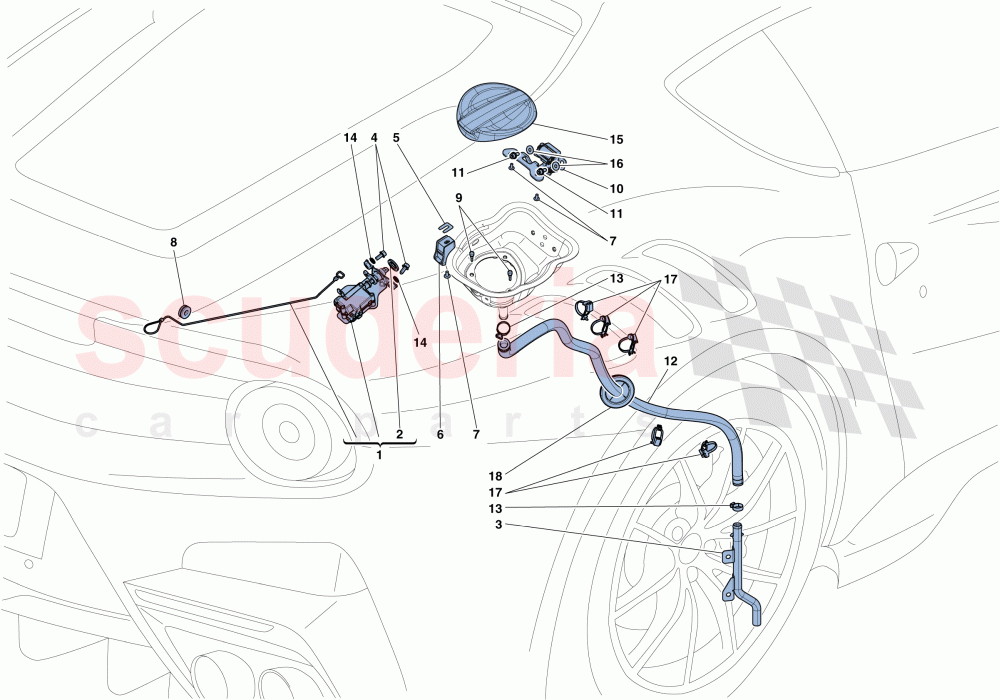

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86009000	COMPL. FUEL FILLER FLAP ACTUATOR	$131.56	To Order

Photo	Part No	Description	Price (each)	Stock
	67067600	GASKET	$3.95	To Order

Photo	Part No	Description	Price (each)	Stock
	84741100	RIGID DRAIN PIPE	$147.61	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	87727500	SHIM PLATE	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	87486500	STRIKER FOR ACTUATOR	$15.54	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10396180	CABLE GROMMET	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	86730400	RUBBER PAD	$1.75	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	84716500	DRAIN PIPE	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	13433570	HOSE COLLAR	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	81535200	GROMMET WITH MEMBRANE	$28.40	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	86009000	COMPL. FUEL FILLER FLAP ACTUATOR	86009000 COMPL. FUEL FILLER FLAP ACTUATOR	$131.56 MSRP: ~~169.92~~ (22.6% off)	1
2	67067600	GASKET	67067600 GASKET	$3.95	1
3	84741100	RIGID DRAIN PIPE	84741100 RIGID DRAIN PIPE	$147.61	1
4	11566227	SCREW	11566227 SCREW M5 X 14	$1.31	2
5	87727500	SHIM PLATE	87727500 SHIM PLATE	$19.24	2
6	87486500	STRIKER FOR ACTUATOR	87486500 STRIKER FOR ACTUATOR	$15.54	1
7	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 12 ARRIVING SOON	$0.36	3
8	10396180	CABLE GROMMET	10396180 CABLE GROMMET	$2.84	1
9	86730400	RUBBER PAD	86730400 RUBBER PAD	$1.75	2
11	11566227	SCREW	11566227 SCREW M5 X 14	$1.31	2
12	84716500	DRAIN PIPE	84716500 DRAIN PIPE	$176.49	1
13	13433570	HOSE COLLAR	13433570 HOSE COLLAR	$0.75	2
14	12604178	Washer	12604178 Washer	-	2	Enquire
16	12638124	WASHER	12638124 WASHER	$0.05 MSRP: ~~0.70~~ (92.9% off)	2
17	177553	CLAMP	177553 CLAMP	$0.45 MSRP: ~~1.25~~ (64% off)	5
18	81535200	GROMMET WITH MEMBRANE	81535200 GROMMET WITH MEMBRANE	$28.40	1
