Find Your Part

BATTERY of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - BATTERY

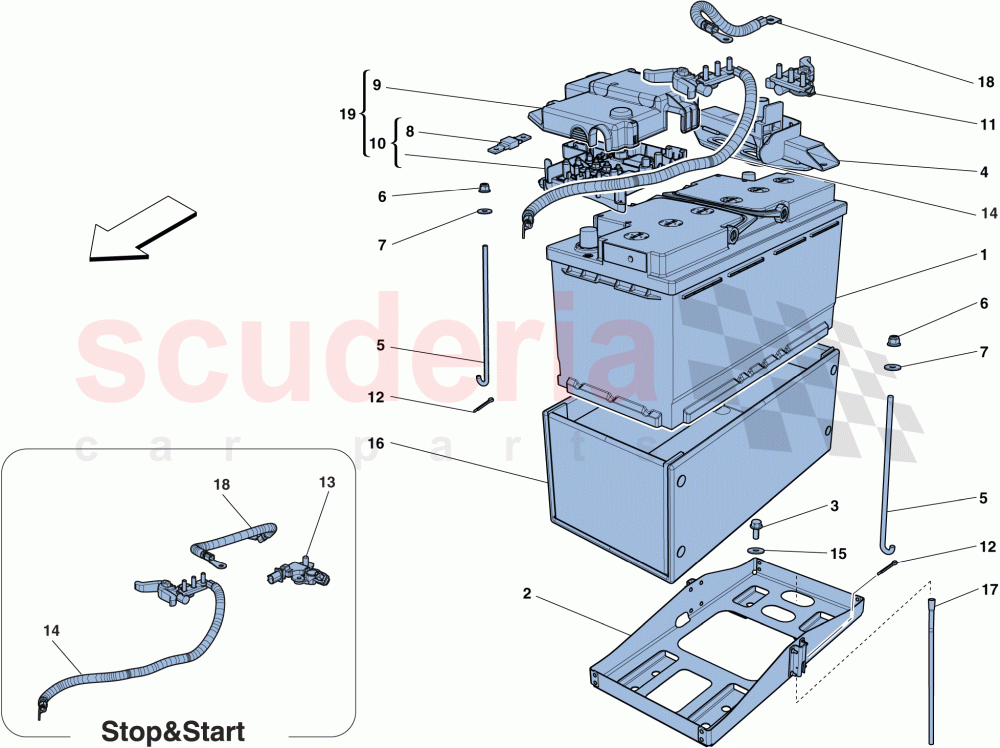

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	272263	BATTERY MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044321	SCREW	Enquire	To Order
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272464	BATTERY RETAINER COMPLETE WITH NEGATIVE TERMINAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292882	BATTERY FASTENER TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325488	FUSE VALVE	Enquire	To Order
	325489	FUSE VALVE	Enquire	To Order
	278366	FUSE VALVE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	294977	COVER	Enquire	To Order
	251161	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291683	COMPL. BATTERY ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11163594	BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10795206	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308719	BATTERY SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292866	BATTERY GROUND CABLE/TERMINAL CLAMP ASSEMBLY	Enquire	To Order
	298621	BATTERY GROUND CABLE/TERMINAL CLAMP ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769500	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257167	VAPOUR BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278419	GROUND CABLE FROM SENSOR TO FALSE POLE	Enquire	To Order
	274256	BATTERY GROUND / FALSE TERMINAL CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291683	COMPL. BATTERY ECU	Enquire	To Order
	294976	COMPL. BATTERY ECU	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	272263	BATTERY MOUNTING	272263 BATTERY MOUNTING	-	1	Enquire
3	16044321	SCREW	16044321 SCREW M8 X 55	-	1	Enquire
3	13839224	SCREW	13839224 SCREW M8 X 16	-	3	Enquire
4	272464	BATTERY RETAINER COMPLETE WITH NEGATIVE TERMINAL	272464 BATTERY RETAINER COMPLETE WITH NEGATIVE TERMINAL	-	1	Enquire
5	292882	BATTERY FASTENER TIE-ROD	292882 BATTERY FASTENER TIE-ROD	-	2	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
7	12643724	WASHER	12643724 WASHER	-	2	Enquire
8	325488	FUSE VALVE	325488 FUSE VALVE 50 A	-	1	Enquire
8	325489	FUSE VALVE	325489 FUSE VALVE 40 A	-	1	Enquire
8	278366	FUSE VALVE	278366 FUSE VALVE	-	1	Enquire
8	278368	FUSE VALVE	278368 FUSE VALVE 150 A	-	1	Enquire
8	325487	FUSE VALVE	325487 FUSE VALVE 70 A	-	1	Enquire
9	294977	COVER	294977 COVER After depletion order compl. ref. 19; Applicable for GD; Applicable until depletion	-	1	Enquire
9	251161	COVER	251161 COVER After depletion order compl. ref. 19; Not for GD; Applicable until depletion	-	1	Enquire
10	291683	COMPL. BATTERY ECU	291683 COMPL. BATTERY ECU After depletion order compl. ref. 19; Applicable until depletion	-	1	Enquire
11	11163594	BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER	11163594 BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER Not for Stop&Start	-	1	Enquire
12	10795206	SPLIT PIN	10795206 SPLIT PIN	-	2	Enquire
13	308719	BATTERY SENSOR	308719 BATTERY SENSOR Applicable for Stop&Start	-	1	Enquire
14	292866	BATTERY GROUND CABLE/TERMINAL CLAMP ASSEMBLY	292866 BATTERY GROUND CABLE/TERMINAL CLAMP ASSEMBLY Not for GD	-	1	Enquire
14	298621	BATTERY GROUND CABLE/TERMINAL CLAMP ASSEMBLY	298621 BATTERY GROUND CABLE/TERMINAL CLAMP ASSEMBLY Applicable for GD	-	1	Enquire
15	263276	WASHER	263276 WASHER	-	4	Enquire
16	769500	HEAT SHIELD	769500 HEAT SHIELD	-	1	Enquire
17	257167	VAPOUR BREATHER PIPE	257167 VAPOUR BREATHER PIPE L. 400 mm	-	1	Enquire
18	278419	GROUND CABLE FROM SENSOR TO FALSE POLE	278419 GROUND CABLE FROM SENSOR TO FALSE POLE Applicable for Stop&Start	-	1	Enquire
18	274256	BATTERY GROUND / FALSE TERMINAL CABLE	274256 BATTERY GROUND / FALSE TERMINAL CABLE Not for Stop&Start	-	1	Enquire
19	291683	COMPL. BATTERY ECU	291683 COMPL. BATTERY ECU Not for GD	-	1	Enquire
19	294976	COMPL. BATTERY ECU	294976 COMPL. BATTERY ECU Applicable for GD	-	1	Enquire
