HEADLIGHTS AND TAILLIGHTS of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - HEADLIGHTS AND TAILLIGHTS

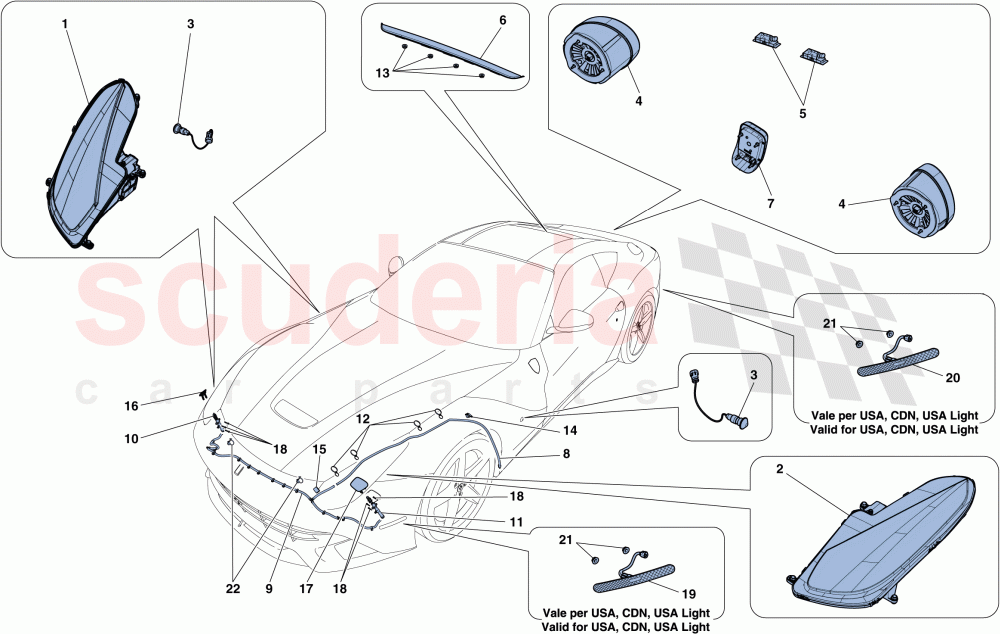

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	288531	RH HEADLAMP	Enquire	To Order
	297801	RH HEADLAMP	Enquire	To Order
	297797	RH HEADLAMP	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	297803	LH HEADLAMP	Enquire	To Order
	297795	LH HEADLAMP	Enquire	To Order
	288533	LH HEADLAMP	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	165558	SIDE TURN INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286441	TAIL LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264480	LICENSE PLATE LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279729	THIRD STOP LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339379	REAR FOG LIGHT	Enquire	To Order
	339380	REAR FOG LIGHT	Enquire	To Order
	279240	REAR FOG LIGHT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	84638900	PIPE FROM RESERVOIR TO SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84639000	PIPE FROM SECTION TO SPRAY NOZZLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84315300	RH HEADLAMP WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

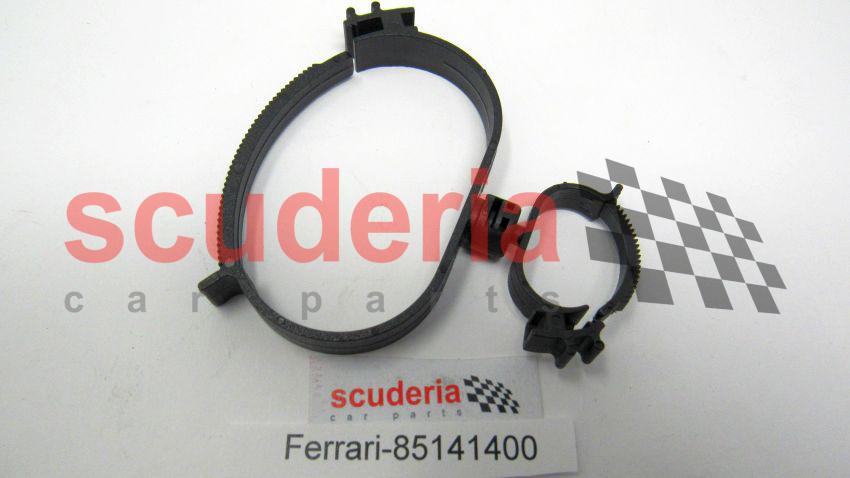

	85141400	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

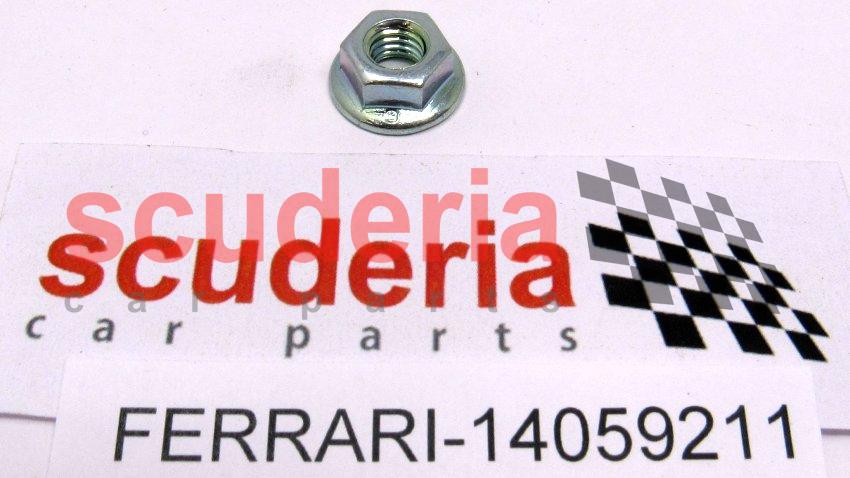

	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160888	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254315	RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85157710	RH HEADLIGHT WASHER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85157810	LH HEADLIGHT WASHER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

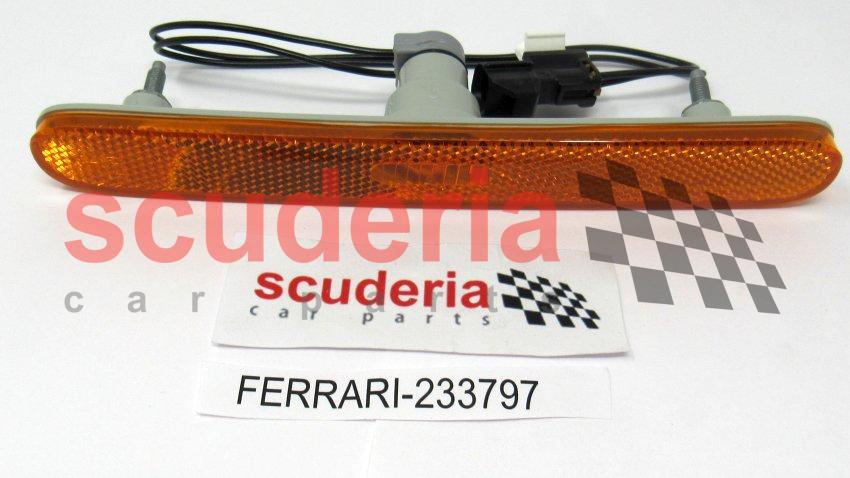

	233797	FRONT SIDE MARKER (USA & CANADA)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

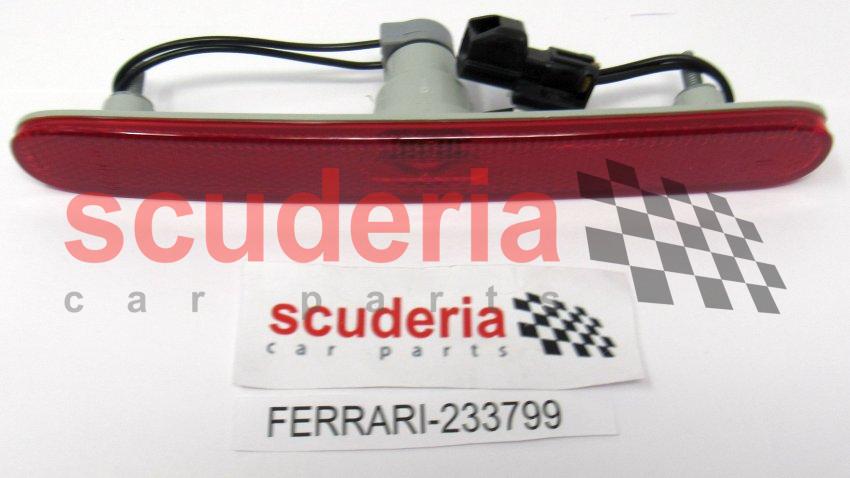

	233799	Rear Side Marker (USA & Canada)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86224600	RING CLAMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	288531	RH HEADLAMP	288531 RH HEADLAMP AFS; Applicable for J, GD	-	1	Enquire
1	297801	RH HEADLAMP	297801 RH HEADLAMP AFS; Carbon; Applicable for J, GD	-	1	Enquire
1	297797	RH HEADLAMP	297797 RH HEADLAMP AFS; Carbon; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	297793	RH HEADLAMP	297793 RH HEADLAMP AFS; Carbon; Applicable for CINA	-	1	Enquire
1	275037	RH HEADLAMP	275037 RH HEADLAMP AFS; Applicable for EU GS, GOLFO	-	1	Enquire

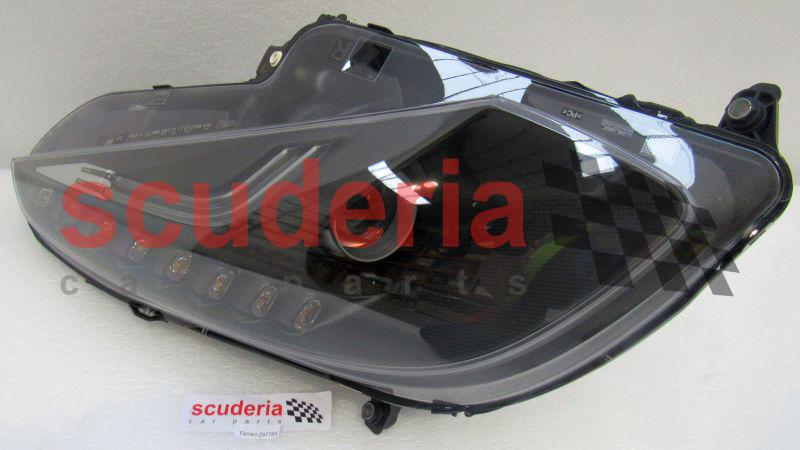

1	297789	RH HEADLAMP	297789 RH HEADLAMP AFS; Carbon; Applicable for EU GS, GOLFO	-	1	Enquire

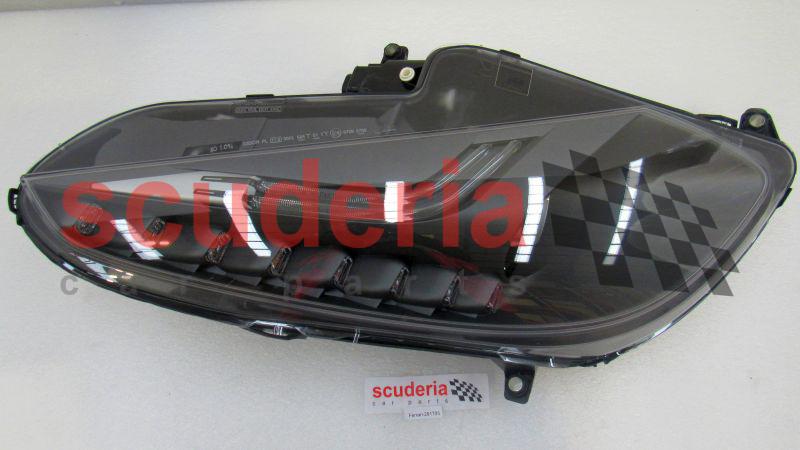

1	291705	RH HEADLAMP	291705 RH HEADLAMP AFS; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	297792	RH HEADLAMP	297792 RH HEADLAMP Base; Carbon; Applicable for CINA	-	1	Enquire
1	293203	RH HEADLAMP	293203 RH HEADLAMP Base; Applicable for CINA	-	1	Enquire
1	293202	RH HEADLAMP	293202 RH HEADLAMP AFS; Applicable for CINA	-	1	Enquire
1	288534	RH HEADLAMP	288534 RH HEADLAMP Base; Applicable for J, GD	-	1	Enquire
1	297800	RH HEADLAMP	297800 RH HEADLAMP Base; Carbon; Applicable for J, GD	-	1	Enquire
1	291708	RH HEADLAMP	291708 RH HEADLAMP Base; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	297796	RH HEADLAMP	297796 RH HEADLAMP Base; Carbon; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
1	270546	RH HEADLAMP	270546 RH HEADLAMP Base; Applicable for EU GS, GOLFO	-	1	Enquire
1	297788	RH HEADLAMP	297788 RH HEADLAMP Base; Carbon; Applicable for EU GS, GOLFO	-	1	Enquire
2	297803	LH HEADLAMP	297803 LH HEADLAMP AFS; Carbon; Applicable for J, GD	-	1	Enquire
2	297795	LH HEADLAMP	297795 LH HEADLAMP AFS; Carbon; Applicable for CINA	-	1	Enquire
2	288533	LH HEADLAMP	288533 LH HEADLAMP AFS; Applicable for J, GD	-	1	Enquire
2	297791	LH HEADLAMP	297791 LH HEADLAMP AFS; Carbon; Applicable for EU GS, GOLFO	-	1	Enquire
2	291707	LH HEADLAMP	291707 LH HEADLAMP AFS; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
2	297799	LH HEADLAMP	297799 LH HEADLAMP AFS; Carbon; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
2	275038	LH HEADLAMP	275038 LH HEADLAMP AFS; Applicable for EU GS, GOLFO	-	1	Enquire
2	293200	LH HEADLAMP	293200 LH HEADLAMP AFS; Applicable for CINA	-	1	Enquire
2	288532	LH HEADLAMP	288532 LH HEADLAMP Base; Applicable for J, GD	-	1	Enquire
2	297794	LH HEADLAMP	297794 LH HEADLAMP Base; Carbon; Applicable for CINA	-	1	Enquire
2	297802	LH HEADLAMP	297802 LH HEADLAMP Base; Carbon; Applicable for J, GD	-	1	Enquire
2	297798	LH HEADLAMP	297798 LH HEADLAMP Base; Carbon; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
2	293201	LH HEADLAMP	293201 LH HEADLAMP Base; Applicable for CINA	-	1	Enquire
2	297790	LH HEADLAMP	297790 LH HEADLAMP Base; Carbon; Applicable for EU GS, GOLFO	-	1	Enquire
2	291706	LH HEADLAMP	291706 LH HEADLAMP Base; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
2	270545	LH HEADLAMP	270545 LH HEADLAMP Base; Applicable for EU GS, GOLFO	-	1	Enquire
3	165558	SIDE TURN INDICATOR	165558 SIDE TURN INDICATOR	-	2	Enquire
4	286441	TAIL LIGHT	286441 TAIL LIGHT	-	2	Enquire
5	264480	LICENSE PLATE LIGHT	264480 LICENSE PLATE LIGHT	-	2	Enquire
6	279729	THIRD STOP LIGHT	279729 THIRD STOP LIGHT	-	1	Enquire
7	339379	REAR FOG LIGHT	339379 REAR FOG LIGHT Version with parking camera; Not for Taiwan	-	1	Enquire
7	339380	REAR FOG LIGHT	339380 REAR FOG LIGHT Carbon version; Version with parking camera; Not for Taiwan	-	1	Enquire
7	279240	REAR FOG LIGHT	279240 REAR FOG LIGHT Version with parking camera; Applicable for Taiwan	-	1	Enquire
7	304256	REAR FOG LIGHT	304256 REAR FOG LIGHT Carbon version; Version with parking camera; Applicable for Taiwan	-	1	Enquire
7	282371	REAR FOG LIGHT	282371 REAR FOG LIGHT	-	1	Enquire
7	304255	REAR FOG LIGHT	304255 REAR FOG LIGHT Carbon version	-	1	Enquire
8	84638900	PIPE FROM RESERVOIR TO SECTION	84638900 PIPE FROM RESERVOIR TO SECTION	-	1	Enquire
9	84639000	PIPE FROM SECTION TO SPRAY NOZZLES	84639000 PIPE FROM SECTION TO SPRAY NOZZLES	-	1	Enquire
10	84315300	RH HEADLAMP WASHER	84315300 RH HEADLAMP WASHER	-	1	Enquire
11	84377700	LH HEADLAMP WASHER	84377700 LH HEADLAMP WASHER	-	1	Enquire
12	85141400	CLIP	85141400 CLIP	-	4	Enquire
13	14059211	NUT	14059211 NUT	-	4	Enquire
14	160888	CLIP	160888 CLIP	-	1	Enquire
15	254315	RUBBER PAD	254315 RUBBER PAD	-	1	Enquire
16	85157710	RH HEADLIGHT WASHER COVER	85157710 RH HEADLIGHT WASHER COVER	-	1	Enquire
17	85157810	LH HEADLIGHT WASHER COVER	85157810 LH HEADLIGHT WASHER COVER	-	1	Enquire
18	15688904	SCREW	15688904 SCREW	-	6	Enquire
19	233797	FRONT SIDE MARKER (USA & CANADA)	233797 FRONT SIDE MARKER (USA & CANADA) Applicable for USA, CDN, USA LIGHT	-	2	Enquire
20	233799	Rear Side Marker (USA & Canada)	233799 Rear Side Marker (USA & Canada) Applicable for USA, CDN, USA LIGHT	-	2	Enquire
21	12578011	NUT	12578011 NUT Applicable for USA, CDN, USA LIGHT	-	8	Enquire
22	86224600	RING CLAMP	86224600 RING CLAMP	-	12	Enquire
