MAIN WIRING HARNESSES

Find Your Part

Ferrari F12 Berlinetta - MAIN WIRING HARNESSES

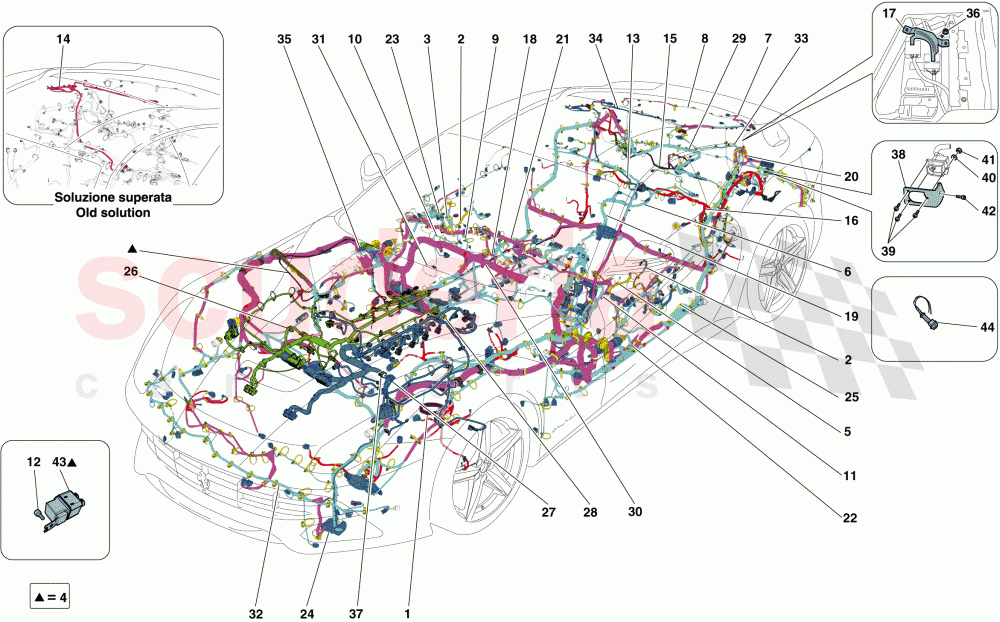

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
276837 ENGINE GROUND - CHASSIS GROUND CONNECTOR BRAID $113.23 To Order
Photo Part No Description Price (each) Stock
268214 DOOR SIDEBAG CABLE $32.08 To Order
Photo Part No Description Price (each) Stock
266545 PASSENGER AIRBAG CABLE $50.15 To Order
Photo Part No Description Price (each) Stock
282880 VEHICLE LIFT CABLE $401.13 To Order
288465 VEHICLE LIFT CABLE $433.23 To Order
Photo Part No Description Price (each) Stock
302142 GROUND BRAID $50.15 To Order
302141 GROUND BRAID $401.34 To Order
Photo Part No Description Price (each) Stock
288033 LOCK CONNECTOR WIRING HARNESS $141.19 To Order
Photo Part No Description Price (each) Stock
288034 TAILGATE CABLE $141.19 To Order
Photo Part No Description Price (each) Stock
283722 FRONT BUZZER CABLES $13.14 To Order
Photo Part No Description Price (each) Stock
294222 DASHBOARD TWEETER CABLES $47.28 To Order
283876 DASHBOARD TWEETER CABLES $22.45 To Order
294224 DASHBOARD TWEETER CABLES $106.07 To Order
Photo Part No Description Price (each) Stock
281024 DASHBOARD VIDEO CABLE $130.38 To Order
266797 DASHBOARD VIDEO CABLE $88.53 To Order
Photo Part No Description Price (each) Stock
14304220 SCREW $0.10 To Order
Photo Part No Description Price (each) Stock
291354 PASSENGER COMPARTMENT AM/FM RADIO ANTENNA CABLE $286.67 To Order
Photo Part No Description Price (each) Stock
284206 TAILGATE RADIO ANTENNA CABLE Enquire To Order
Photo Part No Description Price (each) Stock
813311 LVDS CABLE $774.05 To Order
Photo Part No Description Price (each) Stock
292591 TANK CABLE $155.63 To Order
Photo Part No Description Price (each) Stock
274521 RH CONNECTOR MOUNTING BRACKET $37.25 To Order
Photo Part No Description Price (each) Stock
306750 GPS ANTENNA EXTENSION CABLE $144.40 To Order
Photo Part No Description Price (each) Stock
294974 NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT $286.67 To Order
294974 NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT $286.67 To Order
310319 NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT $104.62 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
294237 UPPER DASHBOARD WIRING HARNESS $117.12 To Order
294235 UPPER DASHBOARD WIRING HARNESS $51.33 To Order
320769 DASHBOARD CABLE $1,843.41 To Order
...and 14 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
282870 DRIVER SIDE DOOR CABLES $465.32 To Order
288461 DRIVER SIDE DOOR CABLES $530.36 To Order
282871 DRIVER SIDE DOOR CABLES $573.36 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
282872 PASSENGER SIDE DOOR CABLES $369.04 To Order
288463 PASSENGER SIDE DOOR CABLES $458.69 To Order
282873 PASSENGER SIDE DOOR CABLES $529.50 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
292624 FRONT CAMERA CABLE $169.31 To Order
Photo Part No Description Price (each) Stock
292623 PASSENGER COMPARTMENT CAMERA CABLE $180.85 To Order
Photo Part No Description Price (each) Stock
294242 RH INJECTION WIRING HARNESS $2,012.15 To Order
294243 RH INJECTION WIRING HARNESS $2,321.84 To Order
Photo Part No Description Price (each) Stock
294246 LH INJECTION WIRING HARNESS $2,321.84 To Order
294245 LH INJECTION WIRING HARNESS $4,120.59 To Order
Photo Part No Description Price (each) Stock
320828 REAR CABLE $4,749.03 To Order
325042 REAR CABLE $4,863.70 To Order
325041 REAR CABLE $4,832.16 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
292689 FRONT CABLE $8,343.90 To Order
294779 FRONT CABLE $5,888.86 To Order
292688 FRONT CABLE $8,229.97 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
295035 FRONT BUMPER CABLE $529.50 To Order
295033 FRONT BUMPER CABLE $449.27 To Order
Photo Part No Description Price (each) Stock
282878 REAR BUMPER CABLE $1,476.21 To Order
282877 REAR BUMPER CABLE $200.67 To Order
Photo Part No Description Price (each) Stock
291353 TAILGATE AM/FM ANTENNA CABLE $385.09 To Order
Photo Part No Description Price (each) Stock
278419 GROUND CABLE FROM SENSOR TO FALSE POLE $43.31 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
244216 CLIP $4.31 To Order
Photo Part No Description Price (each) Stock
295757 BATTERY CONDITIONER BRACKET $51.59 To Order
Photo Part No Description Price (each) Stock
14418074 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
12600474 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
16101714 NUT Enquire To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
251997 RELAY $272.77 To Order
Photo Part No Description Price (each) Stock
312774 CHARGING WIRING HARNESS $609.73 To Order
View All
MAIN WIRING HARNESSES of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 276837
ENGINE GROUND - CHASSIS GROUND CONNECTOR BRAID
CHASSIS GROUND CONNECTOR BRAID 		$113.23 2
2 268214
DOOR SIDEBAG CABLE 		$32.08 2
3 266545
PASSENGER AIRBAG CABLE 		$50.15 1
4 282880
VEHICLE LIFT CABLE
Version with shock absorber with lifter; Not for GD 		$401.13 1
4 288465
VEHICLE LIFT CABLE
Version with shock absorber with lifter; Applicable for GD 		$433.23 1
6 302142
GROUND BRAID
Applicable for USA, CDN, USA LIGHT 		$50.15 (21.8% off) 1
6 302141
GROUND BRAID
Not for USA, CDN, USA LIGHT 		$401.34 1
7 288033
LOCK CONNECTOR WIRING HARNESS 		$141.19 1
8 288034
TAILGATE CABLE 		$141.19 1
9 283722
FRONT BUZZER CABLES
Applicable up to Ass. No. 114045 		$13.14 1
10 294222
DASHBOARD TWEETER CABLES
Not for premium Hi-Fi; Applicable from Ass. No. 114046 		$47.28 1
10 283876
DASHBOARD TWEETER CABLES
Premium Hi-Fi version; Applicable up to Ass. No. 114045 		$22.45 1
10 294224
DASHBOARD TWEETER CABLES
Premium Hi-Fi version; Applicable from Ass. No. 114046 		$106.07 1
11 281024
DASHBOARD VIDEO CABLE
Version with parking camera; Applicable for GD 		$130.38 1
11 266797
DASHBOARD VIDEO CABLE
Version with parking camera; Not for GD 		$88.53 1
12 14304220
SCREW
M5 X 16 		$0.10 1
13 291354
PASSENGER COMPARTMENT AM/FM RADIO ANTENNA CABLE
Applicable from Ass. No. 109288 		$286.67 1
14 284206
TAILGATE RADIO ANTENNA CABLE
Applicable up to Ass. No. 109287 		- 1 Enquire
15 813311
LVDS CABLE
Integrated in dashboard wiring harness 		$774.05 1
16 292591
TANK CABLE 		$155.63 1
17 274521
RH CONNECTOR MOUNTING BRACKET 		$37.25 1
18 306750
GPS ANTENNA EXTENSION CABLE 		$144.40 1
19 294974
NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT
Applicable for J; Applicable up to Ass. No. 132679 		$286.67 1
19 294974
NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT
Applicable for CINA; Applicable up to Ass. No. 130491 		$286.67 1
19 310319
NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT
Applicable for Mexico 		$104.62 1
19 283387
NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT
Not for markets with navigation and telemetry; Not for markets with navigation and Apple Car Play; Not for markets with navigation, telemetry and Apple Car Play; Applicable for CINA, J; Applicable from Ass. No. 132680 		$75.95 1
19 283387
NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT
Not for Mexico; Not for markets with navigation and telemetry; Not for markets with navigation and Apple Car Play; Not for markets with navigation, telemetry and Apple Car Play; Not for CINA, J 		$75.95 1
21 294237
UPPER DASHBOARD WIRING HARNESS
Full house; Applicable for Hi-Fi premium version; Applicable for GD 		$117.12 1
21 294235
UPPER DASHBOARD WIRING HARNESS
Full house; Not for Hi-Fi premium version; Applicable for GD 		$51.33 1
21 320769
DASHBOARD CABLE
Version with telemetry; Full house; Applicable for Hi-Fi premium version; Not for GD; Applicable from Ass. No. 131873 		$1,843.41 1
21 320768
DASHBOARD CABLE
Version with telemetry; Full house; Not for Hi-Fi premium version; Not for GD; Applicable from Ass. No. 131873 		$1,777.47 1
21 305992
DASHBOARD CABLE
Version with telemetry; Full house; Applicable for Hi-Fi premium version; Not for GD; Applicable up to Ass. No. 131872 		$2,142.12 1
21 305991
DASHBOARD CABLE
Version with telemetry; Full house; Not for Hi-Fi premium version; Not for GD; Applicable up to Ass. No. 131872 		$2,127.68 1
21 320779
DASHBOARD CABLE
Full house; Applicable for Hi-Fi premium version; Version with telemetry; Applicable for GD; Applicable from Ass. No. 131873 		$2,134.41 1
21 305994
DASHBOARD CABLE
Full house; Applicable for Hi-Fi premium version; Version with telemetry; Applicable for GD; Applicable up to Ass. No. 131872 		$2,496.74 1
21 320777
DASHBOARD CABLE
Full house; Applicable for Hi-Fi premium version; Version without telemetry; Applicable for GD; Applicable from Ass. No. 131873 		$1,743.06 1
21 294236
DASHBOARD CABLE
Full house; Applicable for Hi-Fi premium version; Version without telemetry; Applicable for GD; Applicable up to Ass. No. 131872 		$2,196.68 1
21 305993
DASHBOARD CABLE
Full house; Not for Hi-Fi premium version; Version with telemetry; Applicable for GD; Applicable up to Ass. No. 131872 		$2,392.44 1
21 320778
DASHBOARD CABLE
Full house; Not for Hi-Fi premium version; Version with telemetry; Applicable for GD; Applicable from Ass. No. 131873 		- 1 Enquire
21 320776
DASHBOARD CABLE
Full house; Not for Hi-Fi premium version; Version without telemetry; Applicable for GD; Applicable from Ass. No. 131873 		$1,614.05 1
21 294234
DASHBOARD CABLE
Full house; Not for Hi-Fi premium version; Version without telemetry; Applicable for GD; Applicable up to Ass. No. 131872 		$2,095.59 1
21 320766
DASHBOARD CABLE
Full house; Applicable for Hi-Fi premium version; Not for GD; Applicable from Ass. No. 131873 		$1,542.38 1
21 320767
DASHBOARD CABLE
Full house; Not for Hi-Fi premium version; Applicable for passenger display; Not for GD; Applicable from Ass. No. 131873 		$1,608.33 1
21 320765
DASHBOARD CABLE
Base; No Hi-Fi premium, passenger display, parking camera, lift system, electric column; Not for GD; Applicable from Ass. No. 131873 		$1,275.75 1
22 282870
DRIVER SIDE DOOR CABLES
Not for premium Hi-Fi; Not for GD 		$465.32 1
22 288461
DRIVER SIDE DOOR CABLES
Not for premium Hi-Fi; Applicable for GD 		$530.36 1
22 282871
DRIVER SIDE DOOR CABLES
Premium Hi-Fi version; Not for GD 		$573.36 1
22 288462
DRIVER SIDE DOOR CABLES
Premium Hi-Fi version; Applicable for GD 		$641.82 1
23 282872
PASSENGER SIDE DOOR CABLES
Not for premium Hi-Fi; Not for GD 		$369.04 1
23 288463
PASSENGER SIDE DOOR CABLES
Not for premium Hi-Fi; Applicable for GD 		$458.69 1
23 282873
PASSENGER SIDE DOOR CABLES
Premium Hi-Fi version; Not for GD 		$529.50 1
23 288464
PASSENGER SIDE DOOR CABLES
Premium Hi-Fi version; Applicable for GD 		$573.36 1
24 292624
FRONT CAMERA CABLE 		$169.31 1
25 292623
PASSENGER COMPARTMENT CAMERA CABLE 		$180.85 1
26 294242
RH INJECTION WIRING HARNESS
Not for USA, CDN, USA LIGHT 		$2,012.15 1
26 294243
RH INJECTION WIRING HARNESS
Applicable for USA, CDN, USA LIGHT 		$2,321.84 1
27 294246
LH INJECTION WIRING HARNESS
Applicable for USA, CDN, USA LIGHT 		$2,321.84 1
27 294245
LH INJECTION WIRING HARNESS
Not for USA, CDN, USA LIGHT 		$4,120.59 1
29 320828
REAR CABLE
Full house; With front parking sensors; Premium Hi-Fi version; Not for Apple Car Play; Applicable for GD; Applicable from Ass. No. 131873 		$4,749.03 1
29 325042
REAR CABLE
Full house; With front parking sensors; Premium Hi-Fi version; Applicable for Apple Car Play; Applicable for GD; Applicable from Ass. No. 131873 		$4,863.70 1
29 325041
REAR CABLE
Full house; With front parking sensors; Premium Hi-Fi version; Applicable for Apple Car Play; Not for GD 		$4,832.16 1
29 320825
REAR CABLE
Full house; With front parking sensors; Premium Hi-Fi version; Not for Apple Car Play; Not for GD; Applicable from Ass. No. 131873 		$4,220.08 1
29 320827
REAR CABLE
Full house; With front parking sensors; Not for premium Hi-Fi; Not for Apple Car Play; Applicable for GD; Applicable from Ass. No. 131873 		$3,973.52 1
29 325723
REAR CABLE
Full house; With front parking sensors; Not for premium Hi-Fi; Applicable for Apple Car Play; Applicable for GD 		$4,556.95 1
29 325720
REAR CABLE
Full house; With front parking sensors; Not for premium Hi-Fi; Applicable for Apple Car Play; Not for GD 		$3,688.27 1
29 320824
REAR CABLE
Full house; With front parking sensors; Not for premium Hi-Fi; Not for Apple Car Play; Not for GD; Applicable from Ass. No. 131873 		$3,572.16 1
30 292689
FRONT CABLE
Applicable for Stop&Start; With front parking sensors; Applicable for adaptive headlights; Applicable for GD 		$8,343.90 1
30 294779
FRONT CABLE
Applicable for Stop&Start; With front parking sensors; Applicable for adaptive headlights; Not for GD 		$5,888.86 1
30 292688
FRONT CABLE
Applicable for Stop&Start; With front parking sensors; Not for adaptive headlights; Applicable for GD 		$8,229.97 1
30 294778
FRONT CABLE
Applicable for Stop&Start; With front parking sensors; Not for adaptive headlights; Not for GD 		$8,502.75 1
30 294777
FRONT CABLE
Not for Stop&Start; With front parking sensors; Applicable for adaptive headlights; Not for GD 		$7,414.83 1
30 292687
FRONT CABLE
Not for Stop&Start; With front parking sensors; Applicable for adaptive headlights; Applicable for GD 		$8,326.24 1
30 292686
FRONT CABLE
Not for Stop&Start; With front parking sensors; Not for adaptive headlights; Applicable for GD 		$7,806.35 1
30 331203
FRONT CABLE
Standard; Applicable for Stop&Start; Not for GD 		$4,978.37 1
30 294776
FRONT CABLE
Not for Stop&Start; With front parking sensors; Not for adaptive headlights; Not for GD 		$7,108.35 1
30 298324
FRONT CABLE
Standard; Not for Stop&Start; Not for GD 		$5,834.30 1
32 295035
FRONT BUMPER CABLE
Applicable for USA, CDN, USA LIGHT 		$529.50 1
32 295033
FRONT BUMPER CABLE
Not for USA, CDN, USA LIGHT 		$449.27 1
33 282878
REAR BUMPER CABLE
Applicable for USA, CDN, USA LIGHT 		$1,476.21 1
33 282877
REAR BUMPER CABLE
Not for USA, CDN, USA LIGHT 		$200.67 1
34 291353
TAILGATE AM/FM ANTENNA CABLE
Applicable from Ass. No. 109288 		$385.09 1
35 278419
GROUND CABLE FROM SENSOR TO FALSE POLE 		$43.31 1
36 14059290
FLANGED NUT M6
M5 		$1.51 2
37 244216
CLIP 		$4.31 1
38 295757
BATTERY CONDITIONER BRACKET 		$51.59 1
39 14418074
SCREW 		$0.21 3
40 12600474
WASHER 		$0.03 3
41 16101714
NUT 		- 3 Enquire
42 85833900
SCREW
M5 X 14
ARRIVING SOON 		$0.36 1
43 251997
RELAY 		$272.77 1
44 312774
CHARGING WIRING HARNESS 		$609.73 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
