SCREENS, WINDOWS AND SEALS of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - SCREENS, WINDOWS AND SEALS

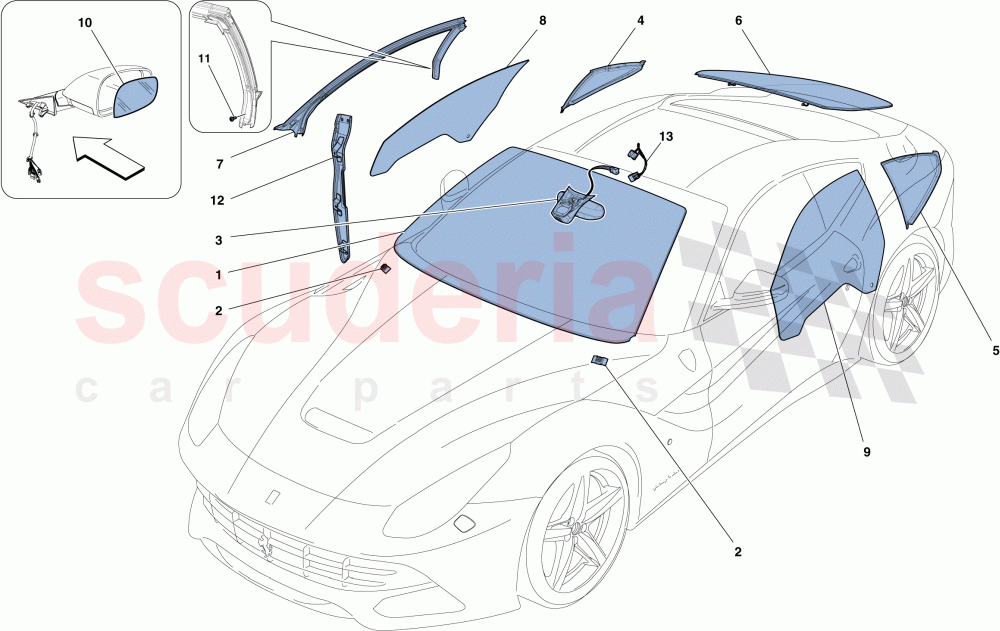

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	85062300	WINDSCREEN	Enquire	To Order
	84285700	WINDSCREEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83363700	SPACER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85602700	COMPL. REAR VIEW MIRROR	Enquire	To Order
	85392100	COMPL. REAR VIEW MIRROR	Enquire	To Order
	84715200	COMPL. REAR VIEW MIRROR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	84265000	RH REAR WINDOW	Enquire	To Order
	84706400	RH REAR WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84265100	LH REAR WINDOW	Enquire	To Order
	84706500	LH REAR WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84265200	REAR SCREEN	Enquire	To Order
	84706600	REAR SCREEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83370100	LH DOOR PERIMETER SEAL	Enquire	To Order
	83370000	RH DOOR PERIMETER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84281500	RH DOOR WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84281600	LH DOOR WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85089300	LH CURVED GLASS	Enquire	To Order
	85089200	LH CURVED GLASS	Enquire	To Order
	84776600	LH CURVED WINDOW	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60684944	Rain and Dusk Sensor	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	85062300	WINDSCREEN	85062300 WINDSCREEN Heat insulating windscreen	-	1	Enquire
1	84285700	WINDSCREEN	84285700 WINDSCREEN	-	1	Enquire
2	83363700	SPACER BLOCK	83363700 SPACER BLOCK Not for GD	-	2	Enquire
3	85602700	COMPL. REAR VIEW MIRROR	85602700 COMPL. REAR VIEW MIRROR Electrochromic; Homelink; Version with track cameras; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
3	85392100	COMPL. REAR VIEW MIRROR	85392100 COMPL. REAR VIEW MIRROR Electrochromic; Homelink; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
3	84715200	COMPL. REAR VIEW MIRROR	84715200 COMPL. REAR VIEW MIRROR Prismatic	-	1	Enquire
3	85602400	COMPL. REAR VIEW MIRROR	85602400 COMPL. REAR VIEW MIRROR Electrochromic; Version with track cameras	-	1	Enquire
4	84265000	RH REAR WINDOW	84265000 RH REAR WINDOW	-	1	Enquire
4	84706400	RH REAR WINDOW	84706400 RH REAR WINDOW Version with Privacy Glass	-	1	Enquire
5	84265100	LH REAR WINDOW	84265100 LH REAR WINDOW	-	1	Enquire
5	84706500	LH REAR WINDOW	84706500 LH REAR WINDOW Version with Privacy Glass	-	1	Enquire
6	84265200	REAR SCREEN	84265200 REAR SCREEN	-	1	Enquire
6	84706600	REAR SCREEN	84706600 REAR SCREEN Version with Privacy Glass	-	1	Enquire
7	83370100	LH DOOR PERIMETER SEAL	83370100 LH DOOR PERIMETER SEAL	-	1	Enquire
7	83370000	RH DOOR PERIMETER SEAL	83370000 RH DOOR PERIMETER SEAL	-	1	Enquire
8	84281500	RH DOOR WINDOW	84281500 RH DOOR WINDOW	-	1	Enquire
9	84281600	LH DOOR WINDOW	84281600 LH DOOR WINDOW	-	1	Enquire
10	85089300	LH CURVED GLASS	85089300 LH CURVED GLASS Applicable for GOLFO	-	1	Enquire
10	85089200	LH CURVED GLASS	85089200 LH CURVED GLASS Electrochromic; Applicable for USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
10	84776600	LH CURVED WINDOW	84776600 LH CURVED WINDOW Not for GOLFO	-	1	Enquire
10	85158700	RH CURVED GLASS	85158700 RH CURVED GLASS Applicable for GOLFO	-	1	Enquire
10	84776500	LH CURVED WINDOW	84776500 LH CURVED WINDOW Electrochromic; Not for USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
10	85158600	RH CURVED GLASS	85158600 RH CURVED GLASS Electrochromic; Applicable for GOLFO	-	1	Enquire
10	85089000	RH CURVED GLASS	85089000 RH CURVED GLASS Electrochromic; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
10	84776400	RH Curved Window	84776400 RH Curved Window Not for GOLFO	-	1	Enquire
10	84776300	RH CURVED WINDOW	84776300 RH CURVED WINDOW Electrochromic; Not for USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
11	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 15	-	2	Enquire
13	60684944	Rain and Dusk Sensor	60684944 Rain and Dusk Sensor	-	1	Enquire
