REAR BUMPER of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - REAR BUMPER

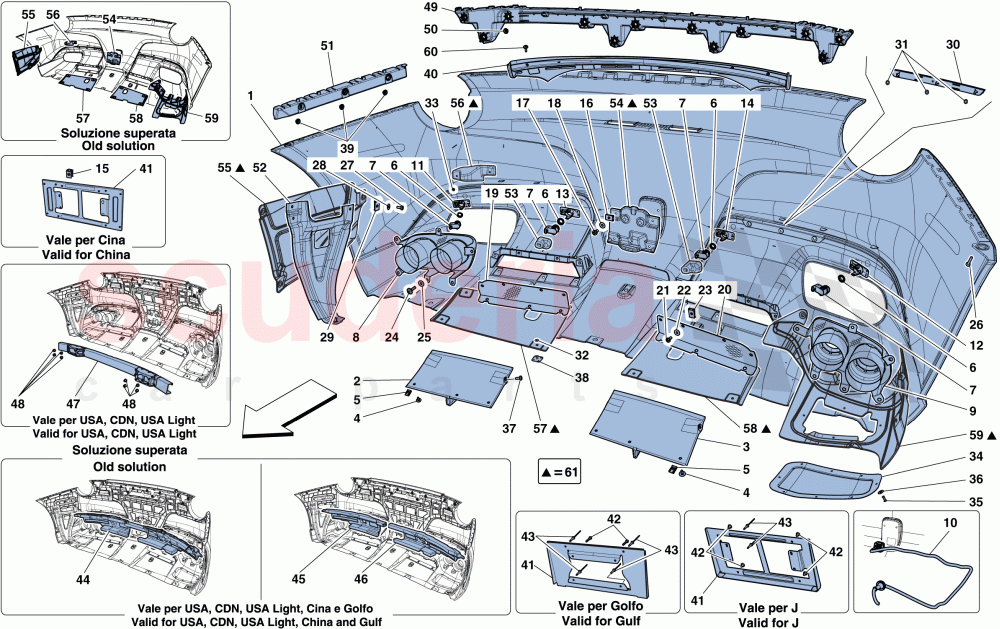

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	85133210	REAR BUMPER	Enquire	To Order
	85531710	REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84693700	RH WING	Enquire	To Order
	84360200	RH WING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84360300	LH WING	Enquire	To Order
	84693800	LH WING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85824800	SCREW M5 X 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	770452	SILICONE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239082	Parking Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85441200	GRILLE WITH RH TAILPIPES	Enquire	To Order
	84359400	GRILLE WITH RH TAILPIPES	Enquire	To Order
	84359400	GRILLE WITH RH TAILPIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84359500	GRILLE WITH LH TAILPIPES	Enquire	To Order
	85441300	GRILLE WITH LH TAILPIPES	Enquire	To Order
	84359500	GRILLE WITH LH TAILPIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	917700	PARKING CAMERA	Enquire	To Order
	266790	PARKING CAMERA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84359100	RH EXTERNAL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84359300	LH EXTERNAL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84501900	RH INTERNAL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84502100	LH INTERNAL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274217	SCREW M5 x 16	Enquire	To Order
	13274077	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84387800	RH LOWER DIFFUSER GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84387900	LH Lower Diffuser Grille	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274217	SCREW M5 x 16	Enquire	To Order
	13274077	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	Enquire	To Order
	11625524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87547900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274217	SCREW M5 x 16	Enquire	To Order
	13274077	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84806900	LH REFLECTOR	Enquire	To Order
	84806800	RH REFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84784600	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14227776	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14227776	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84434800	LH HEAT VENT GRILLE	Enquire	To Order
	84434700	RH HEAT VENT GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14641593	Rivet fixing grill	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239925	SCREW	Enquire	To Order
	13272117	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85635800	HEAT SHIELD MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84905900	UPPER REAR BUMPER TRIM STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85452200	REAR LICENSE PLATE HOLDER	Enquire	To Order
	83048300	REAR LICENSE PLATE HOLDER	Enquire	To Order
	85158800	REAR LICENSE PLATE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16088570	SCREW	Enquire	To Order
	16088570	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900472	FASTENER BUTTON	Enquire	To Order
	14296196	RIVET	Enquire	To Order
	900472	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84648600	REAR BUMPER IMPACT ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85479500	RH IMPACT ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85479600	LH IMPACT ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84977600	CRASH-BOX CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046214	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84360600	CENTRE MOUNT FOR REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84360700	RH LATERAL MOUNT	Enquire	To Order
	84360800	LH LATERAL MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84823700	RH FASTENER BRACKET FOR REAR BUMPER	Enquire	To Order
	84823800	LH FASTENER BRACKET FOR REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88135100	PARKING SENSOR HEAT SHIELD	Enquire	To Order
	88135100	PARKING SENSOR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85703200	REAR BUMPER HEAT SHIELD KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	85133210	REAR BUMPER	85133210 REAR BUMPER Not for USA, CDN, USA LIGHT	-	1	Enquire
1	85531710	REAR BUMPER	85531710 REAR BUMPER Applicable for USA, CDN, USA LIGHT	-	1	Enquire
2	84693700	RH WING	84693700 RH WING Carbon version	-	1	Enquire
2	84360200	RH WING	84360200 RH WING	-	1	Enquire
3	84360300	LH WING	84360300 LH WING	-	1	Enquire
3	84693800	LH WING	84693800 LH WING Carbon version	-	1	Enquire
4	85824800	SCREW M5 X 16	85824800 SCREW M5 X 16	-	6	Enquire
5	68700800	CLIP	68700800 CLIP	-	6	Enquire
6	770452	SILICONE RING	770452 SILICONE RING	-	4	Enquire
7	239082	Parking Sensor	239082 Parking Sensor	-	4	Enquire
8	85441200	GRILLE WITH RH TAILPIPES	85441200 GRILLE WITH RH TAILPIPES Applicable for CINA, USA, CDN, GOLFO, USA LIGHT; Applicable from Ass. No. 113226	-	1	Enquire
8	84359400	GRILLE WITH RH TAILPIPES	84359400 GRILLE WITH RH TAILPIPES Not for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
8	84359400	GRILLE WITH RH TAILPIPES	84359400 GRILLE WITH RH TAILPIPES Applicable for CINA, USA, CDN, GOLFO, USA LIGHT; Applicable up to Ass. No. 113225	-	1	Enquire
9	84359500	GRILLE WITH LH TAILPIPES	84359500 GRILLE WITH LH TAILPIPES Not for CINA, USA, CDN, GOLFO, USA LIGHT; Applicable up to Ass. No. 113225	-	1	Enquire
9	85441300	GRILLE WITH LH TAILPIPES	85441300 GRILLE WITH LH TAILPIPES Applicable for CINA, USA, CDN, GOLFO, USA LIGHT; Applicable from Ass. No. 113226	-	1	Enquire
9	84359500	GRILLE WITH LH TAILPIPES	84359500 GRILLE WITH LH TAILPIPES Not for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
10	917700	PARKING CAMERA	917700 PARKING CAMERA Version with camera; Not for Taiwan; Also included with rear fog light tab.129 ref.7	-	1	Enquire
10	266790	PARKING CAMERA	266790 PARKING CAMERA Version with camera; Applicable for Taiwan; Also included with rear fog light tab.129 ref.7	-	1	Enquire
11	84359100	RH EXTERNAL MOUNTING	84359100 RH EXTERNAL MOUNTING	-	1	Enquire
12	84359300	LH EXTERNAL MOUNTING	84359300 LH EXTERNAL MOUNTING	-	1	Enquire
13	84501900	RH INTERNAL MOUNTING	84501900 RH INTERNAL MOUNTING	-	1	Enquire
14	84502100	LH INTERNAL MOUNTING	84502100 LH INTERNAL MOUNTING	-	1	Enquire
15	62766300	CLIP	62766300 CLIP Applicable for CINA	-	4	Enquire
16	68700800	CLIP	68700800 CLIP	-	4	Enquire
17	13274217	SCREW M5 x 16	13274217 SCREW M5 x 16 M5 X 16; Applicable from Ass. No. 111060	-	4	Enquire
17	13274077	SCREW	13274077 SCREW M5 X 12; Applicable up to Ass. No. 111059	-	4	Enquire
18	62769800	WASHER	62769800 WASHER	-	4	Enquire
19	84387800	RH LOWER DIFFUSER GRILLE	84387800 RH LOWER DIFFUSER GRILLE	-	1	Enquire
20	84387900	LH Lower Diffuser Grille	84387900 LH Lower Diffuser Grille	-	1	Enquire
21	13274217	SCREW M5 x 16	13274217 SCREW M5 x 16 M5 X 16; Applicable from Ass. No. 111060	-	8	Enquire
21	13274077	SCREW	13274077 SCREW M5 X 12; Applicable up to Ass. No. 111059	-	8	Enquire
22	62769800	WASHER	62769800 WASHER	-	8	Enquire
23	68700800	CLIP	68700800 CLIP	-	8	Enquire
24	915271	SCREW	915271 SCREW M6 X 15; Applicable up to Ass. No. 111060	-	12	Enquire
24	11625524	SCREW	11625524 SCREW M6 X 12; Applicable from Ass. No. 111060	-	12	Enquire
25	87547900	WASHER	87547900 WASHER	-	12	Enquire
26	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26	-	2	Enquire
27	13274217	SCREW M5 x 16	13274217 SCREW M5 x 16 M5 X 16; Applicable from Ass. No. 111060	-	8	Enquire
27	13274077	SCREW	13274077 SCREW M5 X 12; Applicable up to Ass. No. 111059	-	8	Enquire
28	62769800	WASHER	62769800 WASHER	-	8	Enquire
29	68700800	CLIP	68700800 CLIP	-	8	Enquire
30	84806900	LH REFLECTOR	84806900 LH REFLECTOR	-	1	Enquire
30	84806800	RH REFLECTOR	84806800 RH REFLECTOR	-	1	Enquire
31	84784600	WASHER	84784600 WASHER	-	6	Enquire
32	14227776	PLATE	14227776 PLATE	-	8	Enquire
33	14227776	PLATE	14227776 PLATE	-	4	Enquire
34	84434800	LH HEAT VENT GRILLE	84434800 LH HEAT VENT GRILLE	-	1	Enquire
34	84434700	RH HEAT VENT GRILLE	84434700 RH HEAT VENT GRILLE	-	1	Enquire
35	14641593	Rivet fixing grill	14641593 Rivet fixing grill	-	16	Enquire
36	62769800	WASHER	62769800 WASHER	-	16	Enquire
37	239925	SCREW	239925 SCREW M4 X 13; Applicable up to Ass. No. 111059	-	4	Enquire
37	13272117	SCREW	13272117 SCREW M4 X 14; Applicable from Ass. No. 111060	-	4	Enquire
38	85635800	HEAT SHIELD MOUNT	85635800 HEAT SHIELD MOUNT	-	8	Enquire
39	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
40	84905900	UPPER REAR BUMPER TRIM STRIP	84905900 UPPER REAR BUMPER TRIM STRIP	-	1	Enquire
41	85452200	REAR LICENSE PLATE HOLDER	85452200 REAR LICENSE PLATE HOLDER Applicable for J	-	1	Enquire
41	83048300	REAR LICENSE PLATE HOLDER	83048300 REAR LICENSE PLATE HOLDER Applicable for CINA	-	1	Enquire
41	85158800	REAR LICENSE PLATE HOLDER	85158800 REAR LICENSE PLATE HOLDER Not for UAE; Applicable for GOLFO	-	1	Enquire
42	16088570	SCREW	16088570 SCREW Not for UAE; Applicable for GOLFO	-	2	Enquire
42	16088570	SCREW	16088570 SCREW Applicable for J	-	4	Enquire
43	900472	FASTENER BUTTON	900472 FASTENER BUTTON Applicable for J	-	4	Enquire
43	14296196	RIVET	14296196 RIVET Not for UAE; Applicable for GOLFO	-	4	Enquire
43	900472	FASTENER BUTTON	900472 FASTENER BUTTON Applicable for UAE; Not for GOLFO	-	4	Enquire
44	84648600	REAR BUMPER IMPACT ABSORBER	84648600 REAR BUMPER IMPACT ABSORBER Replaced by 85479500 and 85479600; Applicable for CINA, USA, CDN, GOLFO, USA LIGHT; No longer supplied	-	1	Enquire
45	85479500	RH IMPACT ABSORBER	85479500 RH IMPACT ABSORBER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
46	85479600	LH IMPACT ABSORBER	85479600 LH IMPACT ABSORBER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
47	84977600	CRASH-BOX CROSS MEMBER	84977600 CRASH-BOX CROSS MEMBER Applicable for USA, CDN, USA LIGHT	-	1	Enquire
48	13046214	NUT	13046214 NUT Applicable for USA, CDN, USA LIGHT	-	8	Enquire
49	84360600	CENTRE MOUNT FOR REAR BUMPER	84360600 CENTRE MOUNT FOR REAR BUMPER	-	1	Enquire
50	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	12	Enquire
51	84360700	RH LATERAL MOUNT	84360700 RH LATERAL MOUNT	-	1	Enquire
51	84360800	LH LATERAL MOUNT	84360800 LH LATERAL MOUNT	-	1	Enquire
52	84823700	RH FASTENER BRACKET FOR REAR BUMPER	84823700 RH FASTENER BRACKET FOR REAR BUMPER Applicable up to Ass. No. 118706	-	1	Enquire
52	84823800	LH FASTENER BRACKET FOR REAR BUMPER	84823800 LH FASTENER BRACKET FOR REAR BUMPER Applicable up to Ass. No. 118706	-	1	Enquire
53	88135100	PARKING SENSOR HEAT SHIELD	88135100 PARKING SENSOR HEAT SHIELD Not for CINA, USA, CDN, GOLFO, USA LIGHT	-	2	Enquire
53	88135100	PARKING SENSOR HEAT SHIELD	88135100 PARKING SENSOR HEAT SHIELD Applicable for CINA, USA, CDN, GOLFO, USA LIGHT; Applicable up to Ass. No. 113225	-	2	Enquire
60	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	5	Enquire
61	85703200	REAR BUMPER HEAT SHIELD KIT	85703200 REAR BUMPER HEAT SHIELD KIT	-	1	Enquire
