Name: FUEL FILLER FLAP AND CONTROLS
Rating: 5.0 (1 reviews)

FUEL FILLER FLAP AND CONTROLS of Ferrari Ferrari F12 Berlinetta

View All

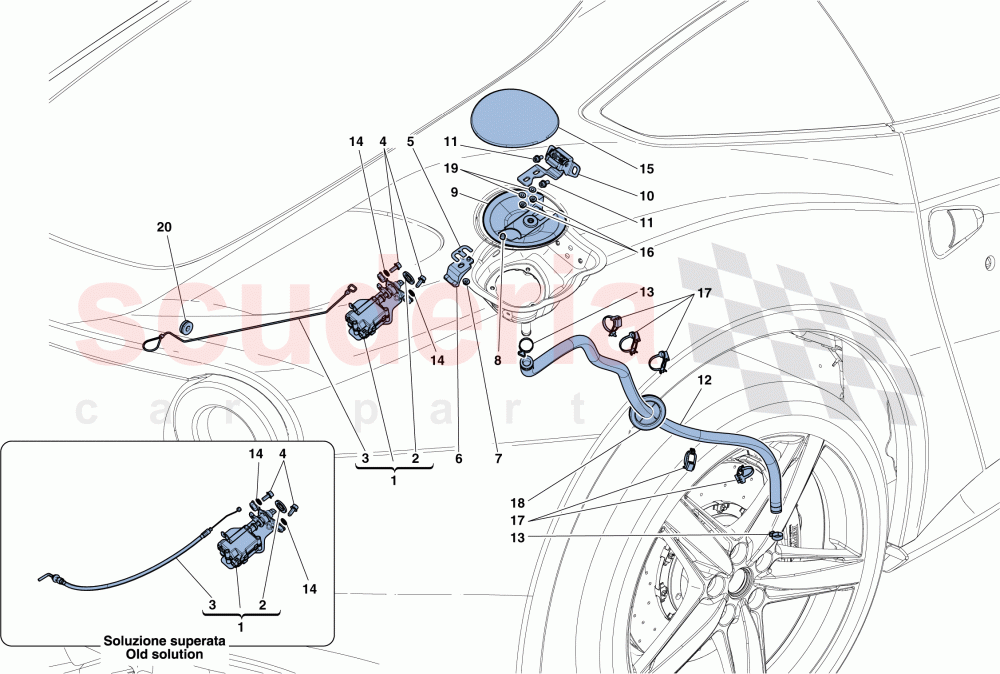

Ferrari F12 Berlinetta - FUEL FILLER FLAP AND CONTROLS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86009000	COMPL. FUEL FILLER FLAP ACTUATOR	$131.56	To Order

Photo	Part No	Description	Price (each)	Stock
	67067600	GASKET	$3.95	To Order

Photo	Part No	Description	Price (each)	Stock
	84506200	ACTUATOR BOWDEN CABLE	$286.67	To Order
	85618500	ACTUATOR CHORD	$10.84	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	84046900	SHIM PLATE	$9.61	To Order

Photo	Part No	Description	Price (each)	Stock
	83993500	STRIKER FOR ACTUATOR	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order
	14059114	NUT	$0.13	To Order

Photo	Part No	Description	Price (each)	Stock
	81802300	RUBBER PAD	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	84307600	INTERNAL COVER	$14.43	To Order

Photo	Part No	Description	Price (each)	Stock
	83993700	COMPL. HINGE	$106.07	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	84716500	DRAIN PIPE	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	13433570	HOSE COLLAR	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84307211	COMPL. FUEL FILLER FLAP	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	14059114	NUT	$0.13	To Order
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	81535200	GROMMET WITH MEMBRANE	$28.40	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	10396180	CABLE GROMMET	$2.84	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	86009000	COMPL. FUEL FILLER FLAP ACTUATOR	86009000 COMPL. FUEL FILLER FLAP ACTUATOR Applicable from Ass. No. 117354; Applicable after depletion of 85803900	$131.56 MSRP: ~~169.92~~ (22.6% off)	1
2	67067600	GASKET	67067600 GASKET	$3.95	1
3	84506200	ACTUATOR BOWDEN CABLE	84506200 ACTUATOR BOWDEN CABLE Applicable up to Ass. No. 114557	$286.67	1
3	85618500	ACTUATOR CHORD	85618500 ACTUATOR CHORD Applicable from Ass. No. 114558	$10.84	1
4	11566227	SCREW	11566227 SCREW M5 X 14	$1.31	2
5	84046900	SHIM PLATE	84046900 SHIM PLATE	$9.61	1
6	83993500	STRIKER FOR ACTUATOR	83993500 STRIKER FOR ACTUATOR	$62.56	1
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M5; No longer supplied; Replaced by 14059114	$1.51	1
7	14059114	NUT	14059114 NUT	$0.13	1
8	81802300	RUBBER PAD	81802300 RUBBER PAD	$1.15	1
9	84307600	INTERNAL COVER	84307600 INTERNAL COVER	$14.43	1
10	83993700	COMPL. HINGE	83993700 COMPL. HINGE	$106.07	1
11	11566227	SCREW	11566227 SCREW M5 X 14	$1.31	2
12	84716500	DRAIN PIPE	84716500 DRAIN PIPE	$176.49	1
13	13433570	HOSE COLLAR	13433570 HOSE COLLAR	$0.75	2
14	12604178	Washer	12604178 Washer	-	2	Enquire
15	84307211	COMPL. FUEL FILLER FLAP	84307211 COMPL. FUEL FILLER FLAP	$224.63	1
16	14059114	NUT	14059114 NUT	$0.13	2
16	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M5; No longer supplied; Replaced by 14059114	$1.51	2
17	177553	CLAMP	177553 CLAMP	$0.45 MSRP: ~~1.25~~ (64% off)	5
18	81535200	GROMMET WITH MEMBRANE	81535200 GROMMET WITH MEMBRANE	$28.40	1
19	12638124	WASHER	12638124 WASHER	$0.05 MSRP: ~~0.70~~ (92.9% off)	2
20	10396180	CABLE GROMMET	10396180 CABLE GROMMET	$2.84	1
