DOORS - OPENING MECHANISM AND HINGES of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - DOORS - OPENING MECHANISM AND HINGES

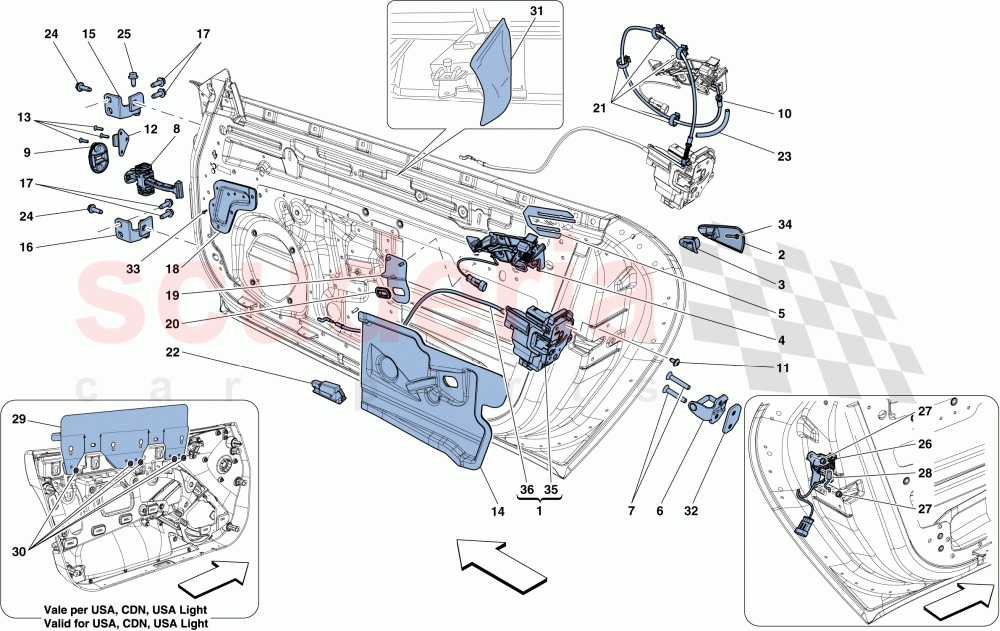

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82447900	LH DOOR LOCK	Enquire	To Order
	83679800	LH DOOR LOCK	Enquire	To Order
	82447800	RH DOOR LOCK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	81956810	RH OUTER DOOR HANDLE	Enquire	To Order
	81956910	LH OUTER DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81958700	RH DOOR HANDLE SEAL	Enquire	To Order
	81959100	LH DOOR HANDLE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87290700	RH OUTER DOOR HANDLE MODULE	Enquire	To Order
	80821800	LH OUTER DOOR HANDLE MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88007300	EXTERNAL DOOR HANDLE SPACER	Enquire	To Order
	80821900	EXTERNAL DOOR HANDLE SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69756900	DOOR LOCK STRIKER PLATE	Enquire	To Order
	85052500	DOOR LOCK STRIKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84919600	SCREW	Enquire	To Order
	85052700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83965500	DOOR CHECK STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83897000	DOOR CHECK STRAP SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69877100	BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874100	SCREW	Enquire	To Order
	46401657	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81916400	DOOR SAFETY HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83368100	RH MEMBRANE	Enquire	To Order
	83369100	LH MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83856100	UPPER RH DOOR HINGE	Enquire	To Order
	83865100	UPPER LH DOOR HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83856000	LOWER RH DOOR HINGE	Enquire	To Order
	83864900	LOWER LH DOOR HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18754324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84418800	RH DOOR SUBSTRUCTURE COVER PANEL	Enquire	To Order
	84418900	LH DOOR SUBSTRUCTURE COVER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83368600	RH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	Enquire	To Order
	83369200	LH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898656	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14570180	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188250	DOME LAMP UNIT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	82936400	SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81267100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85133600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84456400	LATCH HOLDER	Enquire	To Order
	85027000	LATCH HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84696600	KNOB LEVER	Enquire	To Order
	85027100	KNOB LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85480000	FOIL FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83595900	WATERPROOF MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80763800	DOOR STRIKER PLATE SHIM	Enquire	To Order
	85052600	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82007000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85011400	RH DOOR LOCK	Enquire	To Order
	80182800	LH DOOR LOCK	Enquire	To Order
	85011300	LH DOOR LOCK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	83088200	INNER DOOR HANDLE BOWDEN CABLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	82447900	LH DOOR LOCK	82447900 LH DOOR LOCK After depletion, order loose components; Not for GD; Applicable until depletion	-	1	Enquire
1	83679800	LH DOOR LOCK	83679800 LH DOOR LOCK After depletion, order loose components; Applicable for GD; Applicable until depletion	-	1	Enquire
1	82447800	RH DOOR LOCK	82447800 RH DOOR LOCK After depletion, order loose components; Not for GD; Applicable until depletion	-	1	Enquire
1	83679700	RH DOOR LOCK	83679700 RH DOOR LOCK After depletion, order loose components; Applicable for GD; Applicable until depletion	-	1	Enquire
2	81956810	RH OUTER DOOR HANDLE	81956810 RH OUTER DOOR HANDLE	-	1	Enquire
2	81956910	LH OUTER DOOR HANDLE	81956910 LH OUTER DOOR HANDLE	-	1	Enquire
3	81958700	RH DOOR HANDLE SEAL	81958700 RH DOOR HANDLE SEAL	-	1	Enquire
3	81959100	LH DOOR HANDLE SEAL	81959100 LH DOOR HANDLE SEAL	-	1	Enquire
4	87290700	RH OUTER DOOR HANDLE MODULE	87290700 RH OUTER DOOR HANDLE MODULE	-	1	Enquire
4	80821800	LH OUTER DOOR HANDLE MODULE	80821800 LH OUTER DOOR HANDLE MODULE	-	1	Enquire
5	88007300	EXTERNAL DOOR HANDLE SPACER	88007300 EXTERNAL DOOR HANDLE SPACER	-	2	Enquire
5	80821900	EXTERNAL DOOR HANDLE SPACER	80821900 EXTERNAL DOOR HANDLE SPACER	-	2	Enquire
6	69756900	DOOR LOCK STRIKER PLATE	69756900 DOOR LOCK STRIKER PLATE Applicable up to Ass. No. 114686	-	2	Enquire
6	85052500	DOOR LOCK STRIKER PLATE	85052500 DOOR LOCK STRIKER PLATE Grey; Applicable from Ass. No. 114687	-	2	Enquire
7	84919600	SCREW	84919600 SCREW Applicable up to Ass. No. 114686	-	4	Enquire
7	85052700	SCREW	85052700 SCREW Grey; Applicable from Ass. No. 114687	-	4	Enquire
8	83965500	DOOR CHECK STRAP	83965500 DOOR CHECK STRAP	-	2	Enquire
9	83897000	DOOR CHECK STRAP SEAL	83897000 DOOR CHECK STRAP SEAL	-	2	Enquire
10	69877100	BOWDEN CABLE	69877100 BOWDEN CABLE	-	2	Enquire
11	80874100	SCREW	80874100 SCREW No longer supplied; Replaced by 46401657	-	6	Enquire
11	46401657	SCREW	46401657 SCREW	-	6	Enquire
12	81916400	DOOR SAFETY HOOK	81916400 DOOR SAFETY HOOK	-	2	Enquire
13	14441234	SCREW	14441234 SCREW M6 X 12	-	6	Enquire
14	83368100	RH MEMBRANE	83368100 RH MEMBRANE	-	1	Enquire
14	83369100	LH MEMBRANE	83369100 LH MEMBRANE	-	1	Enquire
15	83856100	UPPER RH DOOR HINGE	83856100 UPPER RH DOOR HINGE	-	1	Enquire
15	83865100	UPPER LH DOOR HINGE	83865100 UPPER LH DOOR HINGE	-	1	Enquire
16	83856000	LOWER RH DOOR HINGE	83856000 LOWER RH DOOR HINGE	-	1	Enquire
16	83864900	LOWER LH DOOR HINGE	83864900 LOWER LH DOOR HINGE	-	1	Enquire
17	18754324	SCREW	18754324 SCREW M10 X 1,25 X 32	-	8	Enquire
18	84418800	RH DOOR SUBSTRUCTURE COVER PANEL	84418800 RH DOOR SUBSTRUCTURE COVER PANEL	-	1	Enquire
18	84418900	LH DOOR SUBSTRUCTURE COVER PANEL	84418900 LH DOOR SUBSTRUCTURE COVER PANEL	-	1	Enquire
19	83368600	RH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	83368600 RH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	-	1	Enquire
19	83369200	LH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	83369200 LH INNER HANDLE BOWDEN CABLE SEAL MOUNTING	-	1	Enquire
20	898656	CABLE GROMMET	898656 CABLE GROMMET	-	2	Enquire
21	14570180	CLIP	14570180 CLIP	-	8	Enquire
22	188250	DOME LAMP UNIT ARRIVING SOON	188250 DOME LAMP UNIT ARRIVING SOON	-	2	Enquire
23	82936400	SHEATH	82936400 SHEATH	-	2	Enquire
24	81267100	SCREW	81267100 SCREW	-	4	Enquire
25	85133600	SCREW	85133600 SCREW	-	4	Enquire
26	84456400	LATCH HOLDER	84456400 LATCH HOLDER Not for GD	-	1	Enquire
26	85027000	LATCH HOLDER	85027000 LATCH HOLDER Applicable for GD	-	1	Enquire
27	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
28	84696600	KNOB LEVER	84696600 KNOB LEVER Not for GD	-	1	Enquire
28	85027100	KNOB LEVER	85027100 KNOB LEVER Applicable for GD	-	1	Enquire
29	85480000	FOIL FLAP	85480000 FOIL FLAP Applicable for USA, CDN, USA LIGHT	-	2	Enquire
30	860172	WASHER	860172 WASHER Applicable for USA, CDN, USA LIGHT; No longer supplied; Replaced by 14039511	-	10	Enquire
30	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for USA, CDN, USA LIGHT	-	10	Enquire
31	83595900	WATERPROOF MEMBRANE	83595900 WATERPROOF MEMBRANE	-	2	Enquire
32	80763800	DOOR STRIKER PLATE SHIM	80763800 DOOR STRIKER PLATE SHIM Applicable up to Ass. No. 114686	-	2	Enquire
32	85052600	SHIM	85052600 SHIM Grey; Applicable from Ass. No. 114687	-	2	Enquire
33	85833700	SCREW	85833700 SCREW M5 X 12	-	5	Enquire
34	82007000	SCREW	82007000 SCREW	-	2	Enquire
35	85011400	RH DOOR LOCK	85011400 RH DOOR LOCK Applicable for GD	-	1	Enquire
35	80182800	LH DOOR LOCK	80182800 LH DOOR LOCK Not for GD	-	1	Enquire
35	85011300	LH DOOR LOCK	85011300 LH DOOR LOCK Applicable for GD	-	1	Enquire
35	80182700	RH DOOR LOCK	80182700 RH DOOR LOCK Not for GD	-	1	Enquire
36	83088200	INNER DOOR HANDLE BOWDEN CABLE	83088200 INNER DOOR HANDLE BOWDEN CABLE	-	2	Enquire
