REAR LID AND OPENING MECHANISM of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - REAR LID AND OPENING MECHANISM

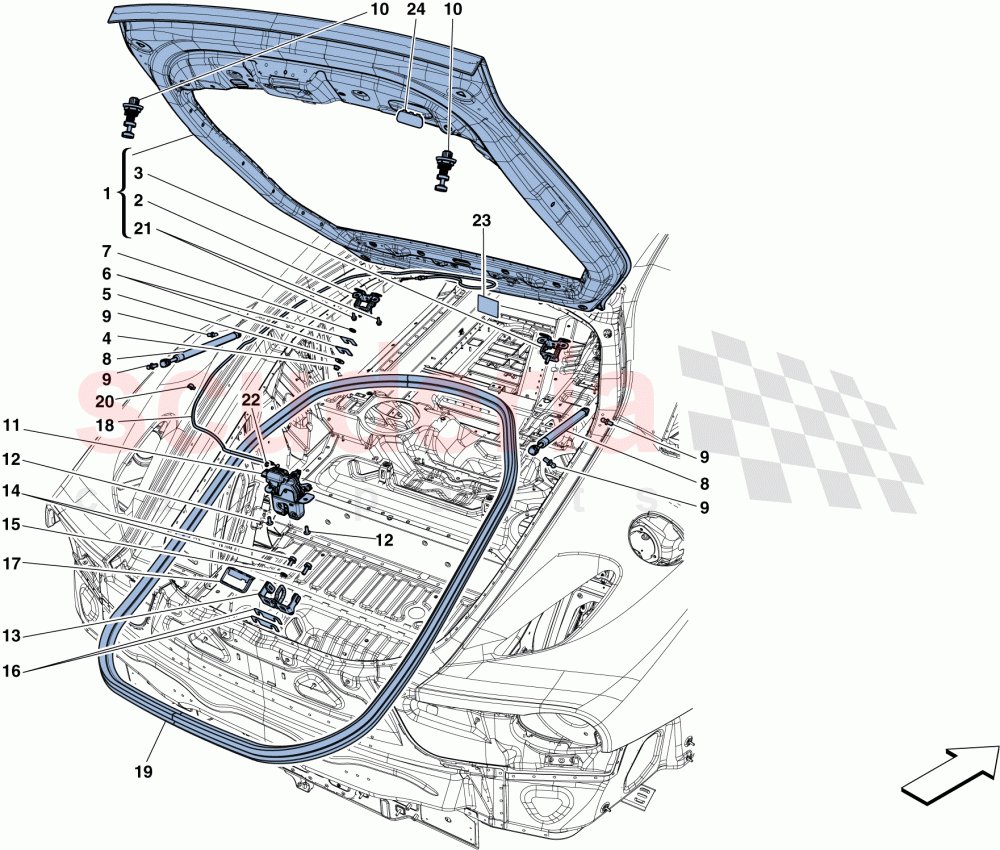

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	84215311	TAILGATE ASSEMBLY	Enquire	To Order
	84978111	TAILGATE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84813900	LH TAILGATE HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84813800	RH TAILGATE HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84651000	SPACER	Enquire	To Order
	84651200	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85164500	GAS STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85216400	PIN WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	849815	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84922700	ELECTRIC LOCK WITH LEVER AND MEMORY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82209700	LOCK STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84147600	SPACER	Enquire	To Order
	84147200	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85602900	COSMETIC COVER	Enquire	To Order
	83717700	COSMETIC COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84686800	BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84339600	TAILGATE STOP SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087675	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255515	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84684900	TAILGATE GRAB HANDLE CAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	84215311	TAILGATE ASSEMBLY	84215311 TAILGATE ASSEMBLY	-	1	Enquire
1	84978111	TAILGATE ASSEMBLY	84978111 TAILGATE ASSEMBLY Applicable for satellite radio opt.; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
2	84813900	LH TAILGATE HINGE	84813900 LH TAILGATE HINGE	-	1	Enquire
3	84813800	RH TAILGATE HINGE	84813800 RH TAILGATE HINGE	-	1	Enquire
4	14059311	NUT	14059311 NUT	-	2	Enquire
5	12647021	WASHER	12647021 WASHER	-	2	Enquire
6	84651000	SPACER	84651000 SPACER Th. 1 mm	-	2	Enquire
6	84651200	SPACER	84651200 SPACER Th. 2 mm	-	2	Enquire
7	84653800	WASHER	84653800 WASHER	-	4	Enquire

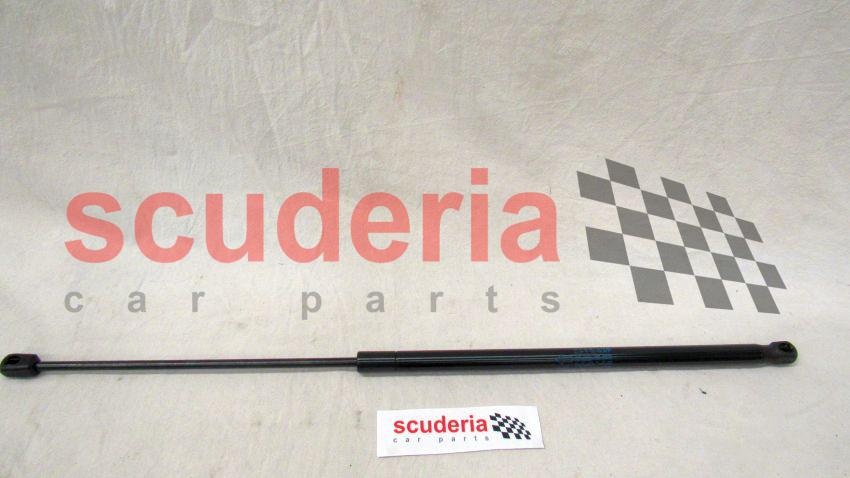

8	85164500	GAS STRUT	85164500 GAS STRUT	-	2	Enquire
9	85216400	PIN WITH WASHER	85216400 PIN WITH WASHER	-	4	Enquire
10	849815	VIBRATION DAMPER	849815 VIBRATION DAMPER	-	2	Enquire
11	84922700	ELECTRIC LOCK WITH LEVER AND MEMORY	84922700 ELECTRIC LOCK WITH LEVER AND MEMORY	-	1	Enquire
12	81911600	SCREW	81911600 SCREW M6 X 1 X 18	-	2	Enquire
13	82209700	LOCK STRIKER	82209700 LOCK STRIKER	-	1	Enquire
14	13839224	SCREW	13839224 SCREW M8 X 20	-	2	Enquire
15	84653800	WASHER	84653800 WASHER	-	2	Enquire
16	84147600	SPACER	84147600 SPACER Th. 0.5 mm	-	1	Enquire
16	84147200	SPACER	84147200 SPACER Th. 1 mm	-	1	Enquire
17	85602900	COSMETIC COVER	85602900 COSMETIC COVER Applicable from Ass. No. 115761	-	1	Enquire
17	83717700	COSMETIC COVER	83717700 COSMETIC COVER Applicable up to Ass. No. 115760	-	1	Enquire
18	84686800	BOWDEN CABLE	84686800 BOWDEN CABLE	-	1	Enquire
19	84339600	TAILGATE STOP SEAL	84339600 TAILGATE STOP SEAL	-	1	Enquire
20	248061	CLIP	248061 CLIP	-	8	Enquire
21	86574700	SCREW	86574700 SCREW M6 X 16	-	4	Enquire
22	11087675	SNAP RING	11087675 SNAP RING	-	1	Enquire
23	255515	BUSH	255515 BUSH	-	2	Enquire
24	84684900	TAILGATE GRAB HANDLE CAP	84684900 TAILGATE GRAB HANDLE CAP	-	1	Enquire
