Name: WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS
Rating: 5.0 (1 reviews)

WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS of Ferrari Ferrari California T

View All

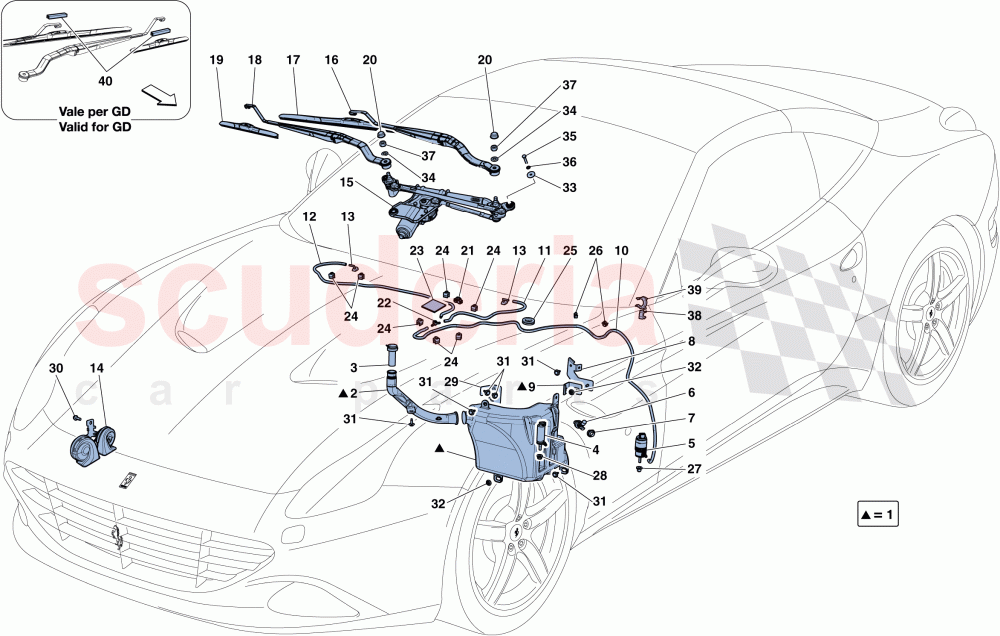

Ferrari California T - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86571500	COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR	$544.69	To Order

Photo	Part No	Description	Price (each)	Stock
	86591400	FILLER PIPE	$155.63	To Order

Photo	Part No	Description	Price (each)	Stock
	66421300	Cap	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	81633000	HEADLIGHT WASHER PUMP	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	81632900	WINDSCREEN WASHER PUMP	$146.00	To Order

Photo	Part No	Description	Price (each)	Stock
	81633100	FLUID LEVEL SENSOR	$150.73	To Order

Photo	Part No	Description	Price (each)	Stock
	81633200	LEVEL SENSOR SEAL	$26.31	To Order

Photo	Part No	Description	Price (each)	Stock
	86571600	COMPL. BRACKET	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	86566600	BRACKET	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	85194300	PIPE FROM ELECTRIC PUMP TO CHECK VALVE	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	85194500	PIPE FROM CHECK VALVE TO LH SPRAY NOZZLE	$113.91	To Order

Photo	Part No	Description	Price (each)	Stock
	85194400	PIPE FROM CHECK VALVE TO RH SPRAY NOZZLE	$113.91	To Order

Photo	Part No	Description	Price (each)	Stock
	65191000	SPRAY NOZZLE	$3.06	To Order

Photo	Part No	Description	Price (each)	Stock
	294058	HORN COMPLETE WITH BRACKET	$50.37	To Order

Photo	Part No	Description	Price (each)	Stock
	85804000	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	$786.24	To Order
	85804100	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	$1,283.66	To Order

Photo	Part No	Description	Price (each)	Stock
	69771000	DRIVER SIDE WINDSCREEN WIPER ARM	$258.00	To Order
	80840800	DRIVER SIDE WINDSCREEN WIPER ARM	$372.69	To Order

Photo	Part No	Description	Price (each)	Stock
	80539000	WINDSCREEN WIPER BLADE DRIVER SIDE RHD	$130.47	To Order
	80534900	WINDSCREEN WIPER BLADE DRIVER SIDE LHD	$95.68	To Order

Photo	Part No	Description	Price (each)	Stock
	69771100	PASSENGER SIDE WINDSCREEN WIPER ARM	$192.54	To Order
	80840900	PASSENGER SIDE WINDSCREEN WIPER ARM	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	69771300	PASSENGER SIDE WINDSCREEN WIPER BLADE LHD	$69.84	To Order
	80843800	PASSENGER SIDE WINDSCREEN WIPER BLADE	$71.75	To Order

Photo	Part No	Description	Price (each)	Stock
	15811787	PROTECTIVE CAP	$0.86	To Order

Photo	Part No	Description	Price (each)	Stock
	81097300	CLIP	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	81061000	COMPLETE WINDSCREEN WASHER PIPE	$172.00	To Order

Photo	Part No	Description	Price (each)	Stock
	82009400	ADHESIVE SOUND INSULATION	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	14501087	CLIP	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	308092	NITTO	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	65775100	GASKET FOR WASHER PUMP	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	65511700	GASKET	$6.74	To Order

Photo	Part No	Description	Price (each)	Stock
	84160300	BRACKET	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	82118300	SCREW -No longer supplied- -Replaced by 11625714-	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WASHER	$0.03	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10791011	NUT	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	213069	CLIP	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	65328600	GUARD FOR WIPER BLADES	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	86571500	COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR	86571500 COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR	$544.69 MSRP: ~~682.37~~ (20.2% off)	1
2	86591400	FILLER PIPE	86591400 FILLER PIPE	$155.63	1
3	66421300	Cap	66421300 Cap	$10.89	1
4	81633000	HEADLIGHT WASHER PUMP	81633000 HEADLIGHT WASHER PUMP	$192.54	1
5	81632900	WINDSCREEN WASHER PUMP	81632900 WINDSCREEN WASHER PUMP	$146.00 MSRP: ~~191.60~~ (23.8% off)	1
6	81633100	FLUID LEVEL SENSOR	81633100 FLUID LEVEL SENSOR	$150.73 MSRP: ~~162.88~~ (7.5% off)	1
7	81633200	LEVEL SENSOR SEAL	81633200 LEVEL SENSOR SEAL	$26.31	1
8	86571600	COMPL. BRACKET	86571600 COMPL. BRACKET	$18.62	1
9	86566600	BRACKET	86566600 BRACKET	$28.66	1
10	85194300	PIPE FROM ELECTRIC PUMP TO CHECK VALVE	85194300 PIPE FROM ELECTRIC PUMP TO CHECK VALVE	$72.19	1
11	85194500	PIPE FROM CHECK VALVE TO LH SPRAY NOZZLE	85194500 PIPE FROM CHECK VALVE TO LH SPRAY NOZZLE	$113.91	1
12	85194400	PIPE FROM CHECK VALVE TO RH SPRAY NOZZLE	85194400 PIPE FROM CHECK VALVE TO RH SPRAY NOZZLE	$113.91	1
13	65191000	SPRAY NOZZLE	65191000 SPRAY NOZZLE	$3.06 MSRP: ~~8.50~~ (64% off)	2
14	294058	HORN COMPLETE WITH BRACKET	294058 HORN COMPLETE WITH BRACKET	$50.37	1
15	85804000	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	85804000 WINDSCREEN WIPER WITH MOTOR AND LINKAGES Not for GD	$786.24	1
15	85804100	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	85804100 WINDSCREEN WIPER WITH MOTOR AND LINKAGES Applicable for GD	$1,283.66	1
16	69771000	DRIVER SIDE WINDSCREEN WIPER ARM	69771000 DRIVER SIDE WINDSCREEN WIPER ARM Not for GD	$258.00 MSRP: ~~337.50~~ (23.6% off)	1
16	80840800	DRIVER SIDE WINDSCREEN WIPER ARM	80840800 DRIVER SIDE WINDSCREEN WIPER ARM Applicable for GD	$372.69	1
17	80539000	WINDSCREEN WIPER BLADE DRIVER SIDE RHD	80539000 WINDSCREEN WIPER BLADE DRIVER SIDE RHD Applicable for GD	$130.47	1
17	80534900	WINDSCREEN WIPER BLADE DRIVER SIDE LHD	80534900 WINDSCREEN WIPER BLADE DRIVER SIDE LHD Not for GD	$95.68 MSRP: ~~106.65~~ (10.3% off)	1
18	69771100	PASSENGER SIDE WINDSCREEN WIPER ARM	69771100 PASSENGER SIDE WINDSCREEN WIPER ARM Not for GD	$192.54 MSRP: ~~226.64~~ (15% off)	1
18	80840900	PASSENGER SIDE WINDSCREEN WIPER ARM	80840900 PASSENGER SIDE WINDSCREEN WIPER ARM Applicable for GD	$336.95	1
19	69771300	PASSENGER SIDE WINDSCREEN WIPER BLADE LHD	69771300 PASSENGER SIDE WINDSCREEN WIPER BLADE LHD Not for GD	$69.84	1
19	80843800	PASSENGER SIDE WINDSCREEN WIPER BLADE	80843800 PASSENGER SIDE WINDSCREEN WIPER BLADE Applicable for GD	$71.75	1
20	15811787	PROTECTIVE CAP	15811787 PROTECTIVE CAP	$0.86 MSRP: ~~1.00~~ (14% off)	2
21	81097300	CLIP	81097300 CLIP	$3.23	1
22	81061000	COMPLETE WINDSCREEN WASHER PIPE	81061000 COMPLETE WINDSCREEN WASHER PIPE	$172.00	1
23	82009400	ADHESIVE SOUND INSULATION	82009400 ADHESIVE SOUND INSULATION	$2.54	1
24	14501087	CLIP	14501087 CLIP	$0.60	7
25	308092	NITTO	308092 NITTO	$22.45	1
26	303385	CLIP	303385 CLIP	$0.31	2
27	65775100	GASKET FOR WASHER PUMP	65775100 GASKET FOR WASHER PUMP	$5.75	1
28	65511700	GASKET	65511700 GASKET	$6.74 MSRP: ~~8.57~~ (21.4% off)	1
29	84160300	BRACKET	84160300 BRACKET	$18.62	1
30	231619	SCREW	231619 SCREW M6 X 18	$0.31	1
31	82118300	SCREW -No longer supplied- -Replaced by 11625714-	82118300 SCREW -No longer supplied- -Replaced by 11625714-	$0.57	6
32	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
33	12648925	WASHER	12648925 WASHER	$0.39	3
34	12601474	WASHER	12601474 WASHER	$0.03	2
35	231620	SCREW	231620 SCREW	$0.32 MSRP: ~~0.35~~ (8.6% off)	3
36	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	3
37	10791011	NUT	10791011 NUT	$0.71	2
38	140727	CLIP	140727 CLIP Applicable for GD	$0.28 MSRP: ~~0.75~~ (62.7% off)	1
39	213069	CLIP	213069 CLIP Applicable for GD	$0.29	1
40	65328600	GUARD FOR WIPER BLADES	65328600 GUARD FOR WIPER BLADES Applicable for GD; No longer supplied	-	2	Enquire
