REAR BUMPER of Ferrari Ferrari California T

View All

Ferrari California T - REAR BUMPER

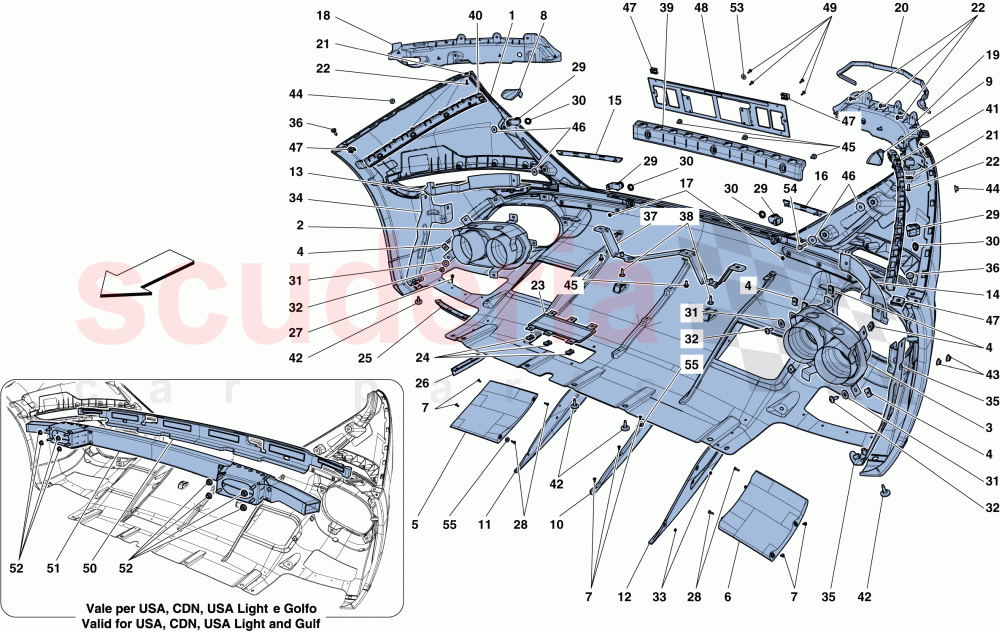

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

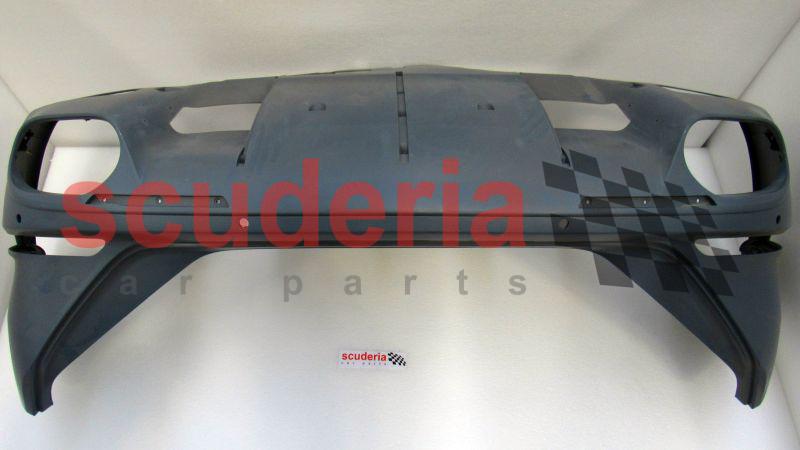

	86667810	COMPL. REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86090600	RH TAILPIPE GRILLE	Enquire	To Order
	88240000	RH TAILPIPE GRILLE	Enquire	To Order
	86090400	RH TAILPIPE GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86090500	LH TAILPIPE GRILLE	Enquire	To Order
	88239900	LH TAILPIPE GRILLE	Enquire	To Order
	86090300	LH TAILPIPE GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85829900	RH LATERAL REAR SPOILER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85829600	LH LATERAL REAR SPOILER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85830400	COSMETIC SEAL ON RH REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85830300	COSMETIC SEAL ON LH REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	833931	CENTRAL FIN	Enquire	To Order
	85830500	CENTRAL FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85830700	RH FIN	Enquire	To Order
	833932	RH FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	833933	LH FIN	Enquire	To Order
	85830600	LH FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85468100	RH FIXED TAILLIGHT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84806800	RH REFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84806900	LH REFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84784600	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85937500	RH FIXED TAILLIGHT BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85937400	LH FIXED TAILLIGHT BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86021300	FIXED TAILLIGHT SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14370171	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86876500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86245400	GEARBOX OIL INSPECTION CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574300	LATERAL DAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574500	CENTRAL DAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900472	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295361	PARKING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	770452	SILICONE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87547900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85629300	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87940800	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85467800	RH LATERAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85467600	LH LATERAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86224400	LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874900	SCREW M6 X 22MM	Enquire	To Order
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85922700	CENTRE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

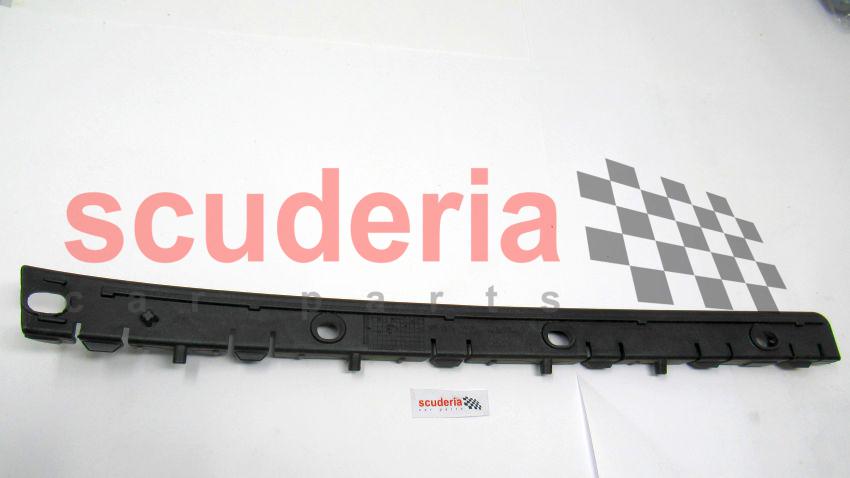

	85922900	RH LATERAL MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85922800	LH LATERAL MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046112	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625621	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86291500	REAR LICENSE PLATE MOUNTING	Enquire	To Order
	86293400	REAR LICENSE PLATE MOUNTING	Enquire	To Order
	86786300	REAR LICENSE PLATE MOUNTING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85999100	REAR BUMPER IMPACT ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85185000	REAR CROSS-MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046214	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	86667810	COMPL. REAR BUMPER	86667810 COMPL. REAR BUMPER	-	1	Enquire
2	86090600	RH TAILPIPE GRILLE	86090600 RH TAILPIPE GRILLE	-	1	Enquire
2	88240000	RH TAILPIPE GRILLE	88240000 RH TAILPIPE GRILLE Special Handling Pack	-	1	Enquire
2	86090400	RH TAILPIPE GRILLE	86090400 RH TAILPIPE GRILLE Version with sports tailpipes	-	1	Enquire
3	86090500	LH TAILPIPE GRILLE	86090500 LH TAILPIPE GRILLE	-	1	Enquire
3	88239900	LH TAILPIPE GRILLE	88239900 LH TAILPIPE GRILLE Special Handling Pack	-	1	Enquire
3	86090300	LH TAILPIPE GRILLE	86090300 LH TAILPIPE GRILLE Version with sports tailpipes	-	1	Enquire
4	80874300	CLIP	80874300 CLIP	-	10	Enquire
5	85829900	RH LATERAL REAR SPOILER	85829900 RH LATERAL REAR SPOILER	-	1	Enquire
6	85829600	LH LATERAL REAR SPOILER	85829600 LH LATERAL REAR SPOILER	-	1	Enquire
7	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	10	Enquire
8	85830400	COSMETIC SEAL ON RH REAR BUMPER	85830400 COSMETIC SEAL ON RH REAR BUMPER	-	1	Enquire
9	85830300	COSMETIC SEAL ON LH REAR BUMPER	85830300 COSMETIC SEAL ON LH REAR BUMPER	-	1	Enquire
10	833931	CENTRAL FIN	833931 CENTRAL FIN Black; Special Handling Pack	-	1	Enquire
10	85830500	CENTRAL FIN	85830500 CENTRAL FIN Grey	-	1	Enquire
11	85830700	RH FIN	85830700 RH FIN Grey	-	1	Enquire
11	833932	RH FIN	833932 RH FIN Black; Special Handling Pack	-	1	Enquire
12	833933	LH FIN	833933 LH FIN Black; Special Handling Pack	-	1	Enquire
12	85830600	LH FIN	85830600 LH FIN Grey	-	1	Enquire
13	85468100	RH FIXED TAILLIGHT HEAT SHIELD	85468100 RH FIXED TAILLIGHT HEAT SHIELD No longer supplied	-	1	Enquire
14	85468000	LH FIXED TAILLIGHT HEAT SHIELD	85468000 LH FIXED TAILLIGHT HEAT SHIELD No longer supplied	-	1	Enquire
15	84806800	RH REFLECTOR	84806800 RH REFLECTOR	-	1	Enquire
16	84806900	LH REFLECTOR	84806900 LH REFLECTOR	-	1	Enquire
17	84784600	WASHER	84784600 WASHER	-	6	Enquire
18	85937500	RH FIXED TAILLIGHT BASE	85937500 RH FIXED TAILLIGHT BASE	-	1	Enquire
19	85937400	LH FIXED TAILLIGHT BASE	85937400 LH FIXED TAILLIGHT BASE	-	1	Enquire
20	86021300	FIXED TAILLIGHT SEAL	86021300 FIXED TAILLIGHT SEAL Applicable until depletion	-	2	Enquire
21	14370171	BRACKET	14370171 BRACKET	-	6	Enquire
22	86876500	SCREW	86876500 SCREW	-	6	Enquire
23	86245400	GEARBOX OIL INSPECTION CAP	86245400 GEARBOX OIL INSPECTION CAP	-	1	Enquire
24	80874300	CLIP	80874300 CLIP	-	6	Enquire
25	86574300	LATERAL DAM	86574300 LATERAL DAM	-	2	Enquire
26	86574500	CENTRAL DAM	86574500 CENTRAL DAM	-	2	Enquire
27	900472	FASTENER BUTTON	900472 FASTENER BUTTON	-	14	Enquire
28	14302921	SCREW	14302921 SCREW M4 X 14	-	10	Enquire
28	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM No longer supplied; Replaced by 86876400	-	10	Enquire
29	295361	PARKING SENSOR	295361 PARKING SENSOR	-	4	Enquire
30	770452	SILICONE RING	770452 SILICONE RING	-	4	Enquire
31	87547900	WASHER	87547900 WASHER	-	10	Enquire
32	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20 M6 X 18	-	10	Enquire
33	87940800	NUT	87940800 NUT	-	6	Enquire
34	85467800	RH LATERAL BRACKET	85467800 RH LATERAL BRACKET	-	1	Enquire
35	85467600	LH LATERAL BRACKET	85467600 LH LATERAL BRACKET	-	1	Enquire
36	80874100	SCREW	80874100 SCREW	-	2	Enquire
37	86224400	LOWER BRACKET	86224400 LOWER BRACKET	-	1	Enquire
38	80874900	SCREW M6 X 22MM	80874900 SCREW M6 X 22MM No longer supplied; Replaced by 83442900	-	2	Enquire
38	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26	-	2	Enquire
39	85922700	CENTRE MOUNTING BRACKET	85922700 CENTRE MOUNTING BRACKET	-	1	Enquire
40	85922900	RH LATERAL MOUNTING BRACKET	85922900 RH LATERAL MOUNTING BRACKET	-	1	Enquire
41	85922800	LH LATERAL MOUNTING BRACKET	85922800 LH LATERAL MOUNTING BRACKET	-	1	Enquire
42	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26	-	7	Enquire
43	13046112	NUT	13046112 NUT	-	4	Enquire
44	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
45	11625621	SCREW	11625621 SCREW	-	6	Enquire
46	12648925	WASHER	12648925 WASHER	-	4	Enquire
47	62766300	CLIP	62766300 CLIP	-	4	Enquire
48	86291500	REAR LICENSE PLATE MOUNTING	86291500 REAR LICENSE PLATE MOUNTING Applicable for J	-	1	Enquire
48	86293400	REAR LICENSE PLATE MOUNTING	86293400 REAR LICENSE PLATE MOUNTING Applicable for AUS	-	1	Enquire
48	86786300	REAR LICENSE PLATE MOUNTING	86786300 REAR LICENSE PLATE MOUNTING Applicable for CINA	-	1	Enquire
48	82283100	REAR LICENSE PLATE HOLDER	82283100 REAR LICENSE PLATE HOLDER Applicable for UAE and Korea; Applicable for EU GS, UK	-	1	Enquire
48	85980600	REAR LICENSE PLATE MOUNTING	85980600 REAR LICENSE PLATE MOUNTING Applicable for USA, CDN, USA LIGHT	-	1	Enquire
48	86292200	REAR LICENSE PLATE MOUNTING	86292200 REAR LICENSE PLATE MOUNTING Not for UAE; Applicable for GOLFO	-	1	Enquire
49	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	4	Enquire
50	85999100	REAR BUMPER IMPACT ABSORBER	85999100 REAR BUMPER IMPACT ABSORBER Applicable for USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
51	85185000	REAR CROSS-MEMBER	85185000 REAR CROSS-MEMBER Applicable for USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
52	13046214	NUT	13046214 NUT Applicable for USA, CDN, GOLFO, USA LIGHT	-	8	Enquire
53	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable for Russia	-	2	Enquire
54	11625824	SCREW	11625824 SCREW	-	4	Enquire
55	62769800	WASHER	62769800 WASHER	-	24	Enquire
