Doors - Opening Mechanisms And Hinges

Ferrari California T

Find Your Part

Ferrari California T - DOORS - OPENING MECHANISMS AND HINGES

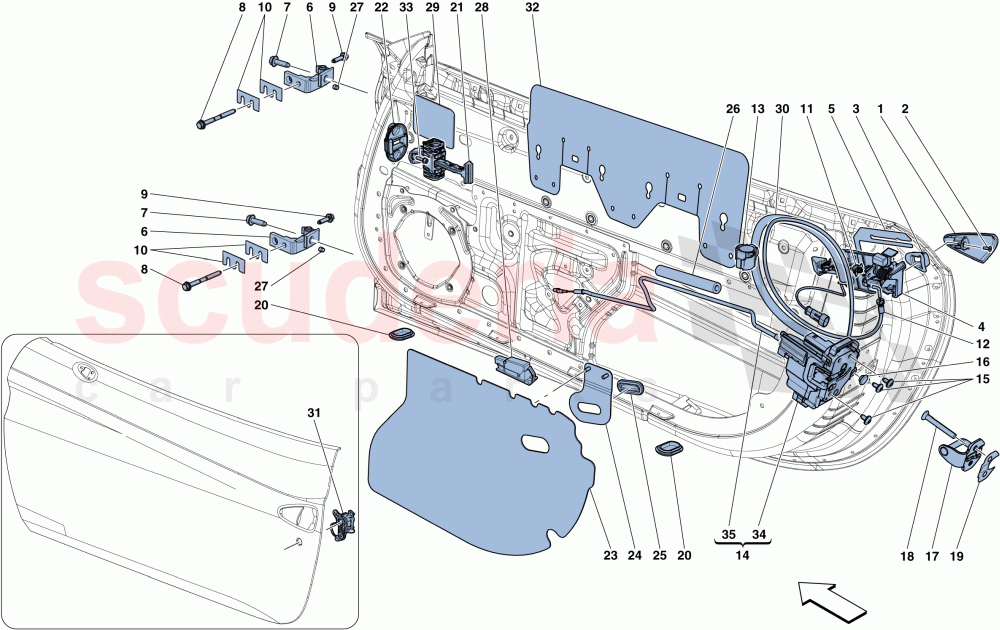

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
69978900 RH EXTERNAL DOOR HANDLE Enquire To Order
69979100 LH EXTERNAL DOOR HANDLE Enquire To Order
Photo Part No Description Price (each) Stock
82007000 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
81328000 RH GASKET Enquire To Order
81327900 LH GASKET Enquire To Order
Photo Part No Description Price (each) Stock
80821800 LH OUTER DOOR HANDLE MODULE Enquire To Order
87290700 RH OUTER DOOR HANDLE MODULE Enquire To Order
Photo Part No Description Price (each) Stock
80821900 EXTERNAL DOOR HANDLE SPACER Enquire To Order
Photo Part No Description Price (each) Stock
69827100 RH DOOR HINGE Enquire To Order
69827200 LH DOOR HINGE Enquire To Order
Photo Part No Description Price (each) Stock
81267100 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
81267000 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
81266900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
80709900 SHIM Enquire To Order
80712500 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
248061 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
69877100 BOWDEN CABLE Enquire To Order
Photo Part No Description Price (each) Stock
248061 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
85641600 LH LOCK UNIT Enquire To Order
85911400 LH LOCK UNIT Enquire To Order
85641700 RH LOCK UNIT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
80874100 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14506587 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
85052500 DOOR LOCK STRIKER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
85133300 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
83595400 DOOR STRIKER PLATE FILM Enquire To Order
Photo Part No Description Price (each) Stock
85154200 CAP FOR SLOT Enquire To Order
Photo Part No Description Price (each) Stock
69877300 DOOR CHECK STRAP Enquire To Order
Photo Part No Description Price (each) Stock
83897000 DOOR CHECK STRAP SEAL Enquire To Order
Photo Part No Description Price (each) Stock
86618200 LH WATERPROOF MEMBRANE Enquire To Order
86618300 RH WATERPROOF MEMBRANE Enquire To Order
Photo Part No Description Price (each) Stock
85831700 RH MOUNTING Enquire To Order
85831600 LH MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
898656 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
82936500 PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE Enquire To Order
Photo Part No Description Price (each) Stock
84111900 GRUB SCREW Enquire To Order
Photo Part No Description Price (each) Stock
188250 DOME LAMP UNIT Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
83735800 ADHESIVE CAP Enquire To Order
Photo Part No Description Price (each) Stock
82936400 SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
80811000 PAWL HOLDER Enquire To Order
81016000 LATCH HOLDER Enquire To Order
Photo Part No Description Price (each) Stock
86822800 LH FOIL FLAP Enquire To Order
86822900 RH FOIL FLAP Enquire To Order
86690800 FOIL FLAP Enquire To Order
Photo Part No Description Price (each) Stock
14944734 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
785971 RH DOOR LOCK Enquire To Order
785975 RH DOOR LOCK Enquire To Order
785970 LH DOOR LOCK Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
83088200 INNER DOOR HANDLE BOWDEN CABLE Enquire To Order
View All
DOORS - OPENING MECHANISMS AND HINGES of Ferrari Ferrari California T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 69978900
RH EXTERNAL DOOR HANDLE 		- 1 Enquire
1 69979100
LH EXTERNAL DOOR HANDLE 		- 1 Enquire
2 82007000
SCREW 		- 2 Enquire
3 81328000
RH GASKET 		- 1 Enquire
3 81327900
LH GASKET 		- 1 Enquire
4 80821800
LH OUTER DOOR HANDLE MODULE 		- 1 Enquire
4 87290700
RH OUTER DOOR HANDLE MODULE 		- 1 Enquire
5 80821900
EXTERNAL DOOR HANDLE SPACER 		- 4 Enquire
6 69827100
RH DOOR HINGE 		- 2 Enquire
6 69827200
LH DOOR HINGE 		- 2 Enquire
7 81267100
SCREW 		- 4 Enquire
8 81267000
SCREW 		- 4 Enquire
9 81266900
SCREW 		- 4 Enquire
10 80709900
SHIM
Th. 1 mm 		- 8 Enquire
10 80712500
SHIM
Th. 1.5 mm 		- 8 Enquire
11 248061
CLIP 		- 2 Enquire
12 69877100
BOWDEN CABLE 		- 2 Enquire
13 248061
CLIP 		- 2 Enquire
14 85641600
LH LOCK UNIT
After depletion, order loose components; Not for GD; Applicable until depletion 		- 1 Enquire
14 85911400
LH LOCK UNIT
After depletion, order loose components; Applicable for GD; Applicable until depletion 		- 1 Enquire
14 85641700
RH LOCK UNIT
After depletion, order loose components; Not for GD; Applicable until depletion 		- 1 Enquire
14 85916500
RH LOCK UNIT
After depletion, order loose components; Applicable for GD; Applicable until depletion 		- 1 Enquire
15 80874100
SCREW
M6 X 12 		- 6 Enquire
16 14506587
PLUG 		- 2 Enquire
17 85052500
DOOR LOCK STRIKER PLATE 		- 2 Enquire
18 85133300
SCREW 		- 4 Enquire
19 83595400
DOOR STRIKER PLATE FILM 		- 2 Enquire
20 85154200
CAP FOR SLOT 		- 4 Enquire
21 69877300
DOOR CHECK STRAP 		- 2 Enquire
22 83897000
DOOR CHECK STRAP SEAL 		- 2 Enquire
23 86618200
LH WATERPROOF MEMBRANE 		- 1 Enquire
23 86618300
RH WATERPROOF MEMBRANE 		- 1 Enquire
24 85831700
RH MOUNTING 		- 1 Enquire
24 85831600
LH MOUNTING 		- 1 Enquire
25 898656
CABLE GROMMET 		- 2 Enquire
26 82936500
PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE 		- 2 Enquire
27 84111900
GRUB SCREW 		- 4 Enquire
28 188250
DOME LAMP UNIT
ARRIVING SOON 		- 2 Enquire
29 83735800
ADHESIVE CAP 		- 2 Enquire
30 82936400
SHEATH 		- 2 Enquire
31 80811000
PAWL HOLDER
Not for GD 		- 1 Enquire
31 81016000
LATCH HOLDER
Applicable for GD 		- 1 Enquire
32 86822800
LH FOIL FLAP
Applicable for USA, CDN, USA LIGHT; Applicable after depletion of 86690800 		- 1 Enquire
32 86822900
RH FOIL FLAP
Applicable for USA, CDN, USA LIGHT; Applicable after depletion of 86690800 		- 1 Enquire
32 86690800
FOIL FLAP
Applicable for USA, CDN, USA LIGHT; Applicable until depletion 		- 2 Enquire
33 14944734
SCREW 		- 2 Enquire
34 785971
RH DOOR LOCK
Not for GD 		- 1 Enquire
34 785975
RH DOOR LOCK
Applicable for GD 		- 1 Enquire
34 785970
LH DOOR LOCK
Not for GD 		- 1 Enquire
34 785974
LH DOOR LOCK
Applicable for GD 		- 1 Enquire
35 83088200
INNER DOOR HANDLE BOWDEN CABLE 		- 2 Enquire
