Screens, Windows And Seals

Ferrari California T

Find Your Part

Ferrari California T - SCREENS, WINDOWS AND SEALS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
86100800 WINDSCREEN $2,429.46 IN STOCK
86100900 WINDSCREEN $3,363.09 To Order
Photo Part No Description Price (each) Stock
69758000 WINDSCREEN GLASS UPPER GASKET $683.43 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
13550224 WASHER $1.30 To Order
Photo Part No Description Price (each) Stock
67163200 BLOCK SLIDER $1.41 To Order
Photo Part No Description Price (each) Stock
67163300 WINDSCREEN BLOCK $2.87 IN STOCK
Photo Part No Description Price (each) Stock
82131500 INTERNAL REAR VIEW MIRROR $561.59 IN STOCK
82131600 INNER REAR VIEW MIRROR $2,708.55 To Order
82640800 INNER REAR VIEW MIRROR $176.49 To Order
Photo Part No Description Price (each) Stock
69875800 REAR L.H. GLASS LIFT $873.36 To Order
69845100 REAR R.H. GLASS LIFT $873.36 To Order
Photo Part No Description Price (each) Stock
15689801 SCREW $0.08 IN STOCK
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 IN STOCK
Photo Part No Description Price (each) Stock
14115885 BLOCK $0.18 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.42 IN STOCK
Photo Part No Description Price (each) Stock
87904300 WASHER $1.47 To Order
Photo Part No Description Price (each) Stock
16297024 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
82072100 LH UPPER FOAM $6.73 To Order
82072200 RH UPPER FOAM $3.57 To Order
Photo Part No Description Price (each) Stock
82072300 LH LOWER FOAM $24.05 To Order
82072400 RH LOWER FOAM $24.05 To Order
Photo Part No Description Price (each) Stock
85263100 RH REAR BELTLINE SEAL $433.23 To Order
85263000 LH REAR BELTLINE SEAL $433.23 To Order
Photo Part No Description Price (each) Stock
69876000 LH. WIND WING $527.01 To Order
69845300 RH. WIND WING $527.01 To Order
Photo Part No Description Price (each) Stock
81564500 SCREW $3.76 To Order
Photo Part No Description Price (each) Stock
81564600 WASHER $1.88 To Order
Photo Part No Description Price (each) Stock
81564700 WASHER $0.68 To Order
Photo Part No Description Price (each) Stock
81564800 BUSH $1.09 To Order
Photo Part No Description Price (each) Stock
81564900 WASHER $1.88 To Order
Photo Part No Description Price (each) Stock
81491000 COMPL. LH EXTERNAL REAR VIEW MIRROR GLASS $861.05 To Order
81491300 COMPL. LH EXTERNAL REAR VIEW MIRROR GLASS $750.35 To Order
81491700 COMPL. RH EXTERNAL REAR VIEW MIRROR GLASS $861.05 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
80458300 FRONT CAPOTE GASKET $651.65 To Order
Photo Part No Description Price (each) Stock
305081 RAIN AND TWILIGHT SENSOR $159.89 To Order
Photo Part No Description Price (each) Stock
305536 SENSOR FASTENER CLIP $4.34 To Order
View All

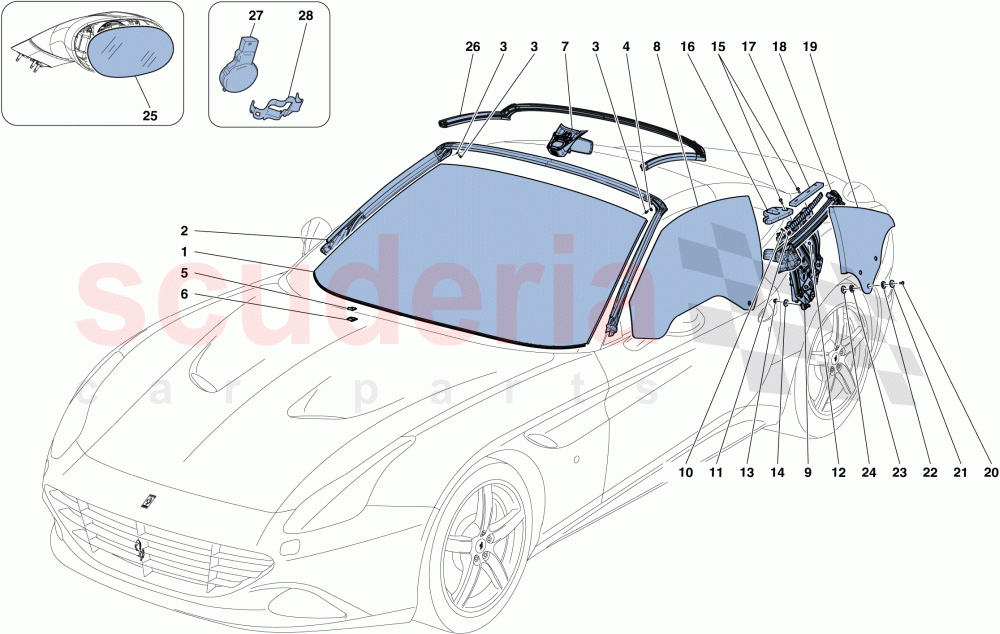

SCREENS, WINDOWS AND SEALS of Ferrari Ferrari California T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 86100800
WINDSCREEN
Standard
IN STOCK 		$2,429.46 1
1 86100900
WINDSCREEN
Heated 		$3,363.09 1
2 69758000
WINDSCREEN GLASS UPPER GASKET 		$683.43 (33.5% off) 1
3 248334
SCREW 		$0.68 2
4 13550224
WASHER 		$1.30 2
5 67163200
BLOCK SLIDER 		$1.41 (64.8% off) 2
6 67163300
WINDSCREEN BLOCK
IN STOCK 		$2.87 (36.2% off) 2
7 82131500
INTERNAL REAR VIEW MIRROR
Electrochromic; Order rain and twilight sensor separately
IN STOCK 		$561.59 1
7 82131600
INNER REAR VIEW MIRROR
Electrochromic; Home Link; Order rain and twilight sensor separately; Applicable for USA, CDN, USA LIGHT 		$2,708.55 1
7 82640800
INNER REAR VIEW MIRROR
Order rain and twilight sensor separately 		$176.49 1
9 69875800
REAR L.H. GLASS LIFT 		$873.36 1
9 69845100
REAR R.H. GLASS LIFT 		$873.36 1
10 15689801
SCREW
IN STOCK 		$0.08 8
11 62769800
WASHER
IN STOCK 		$0.23 (23.3% off) 8
12 14115885
BLOCK
IN STOCK 		$0.18 8
13 14040711
NUT
IN STOCK 		$0.42 2
14 87904300
WASHER 		$1.47 2
15 16297024
SCREW 		$0.50 4
16 82072100
LH UPPER FOAM 		$6.73 1
16 82072200
RH UPPER FOAM 		$3.57 1
17 82072300
LH LOWER FOAM 		$24.05 1
17 82072400
RH LOWER FOAM 		$24.05 1
18 85263100
RH REAR BELTLINE SEAL 		$433.23 1
18 85263000
LH REAR BELTLINE SEAL 		$433.23 1
19 69876000
LH. WIND WING 		$527.01 1
19 69845300
RH. WIND WING 		$527.01 1
20 81564500
SCREW 		$3.76 6
21 81564600
WASHER 		$1.88 6
22 81564700
WASHER 		$0.68 6
23 81564800
BUSH 		$1.09 6
24 81564900
WASHER 		$1.88 6
25 81491000
COMPL. LH EXTERNAL REAR VIEW MIRROR GLASS
Electrochromic rear view mirrors; Not for USA, CDN, GOLFO, USA LIGHT 		$861.05 1
25 81491300
COMPL. LH EXTERNAL REAR VIEW MIRROR GLASS
Electrochromic rear view mirrors; Applicable for USA, CDN, GOLFO, USA LIGHT 		$750.35 1
25 81491700
COMPL. RH EXTERNAL REAR VIEW MIRROR GLASS
Electrochromic rear view mirrors; Arabic 		$861.05 1
25 81490800
COMPL. LH EXTERNAL REAR VIEW MIRROR GLASS
Not for USA, CDN, GOLFO, USA LIGHT 		$75.01 1
25 81491200
Complete LH External Rear View Mirror Glass
Applicable for USA, CDN, GOLFO, USA LIGHT
IN STOCK 		$40.57 1
25 81491600
COMPL. RH EXTERNAL REAR VIEW MIRROR GLASS
Arabic 		$861.05 1
25 81491100
COMPL. RH EXTERNAL REAR VIEW MIRROR GLASS
Electrochromic rear view mirrors; Not for USA, CDN, GOLFO, USA LIGHT 		$861.05 1
25 81491500
COMPL. RH EXTERNAL REAR VIEW MIRROR GLASS
Electrochromic rear view mirrors; Applicable for USA, CDN, USA LIGHT 		$861.05 (9.2% off) 1
25 81490900
COMPL. RH EXTERNAL REAR VIEW MIRROR GLASS
Not for USA, CDN, GOLFO, USA LIGHT 		$75.01 1
25 81491400
COMPL. RH EXTERNAL REAR VIEW MIRROR GLASS
Applicable for USA, CDN, USA LIGHT 		$861.05 1
26 80458300
FRONT CAPOTE GASKET 		$651.65 (31.4% off) 1
27 305081
RAIN AND TWILIGHT SENSOR 		$159.89 1
28 305536
SENSOR FASTENER CLIP 		$4.34 1
