Name: FUEL FILLER FLAP AND CONTROLS
Rating: 4.0 (1 reviews)

View All

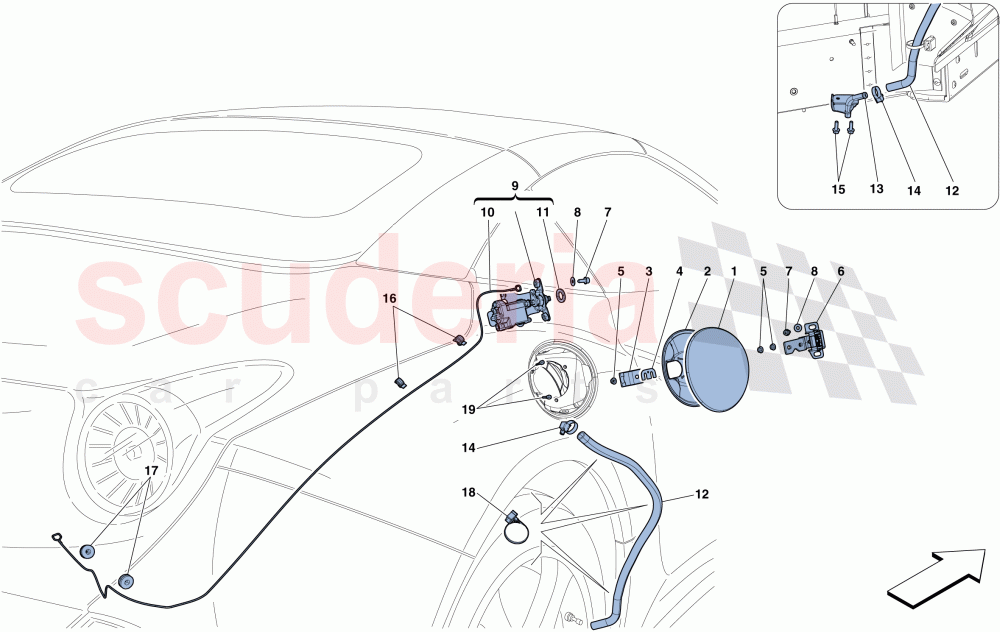

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	85074411	FUEL FILLER FLAP	$513.46	To Order

Photo	Part No	Description	Price (each)	Stock
	85184200	TRIM	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	82249400	STRIKER	$8.01	To Order

Photo	Part No	Description	Price (each)	Stock
	81619400	SPACER	$5.28	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85528700	COMPL. HINGE	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	$1.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85143200	COMPL. FUEL FILLER FLAP ACTUATOR	$79.89	To Order

Photo	Part No	Description	Price (each)	Stock
	86491400	EMERGENCY CABLE	$42.04	To Order

Photo	Part No	Description	Price (each)	Stock
	67067600	GASKET	$3.65	To Order

Photo	Part No	Description	Price (each)	Stock
	84487700	FUEL DRAINING PIPE	$10.73	To Order

Photo	Part No	Description	Price (each)	Stock
	84487800	COMPL. RIGID FUEL DRAIN PIPE	$41.70	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10396180	CABLE GROMMET	$2.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	86730400	RUBBER PAD	$1.57	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	85074411	FUEL FILLER FLAP	85074411 FUEL FILLER FLAP	$513.46	1
2	85184200	TRIM	85184200 TRIM	$13.14	1
3	82249400	STRIKER	82249400 STRIKER	$8.01	1
4	81619400	SPACER	81619400 SPACER	$5.28	1
5	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	3
6	85528700	COMPL. HINGE	85528700 COMPL. HINGE	$91.45	1
7	11566227	SCREW IN STOCK	11566227 SCREW IN STOCK	$1.22	4
8	12638124	WASHER IN STOCK	12638124 WASHER IN STOCK	$0.05 MSRP: ~~0.70~~ (92.9% off)	4
9	85143200	COMPL. FUEL FILLER FLAP ACTUATOR	85143200 COMPL. FUEL FILLER FLAP ACTUATOR	$79.89	1
10	86491400	EMERGENCY CABLE	86491400 EMERGENCY CABLE	$42.04	1
11	67067600	GASKET	67067600 GASKET	$3.65	1
12	84487700	FUEL DRAINING PIPE	84487700 FUEL DRAINING PIPE	$10.73	1
13	84487800	COMPL. RIGID FUEL DRAIN PIPE	84487800 COMPL. RIGID FUEL DRAIN PIPE	$41.70	1
14	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR IN STOCK	$0.57 MSRP: ~~1.07~~ (46.7% off)	2
15	16286121	SCREW IN STOCK	16286121 SCREW IN STOCK	$0.70 MSRP: ~~1.35~~ (48.1% off)	2
16	248061	CLIP IN STOCK	248061 CLIP IN STOCK	$2.14	2
16	14569580	CLIP	14569580 CLIP No longer supplied; Replaced by 14569480	$0.29	2
17	10396180	CABLE GROMMET IN STOCK	10396180 CABLE GROMMET IN STOCK	$2.66	2
18	177553	CLAMP	177553 CLAMP	$0.44 MSRP: ~~1.25~~ (64.8% off)	3
19	86730400	RUBBER PAD	86730400 RUBBER PAD	$1.57	2

Fuel Filler Flap And Controls

Ferrari California T
