HYDRAULIC BRAKE CONTROL PIPES -APPLICABLE FOR RHD- of Ferrari Ferrari 812 Competizione A USA

View All

Ferrari 812 Competizione A USA - HYDRAULIC BRAKE CONTROL PIPES -APPLICABLE FOR RHD-

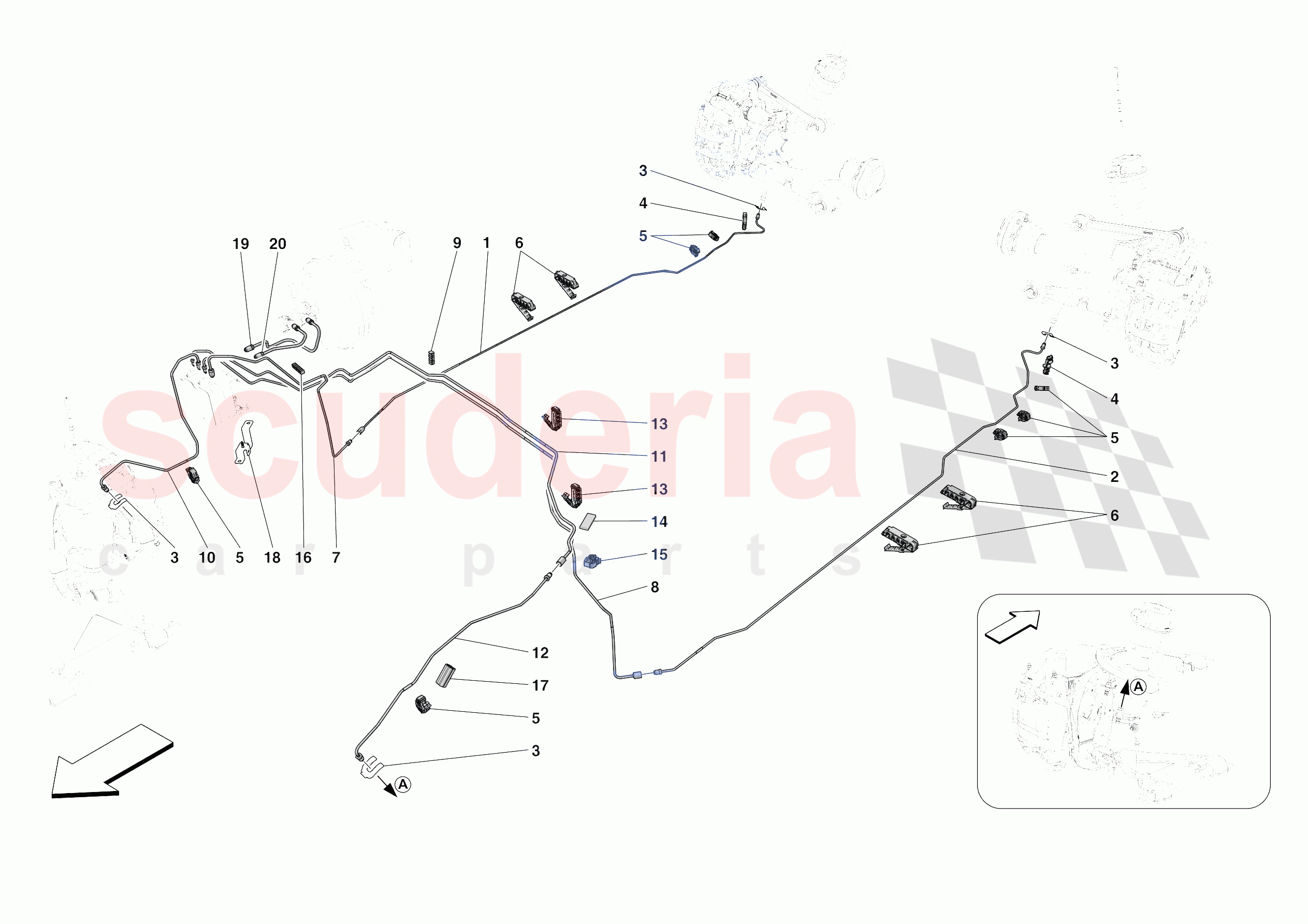

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	284627	PIPE FROM SECTION TO LH REAR WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284624	PIPE FROM SECTION TO LH REAR WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284622	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241118	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324554	PIPE FROM ECU TO RH REAR WHEEL SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324555	PIPE FROM ECU TO LH REAR WHEEL SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291250	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324556	PIPE FROM ECU TO RH FRONT WHEEL SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324553	PIPE FROM ECU TO LH FRONT WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287846	PIPE FROM DISCONNECTOR TO RH FRONT WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234286	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217156	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291251	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262737	RUBBER RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296332	BRAKE PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324551	PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324552	PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	284627	PIPE FROM SECTION TO LH REAR WHEEL	284627 PIPE FROM SECTION TO LH REAR WHEEL	-	1	Enquire
0002	284624	PIPE FROM SECTION TO LH REAR WHEEL	284624 PIPE FROM SECTION TO LH REAR WHEEL	-	1	Enquire
0003	116374	CLIP	116374 CLIP	-	4	Enquire
0004	284622	CLIP	284622 CLIP 3 compartments	-	2	Enquire
0005	234285	CLIP	234285 CLIP 2 compartments	-	11	Enquire
0006	241118	CLIP	241118 CLIP 5 compartments	-	10	Enquire
0007	324554	PIPE FROM ECU TO RH REAR WHEEL SECTION	324554 PIPE FROM ECU TO RH REAR WHEEL SECTION	-	1	Enquire
0008	324555	PIPE FROM ECU TO LH REAR WHEEL SECTION	324555 PIPE FROM ECU TO LH REAR WHEEL SECTION	-	1	Enquire
0009	291250	CLIP	291250 CLIP	-	1	Enquire
0010	324556	PIPE FROM ECU TO RH FRONT WHEEL SECTION	324556 PIPE FROM ECU TO RH FRONT WHEEL SECTION	-	1	Enquire
0011	324553	PIPE FROM ECU TO LH FRONT WHEEL	324553 PIPE FROM ECU TO LH FRONT WHEEL	-	1	Enquire
0012	287846	PIPE FROM DISCONNECTOR TO RH FRONT WHEEL	287846 PIPE FROM DISCONNECTOR TO RH FRONT WHEEL	-	1	Enquire
0013	234286	CLIP	234286 CLIP 4 compartments	-	3	Enquire
0014	217156	RUBBER SHIM	217156 RUBBER SHIM	-	1	Enquire
0015	234284	CLIP	234284 CLIP 1 compartment-	-	1	Enquire
0016	291251	CLIP	291251 CLIP	-	1	Enquire
0017	262737	RUBBER RETAINER	262737 RUBBER RETAINER	-	2	Enquire
0018	296332	BRAKE PIPE MOUNTING BRACKET	296332 BRAKE PIPE MOUNTING BRACKET	-	1	Enquire
0019	324551	PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET	324551 PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET	-	1	Enquire
0020	324552	PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET	324552 PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET	-	1	Enquire
