FUEL TANK

Find Your Part

Ferrari 812 Competizione A USA - FUEL TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
341208 COMPL. FUEL TANK $9,118.20 To Order
Photo Part No Description Price (each) Stock
282784 FUEL PUMP FILTER $728.60 To Order
Photo Part No Description Price (each) Stock
282785 FUEL PUMP FILTER $1,152.72 To Order
Photo Part No Description Price (each) Stock
275314 O-RING $6.97 To Order
Photo Part No Description Price (each) Stock
275998 FASTENER RING $78.61 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
11001124 STUD BOLT $70.54 To Order
Photo Part No Description Price (each) Stock
781834 INSPECTION CAP $44.43 To Order
Photo Part No Description Price (each) Stock
238688 CONNECTOR $57.33 To Order
Photo Part No Description Price (each) Stock
237407 ANTI SPIT-BACK VALVE $37.25 To Order
Photo Part No Description Price (each) Stock
273479 FUEL LEVEL SENSOR MOUNT $126.75 To Order
Photo Part No Description Price (each) Stock
276001 FASTENER RING $274.34 To Order
Photo Part No Description Price (each) Stock
239413 O-RING $5.46 To Order
Photo Part No Description Price (each) Stock
250480 INSPECTION CAP $30.47 To Order
Photo Part No Description Price (each) Stock
324999 FUEL TANK ANTI-VIBRATION PAD KIT $344.02 To Order
Photo Part No Description Price (each) Stock
309340 BRACKET WITH SHEATH $8.49 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
198273 CLIP $1.77 To Order
Photo Part No Description Price (each) Stock
875086 COMPL. FUEL FILLER NECK $1,232.75 To Order
Photo Part No Description Price (each) Stock
791355 SCREW $5.07 To Order
Photo Part No Description Price (each) Stock
281180 REAR FUEL DELIVERY PIPE $320.90 To Order
Photo Part No Description Price (each) Stock
198253 CLIP $3.71 To Order
Photo Part No Description Price (each) Stock
177553 CLAMP $0.45 To Order
Photo Part No Description Price (each) Stock
277364 FUEL DELIVERY PIPE, CENTRE SECTION $33.68 To Order
Photo Part No Description Price (each) Stock
10441490 BRACKET WITH SHEATH $0.55 To Order
Photo Part No Description Price (each) Stock
286193 FUEL PIPE FASTENER BRACKET $22.92 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 To Order
10441290 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
235682 PIPE CLIP $0.71 To Order
Photo Part No Description Price (each) Stock
179318 SPACER $2.43 To Order
Photo Part No Description Price (each) Stock
295009 FUEL DELIVERY PIPE, FRONT SECTION $97.86 To Order
295010 FUEL DELIVERY PIPE, FRONT SECTION $97.86 To Order
Photo Part No Description Price (each) Stock
14040611 NUT $0.29 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
290771 LOWER CONNECTOR PIPE $444.36 To Order
Photo Part No Description Price (each) Stock
281598 COLLAR $3.13 To Order
Photo Part No Description Price (each) Stock
277360 HEAT SHIELD $83.42 To Order
Photo Part No Description Price (each) Stock
16285127 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
320600 CLIP $2.25 To Order
Photo Part No Description Price (each) Stock
263230 CLIP $1.46 To Order
Photo Part No Description Price (each) Stock
290800 CONNECTOR PIPE MOUNTING BRACKET $72.19 To Order
Photo Part No Description Price (each) Stock
81911600 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
286534 PIPE MOUNTING BRACKET $5.72 To Order
Photo Part No Description Price (each) Stock
259508 CLIP $0.63 To Order
Photo Part No Description Price (each) Stock
272086 FUEL PUMP $1,850.36 To Order
Photo Part No Description Price (each) Stock
254078 CLIP $1.85 To Order
Photo Part No Description Price (each) Stock
272714 COMPL. REAR INSPECTION COVER $27.26 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
332702 FUEL PUMP $1,194.94 To Order
Photo Part No Description Price (each) Stock
10815787 CLAMP $0.15 To Order
Photo Part No Description Price (each) Stock
253408 QUICK RELEASE STUD BOLTS $68.79 To Order
Photo Part No Description Price (each) Stock
253407 COMPRESSION SPRING $40.11 To Order
Photo Part No Description Price (each) Stock
253409 UPPER PLATE $41.56 To Order
Photo Part No Description Price (each) Stock
328592 FUEL LEVEL SENSOR $256.72 To Order
Photo Part No Description Price (each) Stock
254311 CORNER ADAPTER $11.15 To Order
Photo Part No Description Price (each) Stock
296614 BRACKET WITH SHEATH $28.66 To Order
Photo Part No Description Price (each) Stock
81911600 SCREW $0.50 To Order
View All

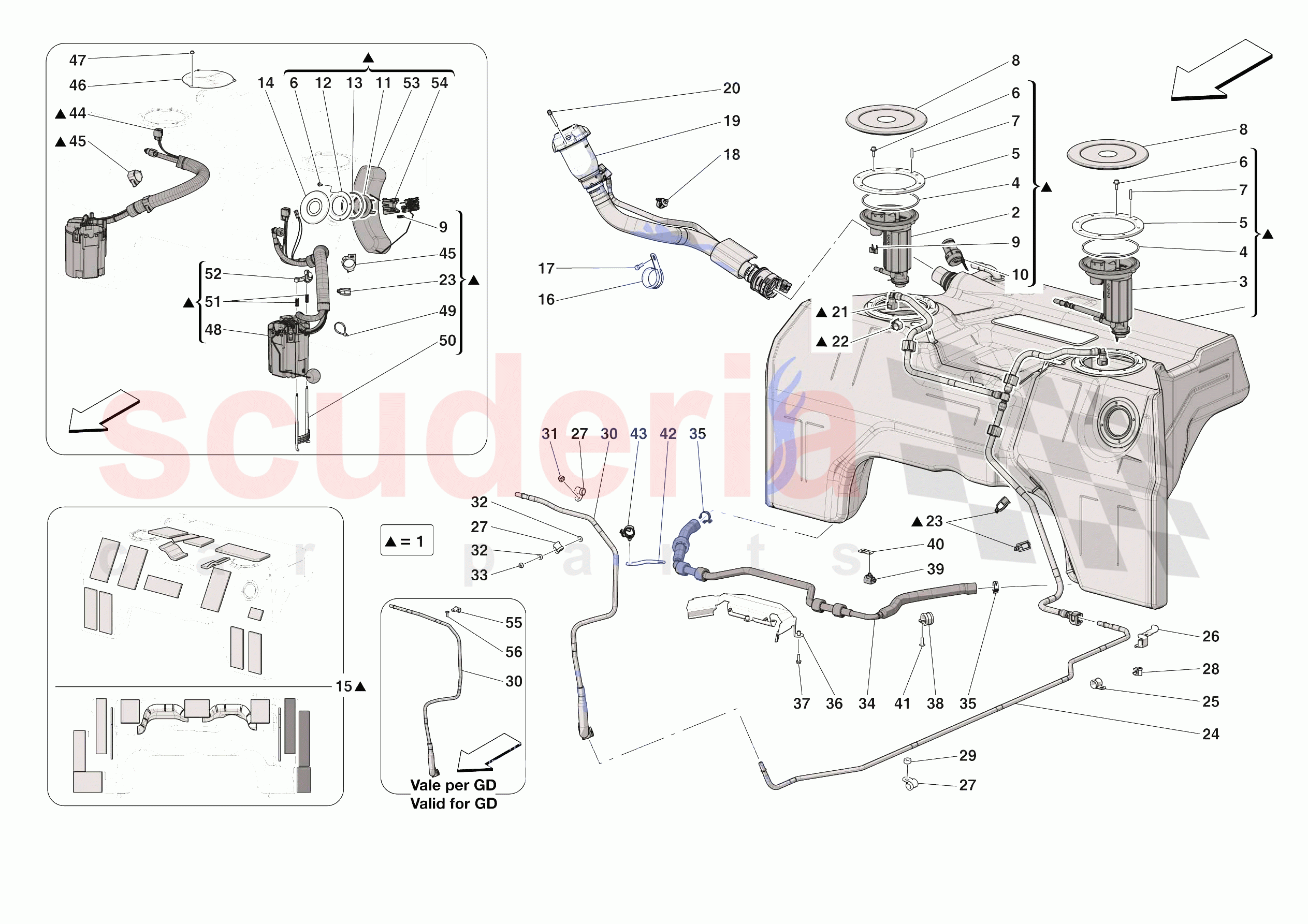

FUEL TANK of Ferrari Ferrari 812 Competizione A USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 341208
COMPL. FUEL TANK 		$9,118.20 1
0002 282784
FUEL PUMP FILTER 		$728.60 1
0003 282785
FUEL PUMP FILTER 		$1,152.72 1
0004 275314
O-RING 		$6.97 (8.9% off) 2
0005 275998
FASTENER RING 		$78.61 2
0006 85833900
SCREW
M5 X 16
ARRIVING SOON 		$0.36 20
0007 11001124
STUD BOLT 		$70.54 2
0008 781834
INSPECTION CAP 		$44.43 2
0009 238688
CONNECTOR 		$57.33 2
0010 237407
ANTI SPIT-BACK VALVE 		$37.25 1
0011 273479
FUEL LEVEL SENSOR MOUNT 		$126.75 1
0012 276001
FASTENER RING 		$274.34 1
0013 239413
O-RING 		$5.46 (61.6% off) 1
0014 250480
INSPECTION CAP 		$30.47 1
0015 324999
FUEL TANK ANTI-VIBRATION PAD KIT 		$344.02 1
0016 309340
BRACKET WITH SHEATH 		$8.49 1
0017 248334
SCREW
M6 X 16 		$0.68 1
0018 198273
CLIP
D. 13 		$1.77 1
0019 875086
COMPL. FUEL FILLER NECK 		$1,232.75 1
0020 791355
SCREW
M5 X 30 		$5.07 3
0021 281180
REAR FUEL DELIVERY PIPE 		$320.90 1
0022 198253
CLIP
D. 14 		$3.71 (3.6% off) 2
0023 177553
CLAMP 		$0.45 (64% off) 4
0024 277364
FUEL DELIVERY PIPE, CENTRE SECTION 		$33.68 1
0025 10441490
BRACKET WITH SHEATH
D. 14 		$0.55 1
0026 286193
FUEL PIPE FASTENER BRACKET 		$22.92 1
0027 10441290
BRACKET WITH SHEATH
D. 10 		$0.57 (66.1% off) 2
0027 10441290
BRACKET WITH SHEATH
D. 10 		$0.57 (66.1% off) 2
0028 235682
PIPE CLIP 		$0.71 3
0029 179318
SPACER 		$2.43 1
0030 295009
FUEL DELIVERY PIPE, FRONT SECTION 		$97.86 1
0030 295010
FUEL DELIVERY PIPE, FRONT SECTION 		$97.86 1
0031 14040611
NUT 		$0.29 1
0032 10519424
WASHER 		$0.02 (92% off) 2
0033 14059290
FLANGED NUT M6 		$1.51 1
0034 290771
LOWER CONNECTOR PIPE 		$444.36 1
0035 281598
COLLAR 		$3.13 2
0036 277360
HEAT SHIELD 		$83.42 1
0037 16285127
SCREW
M5 X 16 		$0.58 4
0038 320600
CLIP 		$2.25 1
0039 263230
CLIP 		$1.46 1
0040 290800
CONNECTOR PIPE MOUNTING BRACKET 		$72.19 1
0041 81911600
SCREW
M6 X 1 X 18 		$0.50 3
0042 286534
PIPE MOUNTING BRACKET 		$5.72 1
0043 259508
CLIP
1 compartment- 		$0.63 1
0044 272086
FUEL PUMP 		$1,850.36 1
0045 254078
CLIP 		$1.85 2
0046 272714
COMPL. REAR INSPECTION COVER 		$27.26 1
0047 13046011
NUT 		$0.39 3
0048 332702
FUEL PUMP 		$1,194.94 1
0049 10815787
CLAMP 		$0.15 1
0050 253408
QUICK RELEASE STUD BOLTS 		$68.79 1
0051 253407
COMPRESSION SPRING 		$40.11 2
0052 253409
UPPER PLATE 		$41.56 1
0053 328592
FUEL LEVEL SENSOR 		$256.72 1
0054 254311
CORNER ADAPTER 		$11.15 1
0055 296614
BRACKET WITH SHEATH
D. 10 		$28.66 2
0056 81911600
SCREW
M6 X 1 X 18 		$0.50 5
