PEDAL BOARD of Ferrari Ferrari 812 Competizione A USA

View All

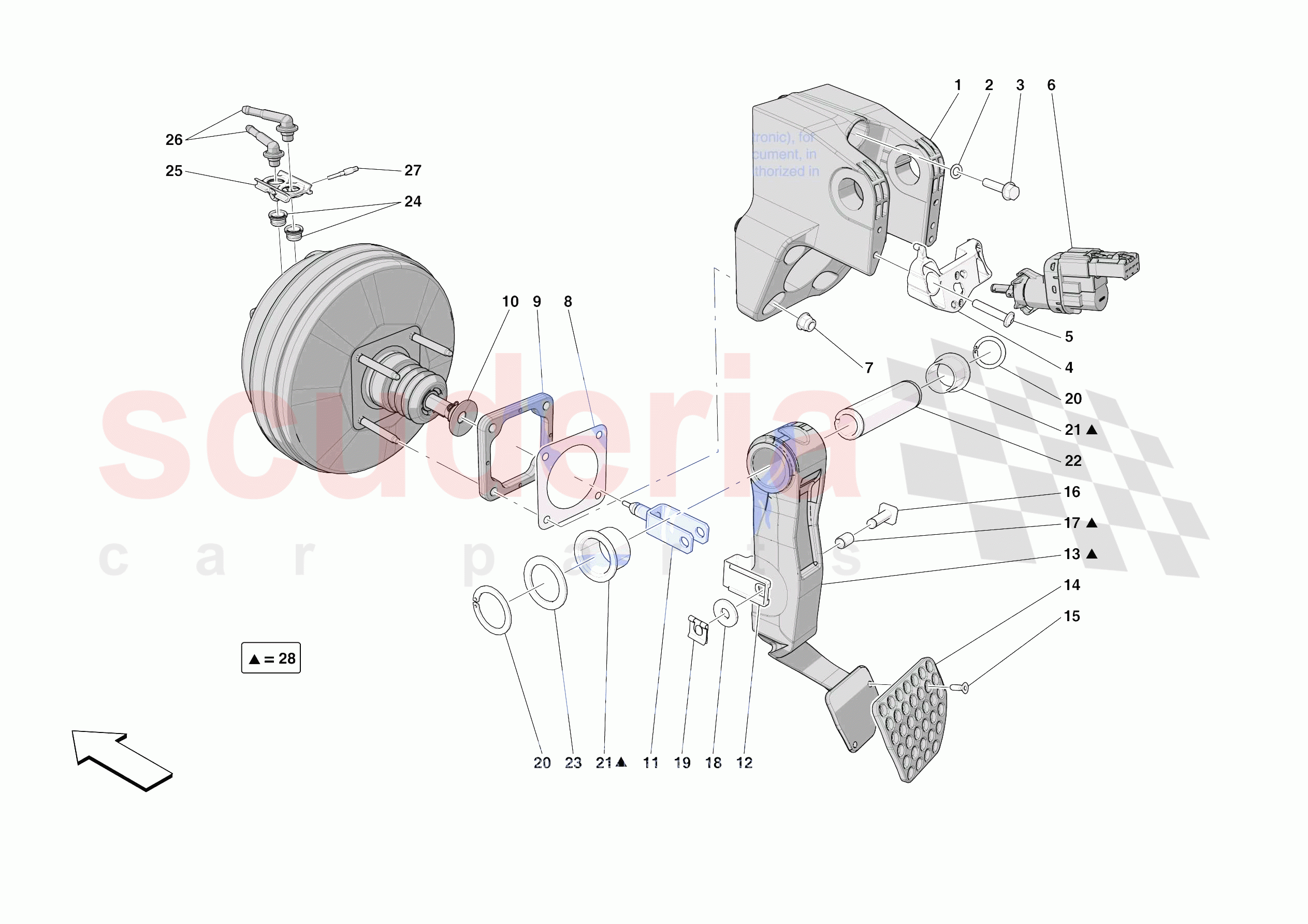

Ferrari 812 Competizione A USA - PEDAL BOARD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	782878	PEDAL BOARD MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	Enquire	To Order
	788965	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317720	F1 SWITCH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240931	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	958694	PUSH-BUTTON SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190378	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196080	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261826	BRAKE SERVO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245178	BRAKE SERVO LINKAGE YOKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245179	CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240987	DRILLED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245180	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245181	RUBBER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11064176	SAFETY CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12700076	SEEGER RING FOR SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240930	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240929	RUBBER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241550	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248081	ELBOW UNION RETAINER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237586	ELBOW UNION FOR BRAKE MASTER CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241537	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	782845	COMPL. PEDAL BOARD	Enquire	To Order
	782875	COMPL. PEDAL BOARD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	782878	PEDAL BOARD MOUNT	782878 PEDAL BOARD MOUNT	-	1	Enquire
0002	12601374	WASHER	12601374 WASHER	-	1	Enquire
0003	16287524	SCREW	16287524 SCREW M8 X 35	-	1	Enquire
0003	788965	SCREW	788965 SCREW M8 X 35	-	1	Enquire
0004	317720	F1 SWITCH BRACKET	317720 F1 SWITCH BRACKET	-	1	Enquire
0005	240931	SCREW	240931 SCREW	-	2	Enquire
0006	958694	PUSH-BUTTON SWITCH	958694 PUSH-BUTTON SWITCH	-	1	Enquire
0007	12578211	NUT	12578211 NUT	-	4	Enquire
0008	190378	GASKET	190378 GASKET	-	1	Enquire
0009	196080	SPACER	196080 SPACER	-	1	Enquire
0010	261826	BRAKE SERVO	261826 BRAKE SERVO	-	1	Enquire
0011	245178	BRAKE SERVO LINKAGE YOKE	245178 BRAKE SERVO LINKAGE YOKE	-	1	Enquire
0012	245179	CAGE	245179 CAGE	-	1	Enquire
0014	240987	DRILLED PLATE	240987 DRILLED PLATE	-	1	Enquire
0015	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 M6 X 16	-	2	Enquire
0016	245180	PIN	245180 PIN	-	1	Enquire
0018	245181	RUBBER WASHER	245181 RUBBER WASHER	-	1	Enquire
0019	11064176	SAFETY CLIP	11064176 SAFETY CLIP	-	1	Enquire
0020	12700076	SEEGER RING FOR SHAFT	12700076 SEEGER RING FOR SHAFT	-	2	Enquire
0022	240930	PIN	240930 PIN	-	1	Enquire
0023	240929	RUBBER WASHER	240929 RUBBER WASHER	-	1	Enquire
0024	241550	GASKET	241550 GASKET	-	2	Enquire
0025	248081	ELBOW UNION RETAINER PLATE	248081 ELBOW UNION RETAINER PLATE	-	1	Enquire
0026	237586	ELBOW UNION FOR BRAKE MASTER CYLINDER	237586 ELBOW UNION FOR BRAKE MASTER CYLINDER	-	2	Enquire
0027	241537	SCREW	241537 SCREW	-	1	Enquire
0028	782845	COMPL. PEDAL BOARD	782845 COMPL. PEDAL BOARD	-	1	Enquire
0028	782875	COMPL. PEDAL BOARD	782875 COMPL. PEDAL BOARD	-	1	Enquire
