FRONT SUSPENSION - ARMS

Find Your Part

Ferrari 812 Competizione A USA - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985489 COMPL. LH FRONT HUB CARRIER $2,487.03 To Order
985490 COMPL. RH FRONT HUB CARRIER $2,487.03 To Order
Photo Part No Description Price (each) Stock
268896 LH FRONT LOWER ARM $1,331.80 To Order
268897 RH FRONT LOWER ARM $1,412.03 To Order
Photo Part No Description Price (each) Stock
203795 NUT $2.58 To Order
Photo Part No Description Price (each) Stock
241689 WASHER $7.68 To Order
Photo Part No Description Price (each) Stock
104114 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
14496624 WASHER D.10.5-21 X 2 $0.06 To Order
Photo Part No Description Price (each) Stock
238692 ADJUSTMENT SHIM $6.55 To Order
238693 ADJUSTMENT SHIM $5.77 To Order
238881 CAMBER SPACER 1.5MM $5.77 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.94 To Order
Photo Part No Description Price (each) Stock
338963 ABS SENSOR $82.64 To Order
Photo Part No Description Price (each) Stock
830076 LH FRONT FASTENER BRACKET $48.72 To Order
830077 RH FRONT FASTENER BRACKET $48.72 To Order
Photo Part No Description Price (each) Stock
897163 LH FRONT REMOVABLE BRACKET $34.38 To Order
897197 RH FRONT REMOVABLE BRACKET $34.38 To Order
Photo Part No Description Price (each) Stock
162606 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
248758 LH Front Upper Arm $850.42 To Order
248760 RH Front Upper Arm $850.42 To Order
Photo Part No Description Price (each) Stock
149807 NUT $1.18 To Order
Photo Part No Description Price (each) Stock
12646921 WASHER $0.53 To Order
Photo Part No Description Price (each) Stock
934265 COMPL. TRAVEL SENSOR $206.65 To Order
Photo Part No Description Price (each) Stock
216973 BALL JOINT $3.55 To Order
Photo Part No Description Price (each) Stock
340273 BALL JOINT $54.46 To Order
Photo Part No Description Price (each) Stock
984041 POTENTIOMETER LINK $123.26 To Order
Photo Part No Description Price (each) Stock
912341 FRONT LH TRAVEL SENSOR BRACKET $21.48 To Order
912479 FRONT RH TRAVEL SENSOR BRACKET $21.48 To Order
Photo Part No Description Price (each) Stock
16284934 FLANGED SCREW $0.81 To Order
Photo Part No Description Price (each) Stock
312826 WASHER $0.47 To Order
View All

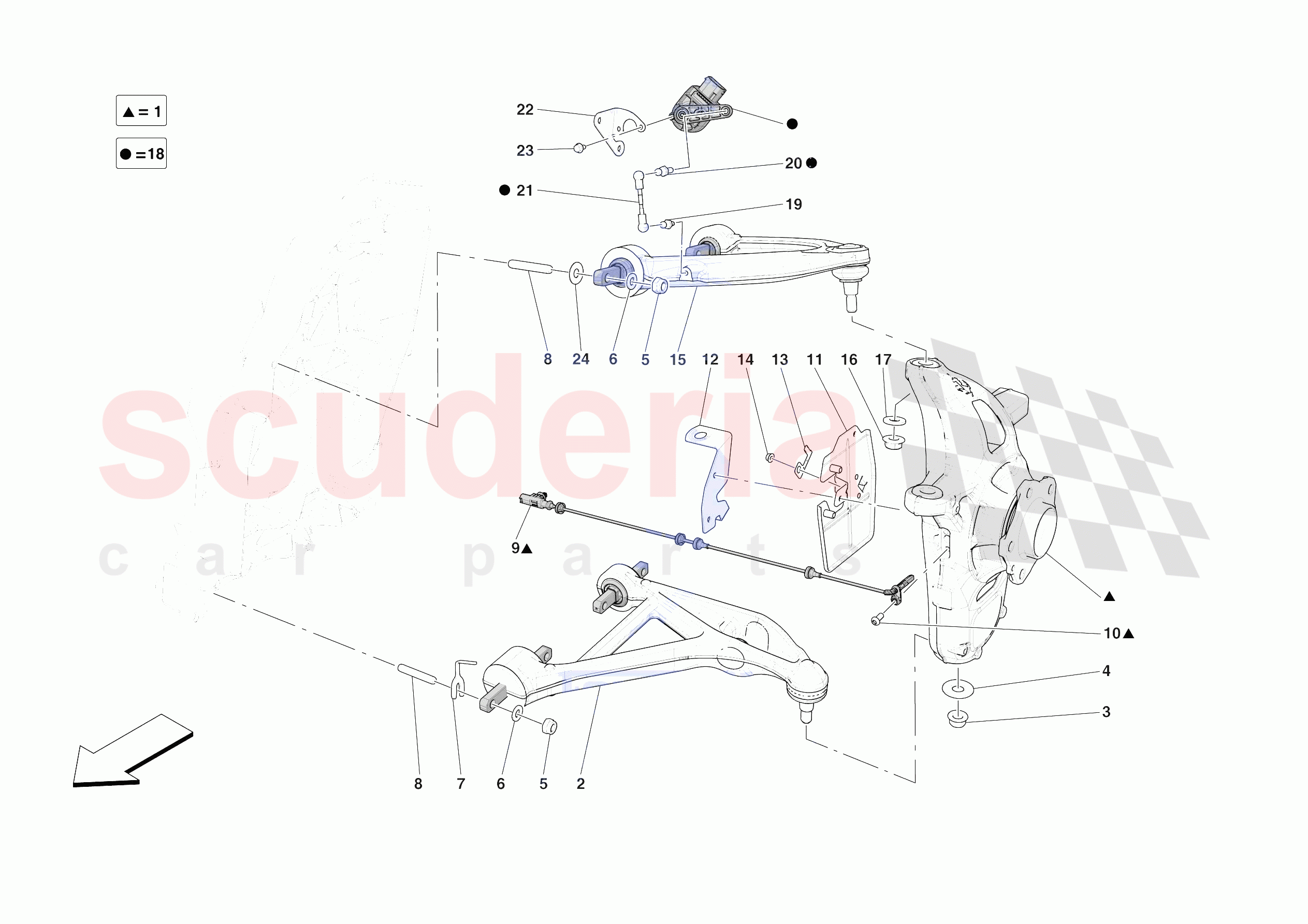

FRONT SUSPENSION - ARMS of Ferrari Ferrari 812 Competizione A USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 985489
COMPL. LH FRONT HUB CARRIER 		$2,487.03 1
0001 985490
COMPL. RH FRONT HUB CARRIER 		$2,487.03 1
0002 268896
LH FRONT LOWER ARM 		$1,331.80 1
0002 268897
RH FRONT LOWER ARM 		$1,412.03 1
0003 203795
NUT 		$2.58 2
0004 241689
WASHER 		$7.68 2
0005 104114
NUT 		$0.41 (18% off) 16
0006 14496624
WASHER D.10.5-21 X 2
D. 10.5-21 X 2 		$0.06 16
0007 238692
ADJUSTMENT SHIM
Th. 0.5 mm 		$6.55 8
0007 238693
ADJUSTMENT SHIM
Th. 1 mm 		$5.77 (7.7% off) 8
0007 238881
CAMBER SPACER 1.5MM
Th. 1.5 mm 		$5.77 (6.2% off) 8
0007 238694
ADJUSTMENT SHIM
Th. 2 mm 		$5.59 (9.1% off) 8
0007 238882
ADJUSTMENT SHIM
Th. 2.5 mm 		$5.59 (10.6% off) 8
0007 238883
ADJUSTMENT SHIM
Th. 3 mm 		$5.59 (10.6% off) 8
0007 238884
ADJUSTMENT SHIM
Th. 3.5 mm 		$5.59 (10.6% off) 8
0007 238885
CAMBER SPACER 4MM
Th. 4 mm 		$5.77 (7.7% off) 8
0008 264528
THREADED ROD 		$3.94 16
0009 338963
ABS SENSOR 		$82.64 2
0011 830076
LH FRONT FASTENER BRACKET 		$48.72 1
0011 830077
RH FRONT FASTENER BRACKET 		$48.72 1
0012 897163
LH FRONT REMOVABLE BRACKET 		$34.38 1
0012 897197
RH FRONT REMOVABLE BRACKET 		$34.38 1
0013 162606
CLIP 		$1.36 (7.5% off) 2
0014 13046011
NUT 		$0.39 4
0015 248758
LH Front Upper Arm 		$850.42 (38.6% off) 1
0015 248760
RH Front Upper Arm 		$850.42 (38.6% off) 1
0016 149807
NUT 		$1.18 (41% off) 2
0017 12646921
WASHER 		$0.53 2
0018 934265
COMPL. TRAVEL SENSOR 		$206.65 2
0019 216973
BALL JOINT 		$3.55 (21.1% off) 2
0020 340273
BALL JOINT 		$54.46 2
0021 984041
POTENTIOMETER LINK
L. 63.7 mm 		$123.26 2
0022 912341
FRONT LH TRAVEL SENSOR BRACKET 		$21.48 1
0022 912479
FRONT RH TRAVEL SENSOR BRACKET 		$21.48 1
0023 16284934
FLANGED SCREW
M5 X 10 		$0.81 4
0024 312826
WASHER 		$0.47 8
