REAR BRAKE CALLIPER of Ferrari Ferrari 612 Scaglietti

View All

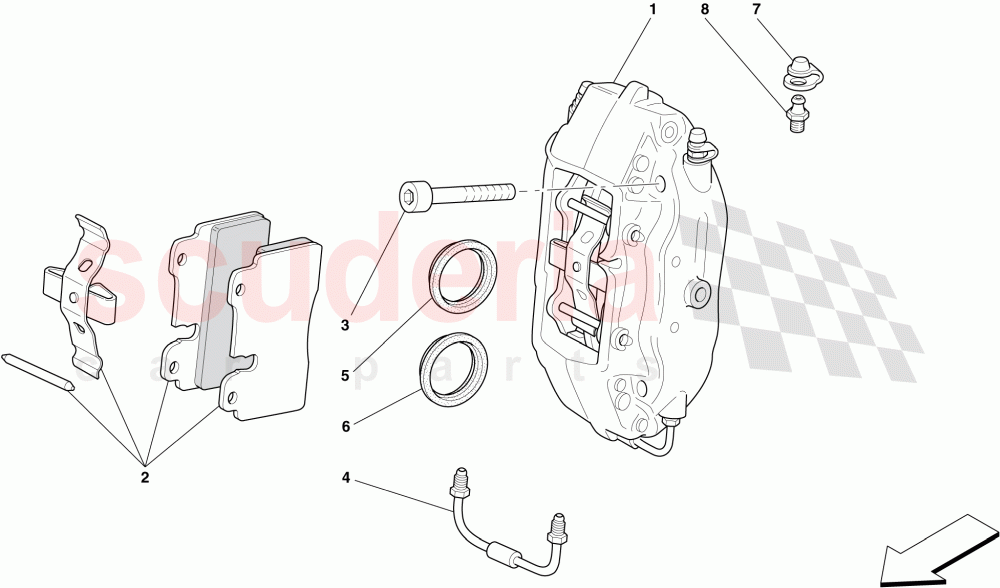

Ferrari 612 Scaglietti - REAR BRAKE CALLIPER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	229558	REAR RH CALLIPER WITH PADS	Enquire	To Order
	234577	REAR RH CALLIPER WITH PADS	Enquire	To Order
	246110	REAR RH CALLIPER WITH PADS	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	70001058	Rear Pad Set With Spring	Enquire	To Order
	70001120	REAR PAD SET WITH SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175947	BOLT M12 X 1.5 X 72	Enquire	To Order
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182123	CONNECTOR PIPE	Enquire	To Order
	203993	RH CONNECTOR PIPE	Enquire	To Order
	203992	LH CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207222	GAITER FOR CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152953	GAITER FOR CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152955	PROTECTIVE CAP	Enquire	To Order
	215666	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152954	BLEED NIPPLE SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	229558	REAR RH CALLIPER WITH PADS	229558 REAR RH CALLIPER WITH PADS Blue; Optional JPNS; CCM version without chromium VI; Applicable for J	-	1	Enquire
1	234577	REAR RH CALLIPER WITH PADS	234577 REAR RH CALLIPER WITH PADS Scuderia Red; Applicable for "OTO"; Version with CCM brakes	-	1	Enquire
1	246110	REAR RH CALLIPER WITH PADS	246110 REAR RH CALLIPER WITH PADS Gold; Applicable for "OTO"; Version with CCM brakes	-	1	Enquire
1	229557	REAR LH CALLIPER WITH PADS	229557 REAR LH CALLIPER WITH PADS Blue; Optional JPNS; CCM version without chromium VI; Applicable for J	-	1	Enquire
1	234576	REAR LH CALLIPER WITH PADS	234576 REAR LH CALLIPER WITH PADS Scuderia Red; Applicable for "OTO"; Version with CCM brakes	-	1	Enquire
1	246109	REAR LH CALLIPER WITH PADS	246109 REAR LH CALLIPER WITH PADS Gold; Applicable for "OTO"; Version with CCM brakes	-	1	Enquire
2	70001058	Rear Pad Set With Spring	70001058 Rear Pad Set With Spring Standard	-	1	Enquire
2	70001120	REAR PAD SET WITH SPRING	70001120 REAR PAD SET WITH SPRING Optional; Version with CCM brakes	-	1	Enquire
3	175947	BOLT M12 X 1.5 X 72	175947 BOLT M12 X 1.5 X 72 Standard	-	4	Enquire
3	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95 Optional; Version with CCM brakes	-	4	Enquire
4	182123	CONNECTOR PIPE	182123 CONNECTOR PIPE	-	2	Enquire
4	203993	RH CONNECTOR PIPE	203993 RH CONNECTOR PIPE Optional; Version with CCM brakes	-	1	Enquire
4	203992	LH CONNECTOR PIPE	203992 LH CONNECTOR PIPE Optional; Version with CCM brakes	-	1	Enquire
5	207222	GAITER FOR CYLINDER	207222 GAITER FOR CYLINDER D. 32	-	2	Enquire
6	152953	GAITER FOR CYLINDER	152953 GAITER FOR CYLINDER D. 36	-	2	Enquire
7	152955	PROTECTIVE CAP	152955 PROTECTIVE CAP	-	2	Enquire
7	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP Optional; Version with CCM brakes	-	2	Enquire
8	152954	BLEED NIPPLE SCREW	152954 BLEED NIPPLE SCREW	-	2	Enquire
