Ferrari 612 Scaglietti - CLUTCH AND CONTROLS -Not for F1-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
189548 RH CYLINDER BANK RPM SENSOR $103.93 To Order
Photo Part No Description Price (each) Stock
189540 LH CYLINDER BANK RPM SENSOR $218.81 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
194775 Complete Clutch $3,167.69 To Order
Photo Part No Description Price (each) Stock
16296421 SCREW $25.92 To Order
Photo Part No Description Price (each) Stock
194776 CLUTCH PLATE $1,235.15 To Order
Photo Part No Description Price (each) Stock
14305974 SCREW $0.24 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
11194379 WASHER $0.32 To Order
Photo Part No Description Price (each) Stock
208102 COMPLETE CLUTCH HOUSING $5,075.78 To Order
195080 CLUTCH HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
13546334 STUD BOLT $1.02 To Order
Photo Part No Description Price (each) Stock
13543124 STUD BOLT $6.95 To Order
Photo Part No Description Price (each) Stock
152954 BLEED NIPPLE SCREW $6.37 To Order
Photo Part No Description Price (each) Stock
144441 CLUTCH HOUSING COVER $3.60 To Order
Photo Part No Description Price (each) Stock
144511 STOP RING $0.78 To Order
Photo Part No Description Price (each) Stock
165576 RING NUT $19.61 To Order
Photo Part No Description Price (each) Stock
195133 OIL DELIVERY PIPE $51.59 To Order
Photo Part No Description Price (each) Stock
145805 BEARING $162.57 To Order
Photo Part No Description Price (each) Stock
165573 CLUTCH SHAFT $706.01 To Order
Photo Part No Description Price (each) Stock
165575 RING NUT $27.39 To Order
Photo Part No Description Price (each) Stock
195134 VENT PIPE $51.33 To Order
Photo Part No Description Price (each) Stock
169137 FLANGE WITH SLEEVE $797.73 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
133989 NUT $0.45 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
151693 PLATE $39.37 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
177201 Thrust Bearing $1,187.39 To Order
Photo Part No Description Price (each) Stock
154505 SEAL RING 32MM $13.94 To Order
Photo Part No Description Price (each) Stock
154504 SEAL RING 32MM $7.42 To Order
Photo Part No Description Price (each) Stock
154550 SCRAPER RING $25.85 To Order
Photo Part No Description Price (each) Stock
154508 Sealing Ring 44mm $43.31 To Order
Photo Part No Description Price (each) Stock
154507 Ring $4.18 To Order
Photo Part No Description Price (each) Stock
154551 Scrapper Ring $28.87 To Order
Photo Part No Description Price (each) Stock
13904970 SPRING PIN $0.29 To Order
Photo Part No Description Price (each) Stock
155207 Pre-Tightening Springs $9.00 To Order
Photo Part No Description Price (each) Stock
10977824 SCREW $1.94 To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
13540824 STUD BOLT $0.24 To Order
Photo Part No Description Price (each) Stock
155177 STUD BOLT $8.22 To Order
Photo Part No Description Price (each) Stock
205046 SHIM $3.32 To Order
Photo Part No Description Price (each) Stock
200137 MOUNTING $51.59 To Order
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
11199274 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $7.33 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
200138 MOUNTING $54.46 To Order
Photo Part No Description Price (each) Stock
202266 GROUND BRAID $74.85 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $7.33 To Order
Photo Part No Description Price (each) Stock
11199274 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
240774 CONNECTOR $56.14 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12647801 WASHER $2.30 To Order
Photo Part No Description Price (each) Stock
10440990 BRACKET WITH SHEATH $1.46 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 To Order
View All

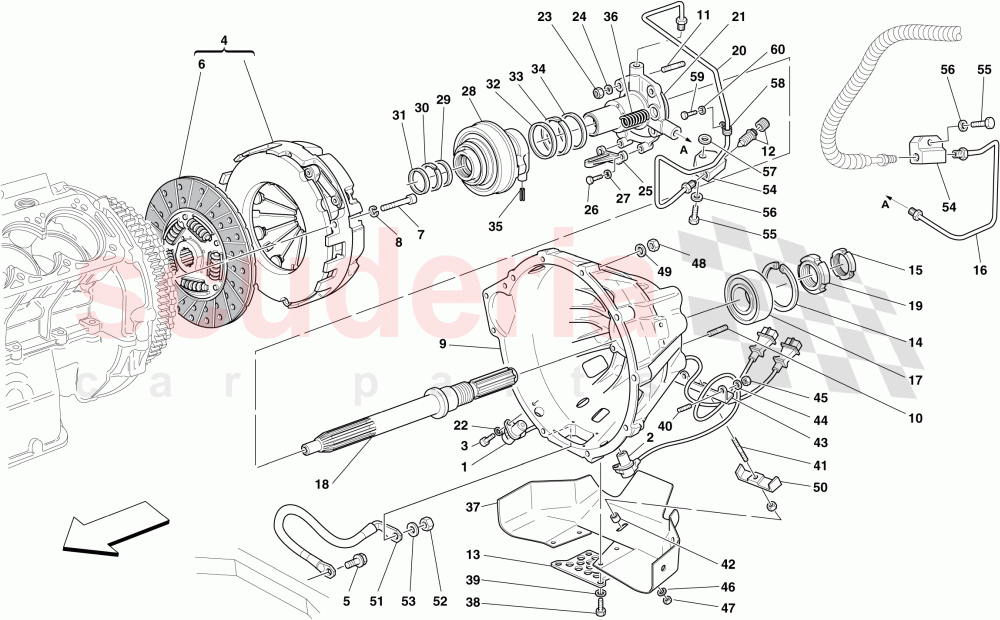

CLUTCH AND CONTROLS -Not for F1- of Ferrari Ferrari 612 Scaglietti Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 189548
RH CYLINDER BANK RPM SENSOR
Not for F1 gearbox 		$103.93 1
2 189540
LH CYLINDER BANK RPM SENSOR
Not for F1 gearbox 		$218.81 1
3 248334
SCREW
Not for F1 gearbox 		$0.68 2
4 194775
Complete Clutch
Not for F1 gearbox 		$3,167.69 1
5 16296421
SCREW
Not for F1 gearbox 		$25.92 1
6 194776
CLUTCH PLATE
Not for F1 gearbox 		$1,235.15 (5.3% off) 1
7 14305974
SCREW
Not for F1 gearbox 		$0.24 (59.3% off) 9
8 127494
WASHER
Not for F1 gearbox; No longer supplied; Replaced by 11194379 		$0.08 (88.2% off) 9
8 11194379
WASHER
Not for F1 gearbox 		$0.32 (69.5% off) 9
9 208102
COMPLETE CLUTCH HOUSING
Not for F1 gearbox 		$5,075.78 1
9 195080
CLUTCH HOUSING
Not available as spare part; With complete clutch housing; Not for F1 gearbox 		- 1 Enquire
10 13546334
STUD BOLT
Not for F1 gearbox 		$1.02 8
11 13543124
STUD BOLT
Not for F1 gearbox 		$6.95 4
12 152954
BLEED NIPPLE SCREW
Not for F1 gearbox 		$6.37 1
13 144441
CLUTCH HOUSING COVER
Not for F1 gearbox 		$3.60 (75.8% off) 1
14 144511
STOP RING
Not for F1 gearbox 		$0.78 1
15 165576
RING NUT
Not for F1 gearbox 		$19.61 (18.3% off) 1
16 195133
OIL DELIVERY PIPE
Not for F1 gearbox 		$51.59 1
17 145805
BEARING
Not for F1 gearbox 		$162.57 1
18 165573
CLUTCH SHAFT
Not for F1 gearbox 		$706.01 1
19 165575
RING NUT
Not for F1 gearbox 		$27.39 (25.7% off) 1
20 195134
VENT PIPE
Not for F1 gearbox 		$51.33 1
21 169137
FLANGE WITH SLEEVE
Not for F1 gearbox 		$797.73 1
22 11197774
WASHER
Not for F1 gearbox 		$0.06 (80% off) 2
23 133989
NUT
Not for F1 gearbox 		$0.45 (55% off) 4
24 127496
WASHER
Not for F1 gearbox 		$0.06 (80% off) 4
25 151693
PLATE
Not for F1 gearbox 		$39.37 (58.7% off) 1
26 10977524
SCREW
Not for F1 gearbox 		$0.15 2
27 127493
WASHER
Not for F1 gearbox 		$0.06 (80% off) 2
28 177201
Thrust Bearing
Not for F1 gearbox 		$1,187.39 1
29 154505
SEAL RING 32MM
Not for F1 gearbox 		$13.94 (17.3% off) 1
30 154504
SEAL RING 32MM
Not for F1 gearbox 		$7.42 1
31 154550
SCRAPER RING
Not for F1 gearbox 		$25.85 1
32 154508
Sealing Ring 44mm
Not for F1 gearbox 		$43.31 (20.1% off) 1
33 154507
Ring
Not for F1 gearbox 		$4.18 (17.2% off) 1
34 154551
Scrapper Ring
Not for F1 gearbox 		$28.87 (3.3% off) 1
35 13904970
SPRING PIN
Not for F1 gearbox 		$0.29 (35.6% off) 1
36 155207
Pre-Tightening Springs
Not for F1 gearbox 		$9.00 2
38 10977824
SCREW
Not for F1 gearbox 		$1.94 4
39 12604178
Washer
Not for F1 gearbox 		- 4 Enquire
40 13540824
STUD BOLT
Not for F1 gearbox 		$0.24 2
41 155177
STUD BOLT
Not for F1 gearbox 		$8.22 (49.6% off) 1
42 205046
SHIM
Not for F1 gearbox 		$3.32 1
43 200137
MOUNTING
Not for F1 gearbox 		$51.59 1
44 12639724
WASHER
Not for F1 gearbox 		$0.05 (90% off) 2
45 14059290
FLANGED NUT M6
Not for F1 gearbox 		$1.51 2
46 11199274
WASHER
Not for F1 gearbox 		$0.02 1
47 15896470
NUT
Not for F1 gearbox 		$7.33 1
48 14040711
NUT
Not for F1 gearbox 		$0.41 5
49 12601374
WASHER
Not for F1 gearbox 		$0.02 (92% off) 5
50 200138
MOUNTING
Not for F1 gearbox 		$54.46 1
51 202266
GROUND BRAID
Not for F1 gearbox 		$74.85 1
52 15896470
NUT
Not for F1 gearbox 		$7.33 1
53 11199274
WASHER
Not for F1 gearbox 		$0.02 1
54 240774
CONNECTOR
Not for F1 gearbox 		$56.14 2
55 231625
SCREW
Not for F1 gearbox 		$0.65 2
56 11197774
WASHER
Not for F1 gearbox 		$0.06 (80% off) 2
57 12647801
WASHER
Not for F1 gearbox 		$2.30 1
58 10440990
BRACKET WITH SHEATH
Not for F1 gearbox 		$1.46 1
59 10977524
SCREW
Not for F1 gearbox 		$0.15 1
60 12639724
WASHER
Not for F1 gearbox 		$0.05 (90% off) 1
