FRONT SUSPENSION - ARMS AND STABILISER BAR of Ferrari Ferrari 612 Scaglietti

View All

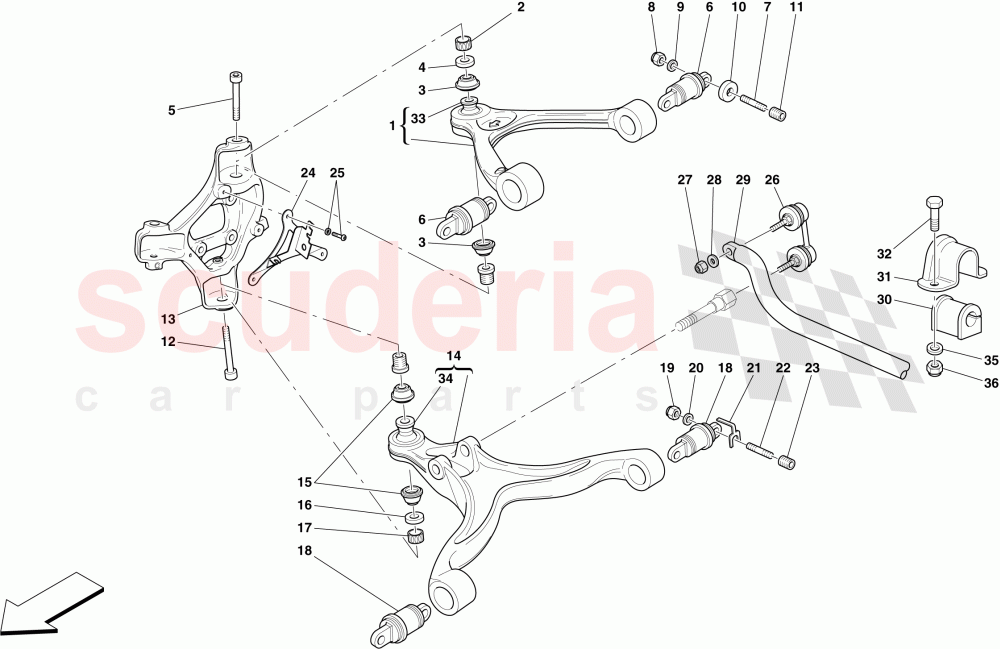

Ferrari 612 Scaglietti - FRONT SUSPENSION - ARMS AND STABILISER BAR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	207579	COMPLETE UPPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179555	COMPENSATOR RING BUSHING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	171848	Rubber Boot and Clip	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	190274	SHIM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	188581	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209167	FLANBLOC	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	170155	THREADED ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	219344	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13582271	INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190272	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190729	RH FRONT STUB AXLE	Enquire	To Order
	216754	RH FRONT STUB AXLE	Enquire	To Order
	190730	LH FRONT STUB AXLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	207576	FRONT LOWER SUSPENSION ARM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	171847	Rubber Boot And Clip	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	190273	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179554	COMPENSATOR RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	196789	Silentbloc Bush	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	200938	SHIM	Enquire	IN STOCK
	203312	SHIM	Enquire	To Order
	203313	SHIM	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	241298	THREADED ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13582310	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196068	RH STUB AXLE COVER	Enquire	To Order
	196066	LH STUB AXLE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	IN STOCK
	250657	SCREW M6 X 14	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	191613	SPHERICAL TIE-ROD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	196385	Stabiliser Bar Bush	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	239775	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	203633	Upper Ball Joint	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	203632	Lower Ball Joint	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	207579	COMPLETE UPPER ARM	207579 COMPLETE UPPER ARM	-	2	Enquire
2	179555	COMPENSATOR RING BUSHING IN STOCK	179555 COMPENSATOR RING BUSHING IN STOCK	-	2	Enquire
3	171848	Rubber Boot and Clip IN STOCK	171848 Rubber Boot and Clip IN STOCK	-	4	Enquire
4	190274	SHIM IN STOCK	190274 SHIM IN STOCK	-	2	Enquire
5	188581	SCREW	188581 SCREW	-	2	Enquire
6	209167	FLANBLOC IN STOCK	209167 FLANBLOC Replace as a pair IN STOCK	-	4	Enquire
7	170155	THREADED ROD	170155 THREADED ROD	-	8	Enquire
8	104030	NYLOC NUT M8 X 1.25 X 9.5 IN STOCK	104030 NYLOC NUT M8 X 1.25 X 9.5 IN STOCK	-	8	Enquire
9	14496524	WASHER IN STOCK	14496524 WASHER IN STOCK	-	8	Enquire
10	219344	WASHER IN STOCK	219344 WASHER IN STOCK	-	8	Enquire
11	13582271	INSERT	13582271 INSERT	-	8	Enquire
12	190272	SCREW	190272 SCREW	-	2	Enquire
13	190729	RH FRONT STUB AXLE	190729 RH FRONT STUB AXLE	-	1	Enquire
13	216754	RH FRONT STUB AXLE	216754 RH FRONT STUB AXLE Version with CCM brakes; Optional	-	1	Enquire
13	190730	LH FRONT STUB AXLE	190730 LH FRONT STUB AXLE	-	1	Enquire
13	216753	LH FRONT STUB AXLE	216753 LH FRONT STUB AXLE Version with CCM brakes; Optional	-	1	Enquire
14	207576	FRONT LOWER SUSPENSION ARM IN STOCK	207576 FRONT LOWER SUSPENSION ARM IN STOCK	-	2	Enquire
15	171847	Rubber Boot And Clip IN STOCK	171847 Rubber Boot And Clip IN STOCK	-	4	Enquire
16	190273	SHIM	190273 SHIM	-	2	Enquire
17	179554	COMPENSATOR RING IN STOCK	179554 COMPENSATOR RING IN STOCK	-	2	Enquire
18	196789	Silentbloc Bush IN STOCK	196789 Silentbloc Bush IN STOCK	-	4	Enquire
19	12574521	Nyloc Nut IN STOCK	12574521 Nyloc Nut IN STOCK	-	8	Enquire
20	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	-	8	Enquire
21	200938	SHIM IN STOCK	200938 SHIM Installed if necessary IN STOCK	-	8	Enquire
21	203312	SHIM	203312 SHIM Th. 1 mm; Installed if necessary	-	8	Enquire
21	203313	SHIM	203313 SHIM Th. 1.5 mm; Installed if necessary	-	8	Enquire
21	203314	SHIM	203314 SHIM Th. 2 mm; Installed if necessary	-	8	Enquire
21	203315	SHIM	203315 SHIM Th. 2.5 mm; Installed if necessary	-	8	Enquire
21	203316	SHIM	203316 SHIM Th. 3 mm; Installed if necessary	-	8	Enquire
22	241298	THREADED ROD	241298 THREADED ROD	-	8	Enquire
23	13582310	THREADED INSERT	13582310 THREADED INSERT	-	8	Enquire
24	196068	RH STUB AXLE COVER	196068 RH STUB AXLE COVER	-	1	Enquire
24	196066	LH STUB AXLE COVER	196066 LH STUB AXLE COVER	-	1	Enquire
25	250657	SCREW M6 X 14 IN STOCK	250657 SCREW M6 X 14 Applicable for calliper with chromium VI IN STOCK	-	6	Enquire
25	250657	SCREW M6 X 14 IN STOCK	250657 SCREW M6 X 14 Applicable for calliper without chromium VI IN STOCK	-	6	Enquire
26	191613	SPHERICAL TIE-ROD IN STOCK	191613 SPHERICAL TIE-ROD IN STOCK	-	2	Enquire
27	10791014	NUT	10791014 NUT	-	2	Enquire
28	12601474	WAVY WASHER 10MM IN STOCK	12601474 WAVY WASHER 10MM IN STOCK	-	2	Enquire
30	196385	Stabiliser Bar Bush IN STOCK	196385 Stabiliser Bar Bush IN STOCK	-	2	Enquire
31	239775	PLATE	239775 PLATE	-	2	Enquire
32	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 IN STOCK	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 IN STOCK	-	4	Enquire
33	203633	Upper Ball Joint IN STOCK	203633 Upper Ball Joint IN STOCK	-	2	Enquire
34	203632	Lower Ball Joint IN STOCK	203632 Lower Ball Joint IN STOCK	-	2	Enquire
35	84653800	WASHER IN STOCK	84653800 WASHER IN STOCK	-	4	Enquire
36	104030	NYLOC NUT M8 X 1.25 X 9.5 IN STOCK	104030 NYLOC NUT M8 X 1.25 X 9.5 IN STOCK	-	4	Enquire
