Name: REAR SUSPENSION - ARMS AND STABILISER BAR
Rating: 4.6 (1 reviews)

REAR SUSPENSION - ARMS AND STABILISER BAR of Ferrari Ferrari 612 Scaglietti

View All

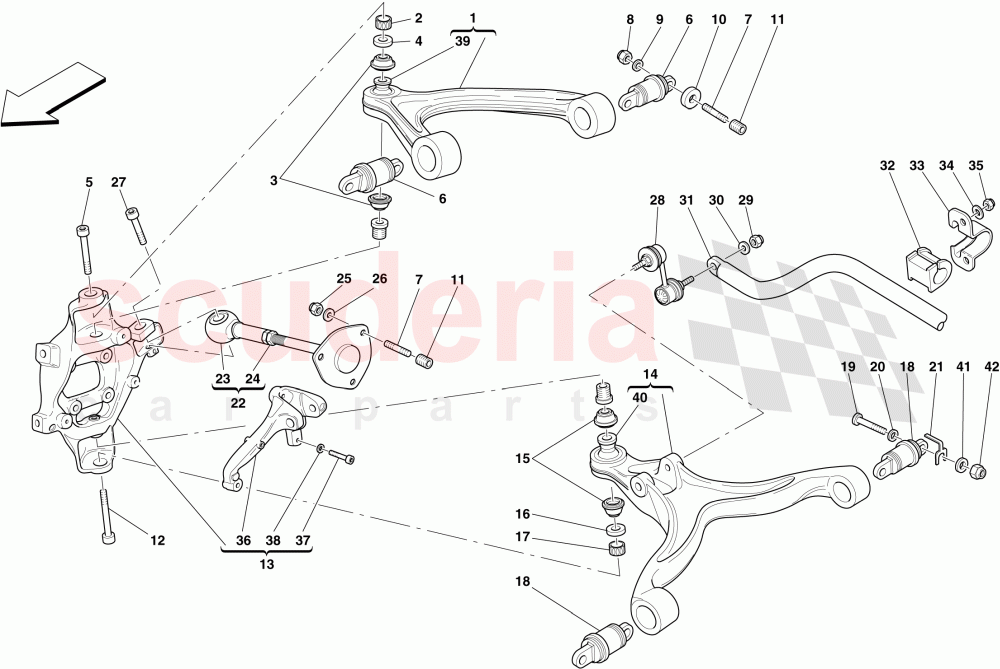

Ferrari 612 Scaglietti - REAR SUSPENSION - ARMS AND STABILISER BAR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	200945	Upper Suspension Lever	$770.19	To Order

Photo	Part No	Description	Price (each)	Stock
	179555	COMPENSATOR RING BUSHING	$5.61	To Order

Photo	Part No	Description	Price (each)	Stock
	171848	Rubber Boot and Clip	$134.77	To Order

Photo	Part No	Description	Price (each)	Stock
	190274	SHIM	$14.68	To Order

Photo	Part No	Description	Price (each)	Stock
	188581	SCREW	$21.44	To Order

Photo	Part No	Description	Price (each)	Stock
	209167	FLANBLOC	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	170155	THREADED ROD	$17.62	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	219344	WASHER	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	13582271	INSERT	$8.02	To Order

Photo	Part No	Description	Price (each)	Stock
	190272	SCREW	$31.33	To Order

Photo	Part No	Description	Price (each)	Stock
	190750	RH REAR STUB AXLE	$1,347.85	To Order
	267229	RH REAR STUB AXLE	$1,299.71	To Order
	190751	LH REAR STUB AXLE	$1,588.54	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	207581	COMPLETE LOWER ARM	$1,235.52	To Order

Photo	Part No	Description	Price (each)	Stock
	171847	Rubber Boot And Clip	$128.35	To Order

Photo	Part No	Description	Price (each)	Stock
	190273	SHIM	$39.17	To Order

Photo	Part No	Description	Price (each)	Stock
	179554	COMPENSATOR RING	$5.92	To Order

Photo	Part No	Description	Price (each)	Stock
	196789	Silentbloc Bush	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	182215	SCREW	$6.37	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	200938	SHIM	$2.50	To Order
	203312	SHIM	$7.83	To Order
	203313	SHIM	$63.67	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	252479	Tie Rod	$770.19	To Order

Photo	Part No	Description	Price (each)	Stock
	194794	ROD END FOR TIE-ROD	$449.27	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	204248	NUT	$39.17	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	113113	WASHER	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	179556	SCREW	$56.68	To Order

Photo	Part No	Description	Price (each)	Stock
	168993	Roll Bar Link	$96.26	To Order

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WASHER	$0.03	To Order

Photo	Part No	Description	Price (each)	Stock
	235230	STABILISER BAR	$1,033.23	To Order

Photo	Part No	Description	Price (each)	Stock
	196385	Stabiliser Bar Bush	$49.73	To Order
	200656	STABILISER BAR BUSH	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	239775	PLATE	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	113113	WASHER	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	205005	RH SHOCK ABSORBER MOUNT	$224.63	To Order
	205006	LH SHOCK ABSORBER MOUNT	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	212601	SCREW	$20.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11194174	WASHER	$5.48	To Order

Photo	Part No	Description	Price (each)	Stock
	203633	Upper Ball Joint	$263.79	To Order

Photo	Part No	Description	Price (each)	Stock
	203632	Lower Ball Joint	$339.17	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	14058621	NUT	$0.44	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	200945	Upper Suspension Lever	200945 Upper Suspension Lever	$770.19 MSRP: ~~1,270.08~~ (39.4% off)	2
2	179555	COMPENSATOR RING BUSHING	179555 COMPENSATOR RING BUSHING	$5.61 MSRP: ~~6.37~~ (11.9% off)	2
3	171848	Rubber Boot and Clip	171848 Rubber Boot and Clip	$134.77 MSRP: ~~174.05~~ (22.6% off)	4
4	190274	SHIM	190274 SHIM	$14.68	2
5	188581	SCREW	188581 SCREW	$21.44	2
6	209167	FLANBLOC	209167 FLANBLOC Replace as a pair	$288.81 MSRP: ~~380.55~~ (24.1% off)	4
7	170155	THREADED ROD	170155 THREADED ROD	$17.62	14
8	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	8
9	14496524	WASHER	14496524 WASHER	$0.11 MSRP: ~~1.50~~ (92.7% off)	8
10	219344	WASHER	219344 WASHER	$0.31	8
11	13582271	INSERT	13582271 INSERT	$8.02 MSRP: ~~10.15~~ (21% off)	14
12	190272	SCREW	190272 SCREW	$31.33	2
13	190750	RH REAR STUB AXLE	190750 RH REAR STUB AXLE	$1,347.85	1
13	267229	RH REAR STUB AXLE	267229 RH REAR STUB AXLE Version with CCM brakes; Optional	$1,299.71	1
13	190751	LH REAR STUB AXLE	190751 LH REAR STUB AXLE	$1,588.54	1
13	267228	LH REAR STUB AXLE	267228 LH REAR STUB AXLE Version with CCM brakes; Optional	$1,299.71	1
14	207581	COMPLETE LOWER ARM	207581 COMPLETE LOWER ARM	$1,235.52	2
15	171847	Rubber Boot And Clip	171847 Rubber Boot And Clip	$128.35 MSRP: ~~174.05~~ (26.3% off)	4
16	190273	SHIM	190273 SHIM	$39.17	2
17	179554	COMPENSATOR RING	179554 COMPENSATOR RING	$5.92 MSRP: ~~6.68~~ (11.4% off)	2
18	196789	Silentbloc Bush	196789 Silentbloc Bush	$320.90 MSRP: ~~429.77~~ (25.3% off)	4
19	182215	SCREW	182215 SCREW	$6.37	8
20	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	$1.91	8
21	200938	SHIM	200938 SHIM Installed if necessary	$2.50	8
21	203312	SHIM	203312 SHIM Th. 1 mm; Installed if necessary	$7.83	8
21	203313	SHIM	203313 SHIM Th. 1.5 mm; Installed if necessary	$63.67	8
21	203314	SHIM	203314 SHIM Th. 2 mm; Installed if necessary	$2.50	8
21	203315	SHIM	203315 SHIM Th. 2.5 mm; Installed if necessary	$24.47	8
21	203316	SHIM	203316 SHIM Th. 3 mm; Installed if necessary	$63.67	8
22	252479	Tie Rod	252479 Tie Rod	$770.19 MSRP: ~~1,055.00~~ (27% off)	2
23	194794	ROD END FOR TIE-ROD ARRIVING SOON	194794 ROD END FOR TIE-ROD Applicable for tie-rod Part No. 194792 ARRIVING SOON	$449.27 MSRP: ~~546.52~~ (17.8% off)	2
24	204248	NUT	204248 NUT Applicable for tie-rod Part No. 194792	$39.17	2
25	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	6
26	113113	WASHER	113113 WASHER	$1.07 MSRP: ~~2.56~~ (58.2% off)	6
27	179556	SCREW	179556 SCREW	$56.68	2
28	168993	Roll Bar Link	168993 Roll Bar Link	$96.26	2
29	10791014	NUT	10791014 NUT	$0.29	2
30	12601474	WASHER	12601474 WASHER	$0.03	2
31	235230	STABILISER BAR	235230 STABILISER BAR Enhanced version	$1,033.23	1
32	196385	Stabiliser Bar Bush	196385 Stabiliser Bar Bush	$49.73	2
32	200656	STABILISER BAR BUSH	200656 STABILISER BAR BUSH Enhanced version	$24.05	2
33	239775	PLATE	239775 PLATE	$37.25	2
34	113113	WASHER	113113 WASHER	$1.07 MSRP: ~~2.56~~ (58.2% off)	4
35	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	4
36	205005	RH SHOCK ABSORBER MOUNT	205005 RH SHOCK ABSORBER MOUNT	$224.63	1
36	205006	LH SHOCK ABSORBER MOUNT	205006 LH SHOCK ABSORBER MOUNT	$224.63	1
37	212601	SCREW	212601 SCREW	$20.55	2
38	11194174	WASHER	11194174 WASHER No longer supplied	$5.48	2
39	203633	Upper Ball Joint	203633 Upper Ball Joint	$263.79	2
40	203632	Lower Ball Joint	203632 Lower Ball Joint	$339.17	2
41	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	$1.91	8
42	14058621	NUT	14058621 NUT	$0.44	8
