Windscreen Wiper, Windscreen Washer and Horns of Ferrari Ferrari 575 Superamerica

View All

Ferrari 575 Superamerica - Windscreen Wiper, Windscreen Washer and Horns

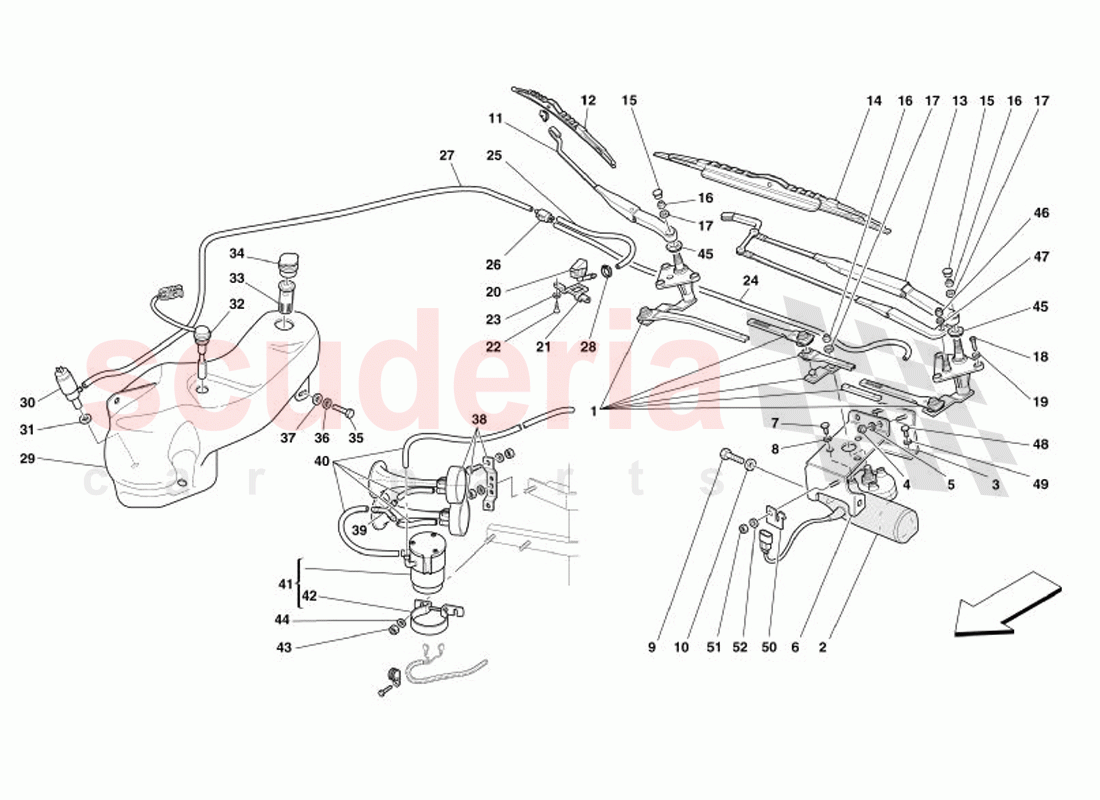

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65081300	COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS	Enquire	To Order
	65202600	COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63780200	WINDSCREEN WIPER MOTOR	Enquire	To Order
	64275500	WINDSHIELD WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63878800	WINDSHIELD WIPER MOTOR REAR BRACKET	Enquire	To Order
	65206000	WINDSHIELD WIPER MOTOR REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65098800	WINDSHIELD WIPER MOTOR FRONT BRACKET	Enquire	To Order
	65454400	WINDSHIELD WIPER MOTOR FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65202800	PASSENGER SIDE WINDSHIELD WIPER ARM	Enquire	To Order
	65081400	R.H. WINDSHIELD WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65081600	PASSENGER SIDE WIPER BRUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65081500	DRIVER SIDE WINDSHIELD WIPER ARM	Enquire	To Order
	65849400	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63776100A	Driver Side Windscreen Wiper Blade	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65081700	SMALL COVER	Enquire	To Order
	15811787	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13312970	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62794700	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191000	SPRAY NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191700	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15957077	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519278	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191400	PIPE FROM VALVE TO L.H. JET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191500	PIPE FROM VALVE TO R.H. JET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81061000	COMPLETE WINDSCREEN WASHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191600	PIPE FROM PUMP TO VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157990	Hose Retaining Clip D. 7 - 11 x 5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66285600	WINDSHIELD WIPER AND HEAD LIGHT WASHER CONTAINER	Enquire	To Order
	66533600	WINDSHIELD WIPER CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65358700	WINDSCREEN WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66645000	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190048	FLUID SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66645100	FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65374000	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189428	ELECTRO PNEUMATIC HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60741100	3 WAYS UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183273	PIPE FOR COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225757	COMPLETE HORN COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60741200	BRACKET FOR ELECTRO-COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65504100	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896472	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	65081300	COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS	65081300 COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS Not for GD	-	1	Enquire
1	65202600	COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS	65202600 COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS Valid for GD	-	1	Enquire
2	63780200	WINDSCREEN WIPER MOTOR	63780200 WINDSCREEN WIPER MOTOR Not for GD	-	1	Enquire
2	64275500	WINDSHIELD WIPER MOTOR	64275500 WINDSHIELD WIPER MOTOR Valid for GD	-	1	Enquire
3	63878800	WINDSHIELD WIPER MOTOR REAR BRACKET	63878800 WINDSHIELD WIPER MOTOR REAR BRACKET Not for GD	-	1	Enquire
3	65206000	WINDSHIELD WIPER MOTOR REAR BRACKET	65206000 WINDSHIELD WIPER MOTOR REAR BRACKET Valid for GD	-	1	Enquire
4	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
5	14499421	WASHER	14499421 WASHER	-	2	Enquire
6	65098800	WINDSHIELD WIPER MOTOR FRONT BRACKET	65098800 WINDSHIELD WIPER MOTOR FRONT BRACKET Not for GD	-	1	Enquire
6	65454400	WINDSHIELD WIPER MOTOR FRONT BRACKET	65454400 WINDSHIELD WIPER MOTOR FRONT BRACKET Valid for GD	-	1	Enquire
7	10902224	SCREW	10902224 SCREW	-	3	Enquire
8	127494	WASHER	127494 WASHER (minimum order quantity = 20)	-	3	Enquire
9	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18	-	2	Enquire
10	127496	WASHER	127496 WASHER	-	2	Enquire
11	65202800	PASSENGER SIDE WINDSHIELD WIPER ARM	65202800 PASSENGER SIDE WINDSHIELD WIPER ARM Valid for GD	-	1	Enquire
11	65081400	R.H. WINDSHIELD WIPER ARM	65081400 R.H. WINDSHIELD WIPER ARM Not for GD	-	1	Enquire
12	65081600	PASSENGER SIDE WIPER BRUSH	65081600 PASSENGER SIDE WIPER BRUSH	-	1	Enquire
13	65081500	DRIVER SIDE WINDSHIELD WIPER ARM	65081500 DRIVER SIDE WINDSHIELD WIPER ARM Not for GD	-	1	Enquire
13	65849400	DRIVER SIDE WINDSCREEN WIPER ARM	65849400 DRIVER SIDE WINDSCREEN WIPER ARM Valid for GB	-	1	Enquire
14	63776100A	Driver Side Windscreen Wiper Blade	63776100A Driver Side Windscreen Wiper Blade	-	1	Enquire
15	65081700	SMALL COVER	65081700 SMALL COVER Valid for GD	-	2	Enquire
15	15811787	PROTECTIVE CAP	15811787 PROTECTIVE CAP Not for GD	-	2	Enquire
16	147985	NUT	147985 NUT	-	3	Enquire
17	12601374	WASHER	12601374 WASHER	-	3	Enquire
18	13312970	SCREW	13312970 SCREW	-	6	Enquire
19	62794700	WASHER	62794700 WASHER	-	6	Enquire
20	65191000	SPRAY NOZZLE	65191000 SPRAY NOZZLE	-	2	Enquire
21	65191700	BRACKET	65191700 BRACKET	-	2	Enquire
22	15957077	SCREW	15957077 SCREW	-	4	Enquire
23	10519278	WASHER	10519278 WASHER	-	4	Enquire
24	65191400	PIPE FROM VALVE TO L.H. JET	65191400 PIPE FROM VALVE TO L.H. JET	-	1	Enquire
25	65191500	PIPE FROM VALVE TO R.H. JET	65191500 PIPE FROM VALVE TO R.H. JET	-	1	Enquire
26	81061000	COMPLETE WINDSCREEN WASHER PIPE	81061000 COMPLETE WINDSCREEN WASHER PIPE	-	1	Enquire
27	65191600	PIPE FROM PUMP TO VALVE	65191600 PIPE FROM PUMP TO VALVE	-	1	Enquire
28	157990	Hose Retaining Clip D. 7 - 11 x 5	157990 Hose Retaining Clip D. 7 - 11 x 5	-	2	Enquire
29	66285600	WINDSHIELD WIPER AND HEAD LIGHT WASHER CONTAINER	66285600 WINDSHIELD WIPER AND HEAD LIGHT WASHER CONTAINER Not for USA and CDN	-	1	Enquire
29	66533600	WINDSHIELD WIPER CONTAINER	66533600 WINDSHIELD WIPER CONTAINER Valid for USA and CDN	-	1	Enquire
30	65358700	WINDSCREEN WASHER PUMP	65358700 WINDSCREEN WASHER PUMP	-	1	Enquire
31	66645000	GASKET	66645000 GASKET	-	1	Enquire
32	190048	FLUID SENSOR	190048 FLUID SENSOR	-	1	Enquire
33	66645100	FILTER	66645100 FILTER	-	1	Enquire
34	65374000	CAP	65374000 CAP	-	1	Enquire
35	10902424	SCREW	10902424 SCREW	-	3	Enquire
36	12648925	WASHER	12648925 WASHER	-	3	Enquire
37	127494	WASHER	127494 WASHER (minimum order quantity = 20)	-	3	Enquire
38	189428	ELECTRO PNEUMATIC HORN	189428 ELECTRO PNEUMATIC HORN	-	1	Enquire
39	60741100	3 WAYS UNION	60741100 3 WAYS UNION	-	1	Enquire
40	183273	PIPE FOR COMPRESSOR	183273 PIPE FOR COMPRESSOR	-	1	Enquire
41	225757	COMPLETE HORN COMPRESSOR	225757 COMPLETE HORN COMPRESSOR	-	1	Enquire
42	60741200	BRACKET FOR ELECTRO-COMPRESSOR	60741200 BRACKET FOR ELECTRO-COMPRESSOR	-	1	Enquire
43	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
44	13577724	WASHER	13577724 WASHER	-	3	Enquire
45	65504100	GASKET	65504100 GASKET	-	2	Enquire
46	15896472	NUT	15896472 NUT	-	1	Enquire
47	12604178	Washer	12604178 Washer	-	1	Enquire
48	10902224	SCREW	10902224 SCREW	-	2	Enquire
49	127494	WASHER	127494 WASHER (minimum order quantity = 20)	-	2	Enquire
50	155751	CLIP	155751 CLIP	-	1	Enquire
51	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	1	Enquire
52	12637824	WASHER	12637824 WASHER	-	1	Enquire
