Electrical System of Ferrari Ferrari 575 Superamerica

View All

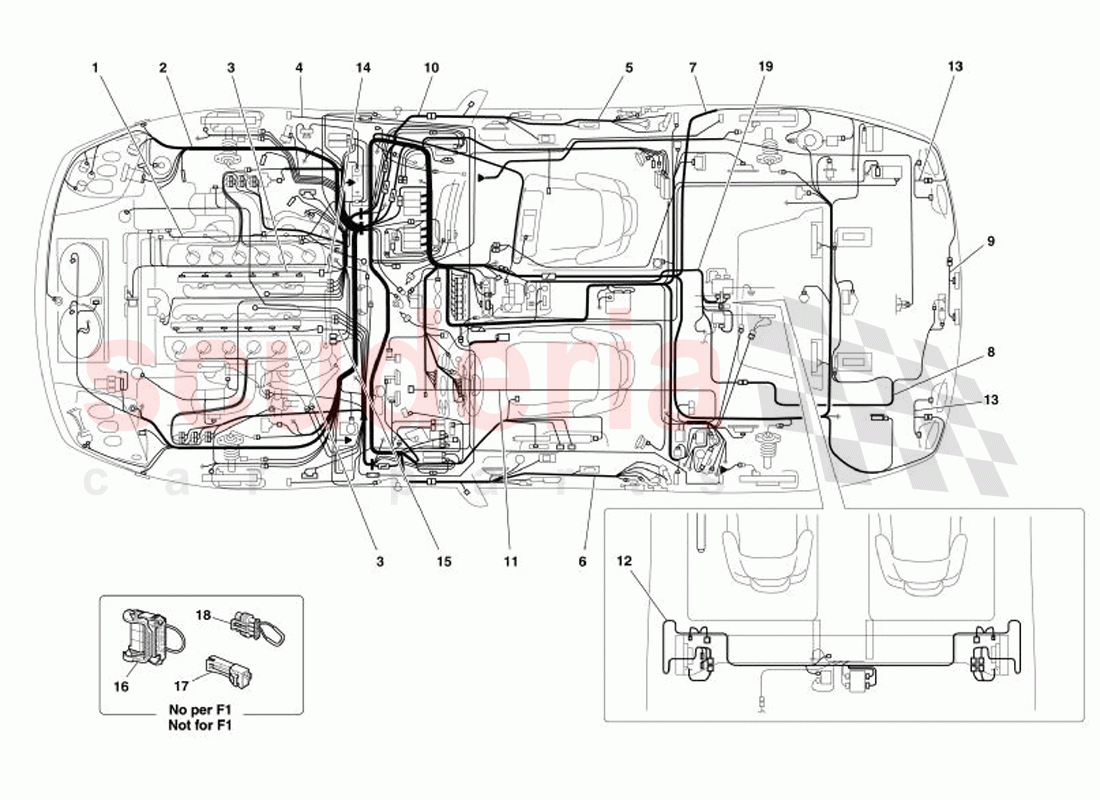

Ferrari 575 Superamerica - Electrical System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	183062	CONNECTION CABLES FOR MOTOR DEVICES	Enquire	To Order
	189491	CONNECTION CABLES FOR MOTOR DEVICES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210663	ABS-FRONT CABLES	Enquire	To Order
	210664	ABS-FRONT CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182192	INJECTORS CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200726	TYRES PRESSURE CONTROL CABLES	Enquire	To Order
	200727	TYRES PRESSURE CONTROL CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200688	PASSENGER SIDE DOOR CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200686	DRIVER SIDE DOOR CONNECTION CABLES	Enquire	To Order
	200687	DRIVER SIDE DOOR CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219803	REAR CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218186	REAR HOOD OPENING CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200723	CABLES FOR NUMBER PLATE LIGHTS	Enquire	To Order
	193648	CABLES FOR NUMBER PLATE LIGHTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	214562	AIR BAG-DASHBOARD CONNECTION CABLES	Enquire	To Order
	211326	AIR BAG-DASHBOARD CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212429	F1 GEARBOX CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213042	MOTORS-CONTROL STATION CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200724	REAR LIGHT CONNECTION CABLES	Enquire	To Order
	200725	REAR LIGHT CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196496	RH SIDE ENGINE CONNECTING CABLES	Enquire	To Order
	196495	RH SIDE ENGINE CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187765	LH SIDE ENGINE CONNECTING CABLES	Enquire	To Order
	189490	LH SIDE ENGINE CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200718	BRACKET FOR GEARBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167699	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200722	BRACKET FOR CAN LINE WITH RESISTANCE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220313	CABLE FOR SUN ROOF	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	183062	CONNECTION CABLES FOR MOTOR DEVICES	183062 CONNECTION CABLES FOR MOTOR DEVICES Not for GD	-	1	Enquire
1	189491	CONNECTION CABLES FOR MOTOR DEVICES	189491 CONNECTION CABLES FOR MOTOR DEVICES Valid for GD	-	1	Enquire
2	210663	ABS-FRONT CABLES	210663 ABS-FRONT CABLES Not for GD	-	1	Enquire
2	210664	ABS-FRONT CABLES	210664 ABS-FRONT CABLES Valid for GD	-	1	Enquire
3	182192	INJECTORS CONNECTING CABLES	182192 INJECTORS CONNECTING CABLES	-	2	Enquire
4	200726	TYRES PRESSURE CONTROL CABLES	200726 TYRES PRESSURE CONTROL CABLES Valid for GD Not for J	-	1	Enquire
4	200727	TYRES PRESSURE CONTROL CABLES	200727 TYRES PRESSURE CONTROL CABLES Not for GD and J	-	1	Enquire
5	200688	PASSENGER SIDE DOOR CONNECTION CABLES	200688 PASSENGER SIDE DOOR CONNECTION CABLES	-	1	Enquire
6	200686	DRIVER SIDE DOOR CONNECTION CABLES	200686 DRIVER SIDE DOOR CONNECTION CABLES Valid for GD	-	1	Enquire
6	200687	DRIVER SIDE DOOR CONNECTION CABLES	200687 DRIVER SIDE DOOR CONNECTION CABLES Not for GD	-	1	Enquire
7	219803	REAR CABLES	219803 REAR CABLES	-	1	Enquire
8	218186	REAR HOOD OPENING CONNECTING CABLES	218186 REAR HOOD OPENING CONNECTING CABLES	-	1	Enquire
9	200723	CABLES FOR NUMBER PLATE LIGHTS	200723 CABLES FOR NUMBER PLATE LIGHTS Not for USA and CDN	-	1	Enquire
9	193648	CABLES FOR NUMBER PLATE LIGHTS	193648 CABLES FOR NUMBER PLATE LIGHTS Valid for USA and CDN	-	1	Enquire
10	214562	AIR BAG-DASHBOARD CONNECTION CABLES	214562 AIR BAG-DASHBOARD CONNECTION CABLES Valid for GD	-	1	Enquire
10	211326	AIR BAG-DASHBOARD CONNECTION CABLES	211326 AIR BAG-DASHBOARD CONNECTION CABLES Not for GD	-	1	Enquire
11	212429	F1 GEARBOX CONNECTION CABLES	212429 F1 GEARBOX CONNECTION CABLES Valid for F1	-	1	Enquire
12	213042	MOTORS-CONTROL STATION CONNECTION CABLES	213042 MOTORS-CONTROL STATION CONNECTION CABLES	-	1	Enquire
13	200724	REAR LIGHT CONNECTION CABLES	200724 REAR LIGHT CONNECTION CABLES Not for USA and CDN	-	2	Enquire
13	200725	REAR LIGHT CONNECTION CABLES	200725 REAR LIGHT CONNECTION CABLES Valid for USA and CDN	-	2	Enquire
14	196496	RH SIDE ENGINE CONNECTING CABLES	196496 RH SIDE ENGINE CONNECTING CABLES Valid for GD	-	1	Enquire
14	196495	RH SIDE ENGINE CONNECTING CABLES	196495 RH SIDE ENGINE CONNECTING CABLES Not for GD	-	1	Enquire
15	187765	LH SIDE ENGINE CONNECTING CABLES	187765 LH SIDE ENGINE CONNECTING CABLES Not for GD	-	1	Enquire
15	189490	LH SIDE ENGINE CONNECTING CABLES	189490 LH SIDE ENGINE CONNECTING CABLES Valid for GD	-	1	Enquire
16	200718	BRACKET FOR GEARBOX	200718 BRACKET FOR GEARBOX Not for F1	-	1	Enquire
17	167699	CONNECTOR	167699 CONNECTOR Not for F1	-	1	Enquire
18	200722	BRACKET FOR CAN LINE WITH RESISTANCE	200722 BRACKET FOR CAN LINE WITH RESISTANCE Not for F1	-	1	Enquire
19	220313	CABLE FOR SUN ROOF	220313 CABLE FOR SUN ROOF	-	1	Enquire
