Dashboard Drawer of Ferrari Ferrari 575 Superamerica

View All

Ferrari 575 Superamerica - Dashboard Drawer

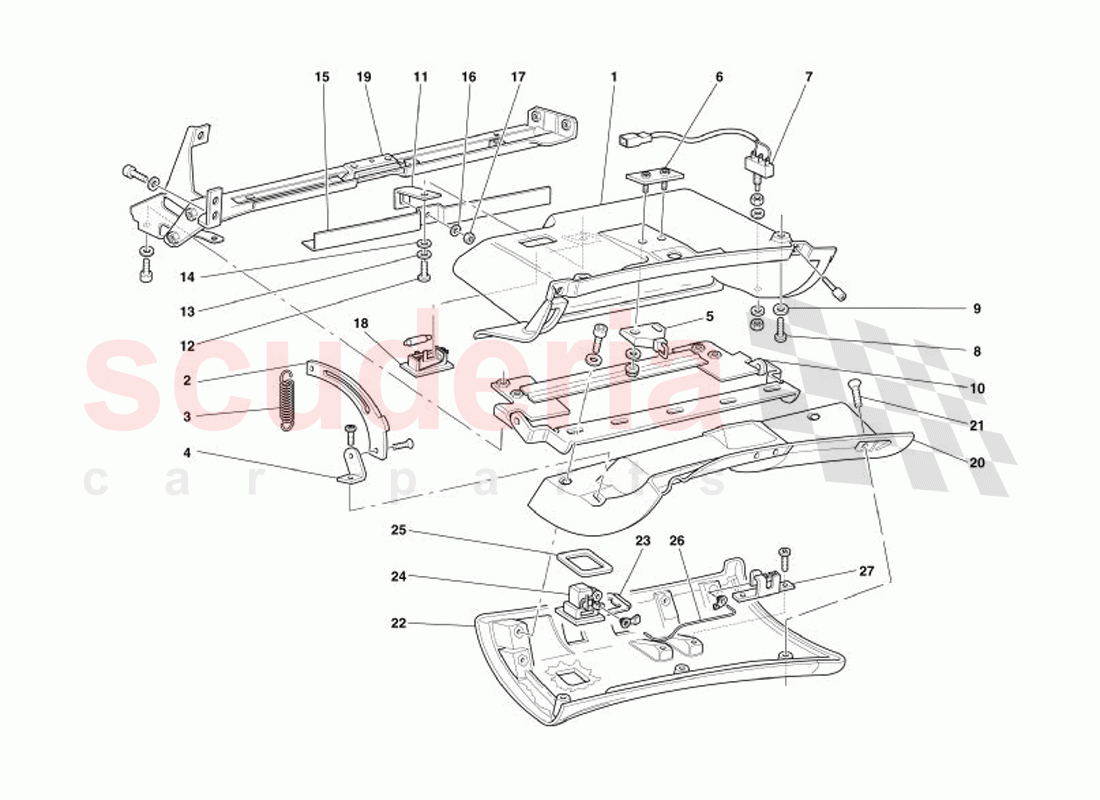

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66283100	DASHBOARD DRAWER	Enquire	To Order
	66617500	DASHBOARD DRAWER	Enquire	To Order
	66632200	DASHBOARD DRAWER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	63765700	LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63876700	DOOR SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64580800	BRACKET	Enquire	To Order
	65024600	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65258900	DRAWER CLOSING STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63765300	STRIKER FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184403	MICRO-SWITCH WITH CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13275977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519478	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65026800	BOX HINGE	Enquire	To Order
	66839700	BOX HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65115900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272272	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12599076	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65366000	ANGLE PIECE FOR INSULATION FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139517	LUGGAGE COMPARTMENT LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66839400	L.H. SIDE BRACKET	Enquire	To Order
	66831800	R.H. SIDE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65024900	DOOR FRAME	Enquire	To Order
	67292300	DOOR FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692334	GLOVE BOX SHUTTER	Enquire	To Order
	692337	GLOVE BOX SHUTTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63769000	FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64926500	CLOSE BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63768900	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64653900	TIE ROD	Enquire	To Order
	65166800	TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63768800	DRAWER LOCK DEVICE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66283100	DASHBOARD DRAWER	66283100 DASHBOARD DRAWER Valid for cars With Passenger air-bagexclusion Optional Not for GD	-	1	Enquire
1	66617500	DASHBOARD DRAWER	66617500 DASHBOARD DRAWER Not for GD	-	1	Enquire
1	66632200	DASHBOARD DRAWER	66632200 DASHBOARD DRAWER Valid for cars With Passenger air-bagexclusion-Optional Valid for GD	-	1	Enquire
1	66638600	DASHBOARD DRAWER	66638600 DASHBOARD DRAWER Vale for GD	-	1	Enquire
2	63765700	LEVER	63765700 LEVER	-	1	Enquire
3	63876700	DOOR SPRING	63876700 DOOR SPRING	-	1	Enquire
4	64580800	BRACKET	64580800 BRACKET Not for GD	-	1	Enquire
4	65024600	BRACKET	65024600 BRACKET Valid for GD	-	1	Enquire
5	65258900	DRAWER CLOSING STRIKER	65258900 DRAWER CLOSING STRIKER	-	1	Enquire
6	63765300	STRIKER FIXING PLATE	63765300 STRIKER FIXING PLATE	-	1	Enquire
7	184403	MICRO-SWITCH WITH CABLE	184403 MICRO-SWITCH WITH CABLE	-	1	Enquire
8	13275977	SCREW	13275977 SCREW	-	2	Enquire
9	10519478	WASHER	10519478 WASHER	-	2	Enquire
10	65026800	BOX HINGE	65026800 BOX HINGE Valid for GD	-	1	Enquire
10	66839700	BOX HINGE	66839700 BOX HINGE Not for GD	-	1	Enquire
11	65115900	BRACKET	65115900 BRACKET	-	1	Enquire
12	13272272	SCREW	13272272 SCREW	-	1	Enquire
13	12599076	WASHER	12599076 WASHER	-	1	Enquire
14	12643724	WASHER	12643724 WASHER	-	1	Enquire
15	65366000	ANGLE PIECE FOR INSULATION FIXING	65366000 ANGLE PIECE FOR INSULATION FIXING	-	1	Enquire
16	62769800	WASHER	62769800 WASHER not as spare part use part number: 12638178	-	1	Enquire
17	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	1	Enquire
18	139517	LUGGAGE COMPARTMENT LIGHT	139517 LUGGAGE COMPARTMENT LIGHT	-	1	Enquire
19	66839400	L.H. SIDE BRACKET	66839400 L.H. SIDE BRACKET Not for GD	-	1	Enquire
19	66831800	R.H. SIDE BRACKET	66831800 R.H. SIDE BRACKET Valid for GD	-	1	Enquire
20	65024900	DOOR FRAME	65024900 DOOR FRAME Valid for GD	-	1	Enquire
20	67292300	DOOR FRAME	67292300 DOOR FRAME Not for GD	-	1	Enquire
21	85833700	SCREW	85833700 SCREW	-	3	Enquire
22	692334	GLOVE BOX SHUTTER	692334 GLOVE BOX SHUTTER Not for GD	-	1	Enquire
22	692337	GLOVE BOX SHUTTER	692337 GLOVE BOX SHUTTER Valid for GD	-	1	Enquire
23	63769000	FORK	63769000 FORK	-	1	Enquire
24	64926500	CLOSE BUTTON	64926500 CLOSE BUTTON	-	1	Enquire
25	63768900	PLATE	63768900 PLATE	-	1	Enquire
26	64653900	TIE ROD	64653900 TIE ROD Not for GD	-	1	Enquire
26	65166800	TIE ROD	65166800 TIE ROD Valid for GD	-	1	Enquire
27	63768800	DRAWER LOCK DEVICE	63768800 DRAWER LOCK DEVICE	-	1	Enquire
