Front and Rear Lights of Ferrari Ferrari 575 Superamerica

View All

Ferrari 575 Superamerica - Front and Rear Lights

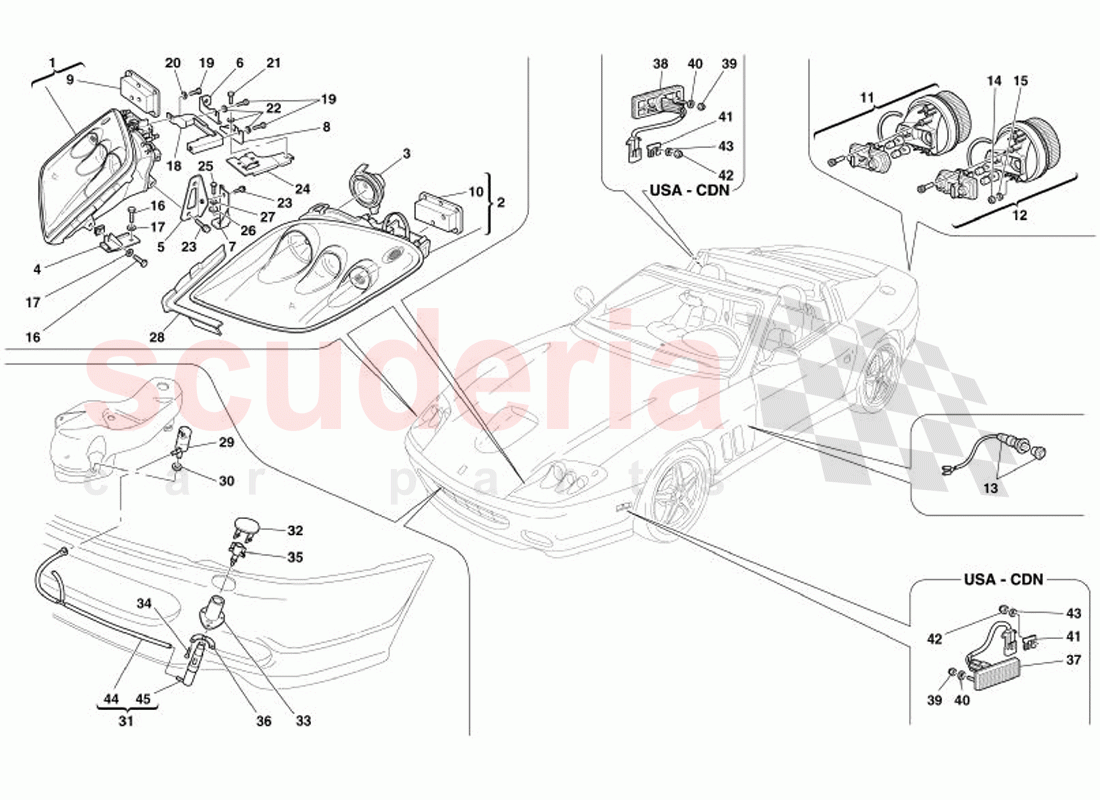

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	693879	RH HEADLIGHT LOW/HIGH BEAM	Enquire	To Order
	69388173	RH HEADLIGHT LOW/HIGH BEAM	Enquire	To Order
	693881	RH HEADLIGHT LOW/HIGH BEAM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	693882	LH HEADLIGHT LOW/HIGH BEAM	Enquire	To Order
	69388473	LH HEADLIGHT LOW/HIGH BEAM	Enquire	To Order
	693884	LH HEADLIGHT LOW/HIGH BEAM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65898400	PLUG FOR LIGHTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64559600	L.H. FRONT BRACKET	Enquire	To Order
	64559700	R.H. FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64559000	L.H. BRACKET	Enquire	To Order
	64559100	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66672700	L.H. OUTER BRACKET	Enquire	To Order
	66672600	R.H. OUTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64786500	L.H. INNER REAR BRACKET	Enquire	To Order
	64786600	R.H. INNER REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66672900	L.H. INNER BRACKET	Enquire	To Order
	66672800	R.H. INNER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220442	BALLAST R.H. CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220475	BALLAST LH CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157514	L.H. rear internal light	Enquire	To Order
	157525	LH Inner Rear Light	Enquire	ARRIVING SOON
	157513	R.H. rear internal light	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	157516	L.H. rear external light	Enquire	To Order
	157523	L.H. rear external light	Enquire	To Order
	157515	R.H. rear external light	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	165558	SIDE TURN INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11612524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66672500	L.H. UPPER BRACKET	Enquire	To Order
	66672400	R.H. UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11612524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11612424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66672300	L.H. LOWER BRACKET	Enquire	To Order
	66672200	R.H. LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65515300	LH Headlight Gasket	Enquire	To Order
	65515200	RH Headlight Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68740000	HEADLIGHT WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65511700	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66223900	TELESCOPIC SYSTEM WITH PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66224100	LH. PLUG	Enquire	To Order
	66224000	R.H. PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66223700	HEADLIGHT WASHER FASTENER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67495600	JETS SET FOR WINDOW WASHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66223800	TOOL FOR FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147563	FRONT SIDE MARKER LAMP	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	140594	REAR SIDE-MARKER LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67741200	COMPLETE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67255800	TELESCOPIC	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	693879	RH HEADLIGHT LOW/HIGH BEAM	693879 RH HEADLIGHT LOW/HIGH BEAM See relevant table for paint colour Not for USA, CDN, GD and J	-	1	Enquire
1	69388173	RH HEADLIGHT LOW/HIGH BEAM	69388173 RH HEADLIGHT LOW/HIGH BEAM Valid for GD and J Nurburgring Silver	-	1	Enquire
1	693881	RH HEADLIGHT LOW/HIGH BEAM	693881 RH HEADLIGHT LOW/HIGH BEAM See relevant table for paint colour Valid for GD and J	-	1	Enquire
1	693880	RH HEADLIGHT LOW/HIGH BEAM	693880 RH HEADLIGHT LOW/HIGH BEAM See relevant table for paint colour Valid for USA and CDN	-	1	Enquire
2	693882	LH HEADLIGHT LOW/HIGH BEAM	693882 LH HEADLIGHT LOW/HIGH BEAM See relevant table for paint colour Not for USA, CDN, GD and J	-	1	Enquire
2	69388473	LH HEADLIGHT LOW/HIGH BEAM	69388473 LH HEADLIGHT LOW/HIGH BEAM Valid for GD and J Nurburgring Silver	-	1	Enquire
2	693884	LH HEADLIGHT LOW/HIGH BEAM	693884 LH HEADLIGHT LOW/HIGH BEAM See relevant table for paint colour Valid for GD and J	-	1	Enquire
2	693883	LH HEADLIGHT LOW/HIGH BEAM	693883 LH HEADLIGHT LOW/HIGH BEAM See relevant table for paint colour Valid for USA and CDN	-	1	Enquire
3	65898400	PLUG FOR LIGHTS	65898400 PLUG FOR LIGHTS	-	2	Enquire
4	64559600	L.H. FRONT BRACKET	64559600 L.H. FRONT BRACKET	-	1	Enquire
4	64559700	R.H. FRONT BRACKET	64559700 R.H. FRONT BRACKET	-	1	Enquire
5	64559000	L.H. BRACKET	64559000 L.H. BRACKET	-	1	Enquire
5	64559100	R.H. BRACKET	64559100 R.H. BRACKET	-	1	Enquire
6	66672700	L.H. OUTER BRACKET	66672700 L.H. OUTER BRACKET	-	1	Enquire
6	66672600	R.H. OUTER BRACKET	66672600 R.H. OUTER BRACKET	-	1	Enquire
7	64786500	L.H. INNER REAR BRACKET	64786500 L.H. INNER REAR BRACKET	-	1	Enquire
7	64786600	R.H. INNER REAR BRACKET	64786600 R.H. INNER REAR BRACKET	-	1	Enquire
8	66672900	L.H. INNER BRACKET	66672900 L.H. INNER BRACKET	-	1	Enquire
8	66672800	R.H. INNER BRACKET	66672800 R.H. INNER BRACKET	-	1	Enquire
9	220442	BALLAST R.H. CONTROL STATION	220442 BALLAST R.H. CONTROL STATION	-	1	Enquire
10	220475	BALLAST LH CONTROL STATION	220475 BALLAST LH CONTROL STATION	-	1	Enquire
11	157514	L.H. rear internal light	157514 L.H. rear internal light Not for USA and CDN	-	1	Enquire
11	157525	LH Inner Rear Light ARRIVING SOON	157525 LH Inner Rear Light Valid for USA and CDN ARRIVING SOON	-	1	Enquire
11	157513	R.H. rear internal light	157513 R.H. rear internal light Not for USA and CDN	-	1	Enquire
11	157524	RH Rear Inner Light	157524 RH Rear Inner Light Valid for USA and CDN	-	1	Enquire
12	157516	L.H. rear external light	157516 L.H. rear external light Not for USA and CDN	-	1	Enquire
12	157523	L.H. rear external light	157523 L.H. rear external light Valid for USA and CDN	-	1	Enquire
12	157515	R.H. rear external light	157515 R.H. rear external light Not for USA and CDN	-	1	Enquire
12	157522	R.H. rear external light	157522 R.H. rear external light Valid for USA and CDN	-	1	Enquire
13	165558	SIDE TURN INDICATOR	165558 SIDE TURN INDICATOR Not for USA and CDN	-	2	Enquire
14	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
15	10519424	WASHER	10519424 WASHER	-	8	Enquire
16	11612524	SCREW	11612524 SCREW	-	4	Enquire
17	12648925	WASHER	12648925 WASHER	-	4	Enquire
18	66672500	L.H. UPPER BRACKET	66672500 L.H. UPPER BRACKET	-	1	Enquire
18	66672400	R.H. UPPER BRACKET	66672400 R.H. UPPER BRACKET	-	1	Enquire
19	11612524	SCREW	11612524 SCREW	-	6	Enquire
20	12643724	WASHER	12643724 WASHER	-	2	Enquire
21	11612424	SCREW	11612424 SCREW	-	4	Enquire
22	12648925	WASHER	12648925 WASHER	-	6	Enquire
23	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	-	6	Enquire
24	66672300	L.H. LOWER BRACKET	66672300 L.H. LOWER BRACKET	-	1	Enquire
24	66672200	R.H. LOWER BRACKET	66672200 R.H. LOWER BRACKET	-	1	Enquire
25	16043434	HEX HEAD SCREW M8 X 20	16043434 HEX HEAD SCREW M8 X 20	-	2	Enquire
26	84653800	WASHER	84653800 WASHER	-	2	Enquire
27	127496	WASHER	127496 WASHER	-	2	Enquire
28	65515300	LH Headlight Gasket	65515300 LH Headlight Gasket	-	1	Enquire
28	65515200	RH Headlight Gasket	65515200 RH Headlight Gasket	-	1	Enquire
29	68740000	HEADLIGHT WASHER PUMP	68740000 HEADLIGHT WASHER PUMP Not for USA and CDN	-	1	Enquire
30	65511700	GASKET	65511700 GASKET Not for USA and CDN	-	1	Enquire
31	66223900	TELESCOPIC SYSTEM WITH PIPES	66223900 TELESCOPIC SYSTEM WITH PIPES Not for USA and CDN	-	1	Enquire
32	66224100	LH. PLUG	66224100 LH. PLUG Not for USA and CDN	-	1	Enquire
32	66224000	R.H. PLUG	66224000 R.H. PLUG Not for USA and CDN	-	1	Enquire
33	66223700	HEADLIGHT WASHER FASTENER RING	66223700 HEADLIGHT WASHER FASTENER RING Not for USA and CDN	-	2	Enquire
34	11568124	SCREW	11568124 SCREW Not for USA and CDN (minimum order quantity = 10)	-	6	Enquire
35	67495600	JETS SET FOR WINDOW WASHING	67495600 JETS SET FOR WINDOW WASHING Not for USA and CDN	-	1	Enquire
36	66223800	TOOL FOR FASTENER	66223800 TOOL FOR FASTENER Not for USA and CDN	-	2	Enquire
37	147563	FRONT SIDE MARKER LAMP ARRIVING SOON	147563 FRONT SIDE MARKER LAMP Valid for USA and CDN ARRIVING SOON	-	2	Enquire
38	140594	REAR SIDE-MARKER LIGHT	140594 REAR SIDE-MARKER LIGHT Valid for USA and CDN	-	2	Enquire
39	14084111	NUT	14084111 NUT Valid for USA and CDN	-	8	Enquire
40	12638124	WASHER	12638124 WASHER Valid for USA and CDN	-	8	Enquire
41	155751	CLIP	155751 CLIP Valid for USA and CDN	-	2	Enquire
42	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY Valid for USA and CDN	-	2	Enquire
43	12637824	WASHER	12637824 WASHER Valid for USA and CDN	-	2	Enquire
44	67741200	COMPLETE TUBE	67741200 COMPLETE TUBE Not for USA and CDN	-	1	Enquire
45	67255800	TELESCOPIC	67255800 TELESCOPIC Not for USA and CDN	-	2	Enquire
