Tunnel - Framework and Accessories of Ferrari Ferrari 575 Superamerica

View All

Ferrari 575 Superamerica - Tunnel - Framework and Accessories

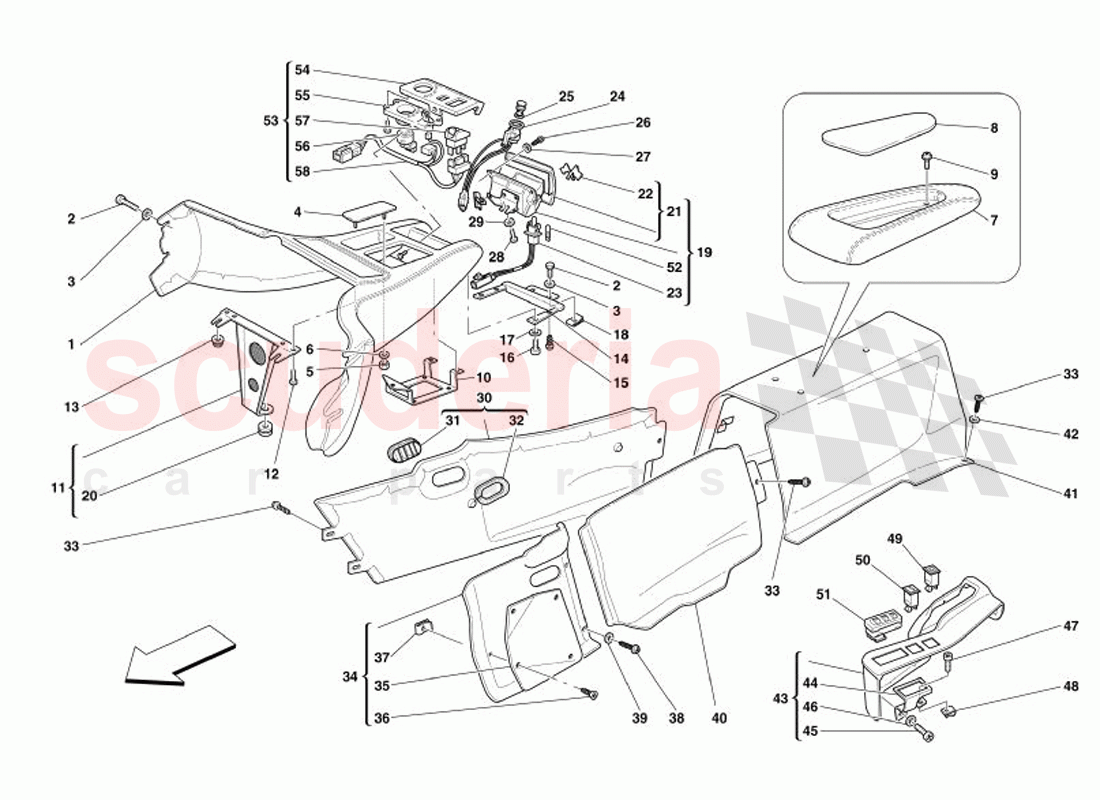

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66787300	LINING	Enquire	To Order
	69100100	LINING	Enquire	To Order
	69200100	LINING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16297024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	662271	FRONT COMPARTMENT CARPET SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14446924	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	688368	REAR GLOVE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	688371	END PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65046200	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66400600	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688875	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66228000	REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15781977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66226400	COMPLETE ASH TRAY	Enquire	To Order
	66831200	COMPLETE ASH TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396380	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	662265	ASH TRAY DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64460400	FERRARI-PININFARINA FLAGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188731	YELLOW LIGHT LINK CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188730	CIGAR LIGHTER BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66704500	CIGARETTE LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15690678	SCREW mm. 13	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81360700	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	660878	R.H. LATERAL COVER	Enquire	To Order
	693124	RH LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63783700	AIR OPENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63783800	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62771900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	645852	COMPLETE LH FRONT LATERAL COVER	Enquire	To Order
	693122	LH FRONT LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63784900	CARPET PROTECTION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15909377	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61142100	SCREW BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15692577	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12611307	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	693120	LH CENTRAL LATERAL COVER	Enquire	To Order
	660877	L.H. CENTRAL LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	666581	TUNNEL REAR COVER	Enquire	To Order
	688364	TUNNEL REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	668332	MOULDING FOR HAND-BRAKE LEVER	Enquire	To Order
	668327	MOULDING FOR HAND-BRAKE LEVER	Enquire	To Order
	666339	MOULDING FOR HAND-BRAKE LEVER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66764000	BRACKET	Enquire	To Order
	66176200	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638104	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14371971	BRACKET FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70001389	Boot/Fuel opening kit 599/612	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70001389	Boot/Fuel opening kit 599/612	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174766	SEAT MEMORIES CONTROL SWITCH PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194307	BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68993400	COMPLETE ROOF CONTROLS PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68993500	ROOF CONTROLS PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68993600	ELETTROCROMIA CONTROL SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218796	KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180709	HARD TOP OPEN SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216389	CABLE FOR CABLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	66787300	LINING	66787300 LINING Valid for GD Valid for F1	-	1	Enquire
1	69100100	LINING	69100100 LINING Not for GD	-	1	Enquire
1	69200100	LINING	69200100 LINING Valid for GD Not for F1	-	1	Enquire
1	685909	TUNNEL CONSOLE	685909 TUNNEL CONSOLE Not for GD	-	1	Enquire
1	690528	TUNNEL CONSOLE	690528 TUNNEL CONSOLE Valid for GD Not for F1	-	1	Enquire
1	692721	TUNNEL CONSOLE	692721 TUNNEL CONSOLE Valid for GD Valid for F1	-	1	Enquire
2	16297024	SCREW	16297024 SCREW	-	6	Enquire
3	12643724	WASHER	12643724 WASHER	-	6	Enquire
4	662271	FRONT COMPARTMENT CARPET SHIELD	662271 FRONT COMPARTMENT CARPET SHIELD Not for GD not F1	-	1	Enquire
5	13046011	NUT	13046011 NUT	-	2	Enquire
6	14446924	WASHER	14446924 WASHER	-	2	Enquire
7	688368	REAR GLOVE COMPARTMENT	688368 REAR GLOVE COMPARTMENT	-	1	Enquire
8	688371	END PLATE	688371 END PLATE	-	1	Enquire
9	10977624	SCREW	10977624 SCREW	-	3	Enquire
10	65046200	BRACKET	65046200 BRACKET Valid for F1	-	1	Enquire
11	66400600	BRACKET	66400600 BRACKET	-	1	Enquire
12	15688875	SCREW	15688875 SCREW	-	4	Enquire
13	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
14	66228000	REAR BRACKET	66228000 REAR BRACKET	-	1	Enquire
15	15781977	SCREW	15781977 SCREW	-	2	Enquire
16	10977624	SCREW	10977624 SCREW	-	2	Enquire
17	62769800	WASHER	62769800 WASHER	-	2	Enquire
18	62766300	CLIP	62766300 CLIP	-	2	Enquire
19	66226400	COMPLETE ASH TRAY	66226400 COMPLETE ASH TRAY Not for GD	-	1	Enquire
19	66831200	COMPLETE ASH TRAY	66831200 COMPLETE ASH TRAY Valid for GD	-	1	Enquire
20	10396380	CABLE GROMMET	10396380 CABLE GROMMET	-	1	Enquire
21	662265	ASH TRAY DOOR	662265 ASH TRAY DOOR	-	1	Enquire
22	64460400	FERRARI-PININFARINA FLAGS	64460400 FERRARI-PININFARINA FLAGS	-	1	Enquire
23	188731	YELLOW LIGHT LINK CABLE	188731 YELLOW LIGHT LINK CABLE	-	1	Enquire
24	188730	CIGAR LIGHTER BODY	188730 CIGAR LIGHTER BODY	-	1	Enquire
25	66704500	CIGARETTE LIGHTER	66704500 CIGARETTE LIGHTER	-	1	Enquire
26	15690678	SCREW mm. 13	15690678 SCREW mm. 13	-	2	Enquire
27	81360700	WASHER	81360700 WASHER	-	2	Enquire
28	10977624	SCREW	10977624 SCREW	-	1	Enquire
29	62769800	WASHER	62769800 WASHER	-	1	Enquire
30	660878	R.H. LATERAL COVER	660878 R.H. LATERAL COVER Not for GD	-	1	Enquire
30	693124	RH LATERAL COVER	693124 RH LATERAL COVER Valid for GD	-	1	Enquire
31	63783700	AIR OPENING	63783700 AIR OPENING	-	2	Enquire
32	63783800	GASKET	63783800 GASKET	-	2	Enquire
33	62771900	SCREW	62771900 SCREW	-	6	Enquire
34	645852	COMPLETE LH FRONT LATERAL COVER	645852 COMPLETE LH FRONT LATERAL COVER Not for GD	-	1	Enquire
34	693122	LH FRONT LATERAL COVER	693122 LH FRONT LATERAL COVER Valid for GD	-	1	Enquire
35	63784900	CARPET PROTECTION PLATE	63784900 CARPET PROTECTION PLATE Not for GD	-	1	Enquire
36	15909377	SCREW	15909377 SCREW	-	2	Enquire
37	61142100	SCREW BRACKET	61142100 SCREW BRACKET	-	2	Enquire
38	15692577	SCREW	15692577 SCREW	-	2	Enquire
39	12611307	WASHER	12611307 WASHER	-	2	Enquire
40	693120	LH CENTRAL LATERAL COVER	693120 LH CENTRAL LATERAL COVER Valid for GD	-	1	Enquire
40	660877	L.H. CENTRAL LATERAL COVER	660877 L.H. CENTRAL LATERAL COVER Not for GD	-	1	Enquire
41	666581	TUNNEL REAR COVER	666581 TUNNEL REAR COVER Valid for GD	-	1	Enquire
41	688364	TUNNEL REAR COVER	688364 TUNNEL REAR COVER Not for GD	-	1	Enquire
42	62769800	WASHER	62769800 WASHER not as spare part use part number: 12638178	-	2	Enquire
43	668332	MOULDING FOR HAND-BRAKE LEVER	668332 MOULDING FOR HAND-BRAKE LEVER Optional Valid for sport seat Valid for GD	-	1	Enquire
43	668327	MOULDING FOR HAND-BRAKE LEVER	668327 MOULDING FOR HAND-BRAKE LEVER Optional Valid for sport seat Not for GD	-	1	Enquire
43	666339	MOULDING FOR HAND-BRAKE LEVER	666339 MOULDING FOR HAND-BRAKE LEVER Valid for GD	-	1	Enquire
43	660873	MOULDING FOR HAND-BRAKE LEVER	660873 MOULDING FOR HAND-BRAKE LEVER Not for GD	-	1	Enquire
43	66837800	MOULDING FOR HAND-BRAKE LEVER	66837800 MOULDING FOR HAND-BRAKE LEVER Carbon Optional Valid for GD	-	1	Enquire
43	66837700	MOULDING FOR HAND-BRAKE LEVER	66837700 MOULDING FOR HAND-BRAKE LEVER Valid for sport seat Carbon Optional Valid for GD	-	1	Enquire
43	66835800	MOULDING FOR HAND-BRAKE LEVER	66835800 MOULDING FOR HAND-BRAKE LEVER Carbon Optional Not for GD	-	1	Enquire
43	66835700	MOULDING FOR HAND-BRAKE LEVER	66835700 MOULDING FOR HAND-BRAKE LEVER Valid for sport seat Carbon Optional Not for GD	-	1	Enquire
44	66764000	BRACKET	66764000 BRACKET Not for sport seat Valid for GD	-	1	Enquire
44	66176200	BRACKET	66176200 BRACKET Not for sport seat Not for GD	-	1	Enquire
45	10977624	SCREW	10977624 SCREW Not for sport seat	-	2	Enquire
46	12638104	WASHER	12638104 WASHER Not for sport seat	-	4	Enquire
47	15689601	SCREW	15689601 SCREW Not for sport seat	-	1	Enquire
48	14371971	BRACKET FOR SCREW	14371971 BRACKET FOR SCREW Not for sport seat	-	1	Enquire
49	70001389	Boot/Fuel opening kit 599/612	70001389 Boot/Fuel opening kit 599/612	-	1	Enquire
50	70001389	Boot/Fuel opening kit 599/612	70001389 Boot/Fuel opening kit 599/612	-	1	Enquire
51	174766	SEAT MEMORIES CONTROL SWITCH PANEL	174766 SEAT MEMORIES CONTROL SWITCH PANEL Not for sport seat	-	1	Enquire
52	194307	BULB	194307 BULB	-	1	Enquire
53	68993400	COMPLETE ROOF CONTROLS PLATE	68993400 COMPLETE ROOF CONTROLS PLATE	-	1	Enquire
54	68993500	ROOF CONTROLS PLATE	68993500 ROOF CONTROLS PLATE	-	1	Enquire
55	68993600	ELETTROCROMIA CONTROL SUPPORT	68993600 ELETTROCROMIA CONTROL SUPPORT	-	1	Enquire
56	218796	KNOB	218796 KNOB	-	1	Enquire
57	180709	HARD TOP OPEN SWITCH	180709 HARD TOP OPEN SWITCH	-	1	Enquire
58	216389	CABLE FOR CABLE	216389 CABLE FOR CABLE	-	1	Enquire
